Model # 58031242 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58031242 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Mt Sup Brace 25428
#3

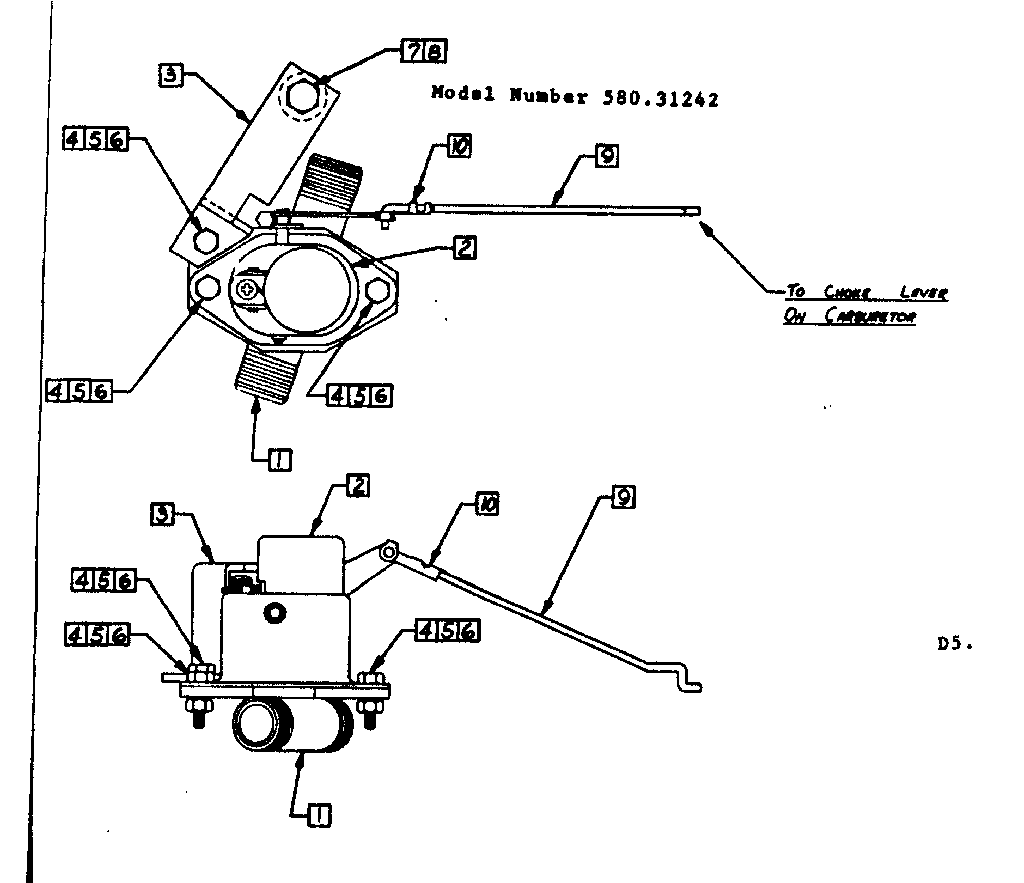

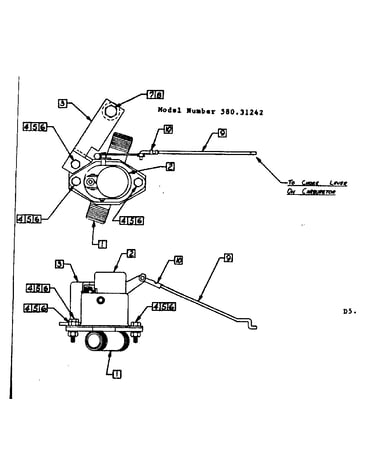

Choke assembly diagram

Mt sup brace

Part #25428

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 22158
#20

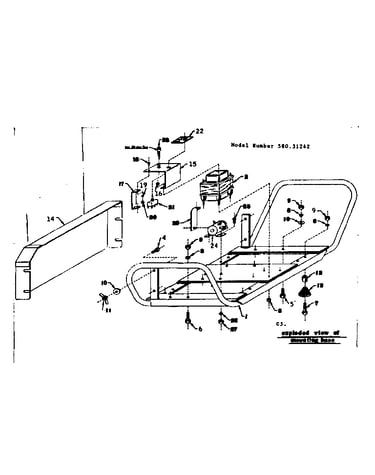

Mounting base diagram

Hex nut

Part #22158

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 24726
#7

Choke assembly diagram

Cap screw

Part #24726

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 22693
#11

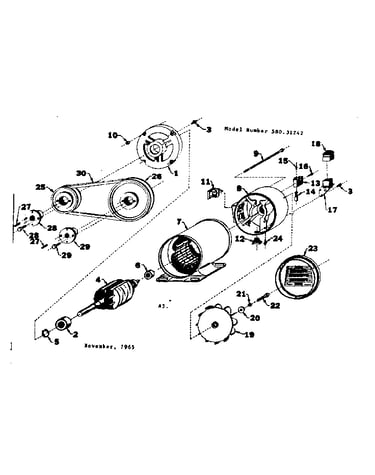

Stator assembly diagram

Receptacle

Part #22693

The manufacturer no longer makes this part, and there's no substitute part

Bearing Carrier 24765
#1

Stator assembly diagram

Bearing carrier

Part #24765

The manufacturer no longer makes this part, and there's no substitute part

Bearing Carrier 24382-B
#8

Stator assembly diagram

Bearing carrier

Part #24382-B

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22097
Lock washer

Part #22097

The manufacturer no longer makes this part, and there's no substitute part

Bus Bar 25324
#28

Mounting base diagram

Bus bar

Part #25324

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly M-24454
#7A

Stator assembly diagram

Stator assembly

Part #M-24454

The manufacturer no longer makes this part, and there's no substitute part

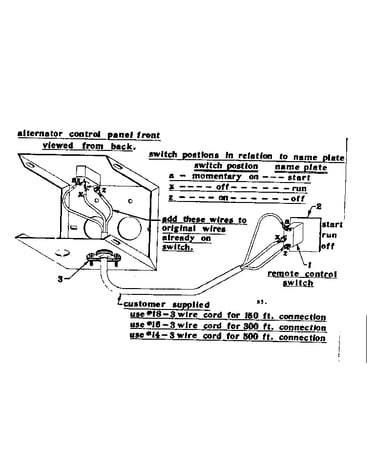

Switch 25411
Switch

Part #25411

The manufacturer no longer makes this part, and there's no substitute part
