GE
Dehumidifier

Model # AHK65LKM1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHK65LKM1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Om Dehumidif 49-7557
#9999

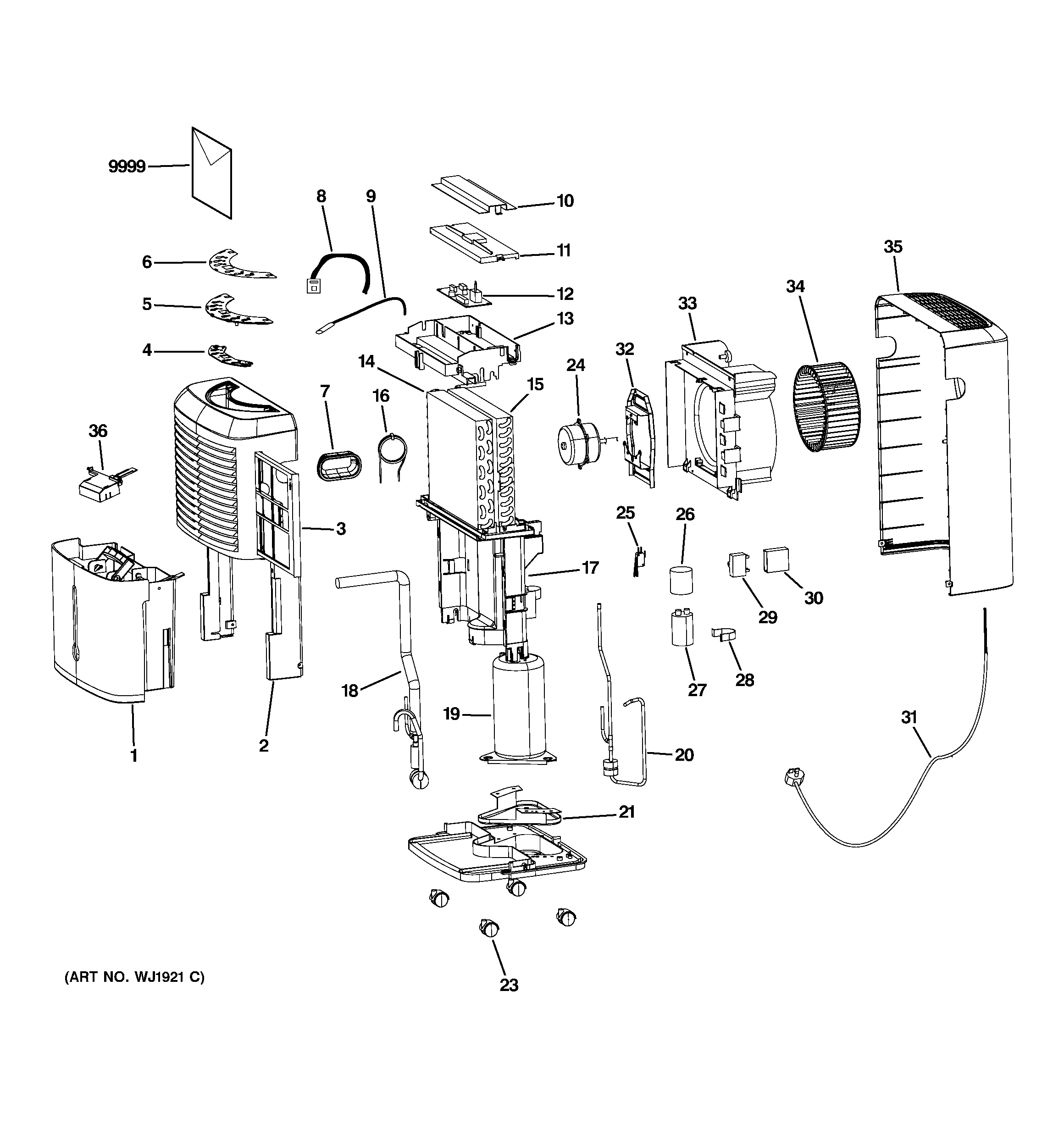

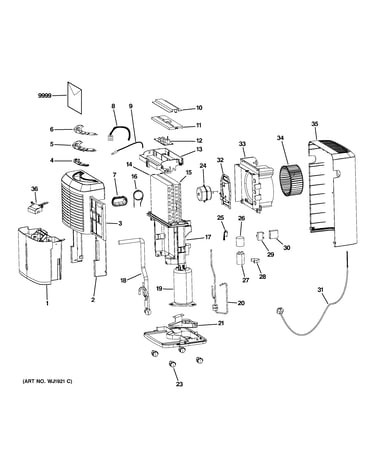

Dehumidifier diagram

Om dehumidif

Part #49-7557

$18.59 |
10% OFF Phone Price : $20.59
In Stock
Temperature Sensor WK23X10020
#9

Dehumidifier diagram

Temperature sensor

Part #WK23X10020

The manufacturer no longer makes this part, and there's no substitute part

Filter WK85X10009
#3

Dehumidifier diagram

Filter

Part #WK85X10009

The manufacturer no longer makes this part, and there's no substitute part

Caster WK06X10003
#23

Dehumidifier diagram

Caster

Part #WK06X10003

The manufacturer no longer makes this part, and there's no substitute part

Suction Pipe WK57X10016
#18

Dehumidifier diagram

Suction pipe

Part #WK57X10016

The manufacturer no longer makes this part, and there's no substitute part

Centrifugal WK73X10006
#34

Dehumidifier diagram

Centrifugal

Part #WK73X10006

The manufacturer no longer makes this part, and there's no substitute part

Cover E-part WK79X10014
#10

Dehumidifier diagram

Cover e-part

Part #WK79X10014

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount WK66X10008
#32

Dehumidifier diagram

Motor mount

Part #WK66X10008

The manufacturer no longer makes this part, and there's no substitute part

Cover Electronic Control WK79X10015
#11

Dehumidifier diagram

Cover electronic control

Part #WK79X10015

The manufacturer no longer makes this part, and there's no substitute part

Humidity Sensor WK23X10018
#8

Dehumidifier diagram

Humidity sensor

Part #WK23X10018

The manufacturer no longer makes this part, and there's no substitute part
