Kenmore
Canister Vacuum

Model # 1162920080 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162920080 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Crevice Tool 4147889
#16

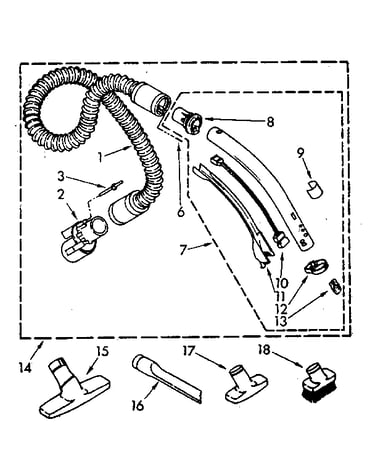

Hose and attachment diagram

Crevice tool

Part #4147889

The manufacturer no longer makes this part, and there's no substitute part

Hose 4147895
#14

Hose and attachment diagram

Hose

Part #4147895

The manufacturer no longer makes this part, and there's no substitute part

Suction Control 4147140
#9

Hose and attachment diagram

Suction control

Part #4147140

The manufacturer no longer makes this part, and there's no substitute part

Adapter 4147144
#8

Hose and attachment diagram

Adapter

Part #4147144

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 744426
#10

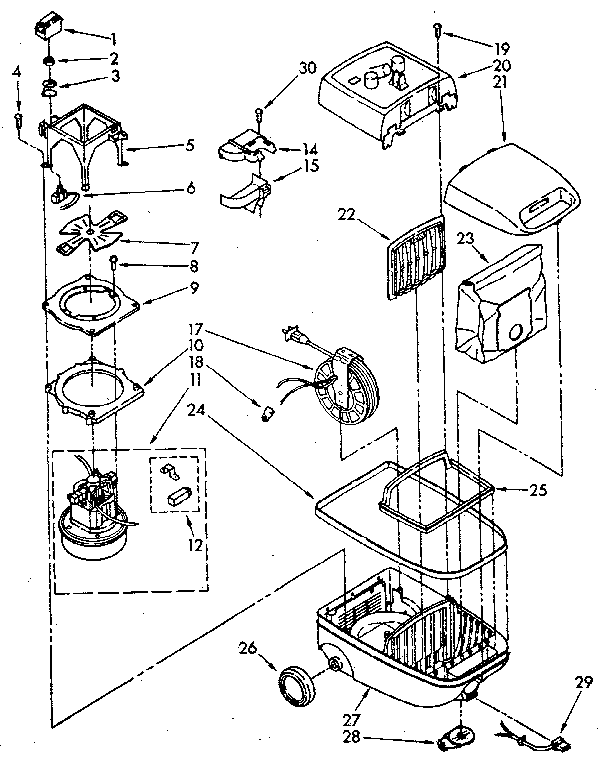

Vacuum cleaner diagram

Motor mount

Part #744426

The manufacturer no longer makes this part, and there's no substitute part

Screw 681315
Screw

Part #681315

The manufacturer no longer makes this part, and there's no substitute part

Wheel 4147119
#26

Vacuum cleaner diagram

Wheel

Part #4147119

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT4151627

#NI

All parts diagram

Parts list

Part #LIT4151627

The manufacturer no longer makes this part, and there's no substitute part

Contact Pin 744330
#3

Hose and attachment diagram

Contact pin

Part #744330

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4150717
#10

Hose and attachment diagram

Power cord

Part #4150717

The manufacturer no longer makes this part, and there's no substitute part
