Model # 583356010 Official Kenmore portable heater

Here are the diagrams and repair parts for Official Kenmore 583356010 portable heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 72 parts |

Remington Space Heater Pump Hole Plug M22997

#16

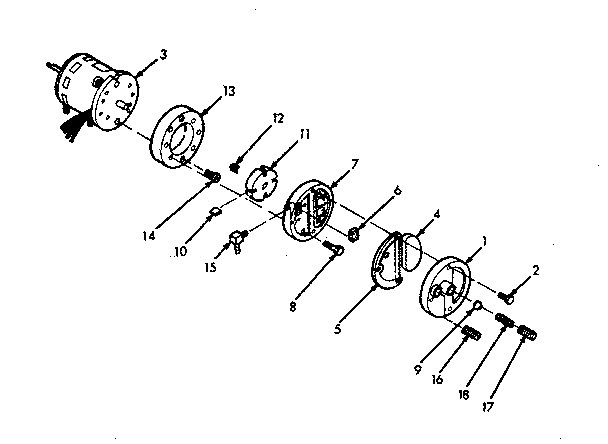

Motor and pump diagram

Remington space heater pump hole plug

Part #M22997

The manufacturer no longer makes this part, and there's no substitute part

Reddy Space Heater Pump Rotor Blade M8643

#10

Motor and pump diagram

Reddy space heater pump rotor blade

Part #M8643

The manufacturer no longer makes this part, and there's no substitute part

Remington Space Heater Pump Rotor Insert M22009

#12

Motor and pump diagram

Remington space heater pump rotor insert

Part #M22009

The manufacturer no longer makes this part, and there's no substitute part

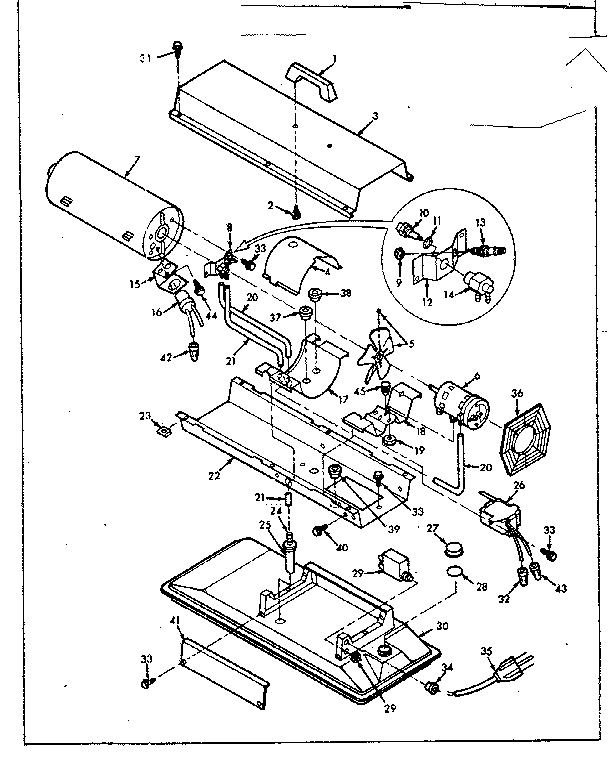

Burners diagram

Burner assembly

Part #M29707-03

The manufacturer no longer makes this part, and there's no substitute part

Motor assembly

Part #M29750-04

The manufacturer no longer makes this part, and there's no substitute part

Screw

Part #M12461-31

The manufacturer no longer makes this part, and there's no substitute part

#13

Burners diagram

Spark plug

Part #M29835-2

The manufacturer no longer makes this part, and there's no substitute part

Burners diagram

Chamber

Part #M50785-01

The manufacturer no longer makes this part, and there's no substitute part

#14

Burners diagram

Adapter

Part #M29805

The manufacturer no longer makes this part, and there's no substitute part

#17

Motor and pump diagram

Screw

Part #M27694

The manufacturer no longer makes this part, and there's no substitute part
