Model # GSD4335Z02WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE GSD4335Z02WW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Mechanism WD26X10004
#310

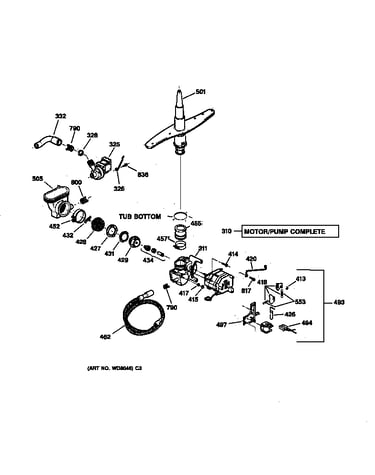

Motor-pump mechanism diagram

Mechanism

Part #WD26X10004

Replaced by #WD26X10013

?
Manufacturer substitution
This part replaces WD26X10004. Substitute parts can look different from the original.
BEST SELLER
$148.24 |
9% OFF Was : $162.37
In Stock
Fill Cap WD12X10024
#829

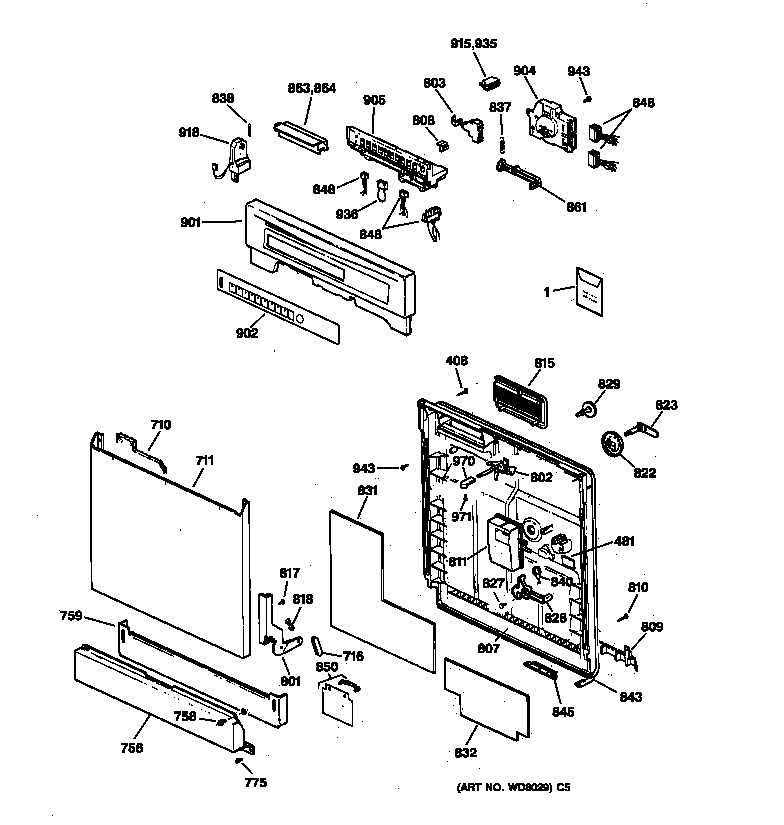

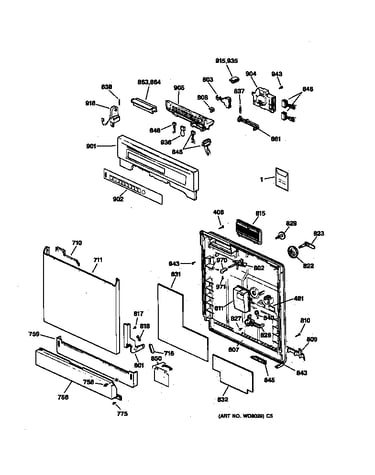

Escutcheon & door assembly diagram

Fill cap

Part #WD12X10024

Replaced by #WD12X24238

?
Manufacturer substitution
This part replaces WD12X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Dishwasher Dishrack Roller And Stud, Upper, 4-pack WD12X383
#700

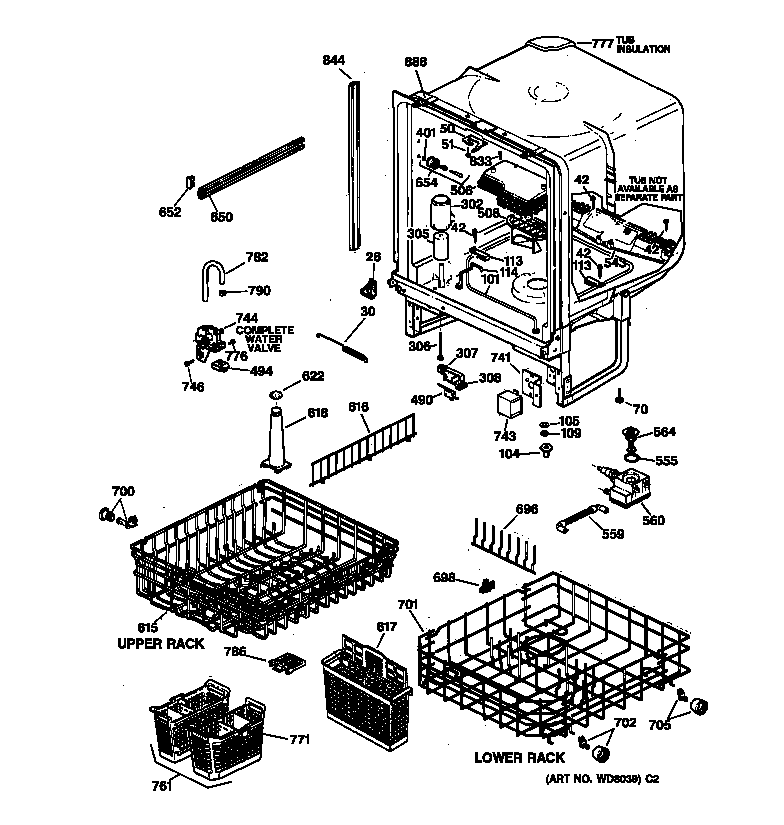

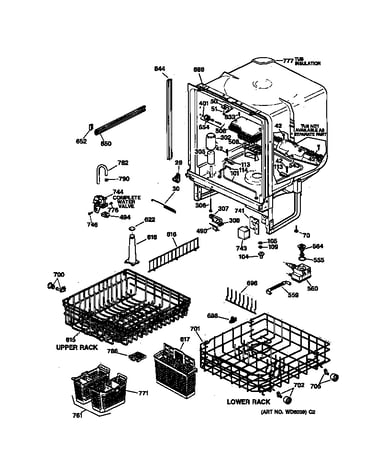

Body parts diagram

Dishwasher dishrack roller and stud, upper, 4-pack

Part #WD12X383

Replaced by #WD12X10327

?
Manufacturer substitution
This part replaces WD12X383. Substitute parts can look different from the original.
BEST SELLER
$15.22 |
12% OFF Phone Price : $17.22
In Stock
Nut Twr H WD1X1491
#104

Body parts diagram

Nut twr h

Part #WD1X1491

Replaced by #WD01X10070

?
Manufacturer substitution
This part replaces WD1X1491. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dishwasher Dishrack Roller, Lower Front (replaces Wd12x0271, Wd12x426, Wd12x440) WD12X271
#702

Body parts diagram

Dishwasher dishrack roller, lower front (replaces wd12x0271, wd12x426, wd12x440)

Part #WD12X271

BEST SELLER
$9.72 |
9% OFF Phone Price : $10.72
In Stock
Dishwasher Door Hinge Arm Link WD14X10009
#716

Escutcheon & door assembly diagram

Dishwasher door hinge arm link

Part #WD14X10009

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dishwasher Gate Shaft Seal (replaces Wd08x0181) WD8X181
#417

Motor-pump mechanism diagram

Dishwasher gate shaft seal (replaces wd08x0181)

Part #WD8X181

This item is not returnable
$21.47 |
22% OFF Phone Price : $27.47
In Stock
Dishwasher Sump Clamp WD1X1392
#452

Motor-pump mechanism diagram

Dishwasher sump clamp

Part #WD1X1392

$25.72 |
19% OFF Phone Price : $31.72
In Stock
Dishwasher Detergent Dispenser Cover Latch Kit (replaces Wd16x0292, Wd16x10011, Wd16x292) WD16X10005
#828

Escutcheon & door assembly diagram

Dishwasher detergent dispenser cover latch kit (replaces wd16x0292, wd16x10011, wd16x292)

Part #WD16X10005

This item is not returnable
$4.85 |
17% OFF Phone Price : $5.85
In Stock
Dishwasher Lower Spray Arm Pivot Shaft (replaces Wd18x0214) WD18X214
#455

Motor-pump mechanism diagram

Dishwasher lower spray arm pivot shaft (replaces wd18x0214)

Part #WD18X214

This item is not returnable
$17.00 |
11% OFF Phone Price : $19.00
In Stock
