Model # S2200001 Official Hoover carpet sweeper

Here are the diagrams and repair parts for Official Hoover S2200001 carpet sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Housing 59136058
#29

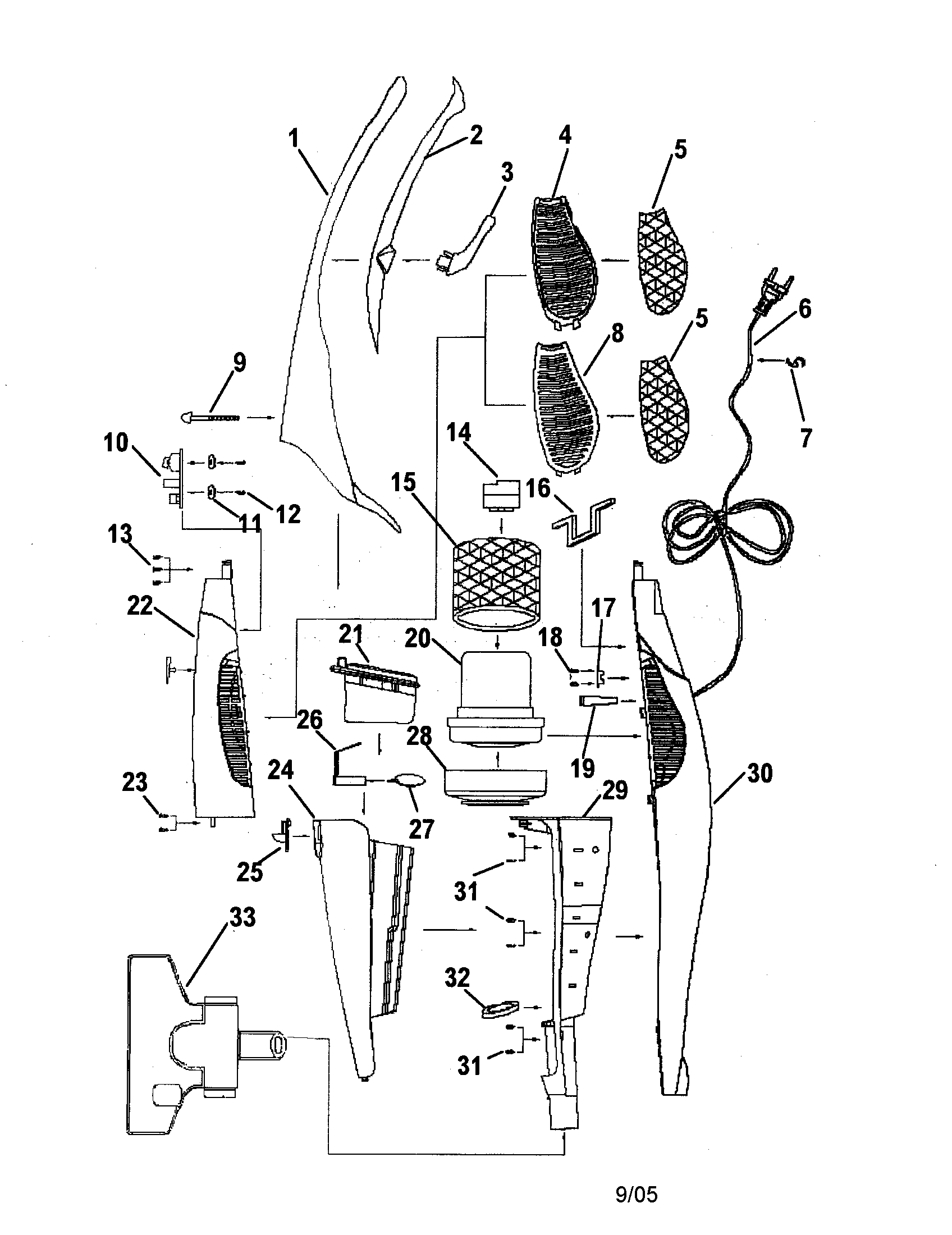

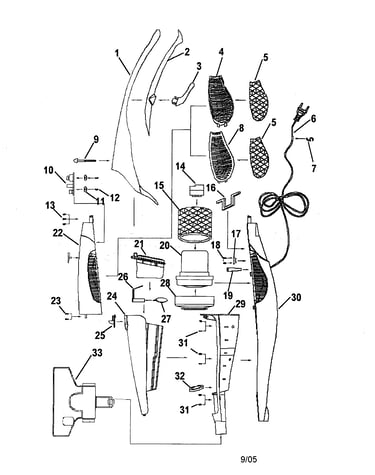

Vacuum assembly diagram

Housing

Part #59136058

The manufacturer no longer makes this part, and there's no substitute part

Cover 59136056
#22

Vacuum assembly diagram

Cover

Part #59136056

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 59136022
#5

Vacuum assembly diagram

Air filter

Part #59136022

The manufacturer no longer makes this part, and there's no substitute part

Circuit Bo 59136035
#10A

Vacuum assembly diagram

Circuit bo

Part #59136035

The manufacturer no longer makes this part, and there's no substitute part

Bolt Upr H 59136059
#9

Vacuum assembly diagram

Bolt upr h

Part #59136059

The manufacturer no longer makes this part, and there's no substitute part

Motor Seal 59136012
#16

Vacuum assembly diagram

Motor seal

Part #59136012

The manufacturer no longer makes this part, and there's no substitute part

Cover 59136007
#30

Vacuum assembly diagram

Cover

Part #59136007

The manufacturer no longer makes this part, and there's no substitute part

Motor Seal 59136014
#28

Vacuum assembly diagram

Motor seal

Part #59136014

The manufacturer no longer makes this part, and there's no substitute part

Grid Lt 59136010
#8

Vacuum assembly diagram

Grid lt

Part #59136010

The manufacturer no longer makes this part, and there's no substitute part

Carpet/floor Sweepers Filter 59136055
#21

Vacuum assembly diagram

Carpet/floor sweepers filter

Part #59136055

The manufacturer no longer makes this part, and there's no substitute part
