GE
Top-Mount Refrigerator

Model # GTH21KBWABB Official GE refrigerator - w series

Here are the diagrams and repair parts for Official GE GTH21KBWABB refrigerator - w series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Refrigerator Lamp Assembly WR02X12530
#110

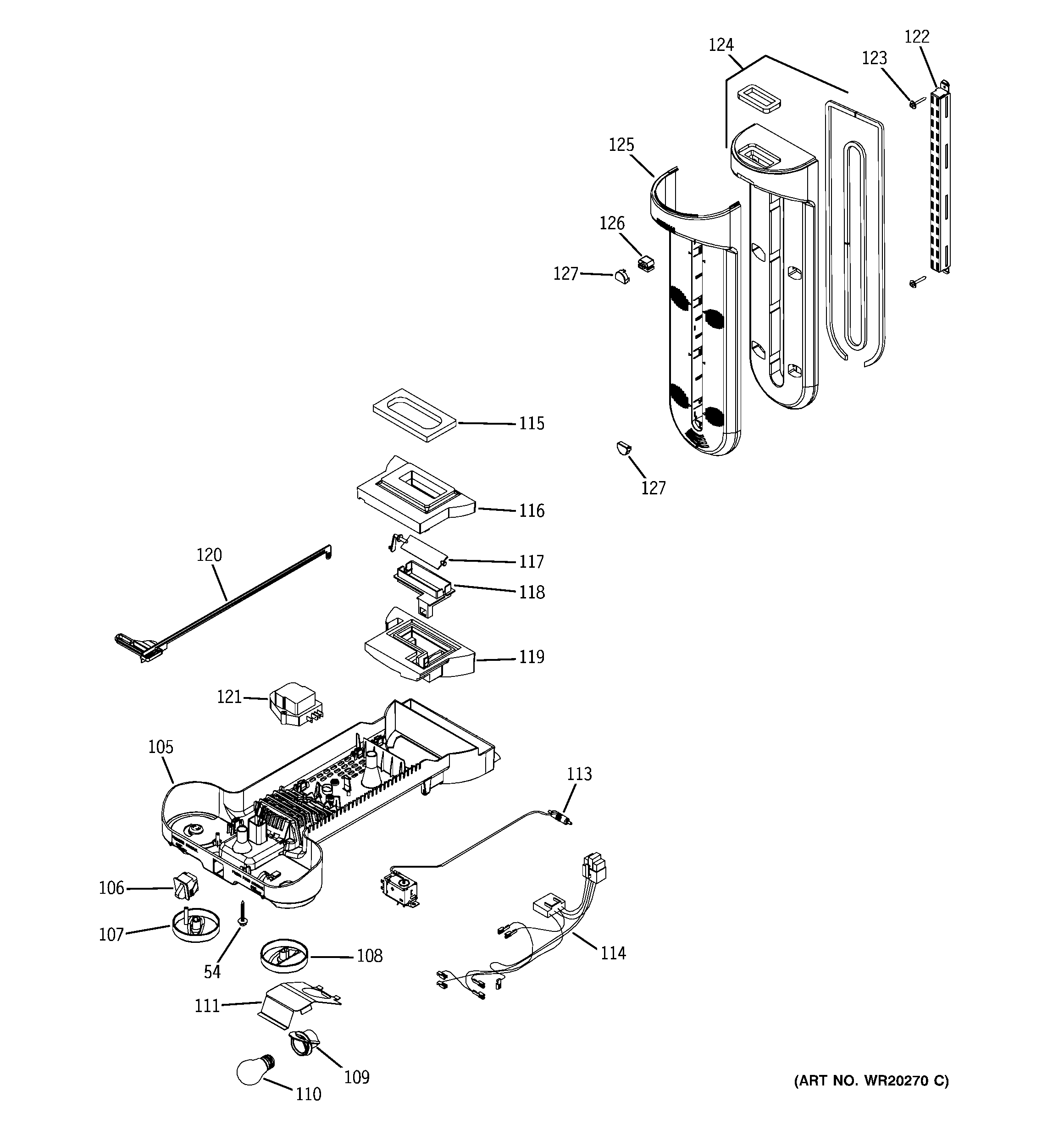

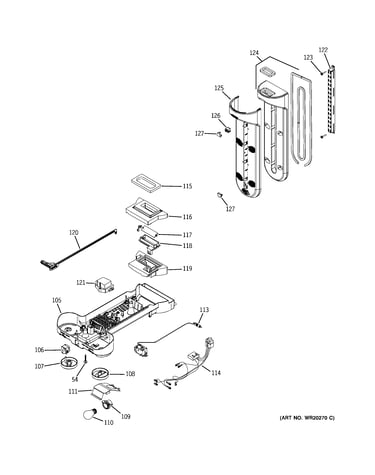

Fresh food section diagram

Refrigerator lamp assembly

Part #WR02X12530

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12530. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Motor Fz Asm WR60X10244
#57

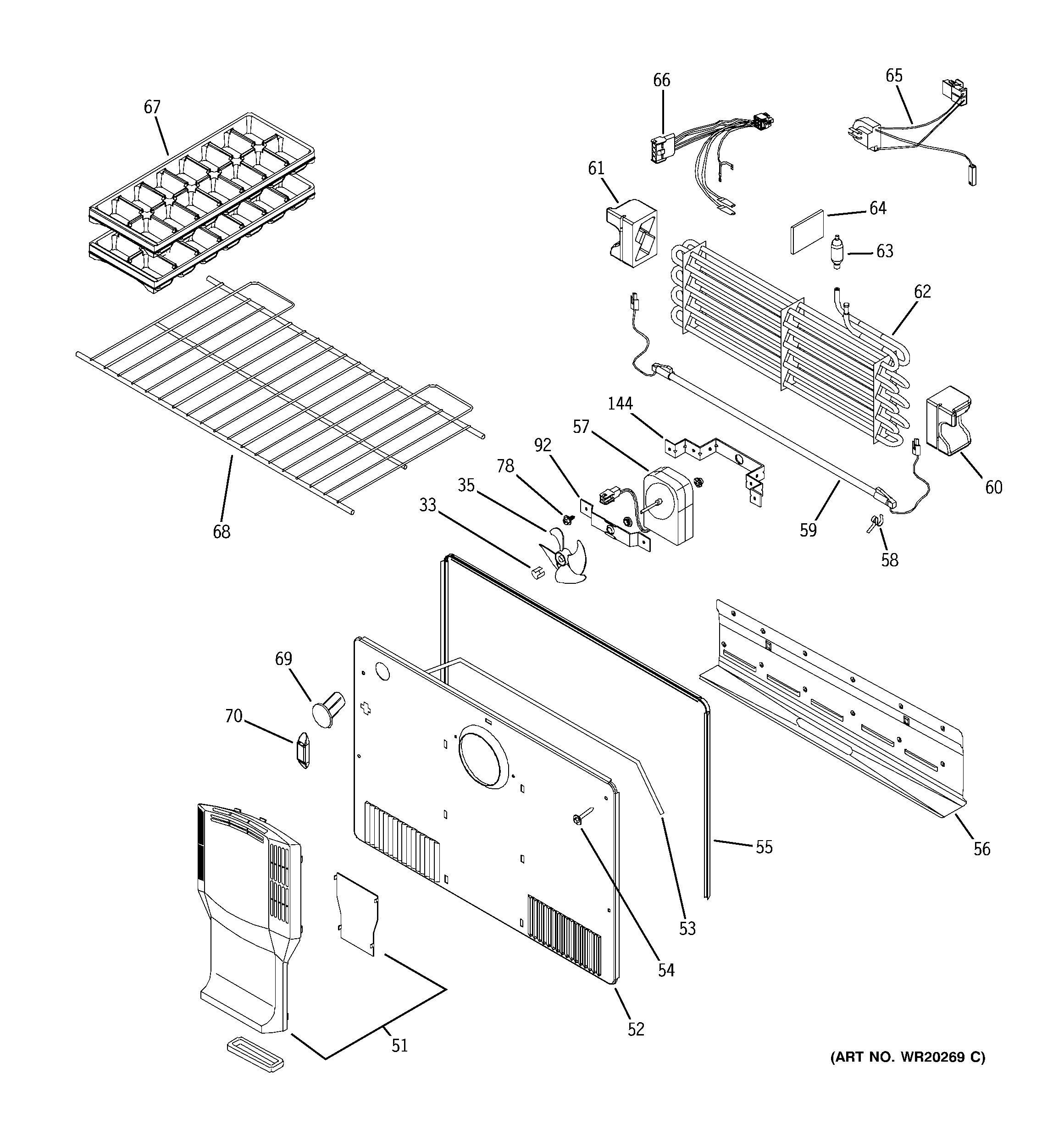

Freezer section diagram

Motor fz asm

Part #WR60X10244

Replaced by #WR60X26085

?
Manufacturer substitution
This part replaces WR60X10244. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Refrigerator Special Screw WR01X10717
#142

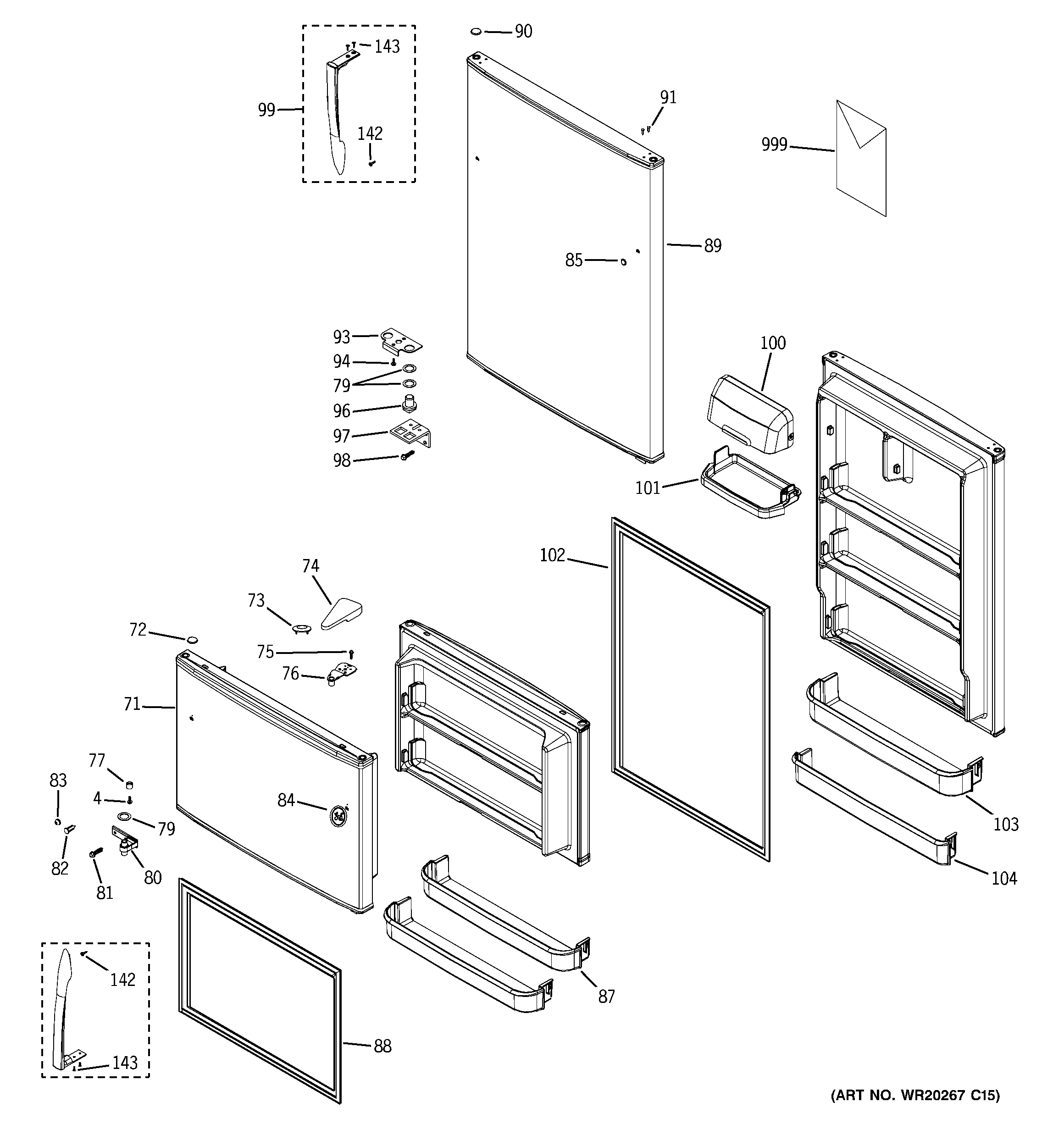

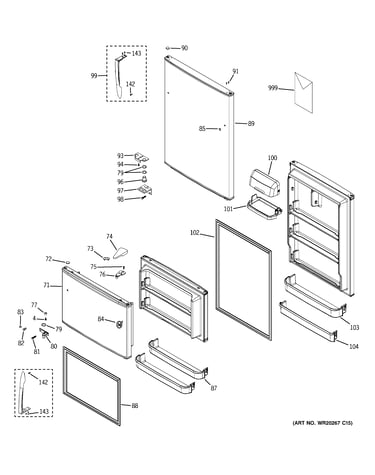

Doors diagram

Refrigerator special screw

Part #WR01X10717

Replaced by #WR01X10450

?
Manufacturer substitution
This part replaces WR01X10717. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Freezer Caster WR02X12541
#150

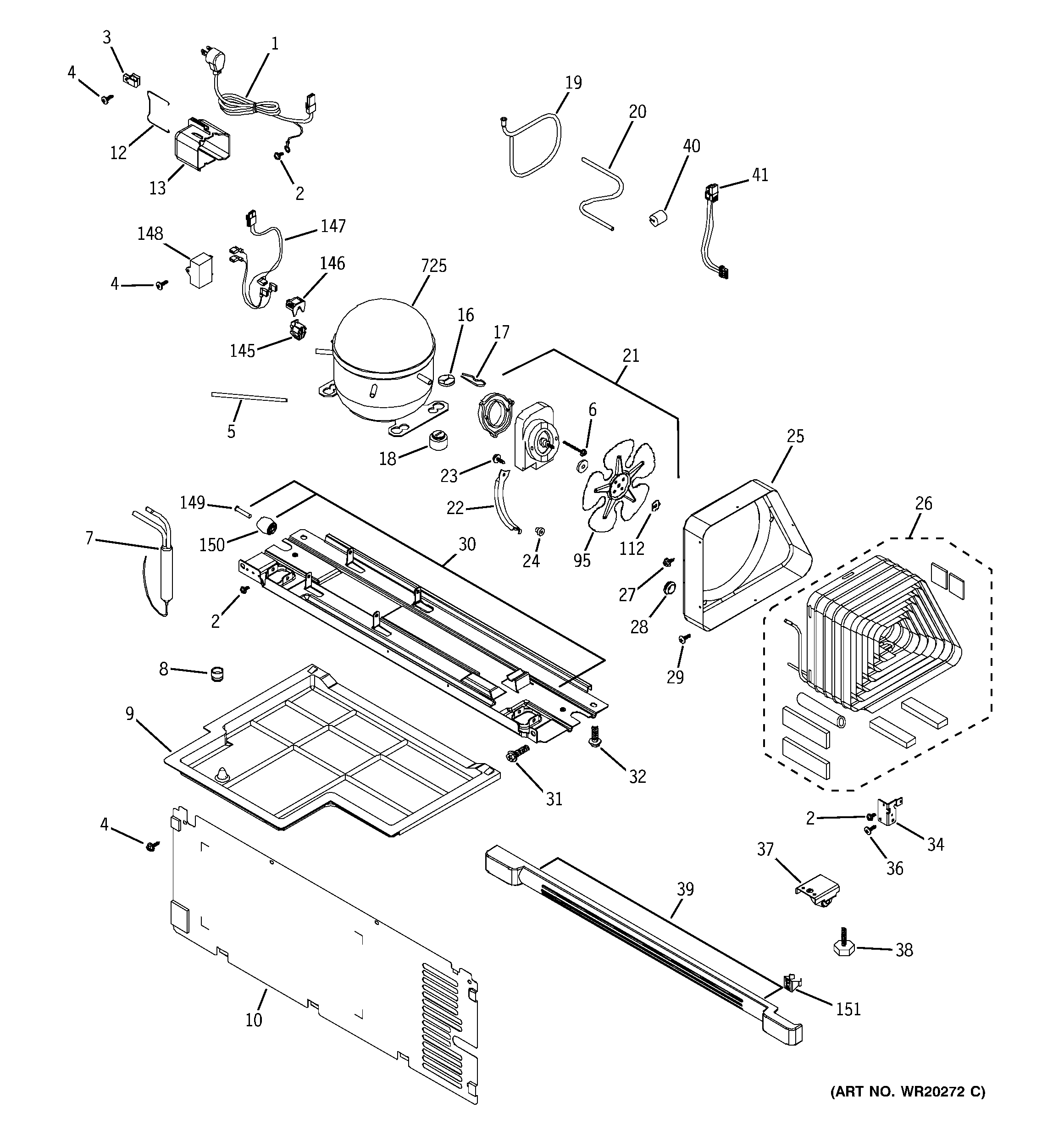

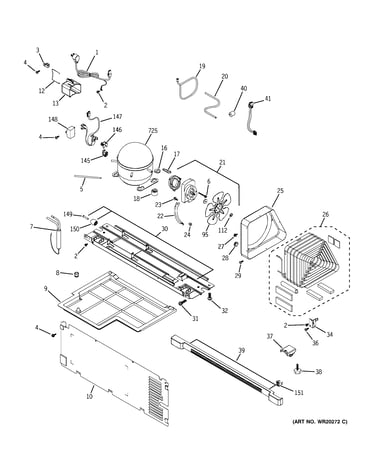

Unit parts diagram

Refrigerator freezer caster

Part #WR02X12541

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Gasket Louve WR14X10241
#55

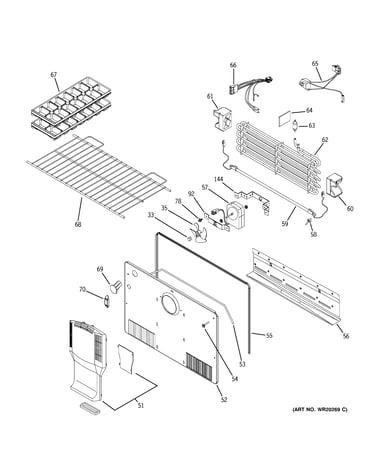

Freezer section diagram

Gasket louve

Part #WR14X10241

$35.25 |
15% OFF Phone Price : $41.25
In Stock
Special Grip WR01X10716
#143

Doors diagram

Special grip

Part #WR01X10716

This item is not returnable
$5.00
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10710
#79

Doors diagram

Refrigerator door hinge nylon washer

Part #WR01X10710

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Special C Mo WR01X10707
#23

Unit parts diagram

Special c mo

Part #WR01X10707

This item is not returnable
$5.00
In Stock
Refrigerator Crisper Drawer Cover Frame WR32X10645
#43

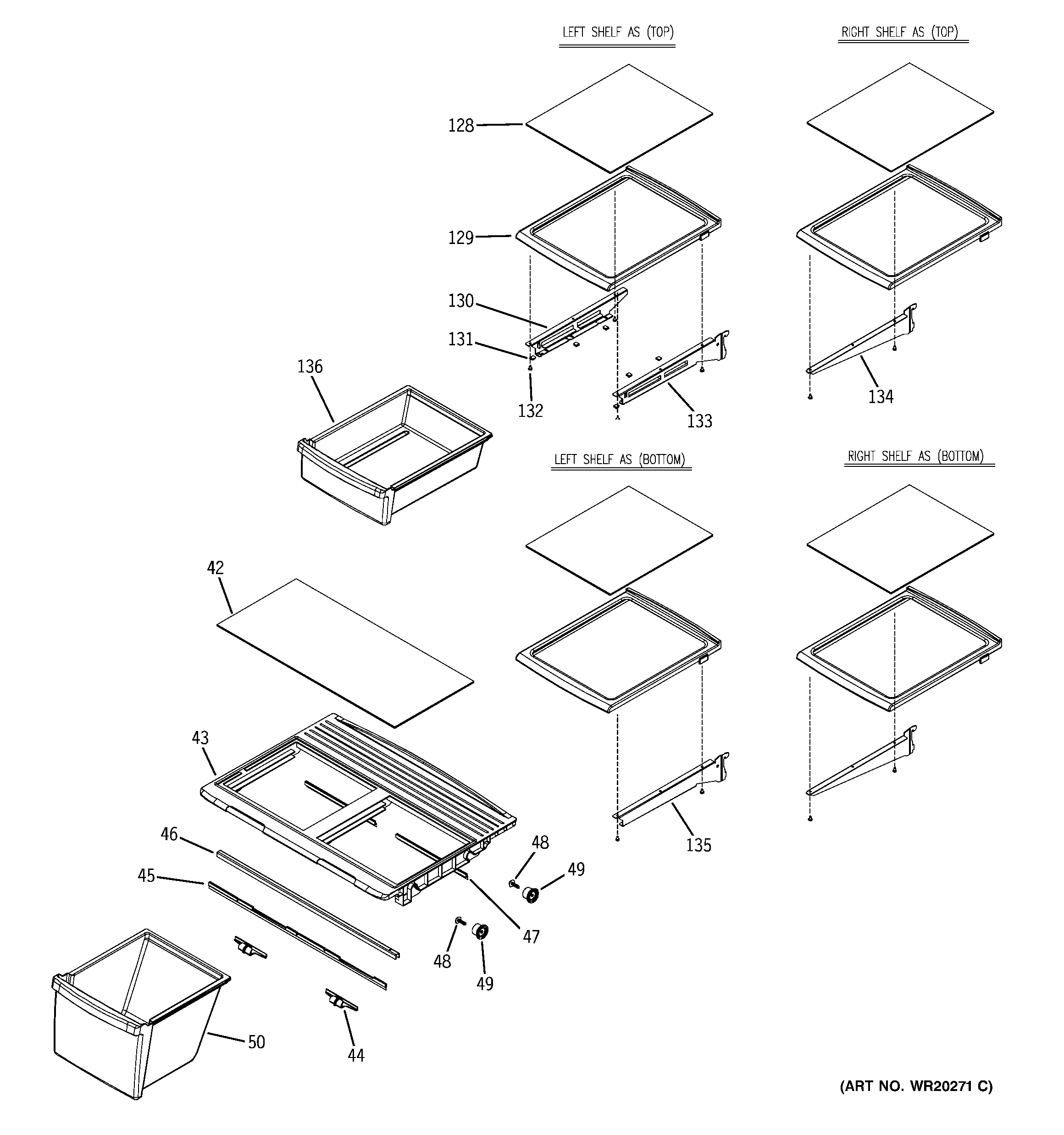

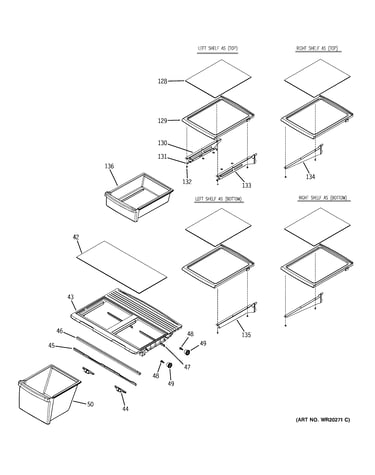

Fresh food shelves diagram

Refrigerator crisper drawer cover frame

Part #WR32X10645

$112.12 |
10% OFF Phone Price : $124.12
In Stock
Cover Cab Br WR32X10635
#39

Unit parts diagram

Cover cab br

Part #WR32X10635

$34.63 |
15% OFF Phone Price : $40.63
In Stock
