Model # GFWR2705H2MC Official GE washer

Here are the diagrams and repair parts for Official GE GFWR2705H2MC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Washer Spin Basket WH45X10148
#311

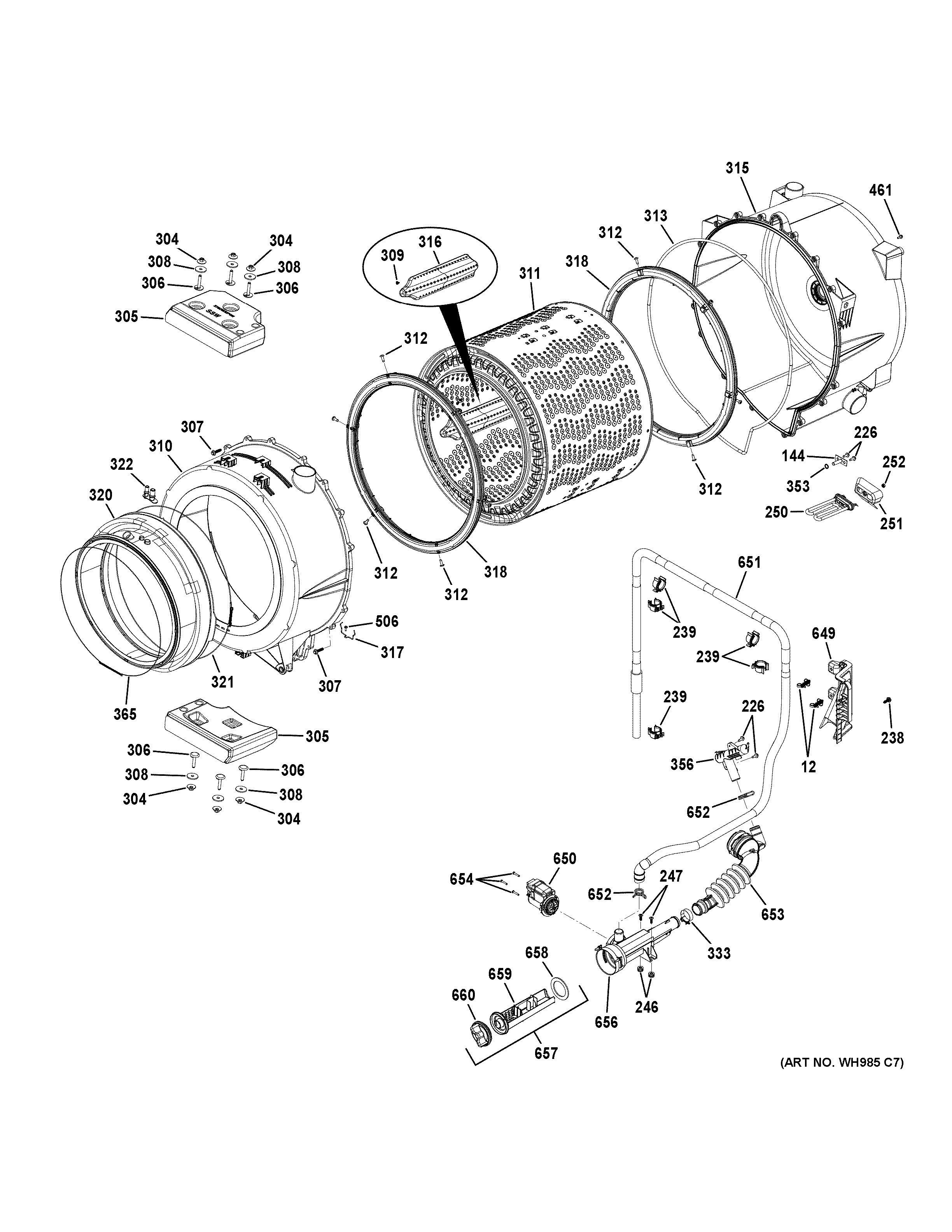

Tub & drain pump diagram

Washer spin basket

Part #WH45X10148

Replaced by #WH45X10137

?
Manufacturer substitution
This part replaces WH45X10148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$457.24 |
$12.00 OFF Phone Price : $469.24
In Stock
Dishwasher Screw WD02X10067
#506

Tub & drain pump diagram

Dishwasher screw

Part #WD02X10067

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Water Inlet Valve WH13X10066
#225

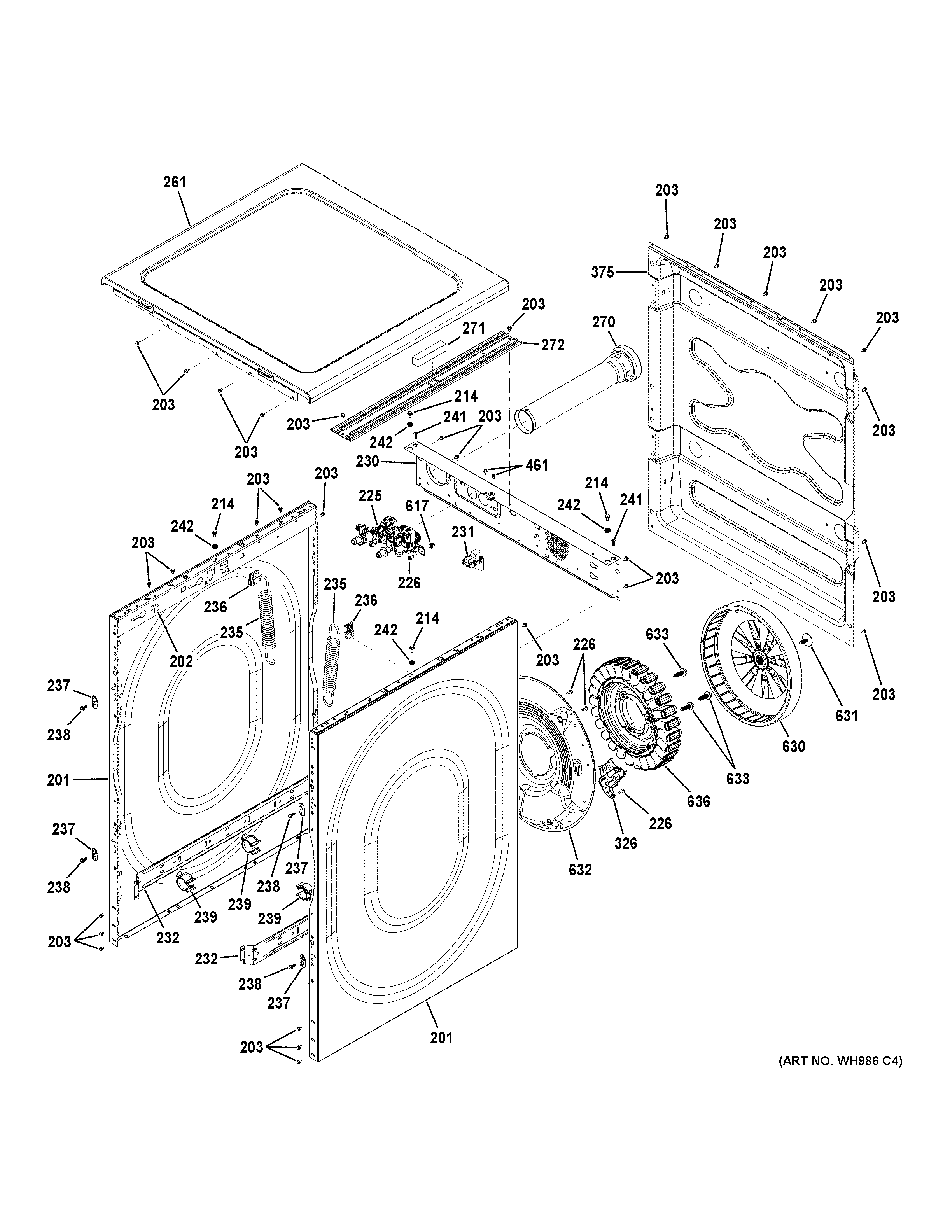

Cabinet & drive assembly diagram

Washer water inlet valve

Part #WH13X10066

$94.08 |
6% OFF Phone Price : $100.08
In Stock
Gasket Clamp WH01X10744
#365

Tub & drain pump diagram

Gasket clamp

Part #WH01X10744

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Clamp WD01X10105
#333

Tub & drain pump diagram

Clamp

Part #WD01X10105

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Pcb Ui Assembly WH12X25778
#120

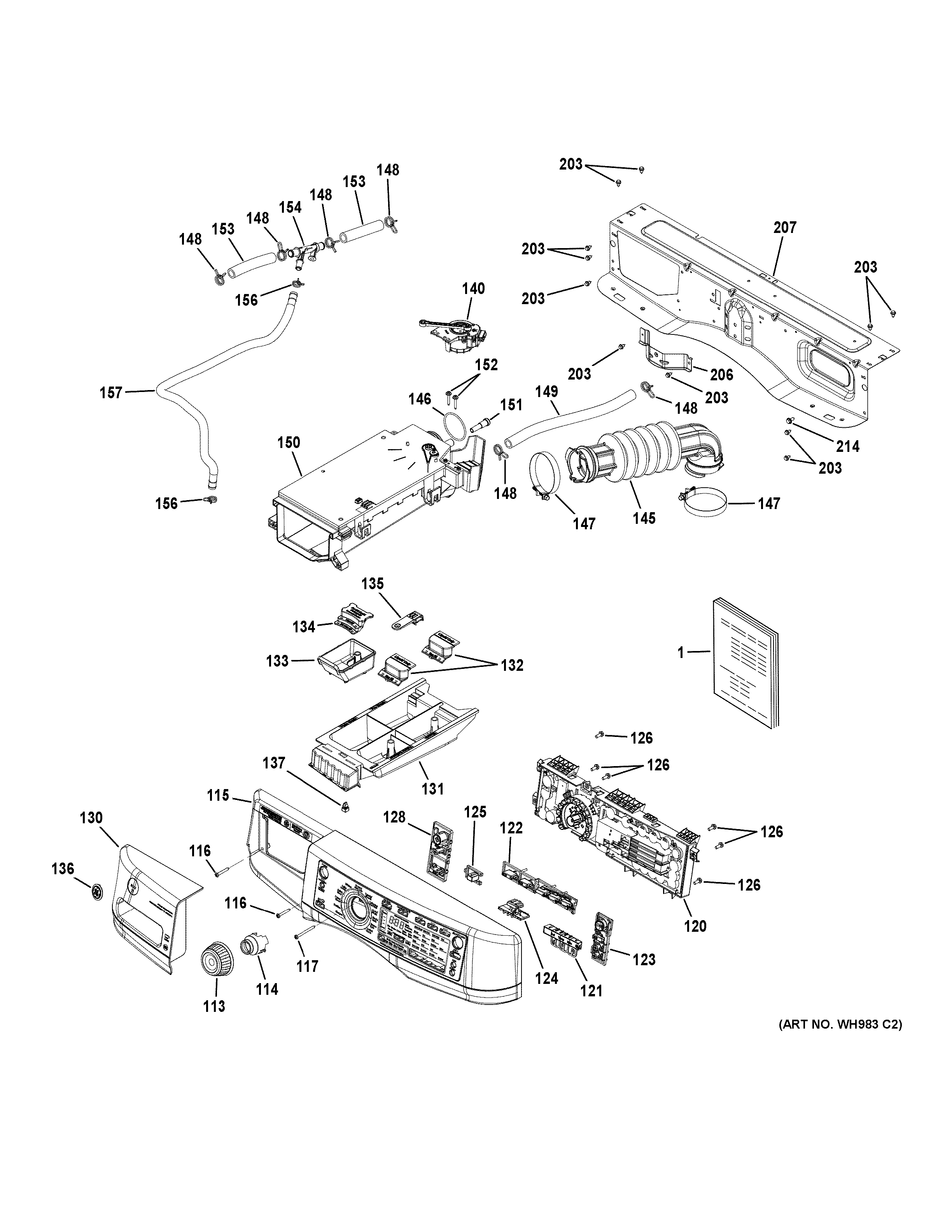

Controls & dispenser diagram

Pcb ui assembly

Part #WH12X25778

Replaced by #WE04X25572

?
Manufacturer substitution
This part replaces WH12X25778. Substitute parts can look different from the original.
This item is not returnable
$305.83 |
$12.00 OFF Phone Price : $317.83
In Stock
Dryer Control Knob WH01X10748
#113

Controls & dispenser diagram

Dryer control knob

Part #WH01X10748

$22.85 |
21% OFF Phone Price : $28.85
In Stock
Washer Basket Balance Ring WH45X10138
#318

Tub & drain pump diagram

Washer basket balance ring

Part #WH45X10138

$106.18 |
10% OFF Phone Price : $118.18
In Stock
Damper Pin WH01X10726
#211

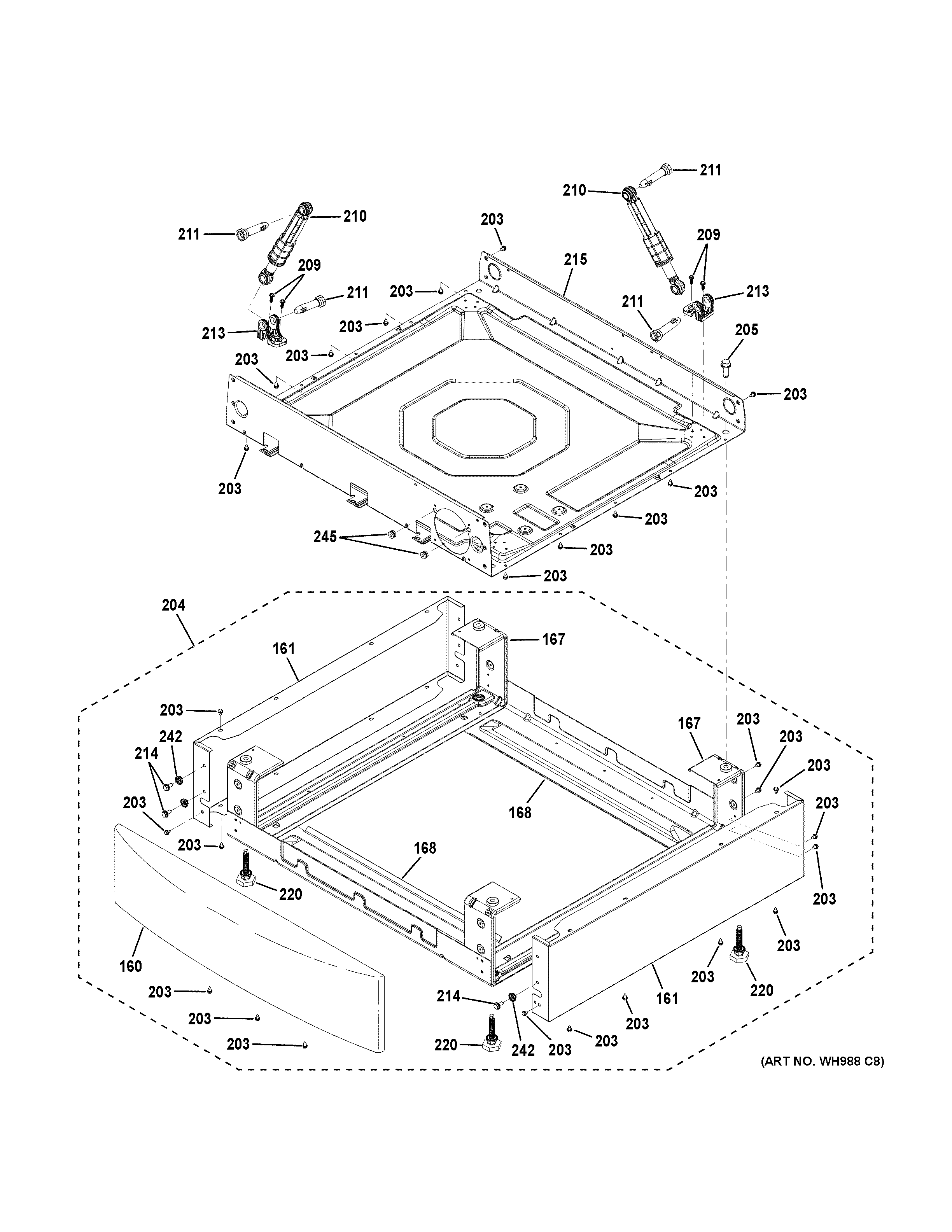

Base pan & riser assembly diagram

Damper pin

Part #WH01X10726

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Door Inner Glass (replaces Wh46x10242, Wh46x25561) WH46X10286
#282

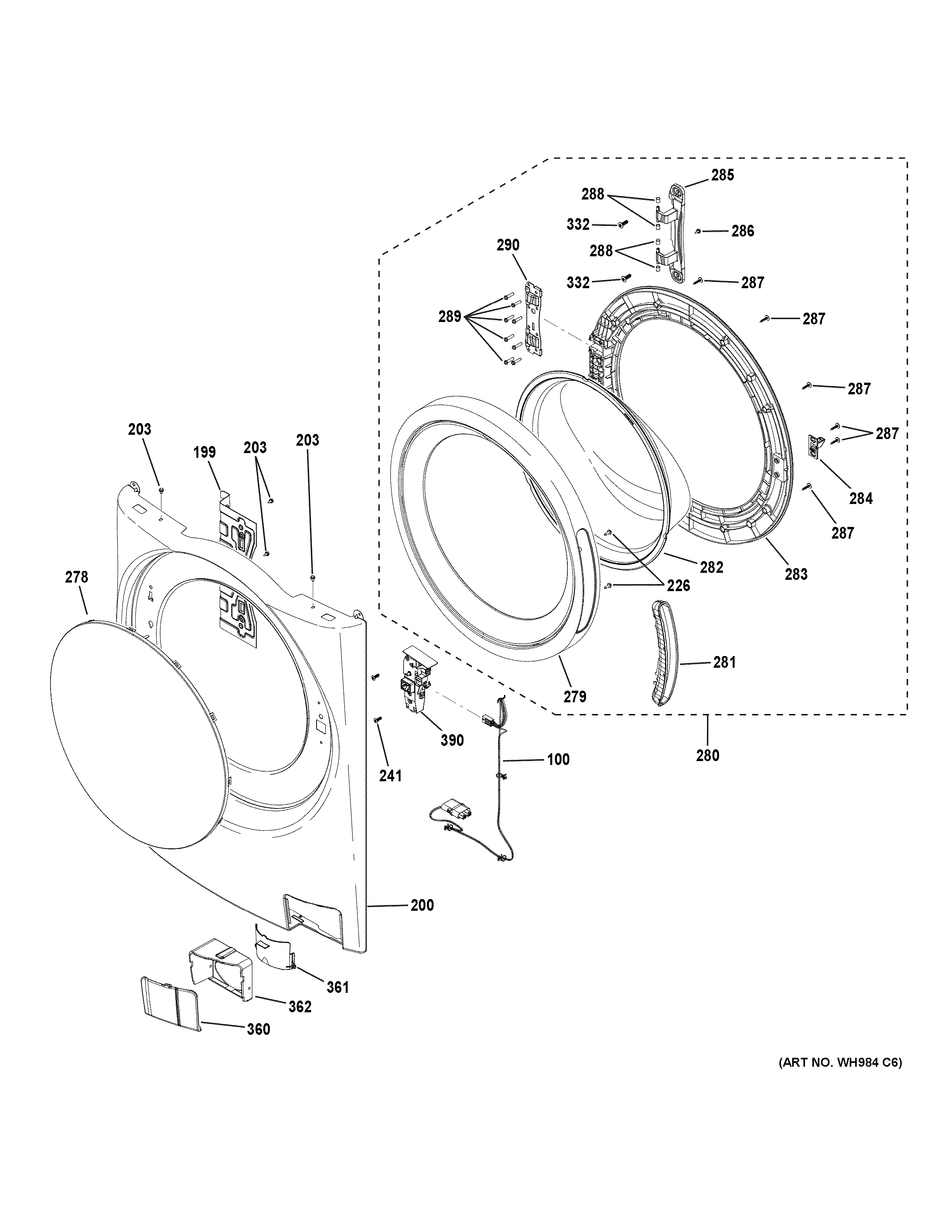

Front panel & door diagram

Washer door inner glass (replaces wh46x10242, wh46x25561)

Part #WH46X10286

$105.79 |
10% OFF Phone Price : $117.79
In Stock
