Model # 1163471290 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1163471290 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

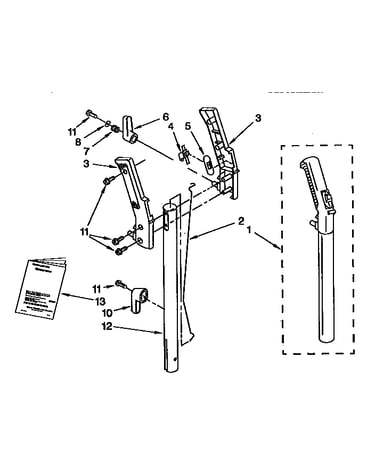

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Suppressor 4368663
#22

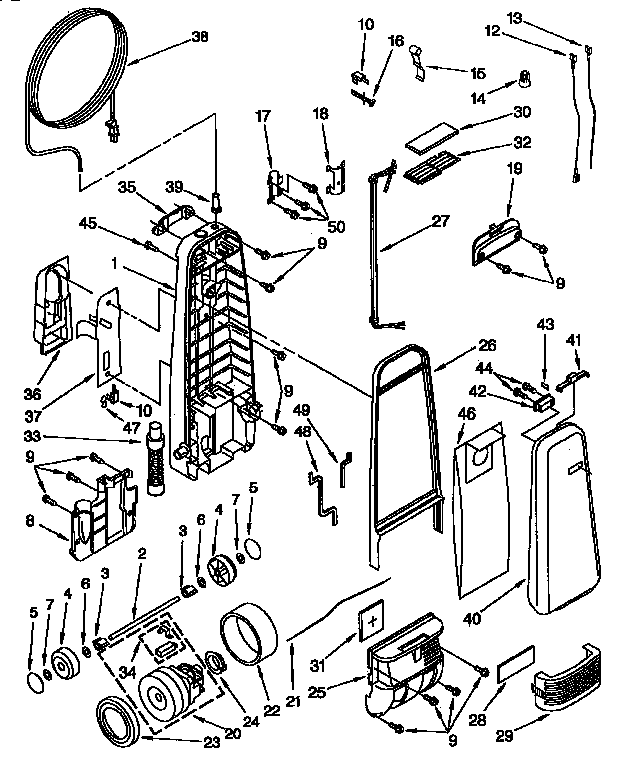

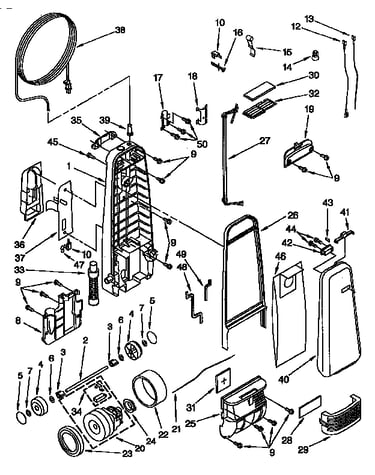

Dust compartment parts diagram

Suppressor

Part #4368663

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#5

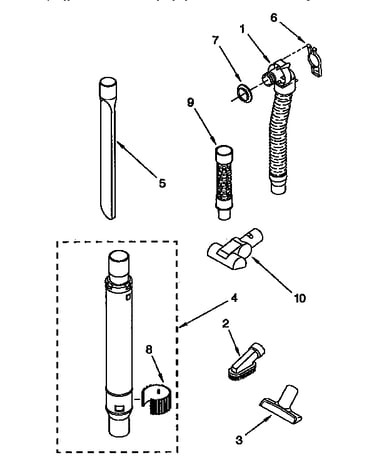

Hose and attachment parts diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#10

Dust compartment parts diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Knob 4369059
#28

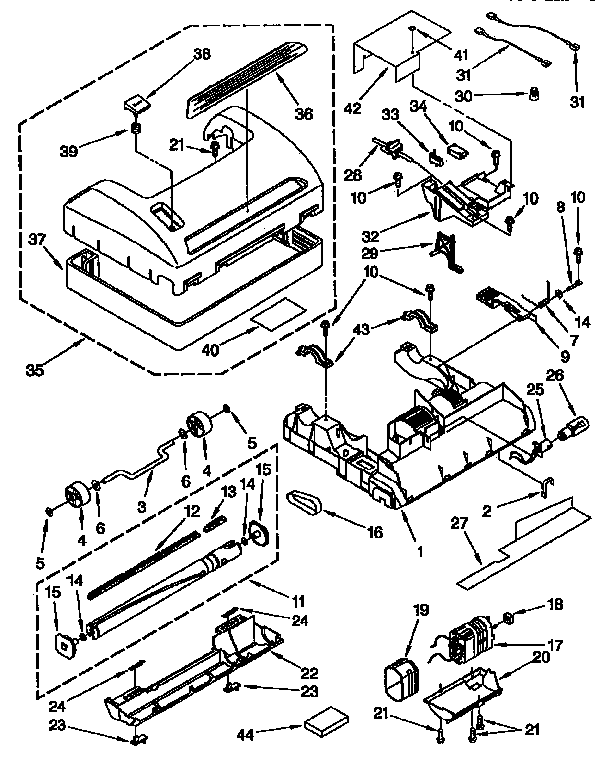

Nozzle and motor parts diagram

Vacuum knob

Part #4369059

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
#10

Hose and attachment parts diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Cover 4368640
#20

Nozzle and motor parts diagram

Vacuum motor cover

Part #4368640

The manufacturer no longer makes this part, and there's no substitute part

Handle 4368785
#35

Dust compartment parts diagram

Handle

Part #4368785

The manufacturer no longer makes this part, and there's no substitute part

Axle 744505
#3

Nozzle and motor parts diagram

Axle

Part #744505

The manufacturer no longer makes this part, and there's no substitute part

Lever Switch 4368658
#15

Dust compartment parts diagram

Lever switch

Part #4368658

The manufacturer no longer makes this part, and there's no substitute part
