GE
Compact Refrigerator

Model # GMR04BANDWW Official GE refrigerator - n series

Here are the diagrams and repair parts for Official GE GMR04BANDWW refrigerator - n series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Refrigerator Door Shelf Rail WR17X11295
#25

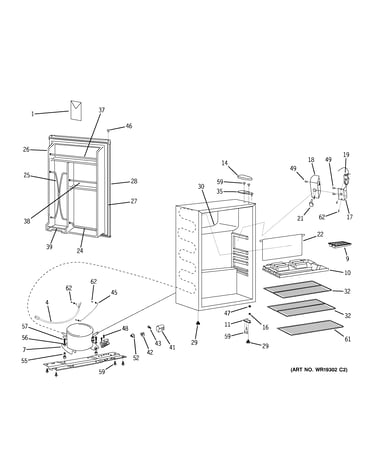

Refrigerator diagram

Refrigerator door shelf rail

Part #WR17X11295

$12.06
In Stock
Refrigerator Sleeve WR02X12237
#55

Refrigerator diagram

Refrigerator sleeve

Part #WR02X12237

$27.60
In Stock
Screw WR01X10674
#48

Refrigerator diagram

Screw

Part #WR01X10674

This item is not returnable
$4.35
In Stock
Screw WR01X10405
#59

Refrigerator diagram

Screw

Part #WR01X10405

Replaced by #WR01X20034

?
Manufacturer substitution
This part replaces WR01X10405. Substitute parts can look different from the original.
This item is not returnable
$4.35
In Stock
Refrigerator Compressor Overload Protector WR50X10072
#42

Refrigerator diagram

Refrigerator compressor overload protector

Part #WR50X10072

Replaced by #WR55X20061

?
Manufacturer substitution
This part replaces WR50X10072. Substitute parts can look different from the original.
$105.18 |
10% OFF Phone Price : $117.18
In Stock
Adjustable WR02X11334
#29

Refrigerator diagram

Adjustable

Part #WR02X11334

Replaced by #WR02X20024

?
Manufacturer substitution
This part replaces WR02X11334. Substitute parts can look different from the original.
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Refrigerator Door Gasket WR24X10141
#27

Refrigerator diagram

Refrigerator door gasket

Part #WR24X10141

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Use And Care Manual 49-60439
#1

Refrigerator diagram

Refrigerator use and care manual

Part #49-60439

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Hinge WR13X10267
#35

Refrigerator diagram

Refrigerator door hinge

Part #WR13X10267

The manufacturer no longer makes this part, and there's no substitute part

Ice Cube Tray WR30X10034
#9

Refrigerator diagram

Ice cube tray

Part #WR30X10034

The manufacturer no longer makes this part, and there's no substitute part
