Upright Freezer

Model # GV1226NXEW Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag GV1226NXEW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

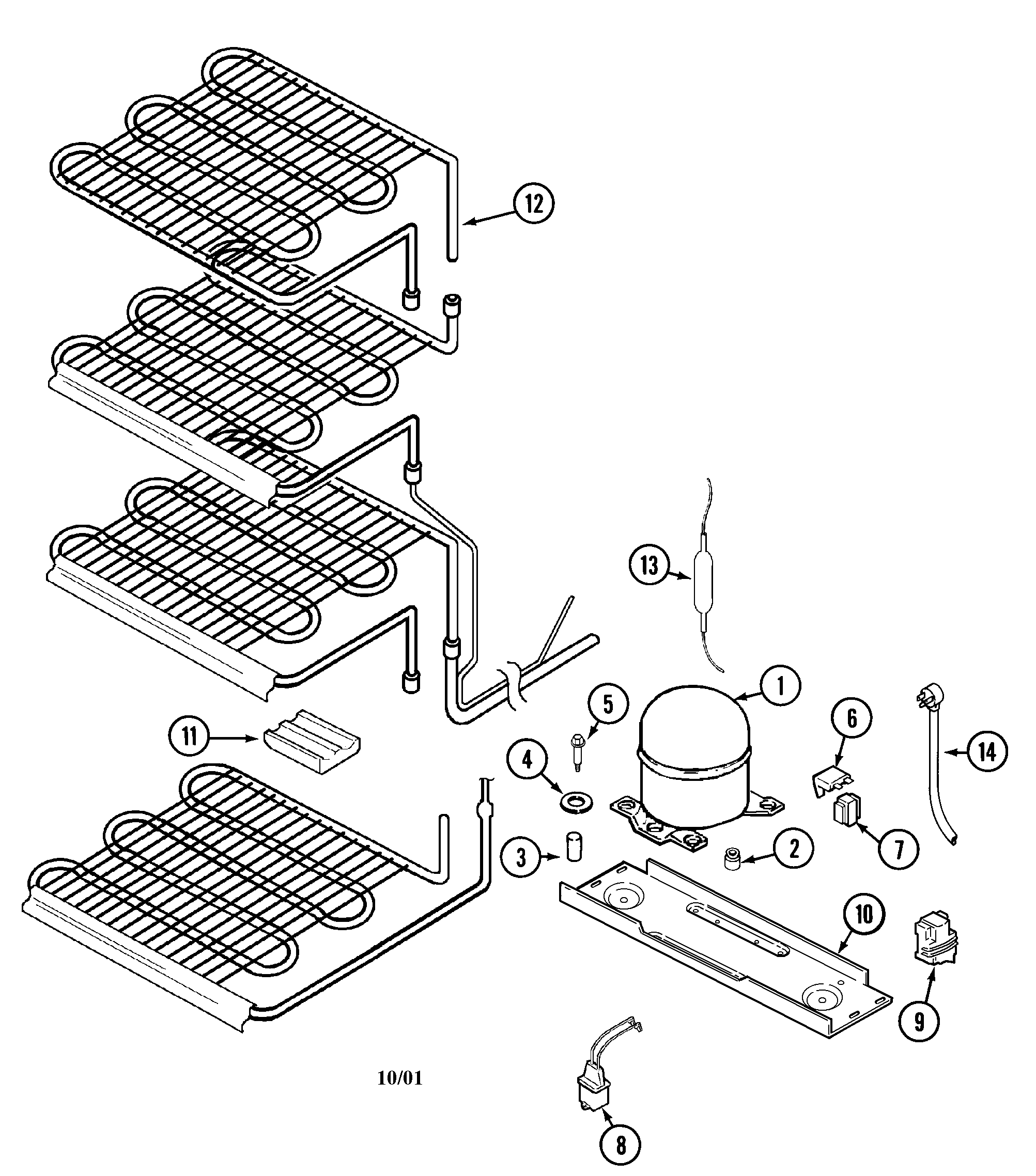

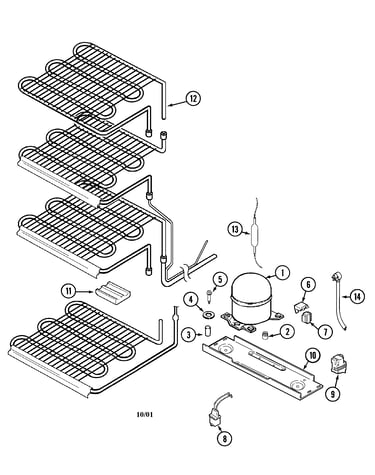

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 68001324
#5

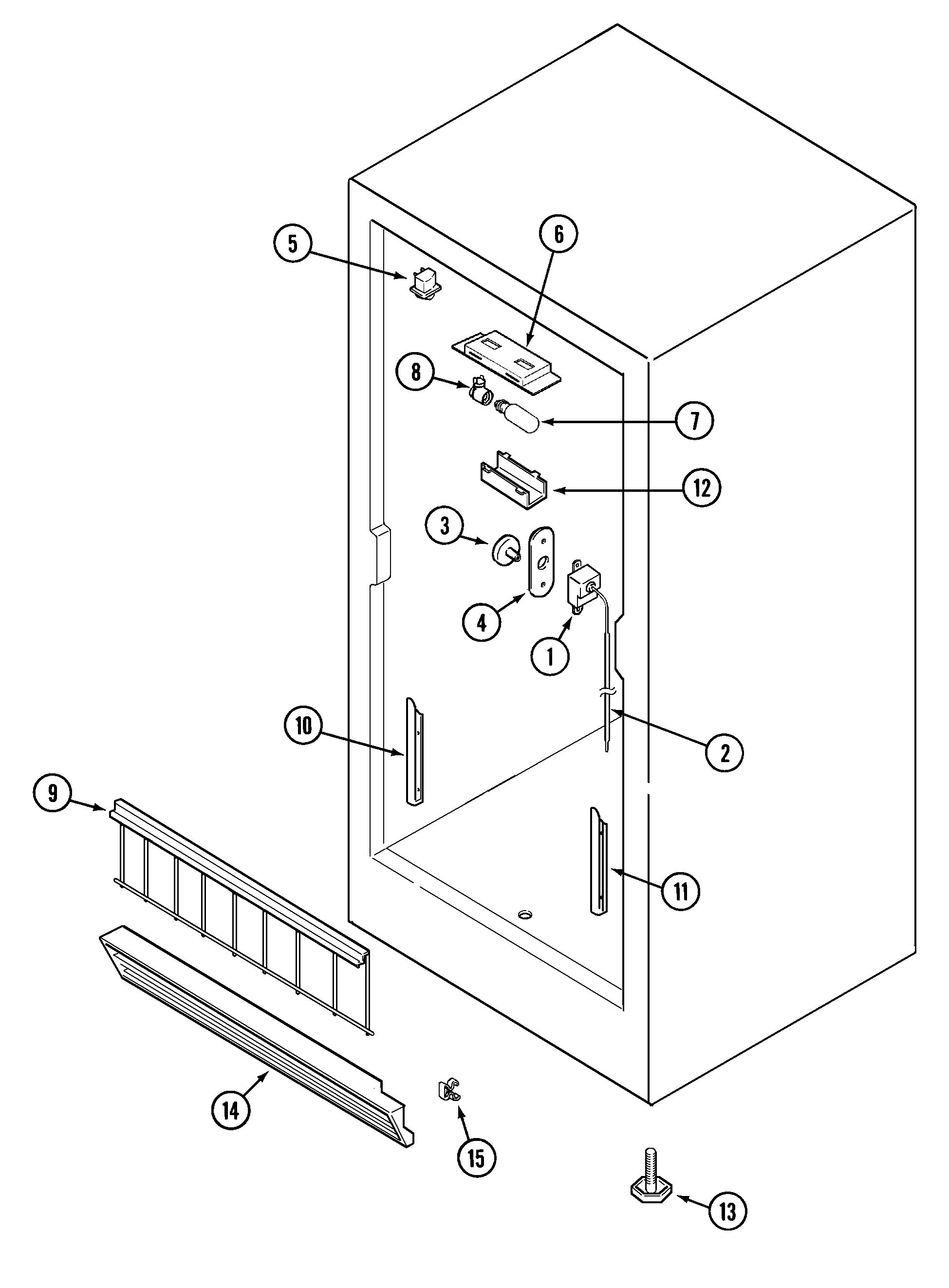

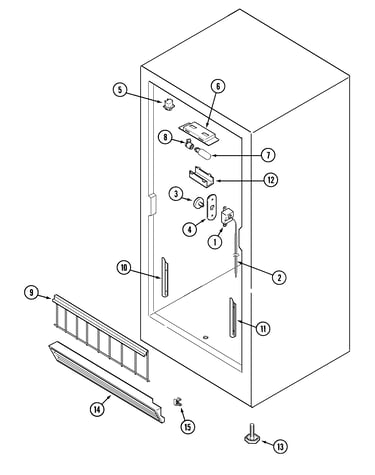

Freezer compartment diagram

Light switch

Part #68001324

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001324. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Door Handle Screw 68001413
#2C

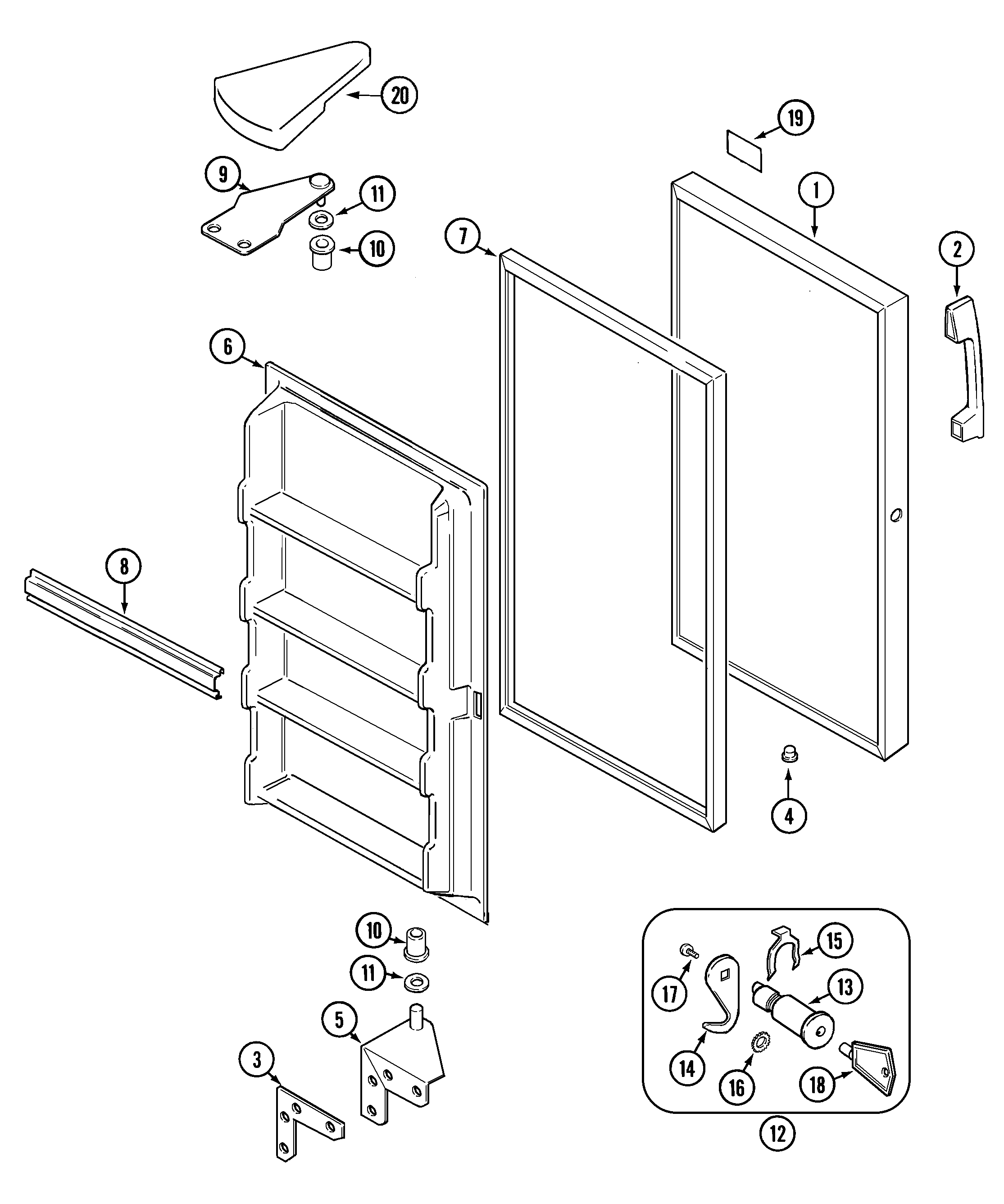

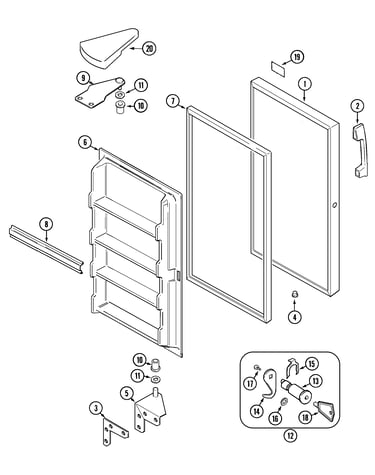

Door diagram

Door handle screw

Part #68001413

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001413. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Tubing Control 68001066
#2

Freezer compartment diagram

Tubing control

Part #68001066

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 68001066. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Support, Fen 68001067
#10

Freezer compartment diagram

Support, fen

Part #68001067

Replaced by #4-80576-202

?
Manufacturer substitution
This part replaces 68001067. Substitute parts can look different from the original.
This item is not returnable
$16.15 |
11% OFF Phone Price : $18.15
In Stock
Heat Evaporator 68001484
#12B

Unit compartment & system diagram

Heat evaporator

Part #68001484

This item is not returnable
$162.69
In Stock
Temperature Knob 68001385
#3A

Freezer compartment diagram

Temperature knob

Part #68001385

Replaced by #4-81294-004

?
Manufacturer substitution
This part replaces 68001385. Substitute parts can look different from the original.
$18.29 |
10% OFF Phone Price : $20.29
In Stock
Kit Liner Screw 68001124
#6B

Door diagram

Kit liner screw

Part #68001124

Replaced by #4390598

?
Manufacturer substitution
This part replaces 68001124. Substitute parts can look different from the original.
$12.49
In Stock
Screw 68001102
#1B

Freezer compartment diagram

Screw

Part #68001102

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 68001102. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Leg Kit, Lev 68001193
#13

Freezer compartment diagram

Leg kit, lev

Part #68001193

Replaced by #W11117769

?
Manufacturer substitution
This part replaces 68001193. Substitute parts can look different from the original.
$12.39 |
14% OFF Phone Price : $14.39
In Stock
