Lawn & Garden Engine

Model # 143571042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143571042 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part

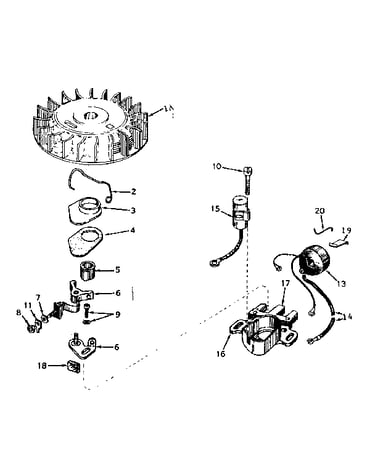

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143571042 4-Cycle Engine
Fuel Line 29774
#118

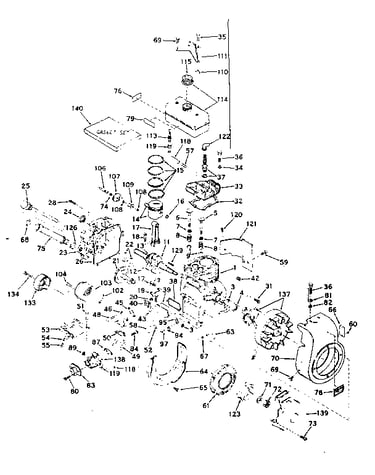

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#40

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#80

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Spring 31672
#8

Basic engine diagram

Spring

Part #31672

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#106

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#5

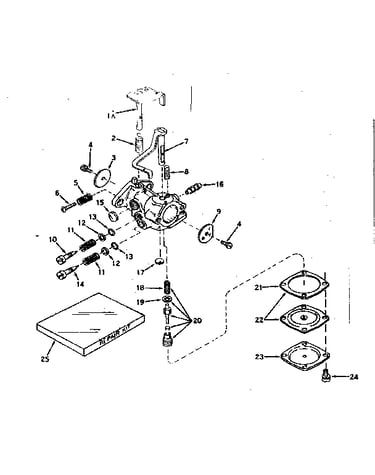

Carburetor no. 630982 diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Shft/levr 630983
#1A

Carburetor no. 630982 diagram

Shft/levr

Part #630983

The manufacturer no longer makes this part, and there's no substitute part

Cap 31673
#9

Basic engine diagram

Cap

Part #31673

The manufacturer no longer makes this part, and there's no substitute part

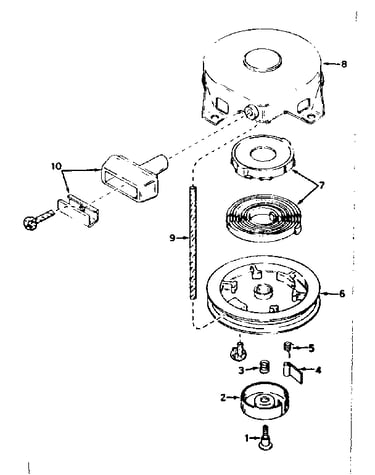

Rewnd Startr 590420
#139

Basic engine diagram

Rewnd startr

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 650490
#71

Basic engine diagram

Flat washer

Part #650490

The manufacturer no longer makes this part, and there's no substitute part
