Amana
Bottom-Mount Refrigerator

Model # ABB2223DEW1 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana ABB2223DEW1 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

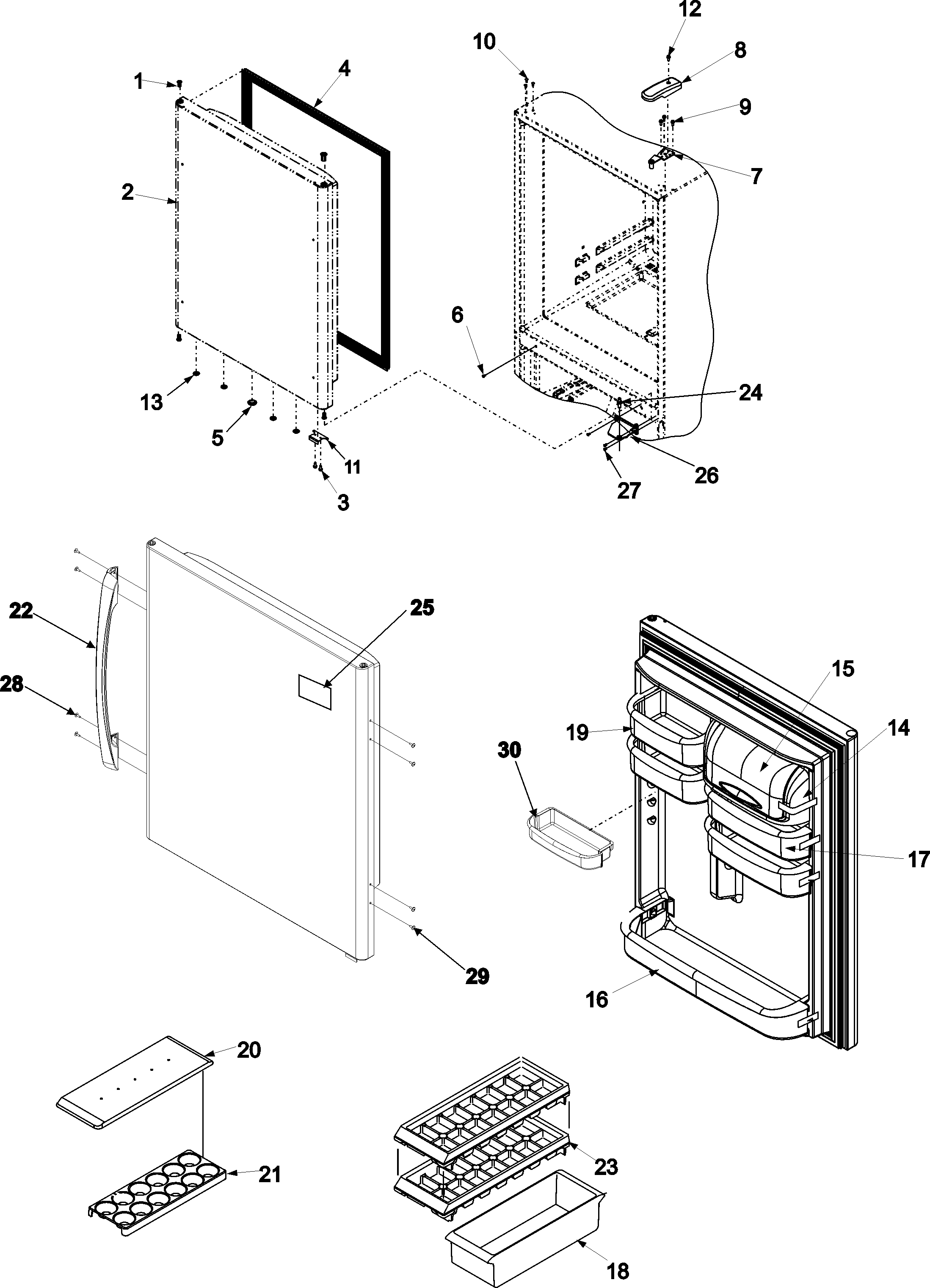

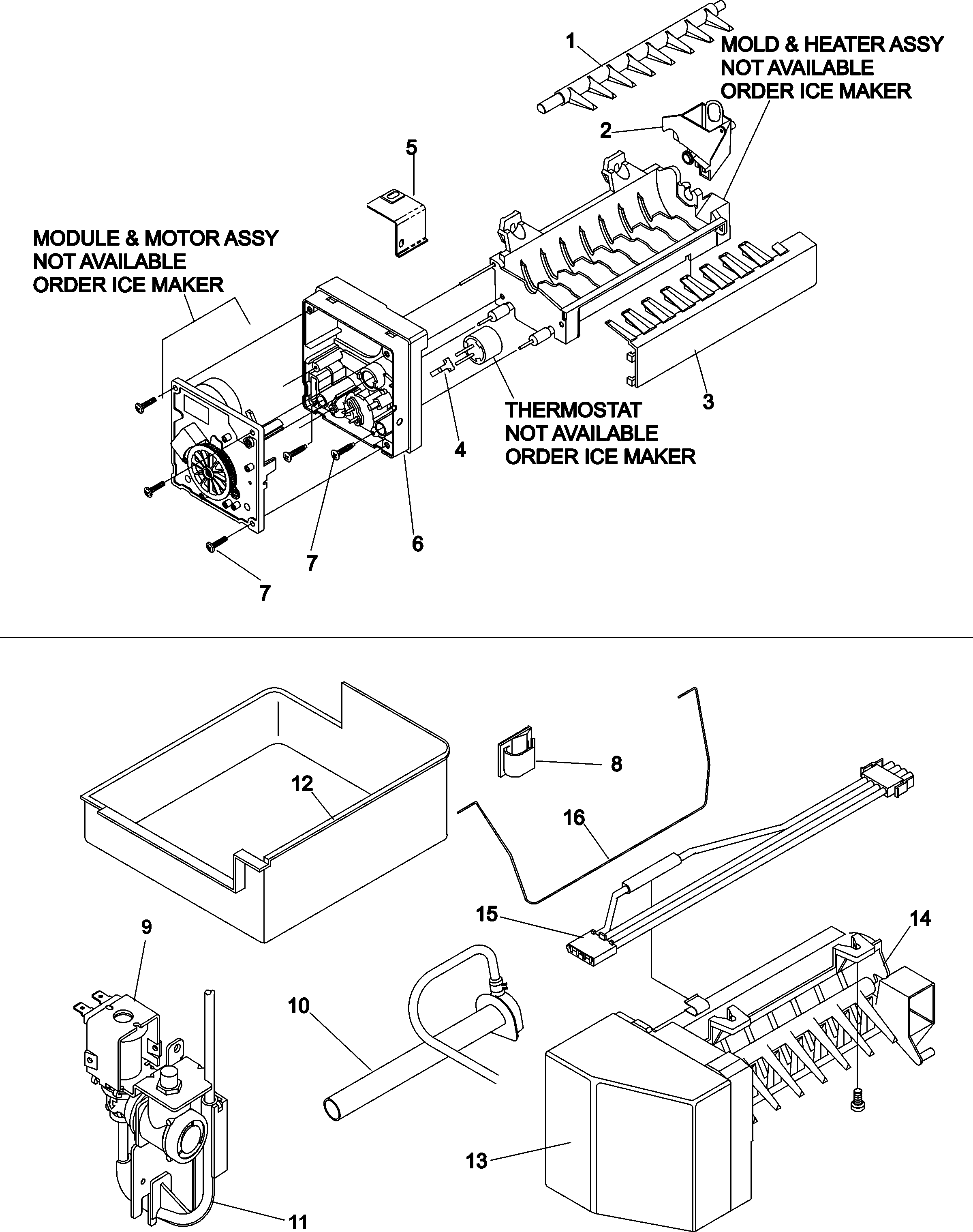

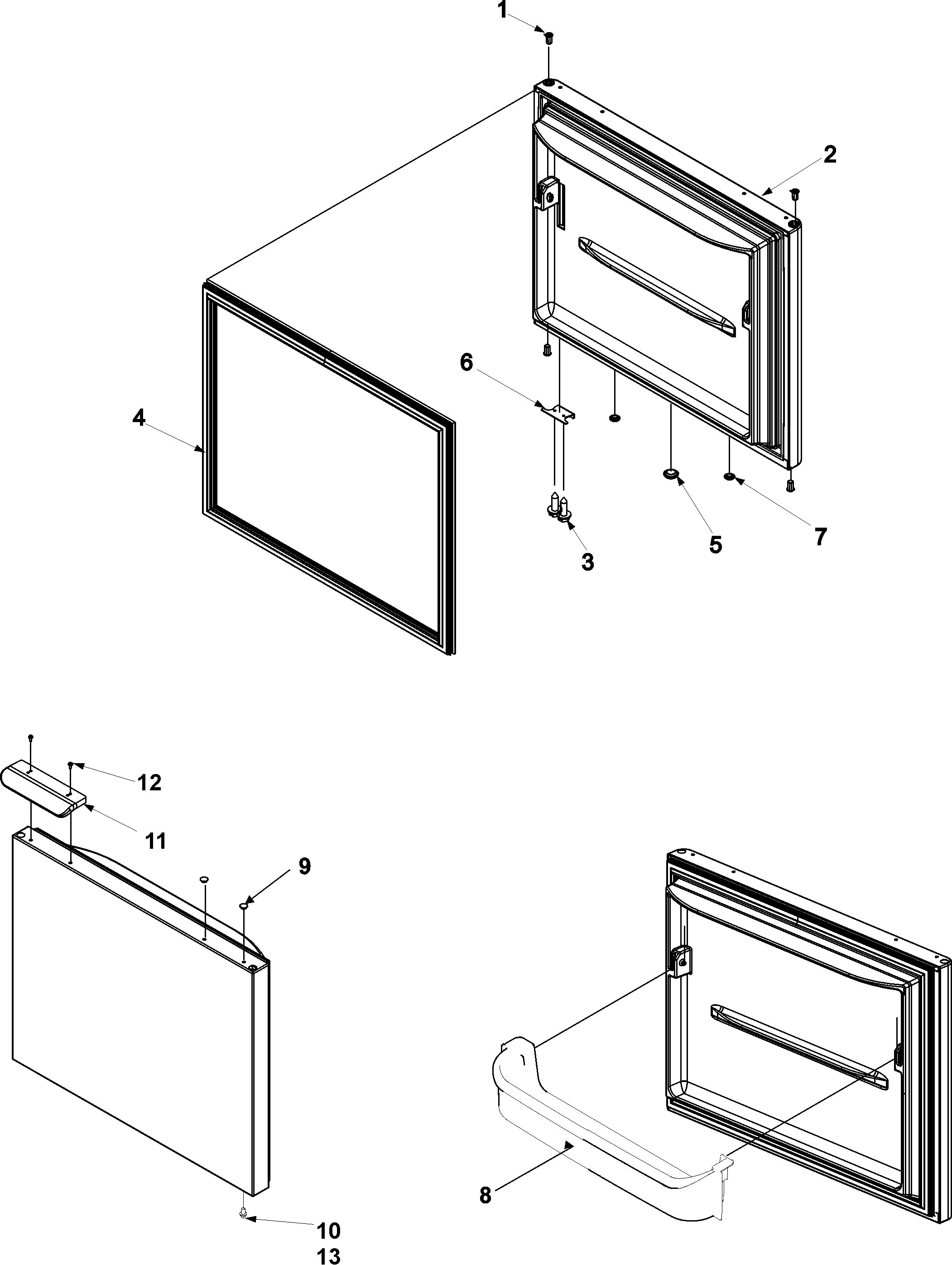

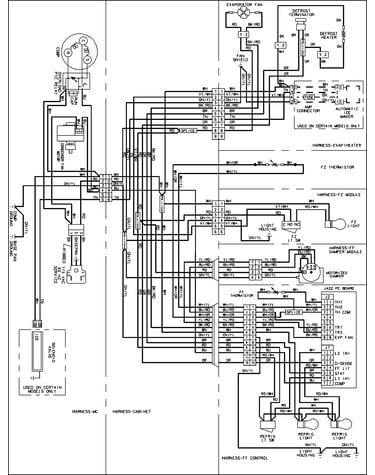

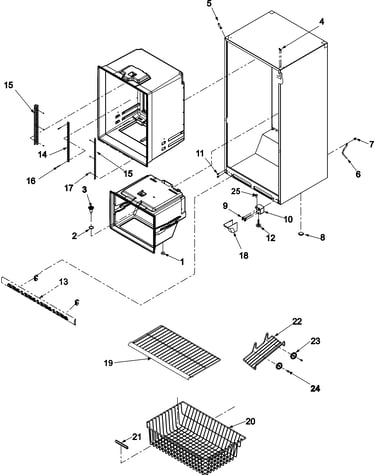

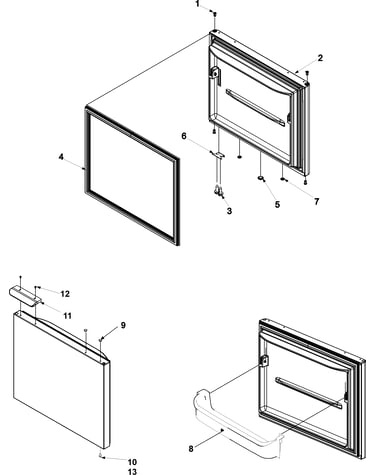

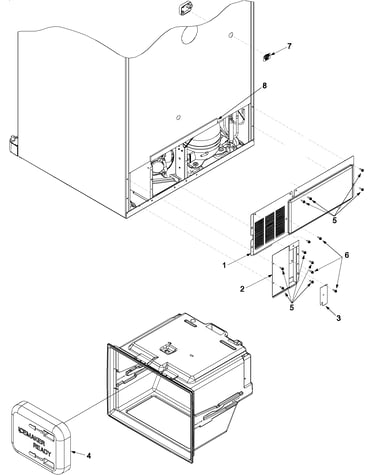

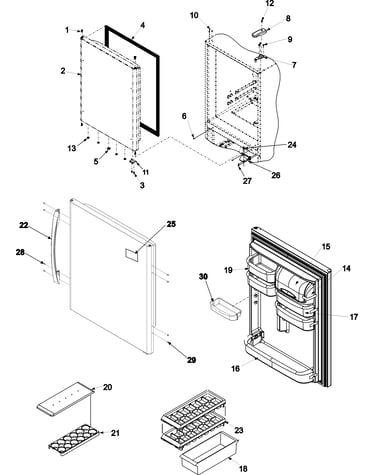

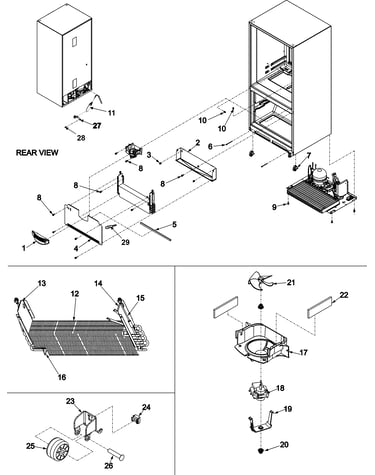

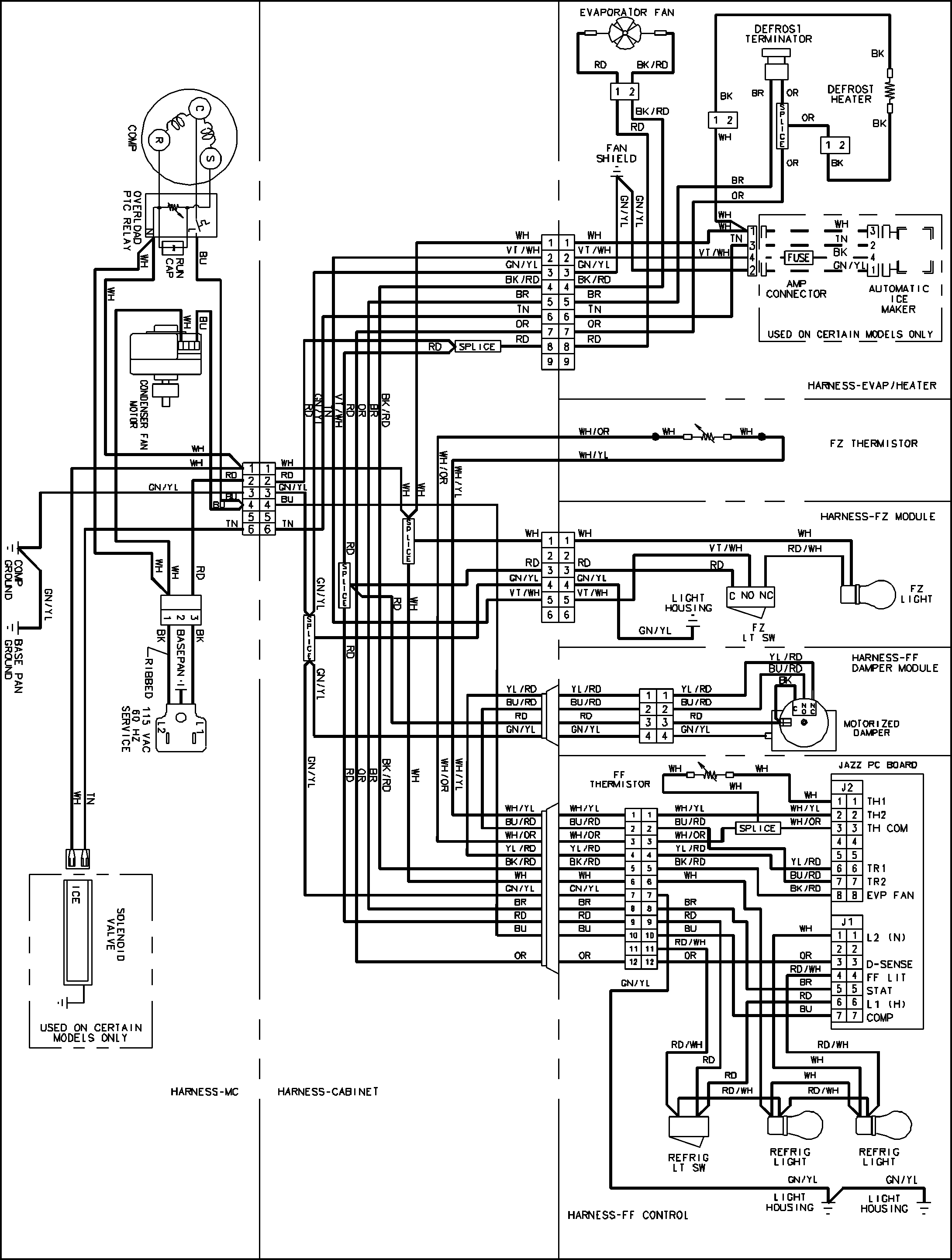

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Refrigerator Light Bulb 67003883
Refrigerator light bulb

Part #67003883

Replaced by #40A15

?
Manufacturer substitution
This part replaces 67003883. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Control Board 12002339
#5

Controls diagram

Refrigerator control board

Part #12002339

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 12002339. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Light Switch C3680310
#1

Controls diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock

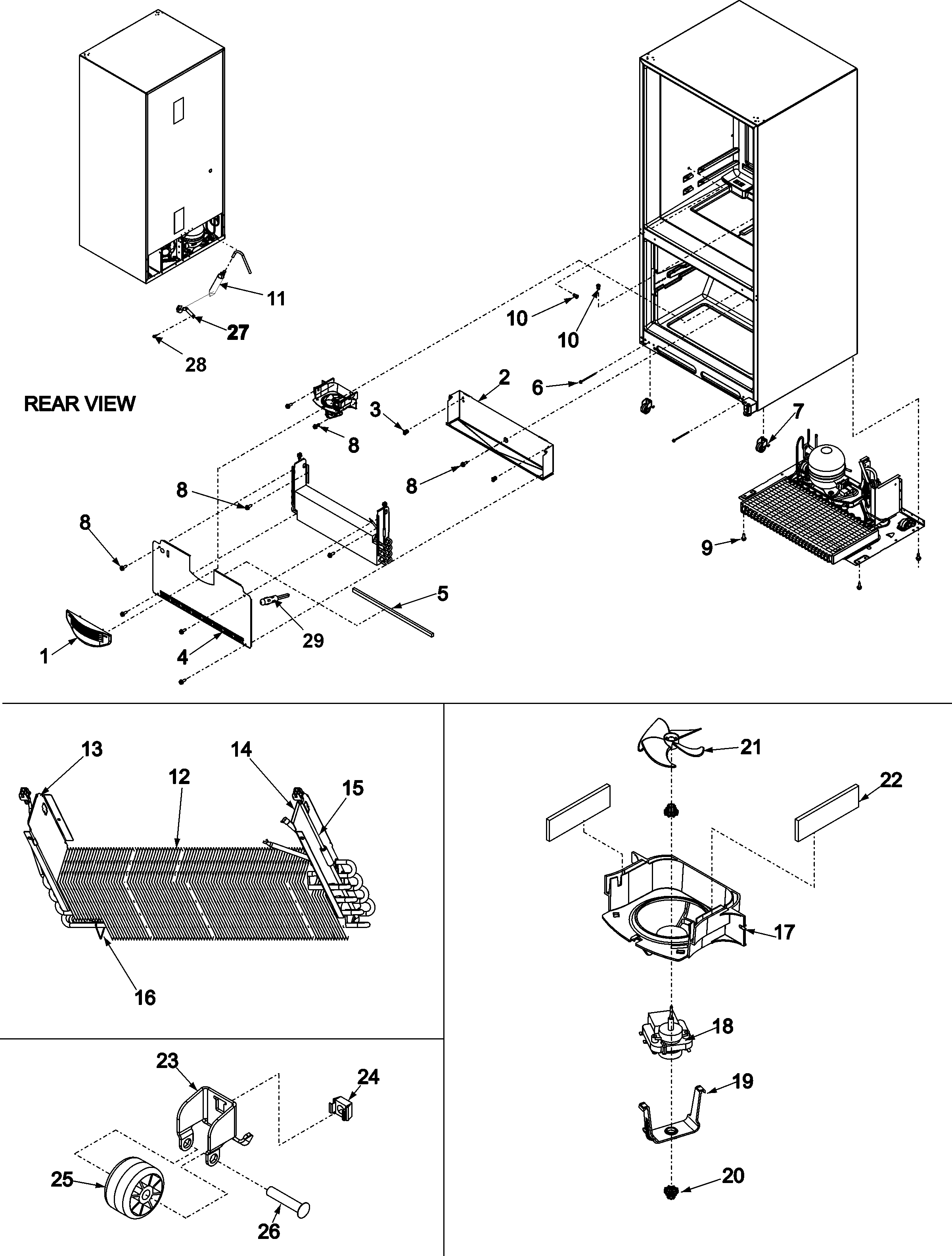

Refrigerator Compressor 67003762
#8

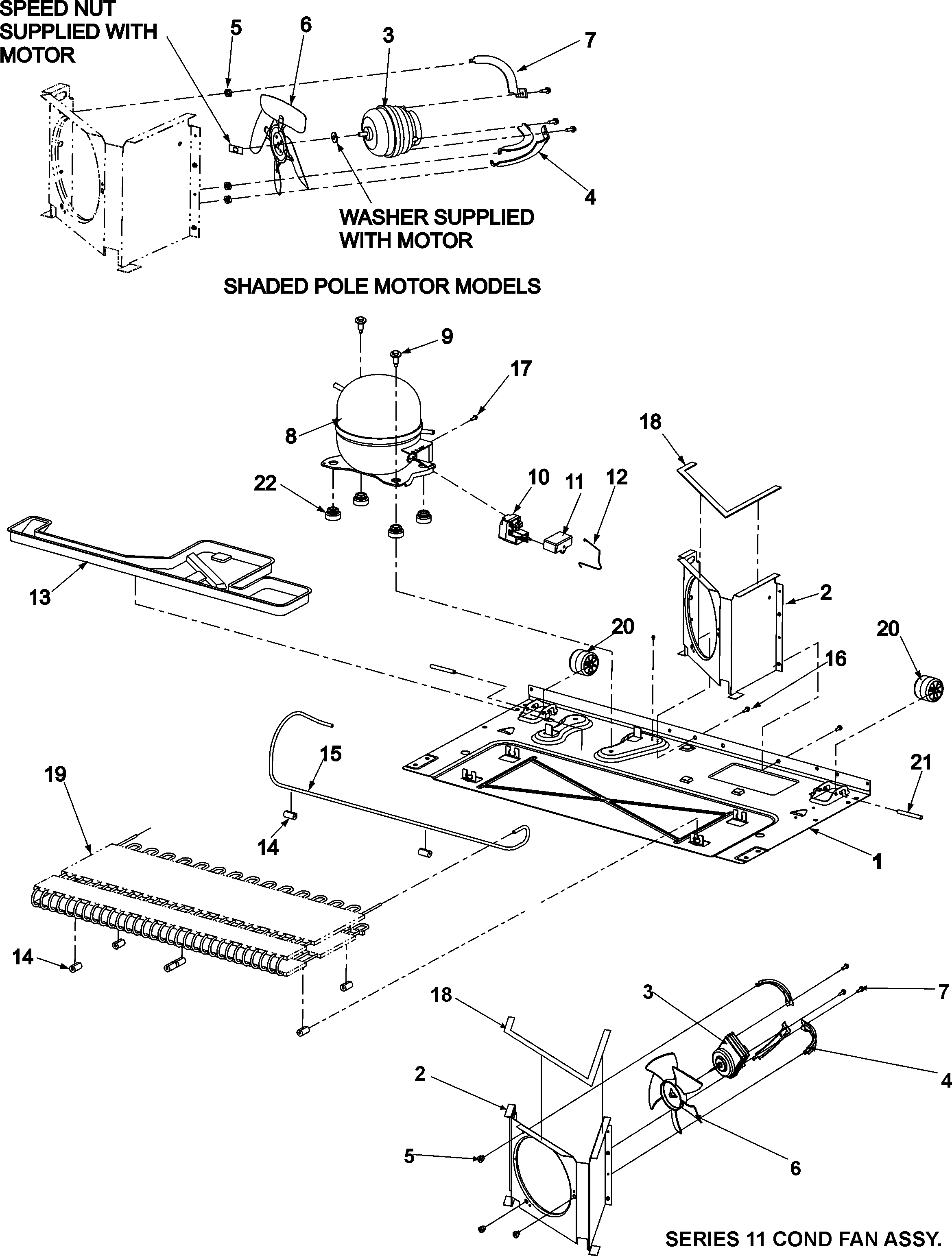

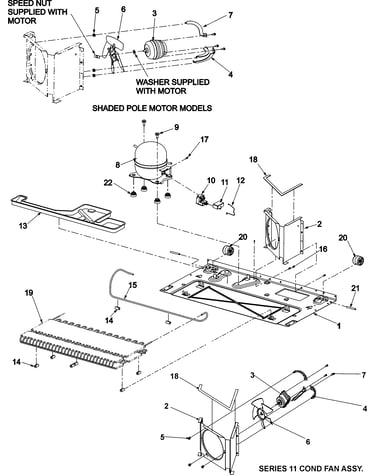

Compressor diagram

Refrigerator compressor

Part #67003762

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 67003762. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock

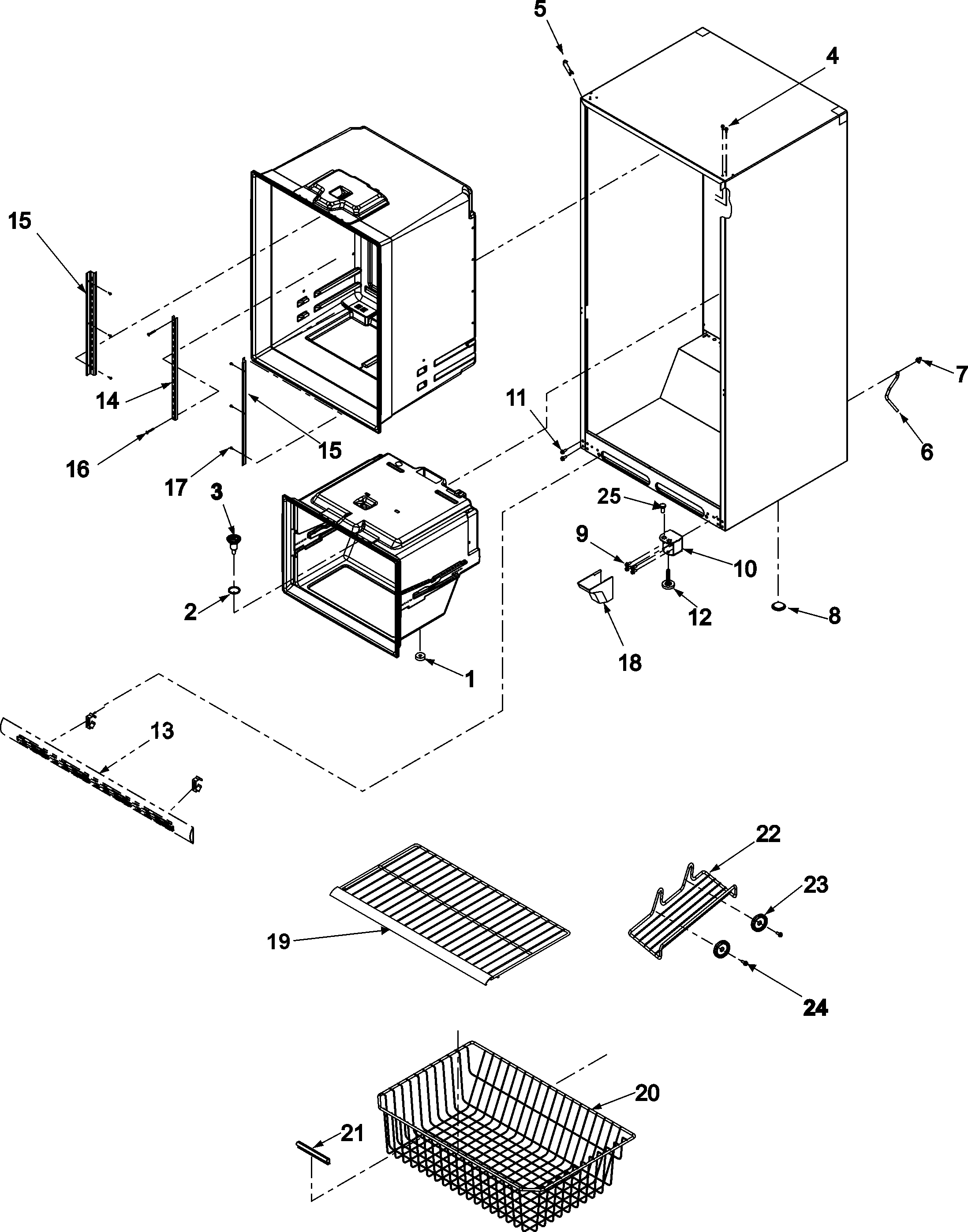

Refrigerator Crisper Drawer Support Rail, Center 67001057
#7

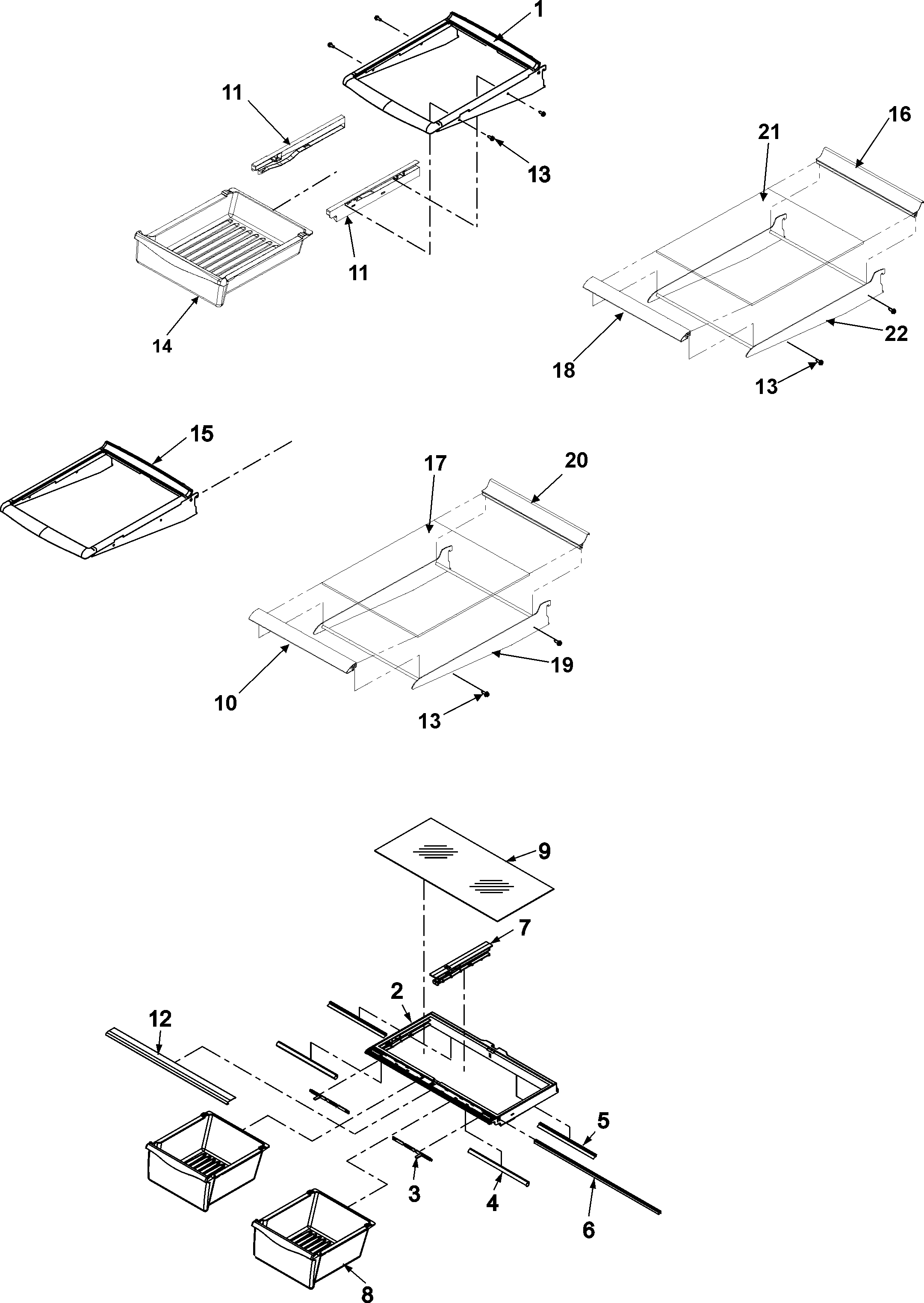

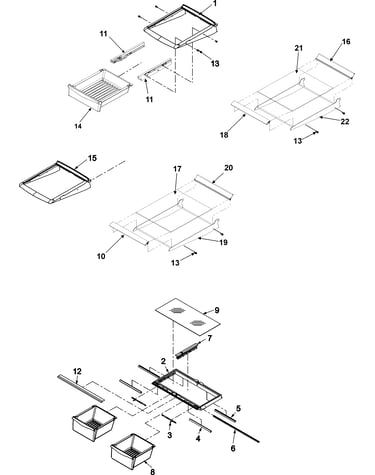

Refrigerator shelving diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Overload Release 67003764
#10

Compressor diagram

Refrigerator overload release

Part #67003764

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67003764. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Light Switch 12466101
#20

Controls diagram

Refrigerator light switch

Part #12466101

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466101. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Condenser Fan Motor 10884507
#3

Compressor diagram

Refrigerator condenser fan motor

Part #10884507

Replaced by #833697

?
Manufacturer substitution
This part replaces 10884507. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Temperature Sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, Y67003872) 12002355
Refrigerator temperature sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, y67003872)

Part #12002355

BEST SELLER
$33.33 |
15% OFF Phone Price : $39.33
In Stock
Thermistor 12002356
#22

Controls diagram

Thermistor

Part #12002356

Replaced by #12002355

?
Manufacturer substitution
This part replaces 12002356. Substitute parts can look different from the original.
BEST SELLER
$33.33 |
15% OFF Phone Price : $39.33
In Stock
