Model # OL-125/P96234-3F Official Amana oil furnace

Here are the diagrams and repair parts for Official Amana OL-125-P96234-3F oil furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

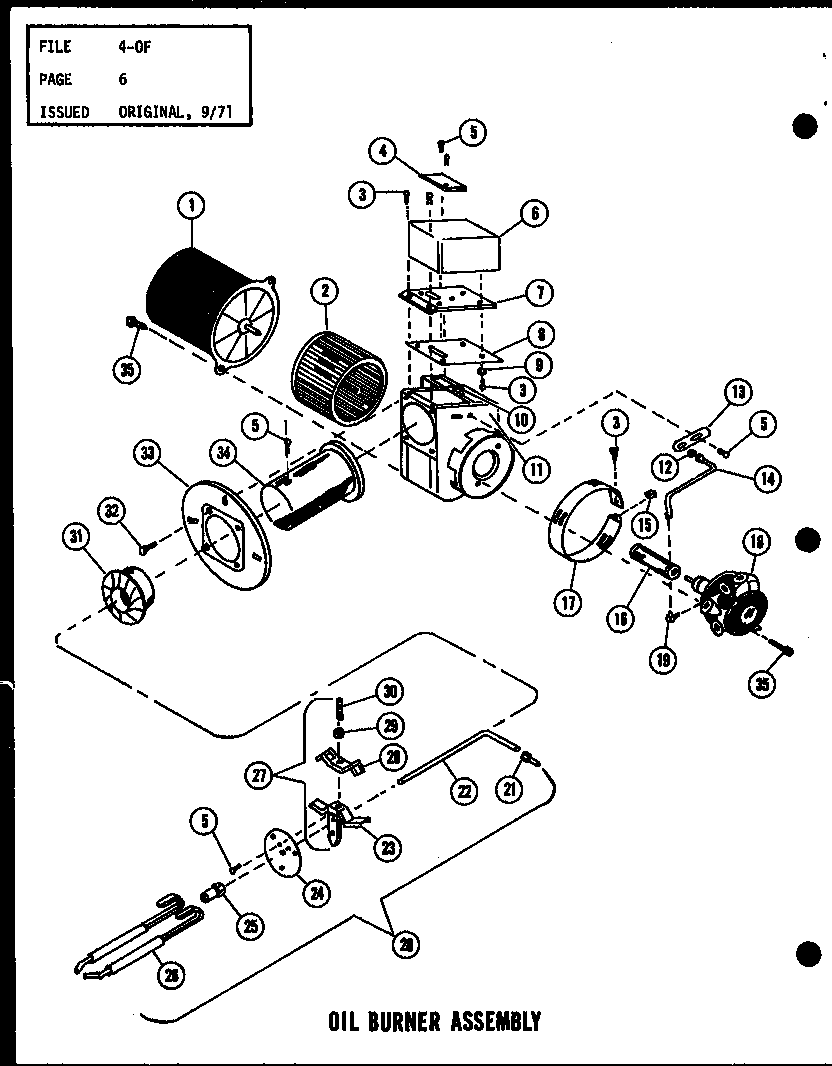

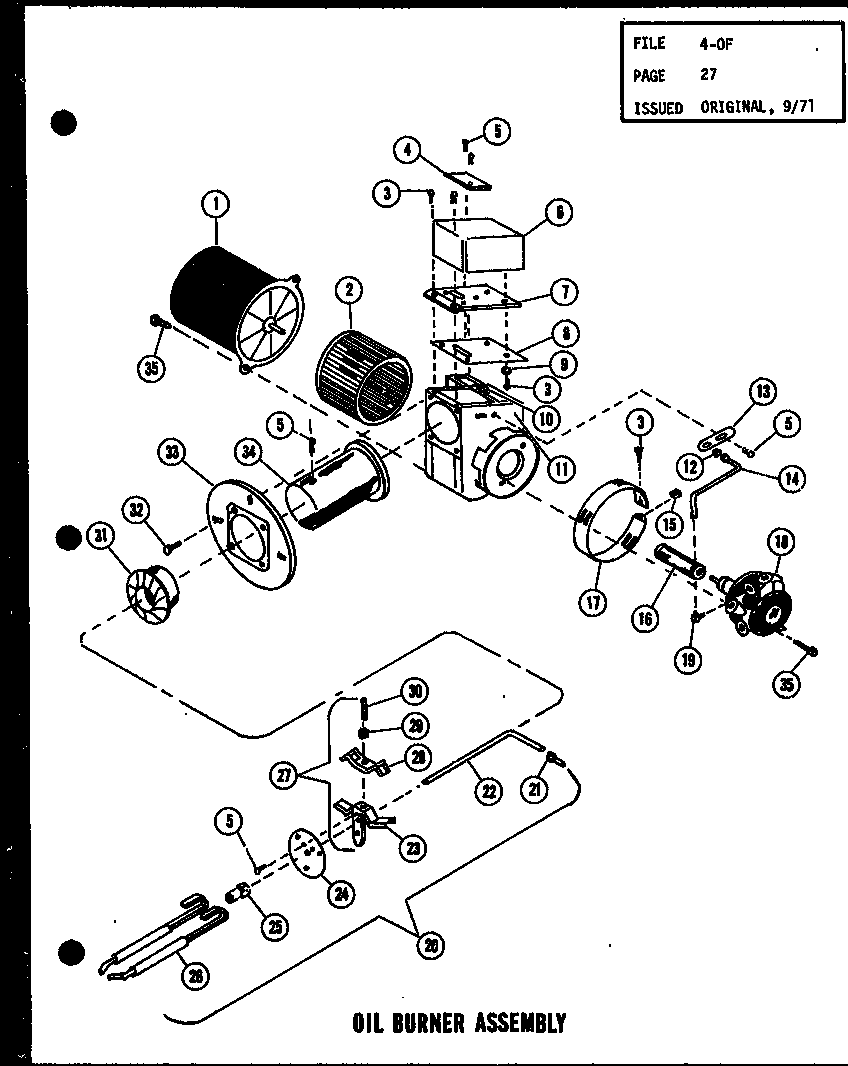

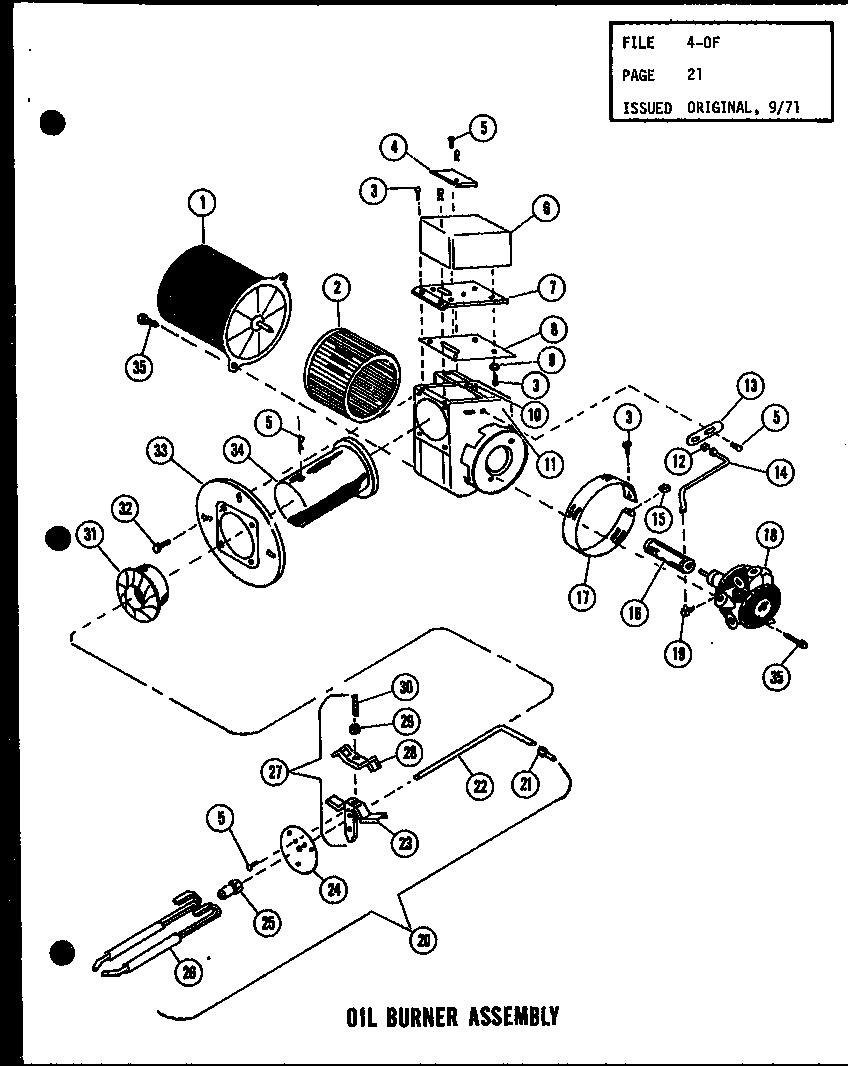

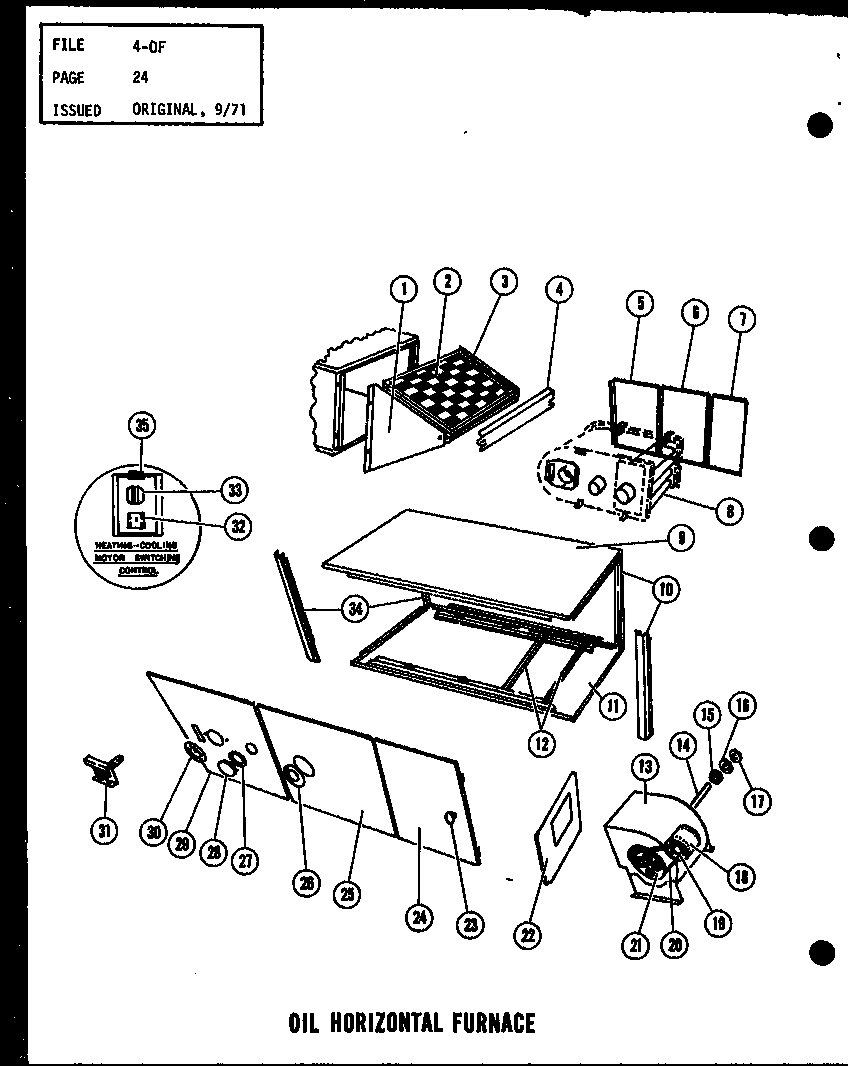

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |

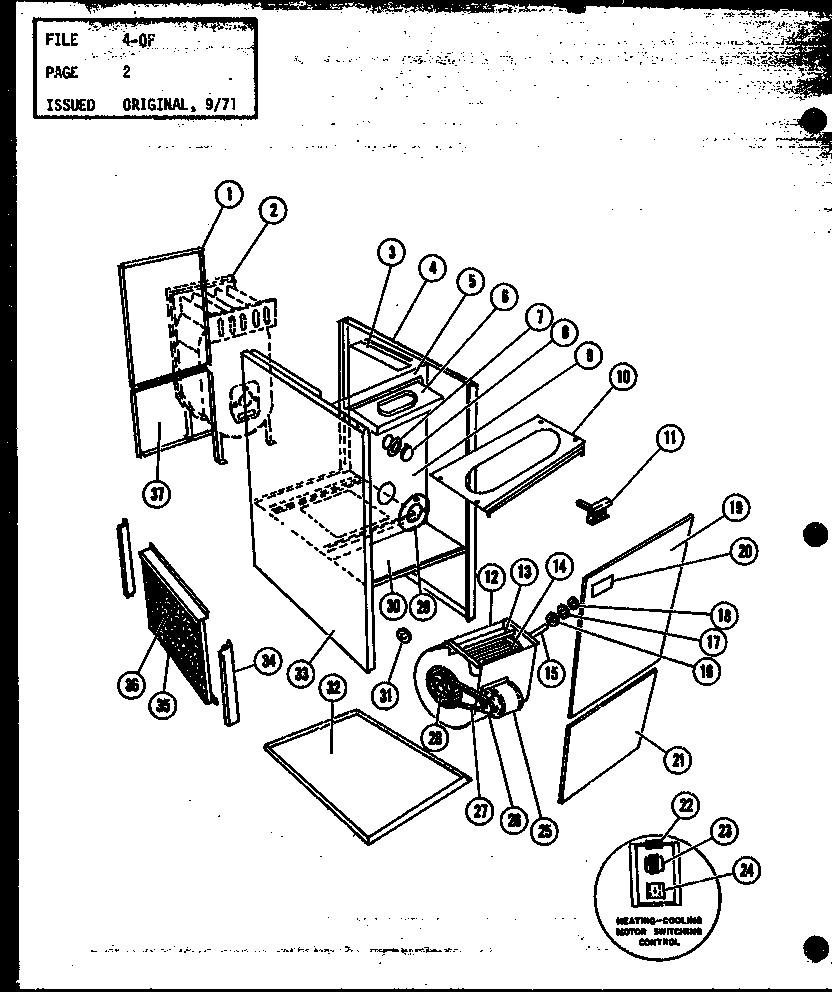

Back Bottom Door R0178107
#37A

Oil lowboy furnace (ol-100/p96234-1f) (ol-100-3/p96234-2f) (ol-125/p96234-3f) (ol-125-3/p96234-4f) (ol-150/p96234-5f) (ol-150-4/p96234-6f) diagram

Back bottom door

Part #R0178107

The manufacturer no longer makes this part, and there's no substitute part

Right Hand Side Panel R0178139
#5A

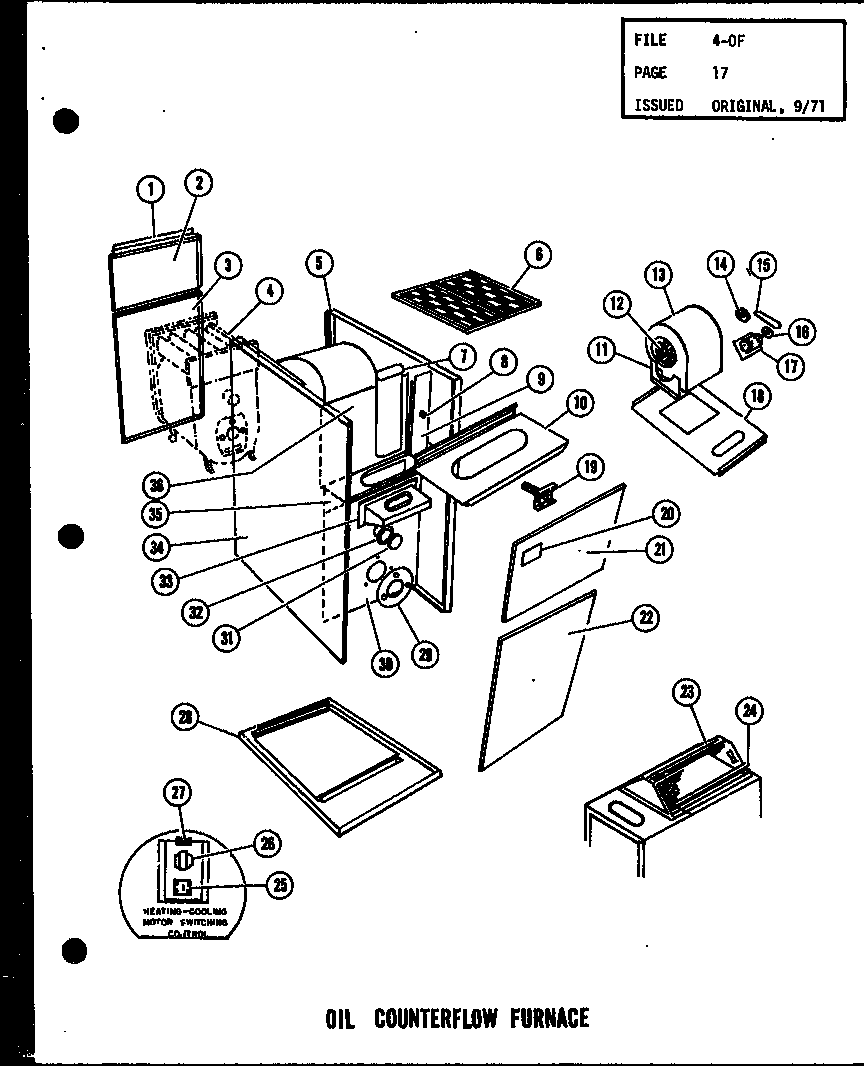

Oil counterflow furnace (oc-100/p96235-1f) (oc-100-3/p96235-2f) (oc-125/p96235-3f) (oc-125-4/p96235-4f) diagram

Right hand side panel

Part #R0178139

The manufacturer no longer makes this part, and there's no substitute part

Shaft, 19-1/4" X 3/4" R0116905
#27C

Oil lowboy furnace (ol-100/p96234-1f) (ol-100-3/p96234-2f) (ol-125/p96234-3f) (ol-125-3/p96234-4f) (ol-150/p96234-5f) (ol-150-4/p96234-6f) diagram

Shaft, 19-1/4" x 3/4"

Part #R0116905

The manufacturer no longer makes this part, and there's no substitute part

Filter Angle R0178134
#1

Oil counterflow furnace (oc-100/p96235-1f) (oc-100-3/p96235-2f) (oc-125/p96235-3f) (oc-125-4/p96235-4f) diagram

Filter angle

Part #R0178134

The manufacturer no longer makes this part, and there's no substitute part

Motor, 1/4 H.p., 115 V. 60 Cycle, 1 Phase, 1725 R.p.m. 1 R0115901
Motor, 1/4 h.p., 115 v. 60 cycle, 1 phase, 1725 r.p.m. 1

Part #R0115901

The manufacturer no longer makes this part, and there's no substitute part

Heat Exchanger Assembly W/combustion Chamber R0118211
#4B

Oil counterflow furnace (oc-100/p96235-1f) (oc-100-3/p96235-2f) (oc-125/p96235-3f) (oc-125-4/p96235-4f) diagram

Heat exchanger assembly w/combustion chamber

Part #R0118211

The manufacturer no longer makes this part, and there's no substitute part

Belt, 4l-45" R0115306
#15C

Oil counterflow furnace (oc-100/p96235-1f) (oc-100-3/p96235-2f) (oc-125/p96235-3f) (oc-125-4/p96235-4f) diagram

Belt, 4l-45"

Part #R0115306

The manufacturer no longer makes this part, and there's no substitute part

Filter, 20" X 12", Disposable C9401806
#36

Oil highboy furnace (oh-85/p96236-1f) (oh-85-3/p96236-2f) (oh-100/p96236-3f) (oh-100-3/p96236-4f) (oh-125/p96236-5f) (oh-125-3/p96236-6f) diagram

Filter, 20" x 12", disposable

Part #C9401806

The manufacturer no longer makes this part, and there's no substitute part

Top Center Panel R0178082
#7A

Oil lowboy furnace (ol-100/p96234-1f) (ol-100-3/p96234-2f) (ol-125/p96234-3f) (ol-125-3/p96234-4f) (ol-150/p96234-5f) (ol-150-4/p96234-6f) diagram

Top center panel

Part #R0178082

The manufacturer no longer makes this part, and there's no substitute part

Belt, 4l-41" R0115302
#27A

Oil highboy furnace (oh-85/p96236-1f) (oh-85-3/p96236-2f) (oh-100/p96236-3f) (oh-100-3/p96236-4f) (oh-125/p96236-5f) (oh-125-3/p96236-6f) diagram

Belt, 4l-41"

Part #R0115302

The manufacturer no longer makes this part, and there's no substitute part
