Countertop Microwave

Model # R-610DKA Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-610DKA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

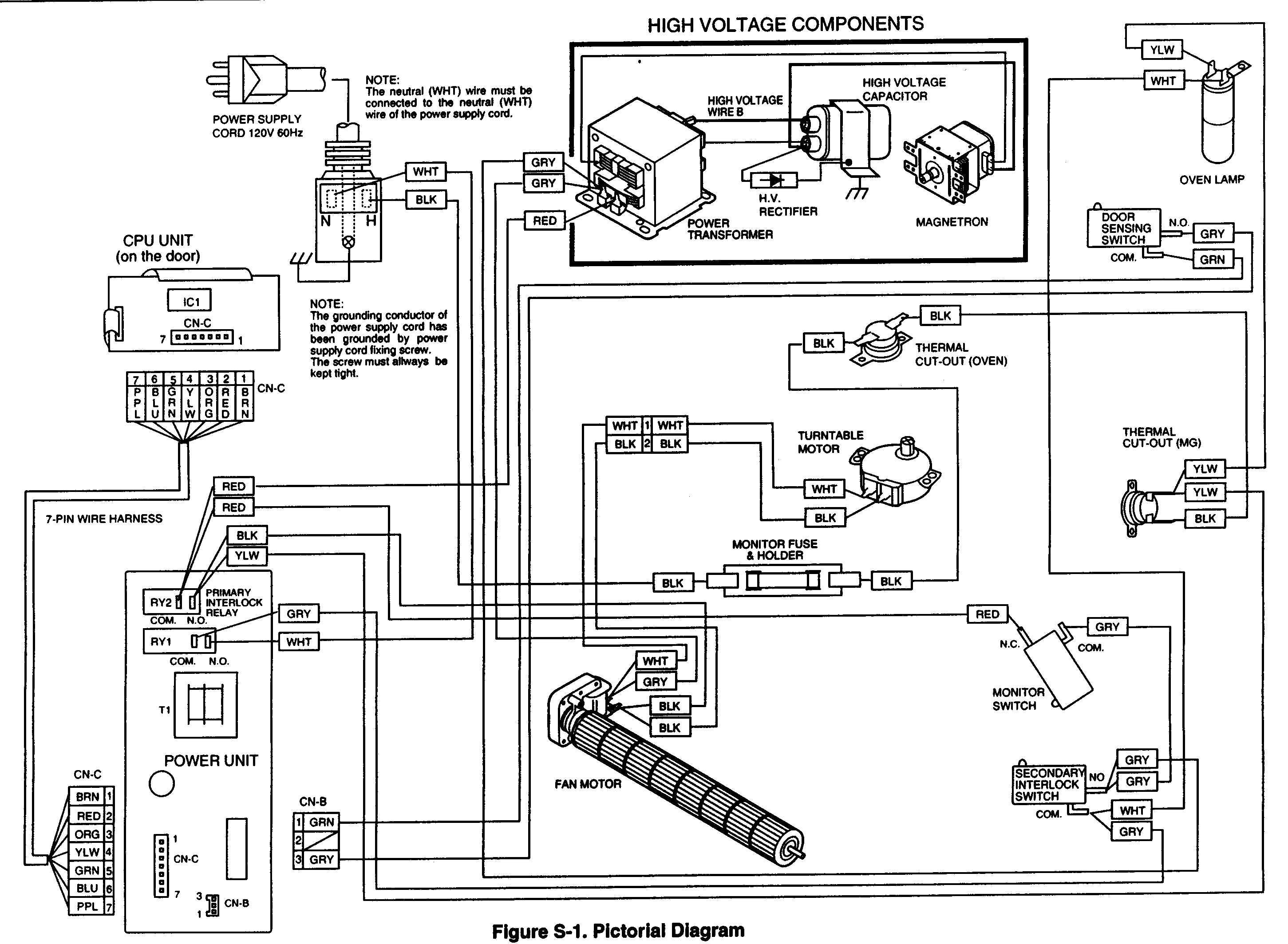

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Handle JHNDPA205WRTZ
#5-4A

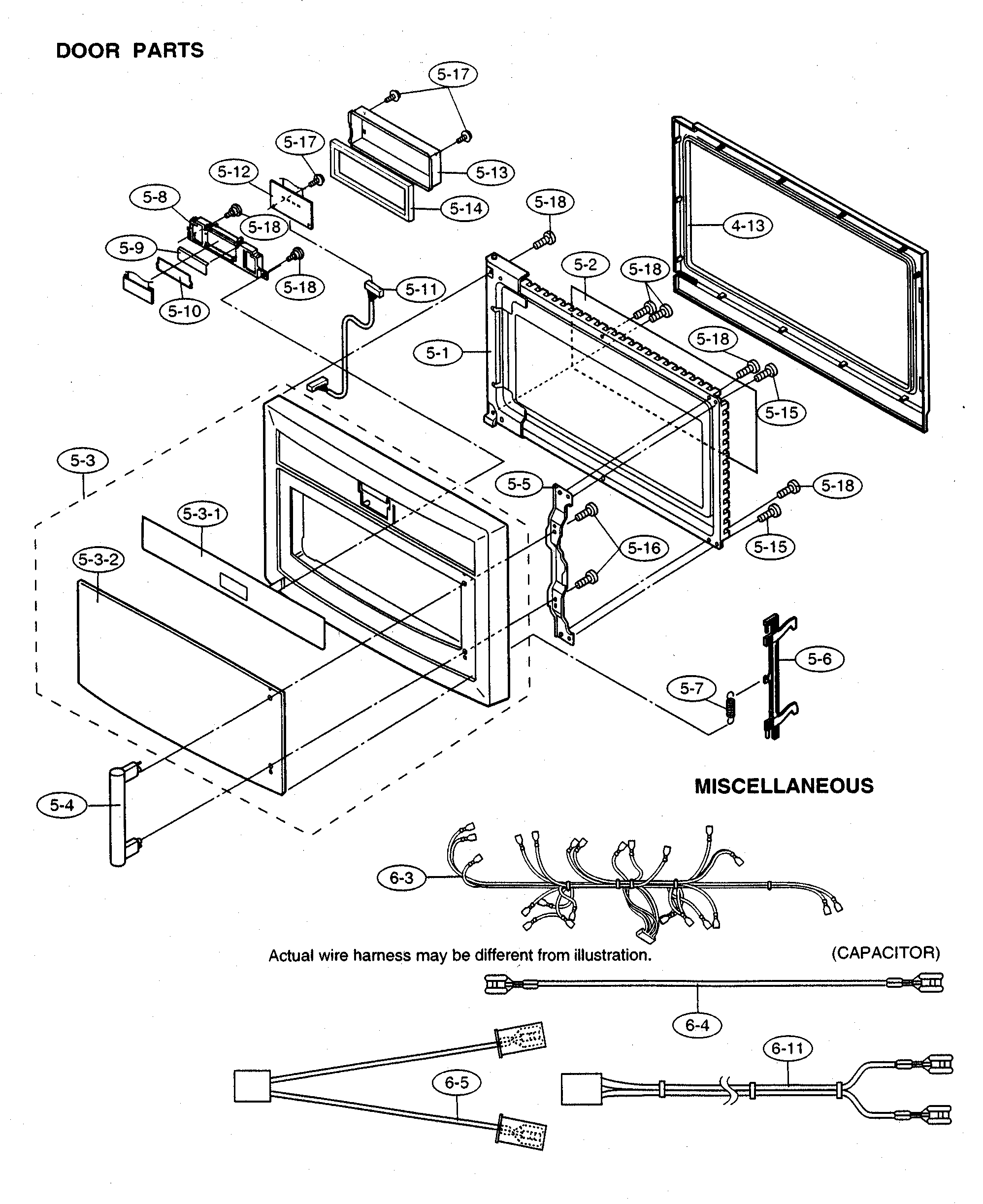

Door/miscellaneous diagram

Handle

Part #JHNDPA205WRTZ

The manufacturer no longer makes this part, and there's no substitute part

Holder LANGRA056WRWZ
#4-6

Oven/cabinet diagram

Holder

Part #LANGRA056WRWZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ
#1-11

Oven/cabinet diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual IB-R610DKA
#NI

Oven/cabinet diagram

Owner's manual

Part #IB-R610DKA

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDA083WRE0
#1-1A

Oven/cabinet diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Tray Support FROLPA097WRKZ
#6-1

Oven/cabinet diagram

Microwave turntable tray support

Part #FROLPA097WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Duct PDUC-A751WRTZ
#4-26

Oven/cabinet diagram

Duct

Part #PDUC-A751WRTZ

The manufacturer no longer makes this part, and there's no substitute part

Cut-out RTHM-A123WRZZ
#1-13

Oven/cabinet diagram

Cut-out

Part #RTHM-A123WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor RMOTDA211WRE0
#112B

Oven/cabinet diagram

Microwave turntable motor

Part #RMOTDA211WRE0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu RTHM-A078WRE0
#1-5A

Oven/cabinet diagram

Thermal cu

Part #RTHM-A078WRE0

The manufacturer no longer makes this part, and there's no substitute part
