GE
Washer

Model # GTWN8255D0MS Official GE washer

Here are the diagrams and repair parts for Official GE GTWN8255D0MS washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

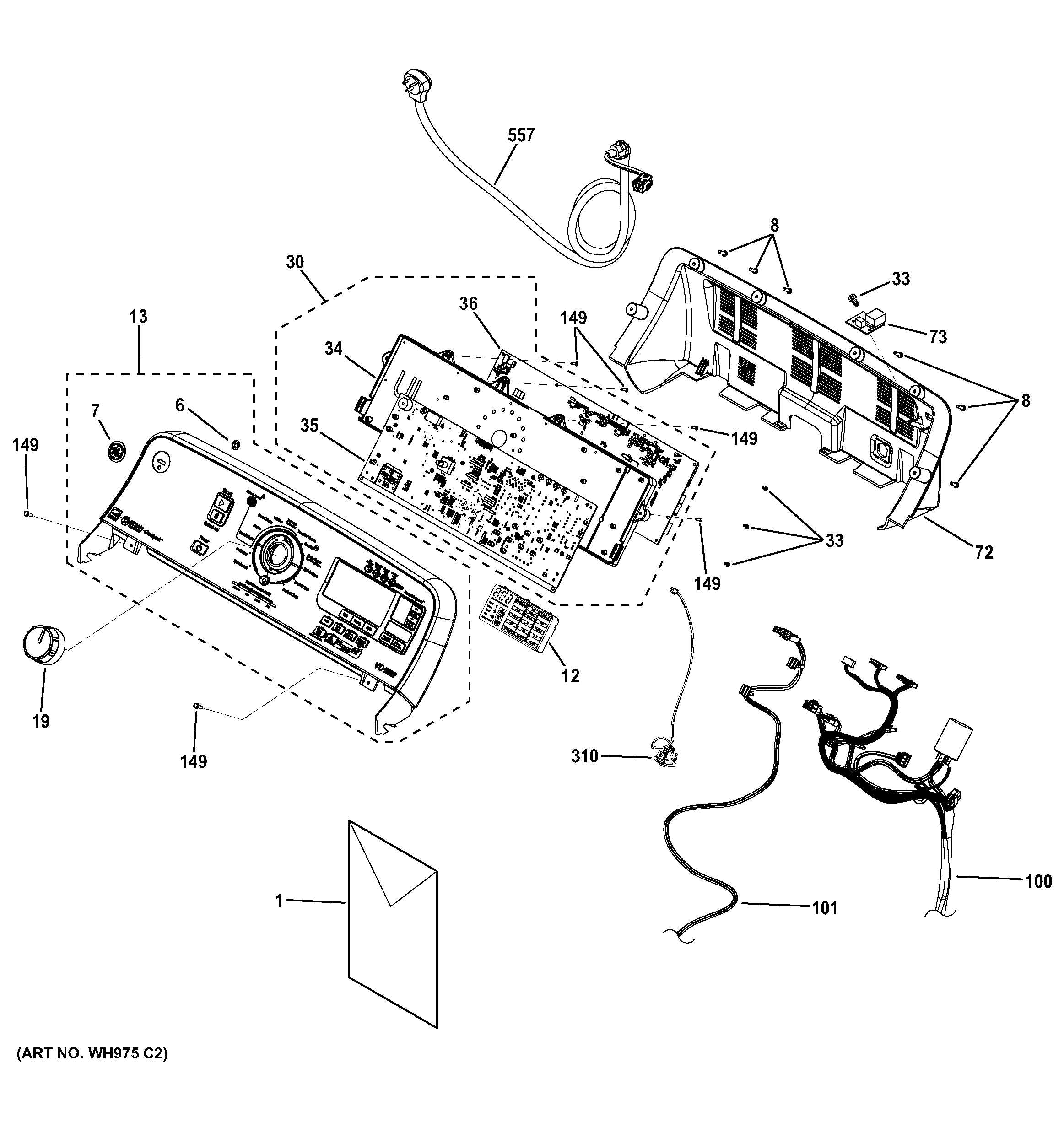

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Washer Hub Nut WH02X10363
#330

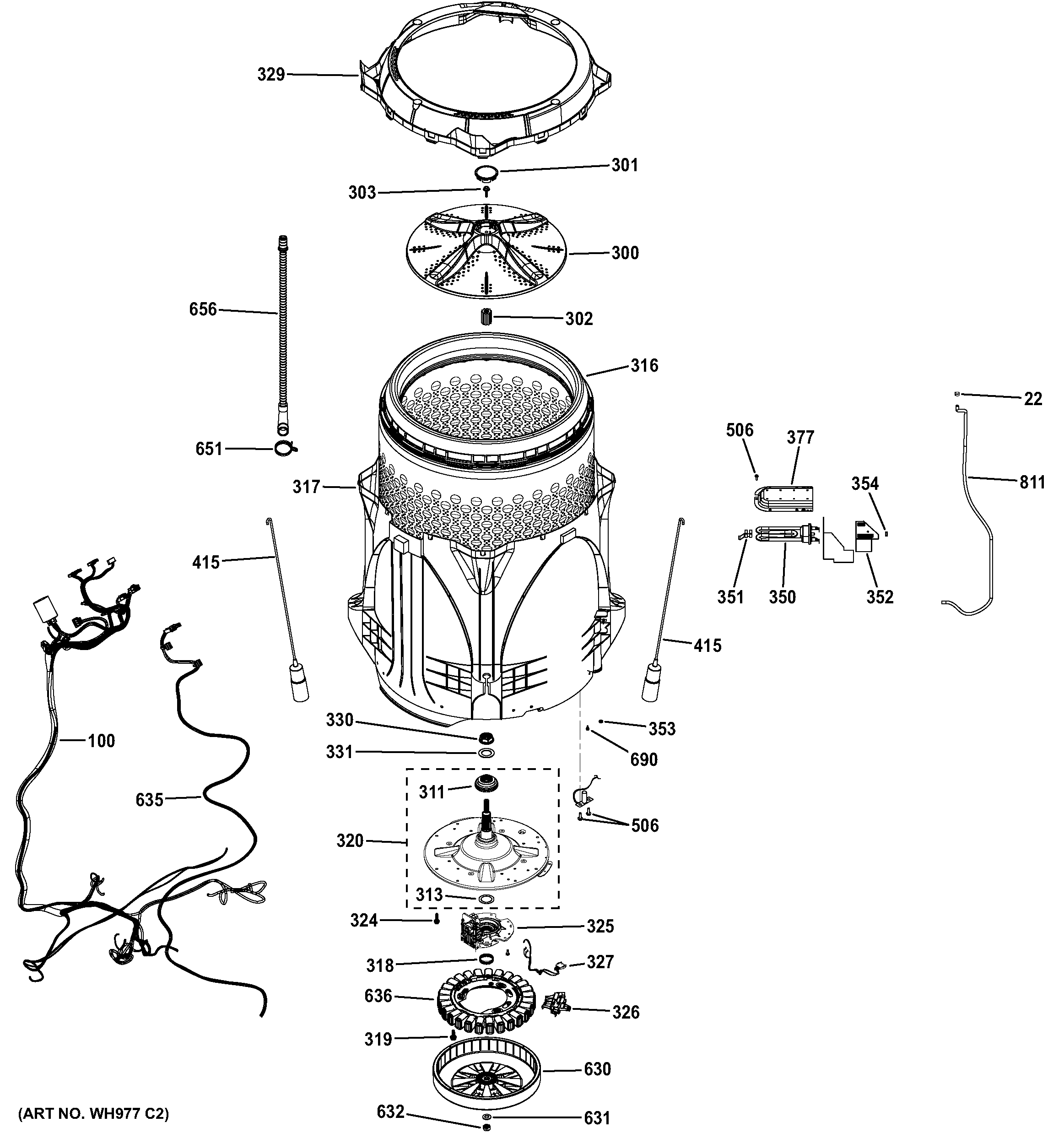

Tub & motor diagram

Washer hub nut

Part #WH02X10363

BEST SELLER
$13.21 |
13% OFF Phone Price : $15.21
In Stock
Washer Hub Nut Washer WH02X10364
#331

Tub & motor diagram

Washer hub nut washer

Part #WH02X10364

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Motor Rotor Position Sensor WH12X10558
#326

Tub & motor diagram

Washer motor rotor position sensor

Part #WH12X10558

Replaced by #WH12X23995

?
Manufacturer substitution
This part replaces WH12X10558. Substitute parts can look different from the original.
$39.32 |
13% OFF Phone Price : $45.32
In Stock
Wire Tie WH01X10217
#218

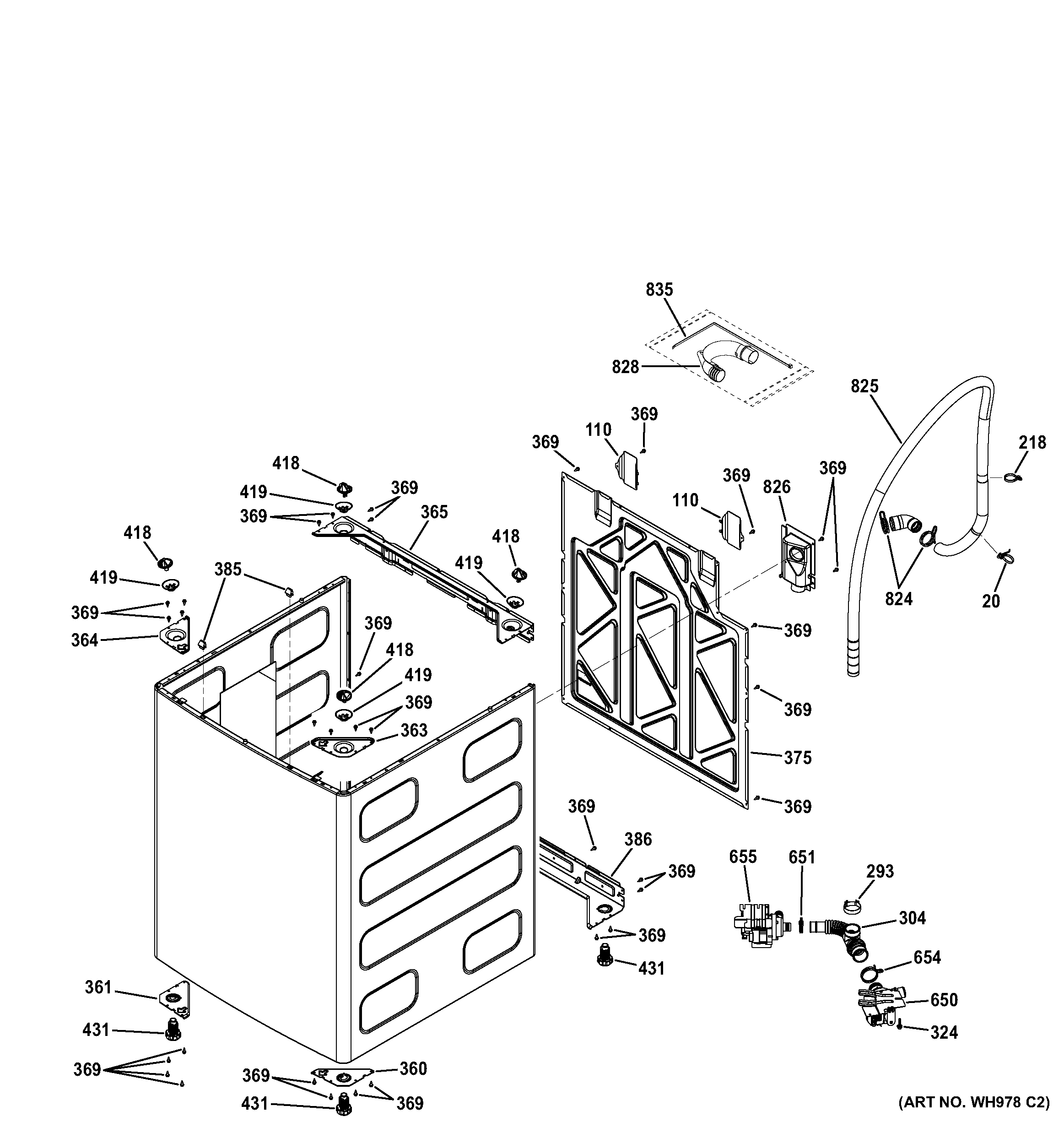

Cabinet & bulk dispenser diagram

Wire tie

Part #WH01X10217

Replaced by #WH01X10704

?
Manufacturer substitution
This part replaces WH01X10217. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Univ Clamp WH01X2036
Univ clamp

Part #WH01X2036

Replaced by #WH1X2036

?
Manufacturer substitution
This part replaces WH01X2036. Substitute parts can look different from the original.
$11.59 |
15% OFF Phone Price : $13.59
In Stock
Scr 1/4 - 20 WH02X10382
#303

Tub & motor diagram

Scr 1/4 - 20

Part #WH02X10382

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Drain Hose WH41X10319
#825

Cabinet & bulk dispenser diagram

Washer drain hose

Part #WH41X10319

$28.41 |
17% OFF Phone Price : $34.41
In Stock
Stator WH39X10012
#636

Tub & motor diagram

Stator

Part #WH39X10012

Replaced by #WH39X20678

?
Manufacturer substitution
This part replaces WH39X10012. Substitute parts can look different from the original.
$179.58 |
6% OFF Phone Price : $191.58
In Stock
Impeller WH43X10060
#300

Tub & motor diagram

Impeller

Part #WH43X10060

Replaced by #WH43X25444

?
Manufacturer substitution
This part replaces WH43X10060. Substitute parts can look different from the original.
$192.30 |
6% OFF Phone Price : $204.30
In Stock
Screw Platform WH02X10376
Screw platform

Part #WH02X10376

$7.88 |
11% OFF Phone Price : $8.88
In Stock
