White-Westinghouse
Top-Mount Refrigerator

Model # RT175LLV0 Official White-Westinghouse top-mount refrigerator - lw30588110

Here are the diagrams and repair parts for Official White-Westinghouse RT175LLV0 top-mount refrigerator - lw30588110, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Filter Drier G186717
#9

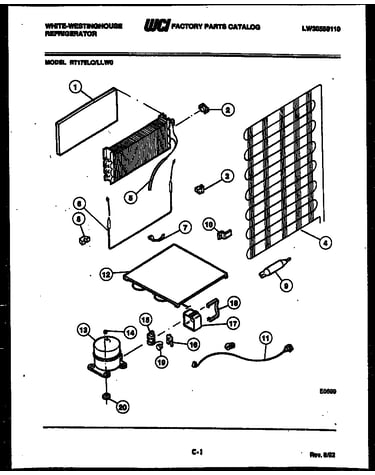

System and automatic defrost parts diagram

Filter drier

Part #G186717

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G186717. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Defrost Timer G187484
#31

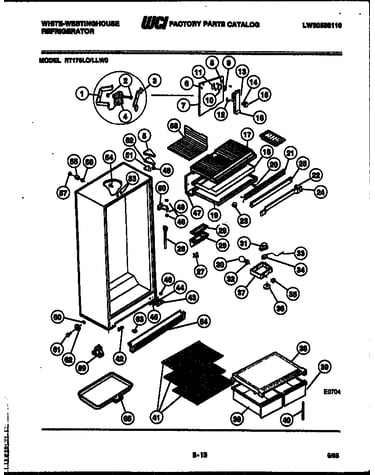

Cabinet parts diagram

Defrost timer

Part #G187484

Replaced by #215846602

?
Manufacturer substitution
This part replaces G187484. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Evaporator Motor G158289
#4

Cabinet parts diagram

Evaporator motor

Part #G158289

Replaced by #5300158289

?
Manufacturer substitution
This part replaces G158289. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Screw G187363
#8

Cabinet parts diagram

Screw

Part #G187363

Replaced by #5304455650

?
Manufacturer substitution
This part replaces G187363. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Permagum G112470
#41

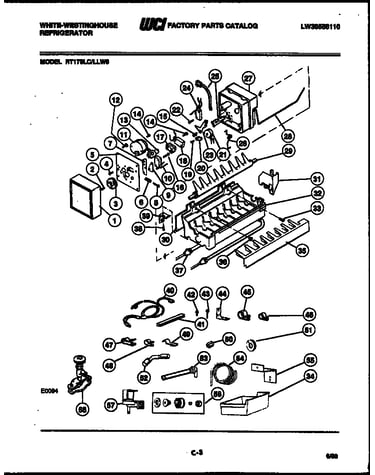

Ice maker and installation parts diagram

Permagum

Part #G112470

Replaced by #5305877995

?
Manufacturer substitution
This part replaces G112470. Substitute parts can look different from the original.
$42.79 |
12% OFF Phone Price : $48.79
In Stock
Complete Grommet G177617
#20

System and automatic defrost parts diagram

Complete grommet

Part #G177617

Replaced by #218513300

?
Manufacturer substitution
This part replaces G177617. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Butter Dish G161079
#23

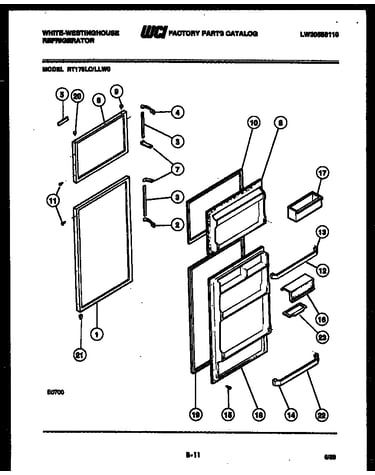

Door parts diagram

Butter dish

Part #G161079

Replaced by #5308000716

?
Manufacturer substitution
This part replaces G161079. Substitute parts can look different from the original.
This item is not returnable
$19.75 |
9% OFF Phone Price : $21.75
In Stock
Outer Ferrule G174734
#57

Cabinet parts diagram

Outer ferrule

Part #G174734

Replaced by #5303001287

?
Manufacturer substitution
This part replaces G174734. Substitute parts can look different from the original.
$9.89
In Stock
Refrigerator Screw G160578
#42

Ice maker and installation parts diagram

Refrigerator screw

Part #G160578

Replaced by #5308000039

?
Manufacturer substitution
This part replaces G160578. Substitute parts can look different from the original.
$13.29 |
13% OFF Phone Price : $15.29
In Stock
Refrigerator Water Tube G180300
#53

Ice maker and installation parts diagram

Refrigerator water tube

Part #G180300

Replaced by #215456100

?
Manufacturer substitution
This part replaces G180300. Substitute parts can look different from the original.
$81.11
In Stock
