Toro
Rear-Engine Riding Mower

Model # 74360 (270000001-270999999) Official Toro riding lawn mower

Here are the diagrams and repair parts for Official Toro 74360-270000001-270999999 riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

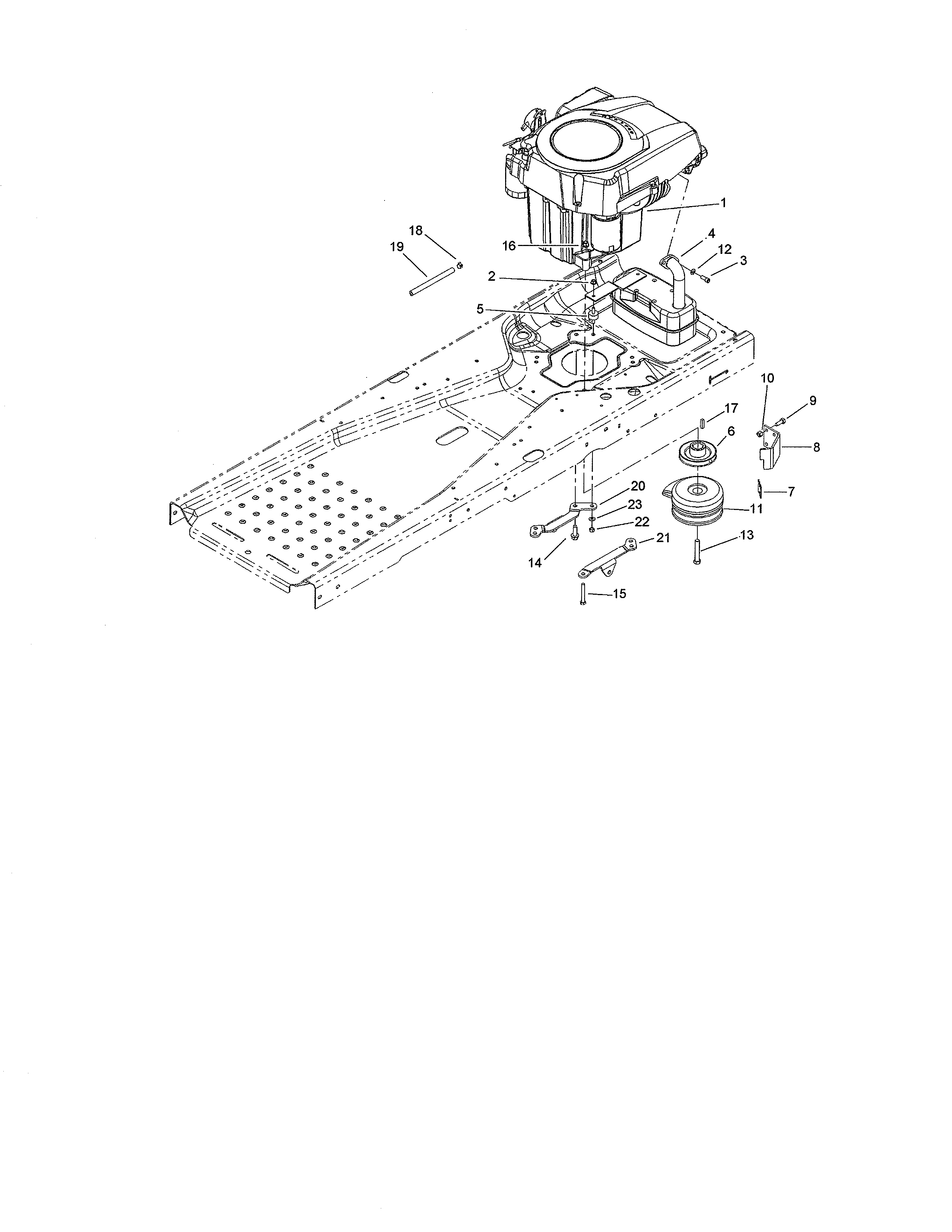

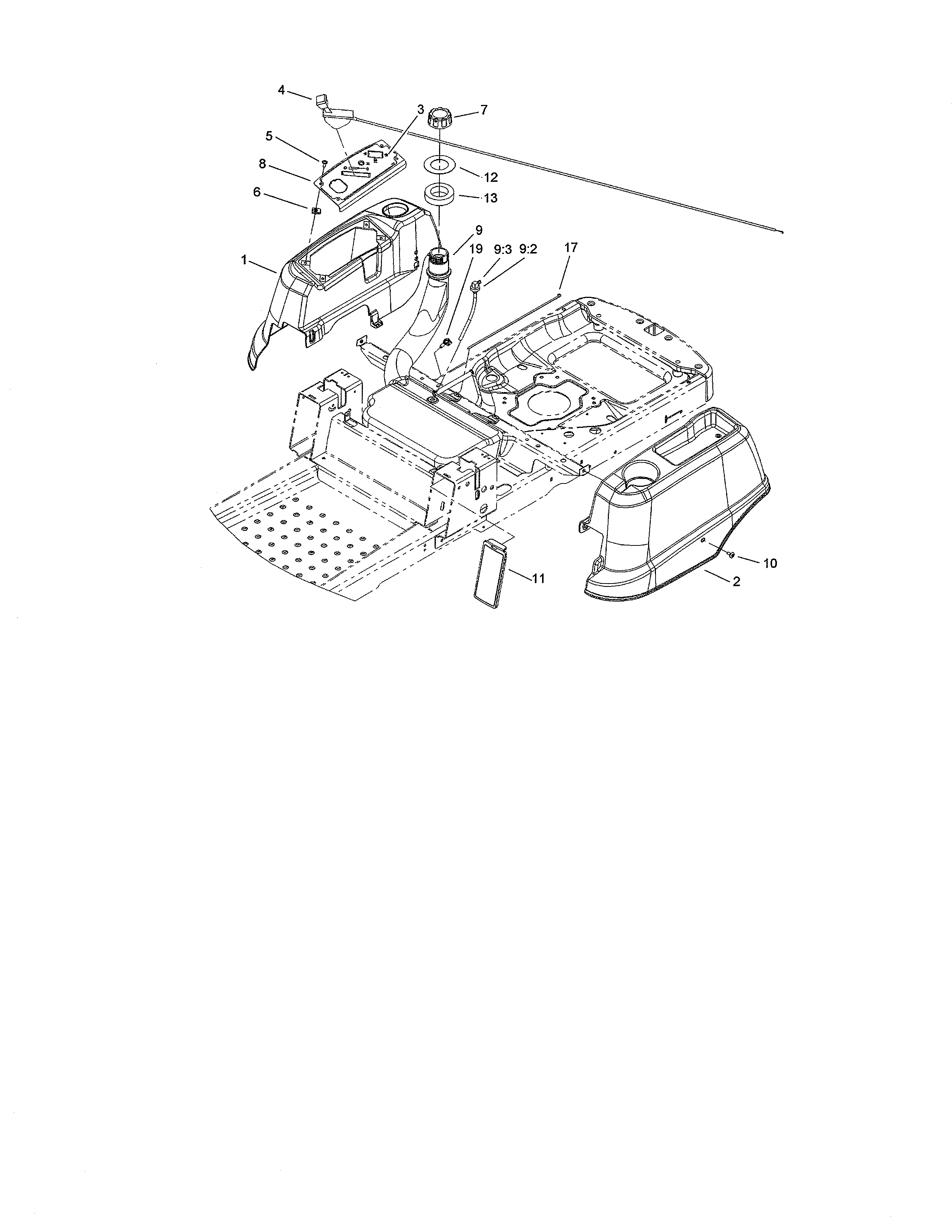

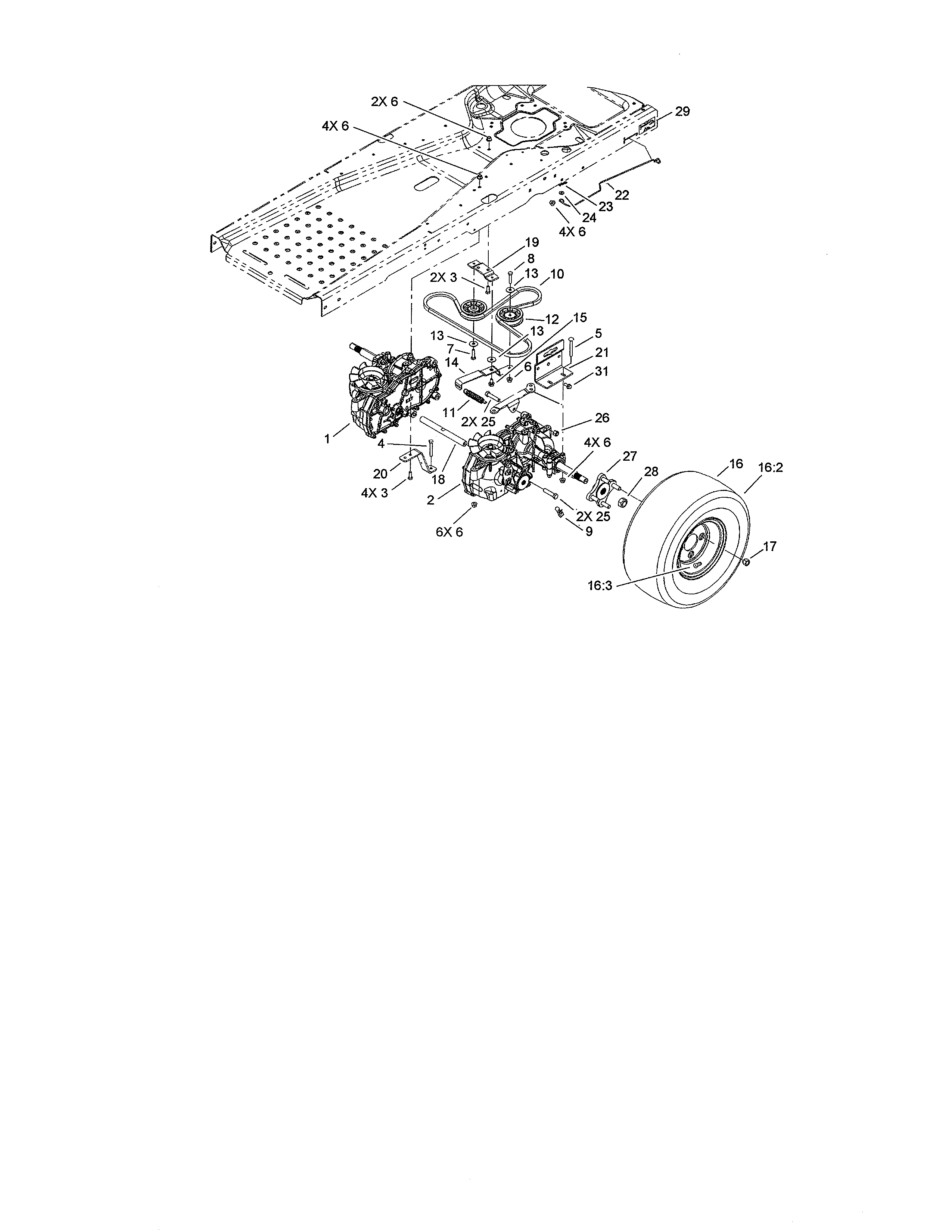

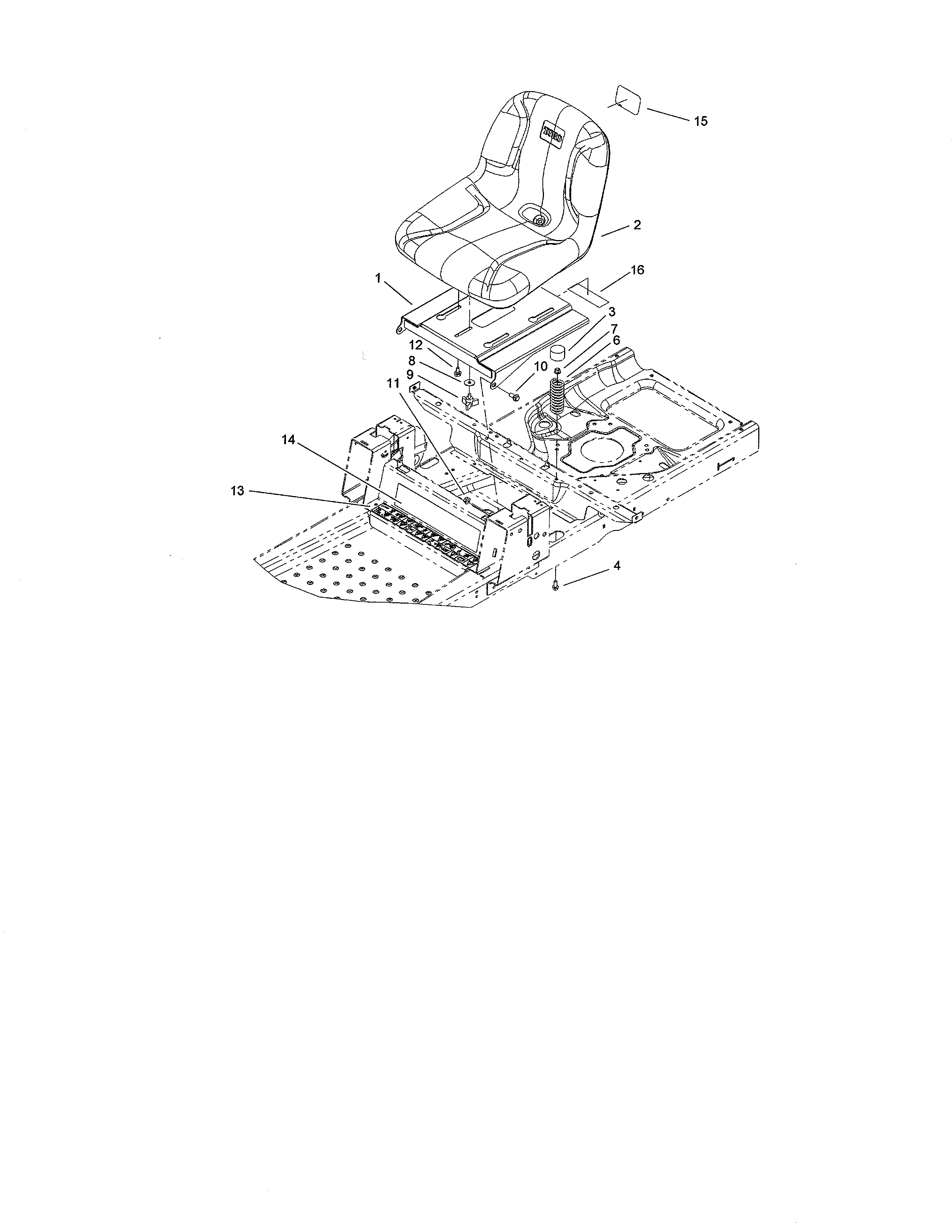

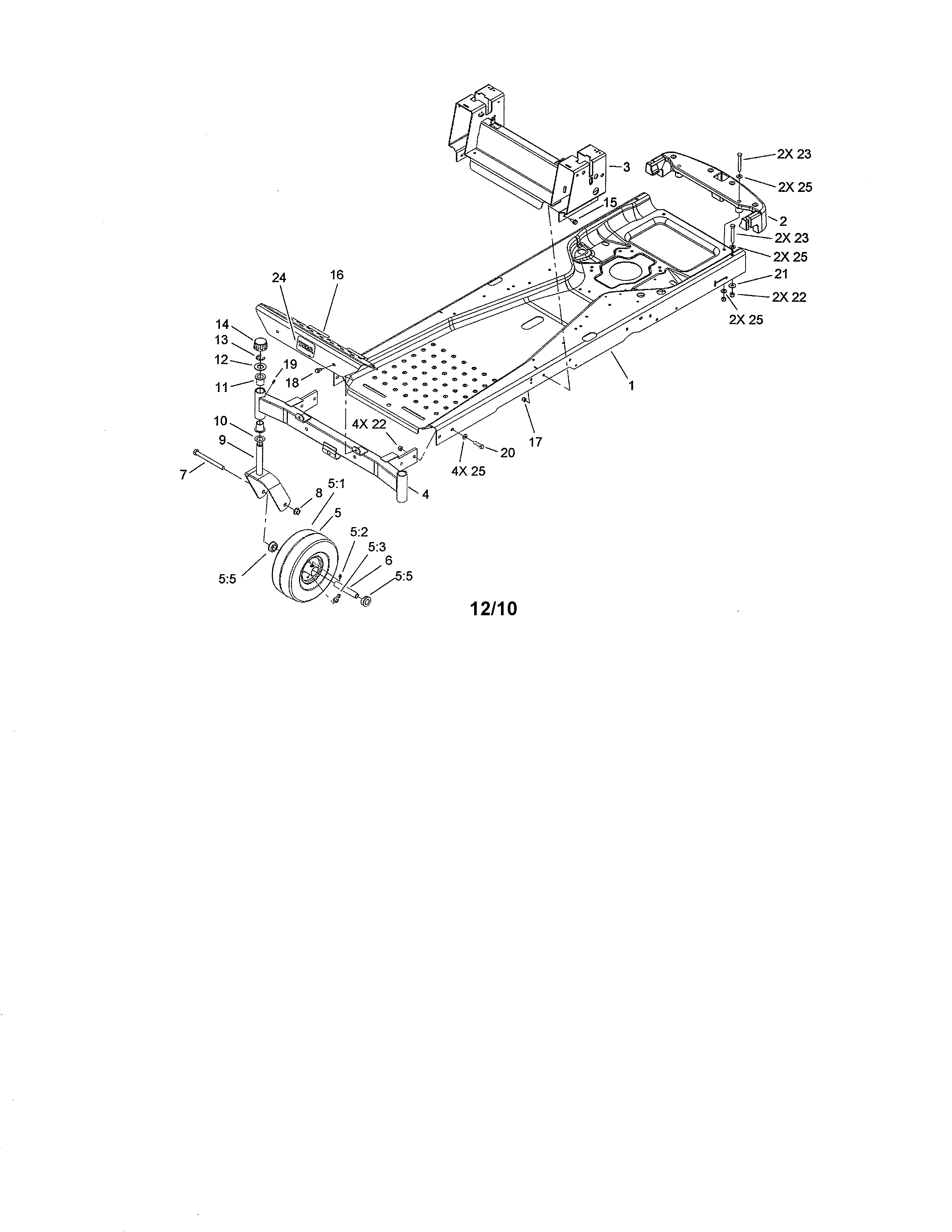

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 415 parts  |
Stop Nut 3296-29
Stop nut

Part #3296-29

The manufacturer no longer makes this part, and there's no substitute part

Washer 3256-5
#14

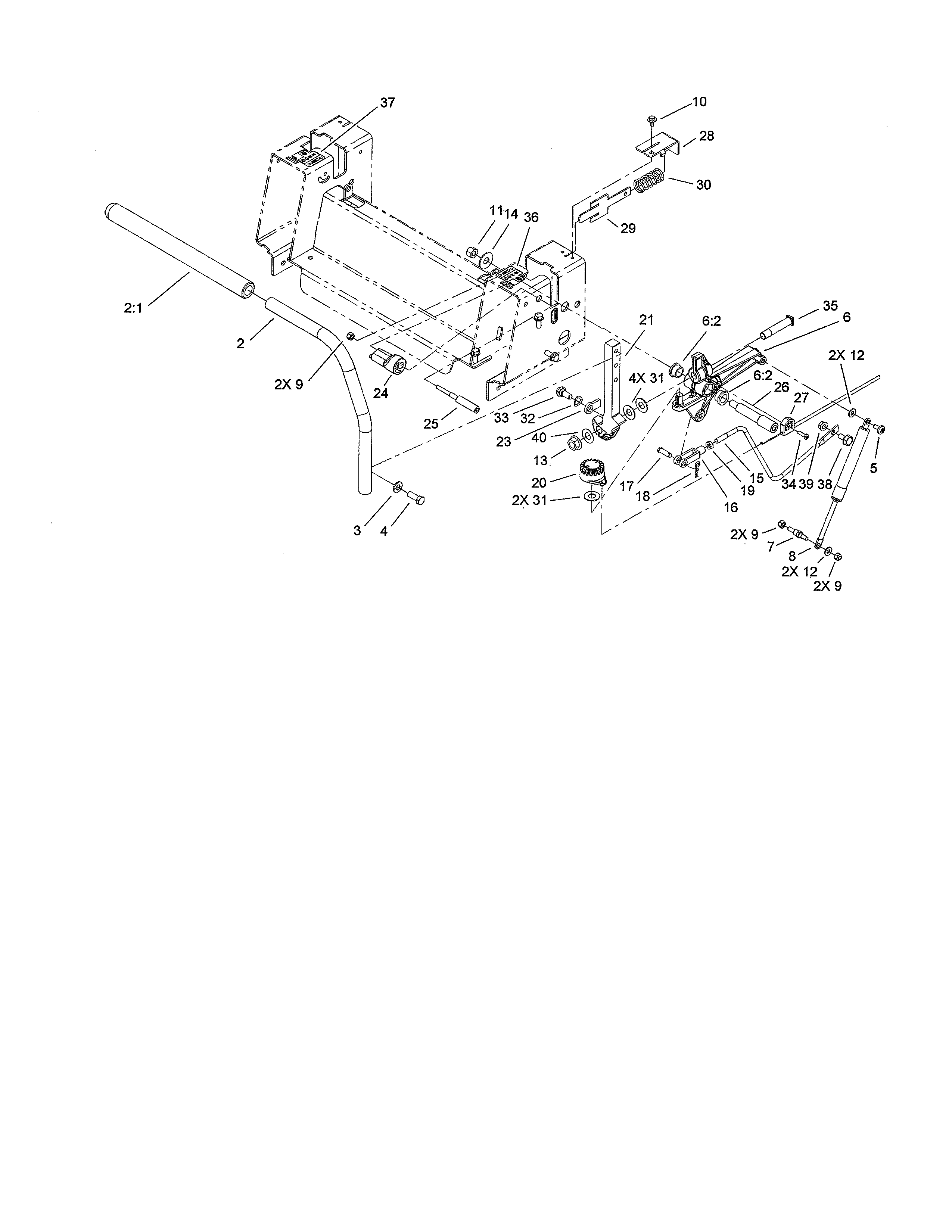

Control assembly diagram

Washer

Part #3256-5

This item is not returnable
$2.16
In Stock
Extension Spring 106-2177
#24

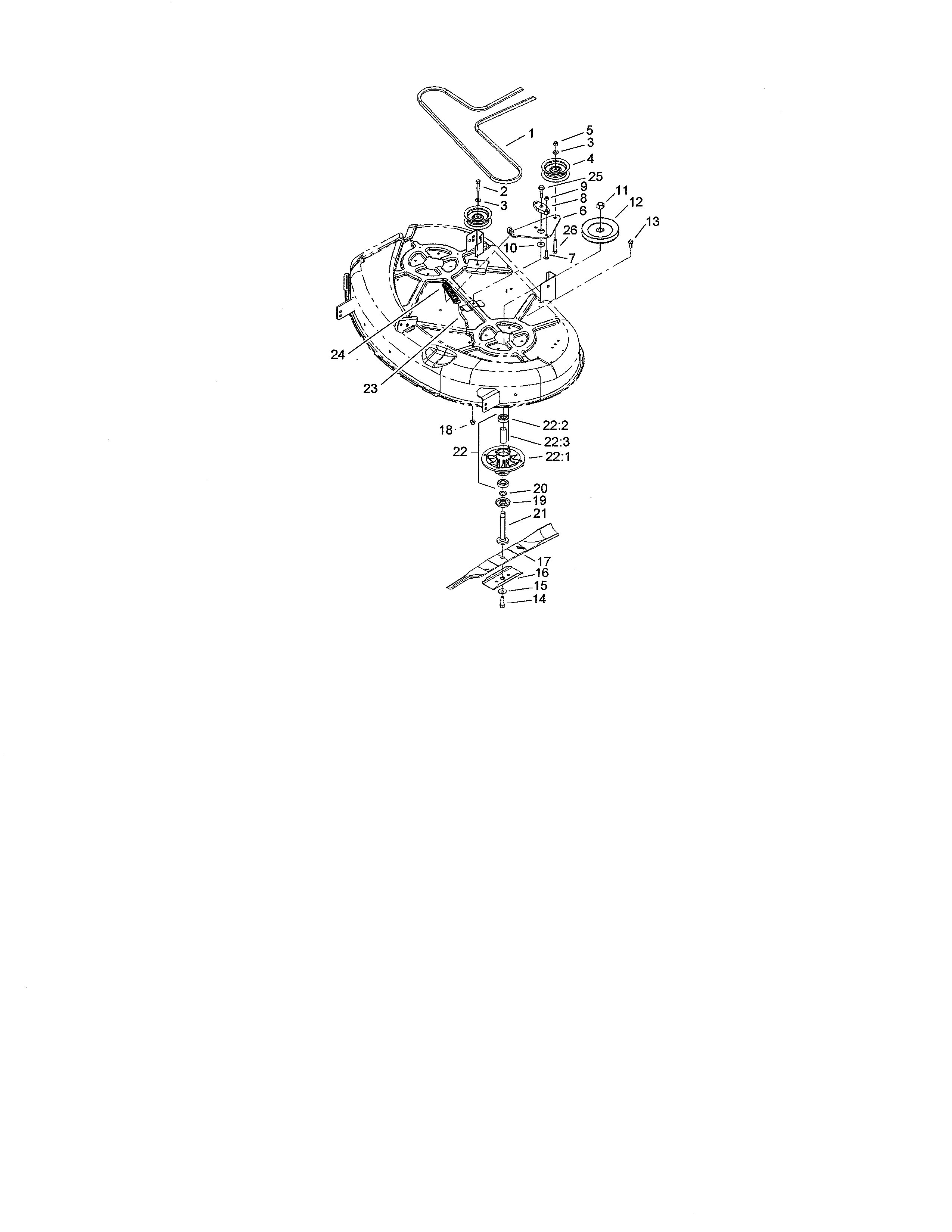

42" deck spindle/belt drive diagram

Extension spring

Part #106-2177

$22.36
In Stock
Lawn Tractor Transaxle Jackshaft Gear 104-5318
Lawn tractor transaxle jackshaft gear

Part #104-5318

$116.12
In Stock
Lawn Tractor Deck Lift Pivot Block 108-7845
#12

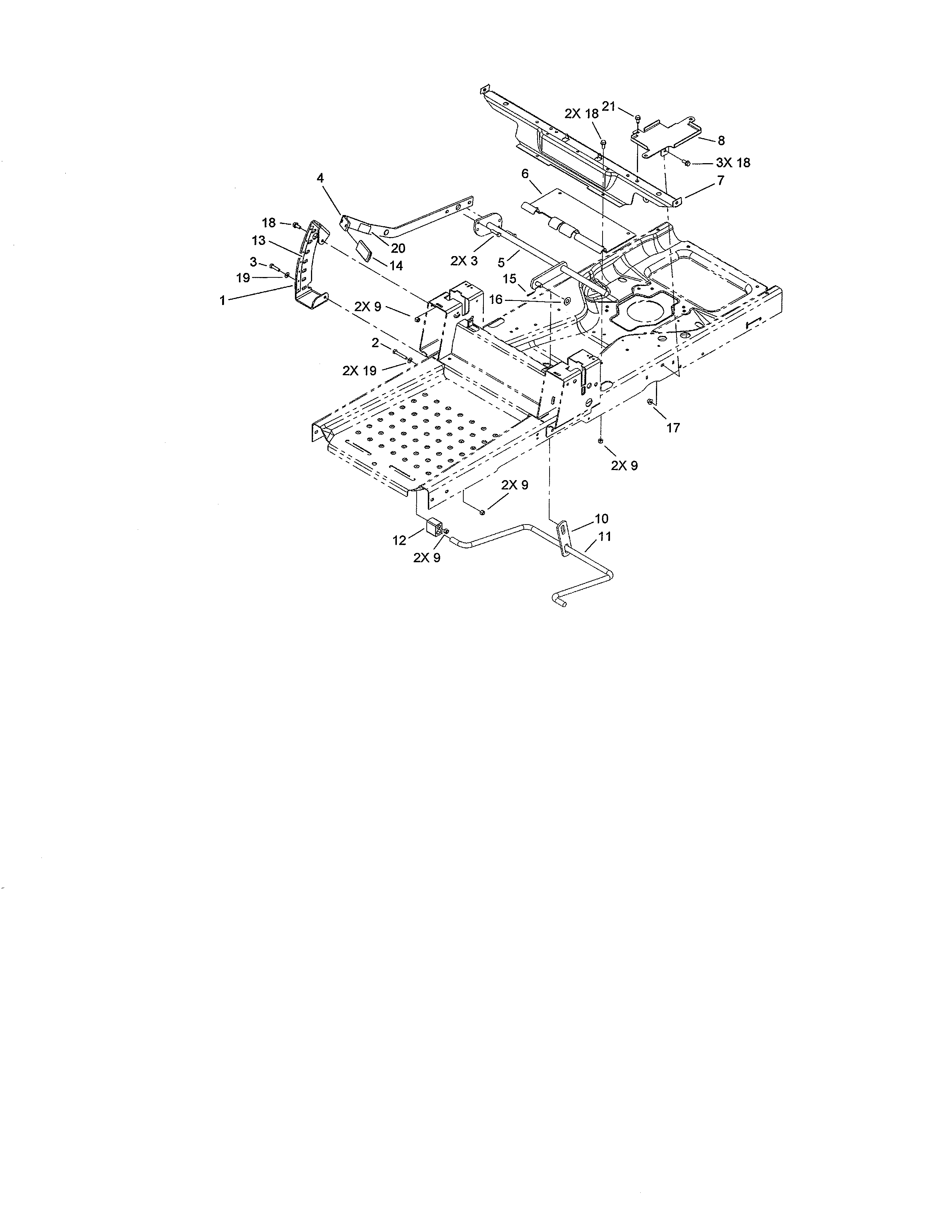

Deck lift/seat support diagram

Lawn tractor deck lift pivot block

Part #108-7845

$25.80
In Stock
Torque Screw 110-0863
#34

Control assembly diagram

Torque screw

Part #110-0863

This item is not returnable
$5.74
In Stock
Bolt 3231-2
#4

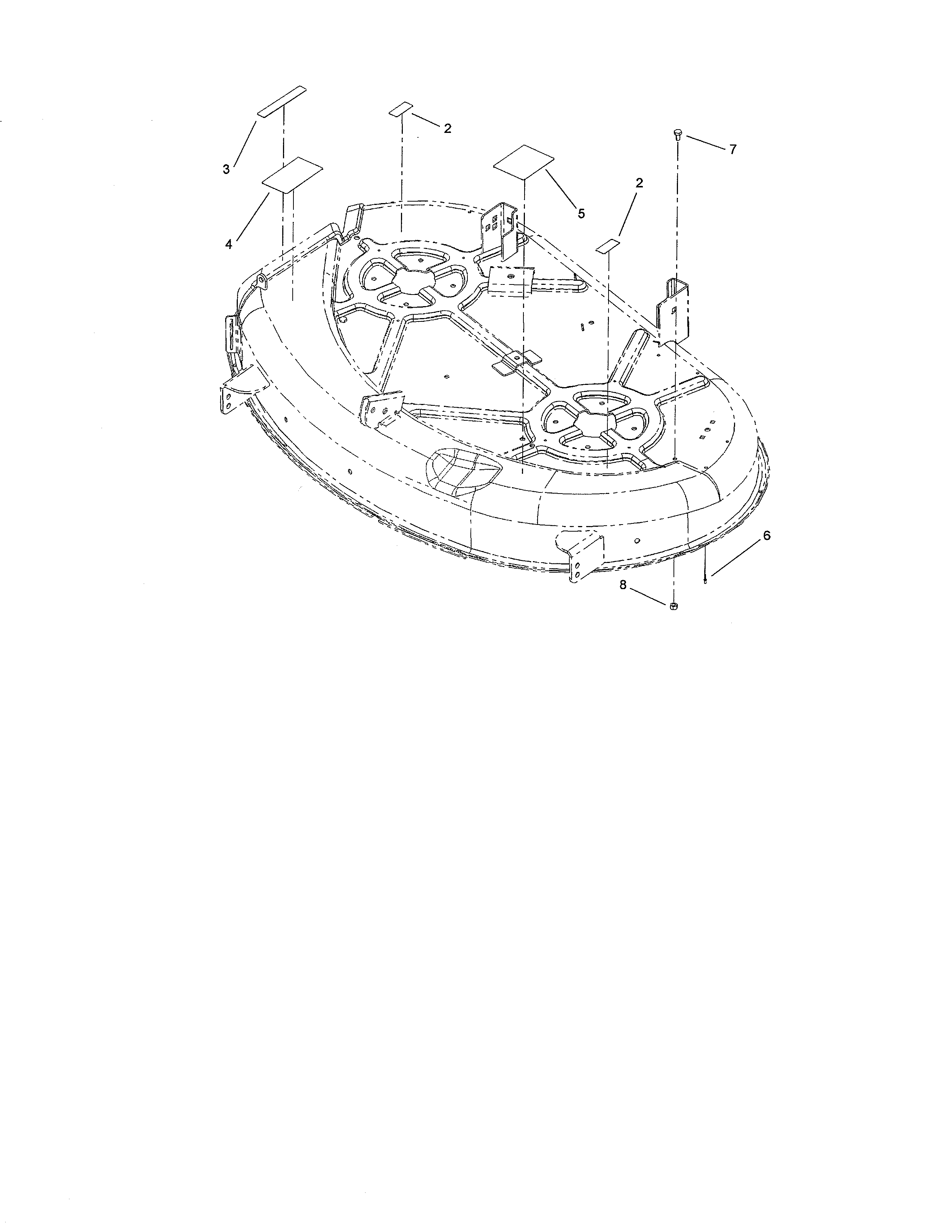

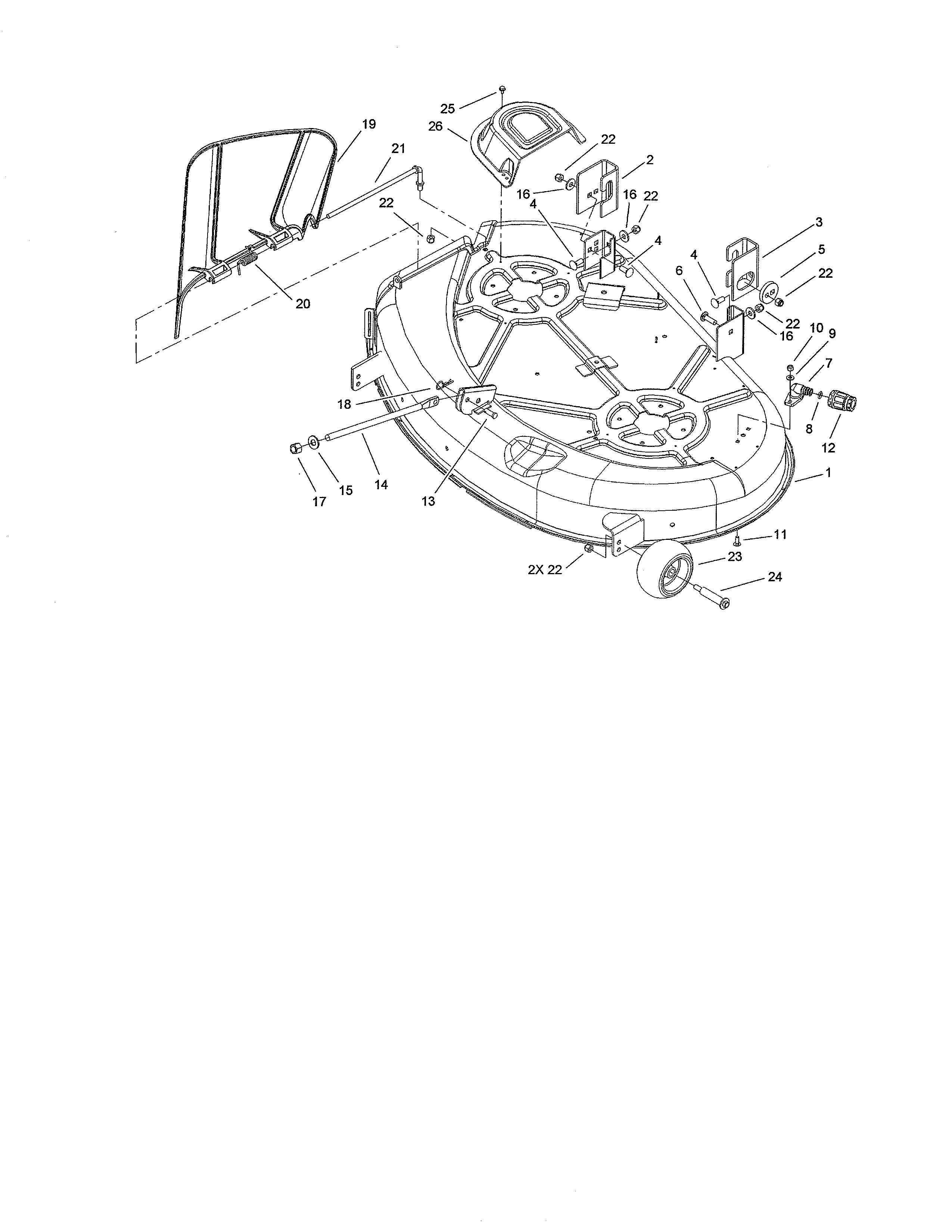

42" deck assembly diagram

Bolt

Part #3231-2

This item is not returnable
$2.16
In Stock
Lawn Tractor Transaxle Brake Shaft 114-1633
#53

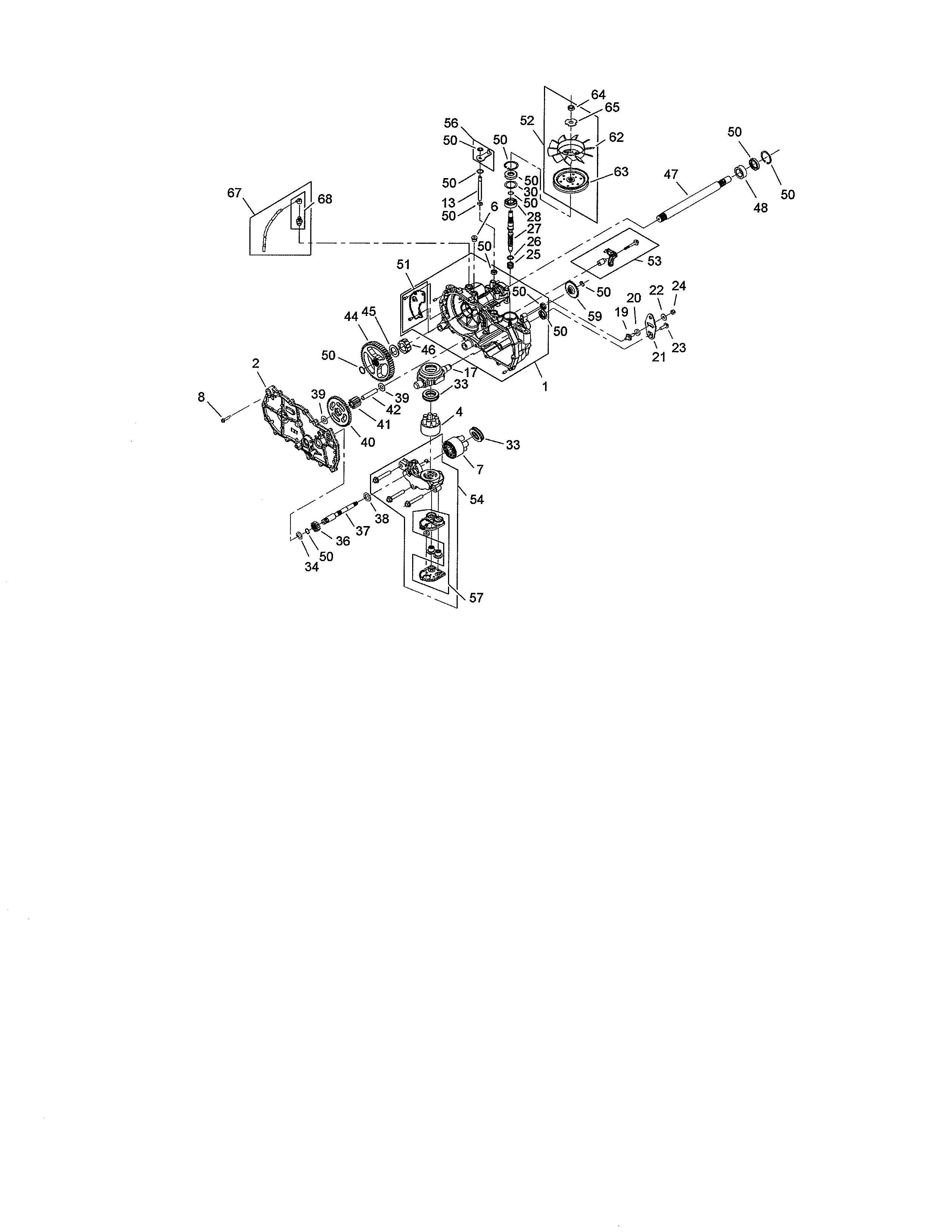

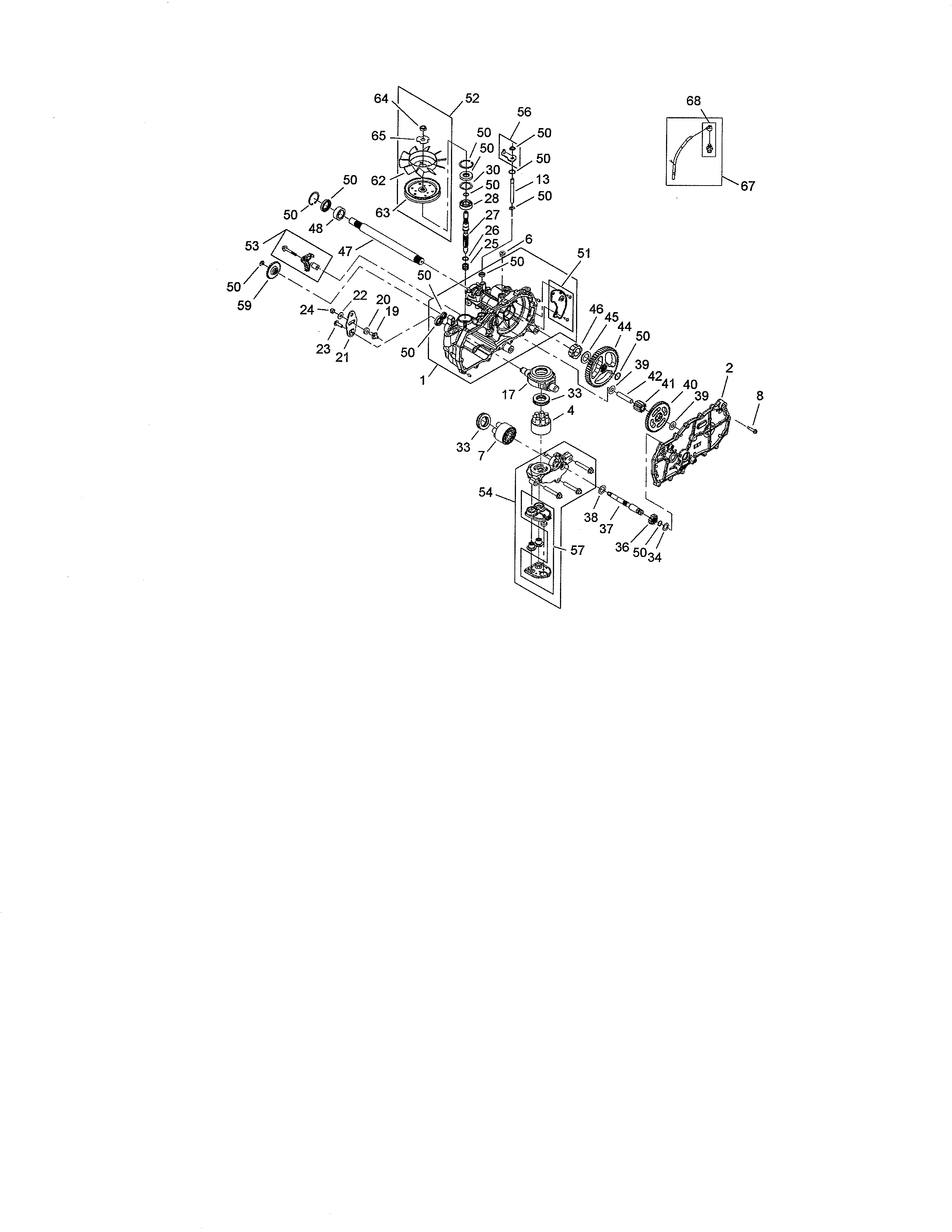

Lh hydro assembly diagram

Lawn tractor transaxle brake shaft

Part #114-1633

$62.09
In Stock
Seal Kit 106-8686
Seal kit

Part #106-8686

$279.75
In Stock
Lawn Tractor Interlock Switch 110-6765
#6

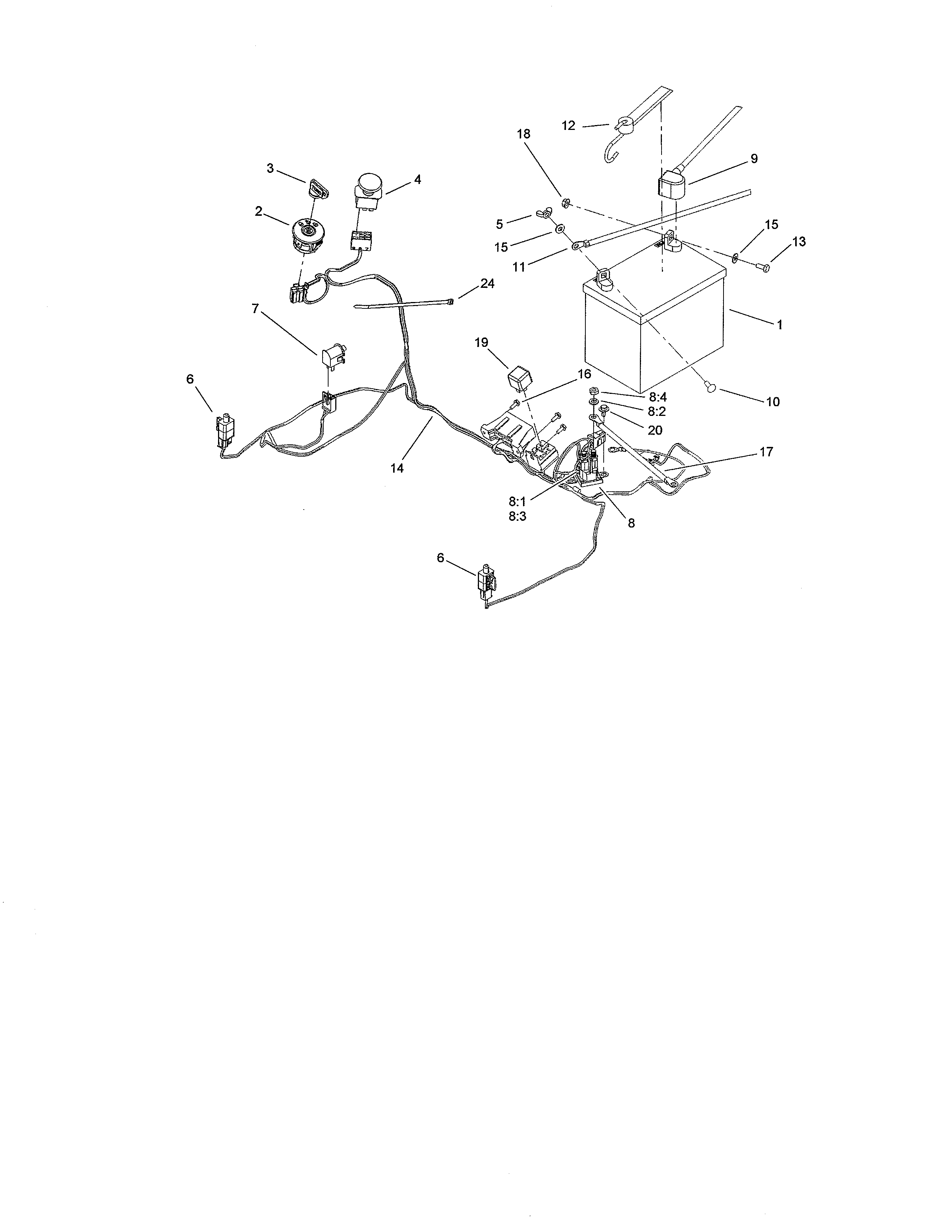

Electrical assembly diagram

Lawn tractor interlock switch

Part #110-6765

$17.77
In Stock
