Model # 66362620 Official Kenmore touch & go iron

Here are the diagrams and repair parts for Official Kenmore 66362620 touch & go iron, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
66362620 Touch & Go Iron
Craftsman Screw 1290
#20

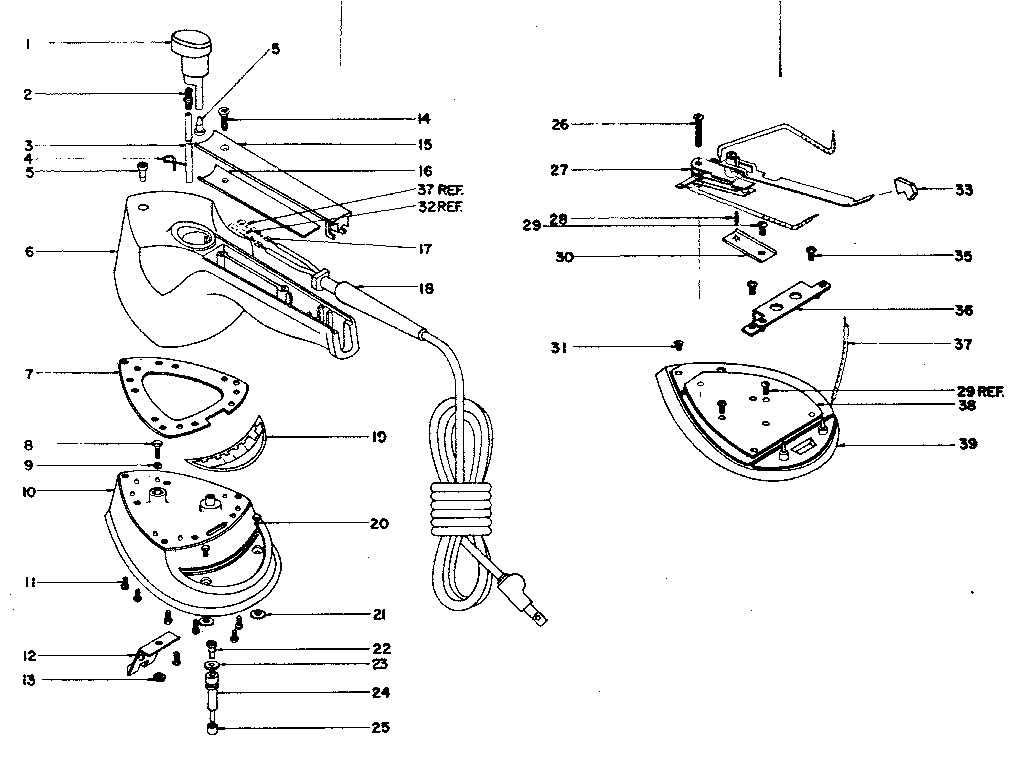

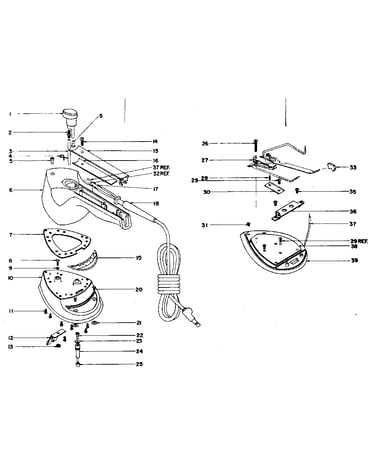

Replacement parts diagram

Craftsman screw

Part #1290

The manufacturer no longer makes this part, and there's no substitute part

O-ring Seal 93451
#23

Replacement parts diagram

O-ring seal

Part #93451

The manufacturer no longer makes this part, and there's no substitute part

Gasket 93166
#25

Replacement parts diagram

Gasket

Part #93166

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 206123
#19

Replacement parts diagram

Escutcheon

Part #206123

The manufacturer no longer makes this part, and there's no substitute part

Screw 93474
#26

Replacement parts diagram

Screw

Part #93474

The manufacturer no longer makes this part, and there's no substitute part

Gasket 93340
#16

Replacement parts diagram

Gasket

Part #93340

The manufacturer no longer makes this part, and there's no substitute part

Handle Clip 93181
#12

Replacement parts diagram

Handle clip

Part #93181

The manufacturer no longer makes this part, and there's no substitute part

Screw 93783
#8

Replacement parts diagram

Screw

Part #93783

The manufacturer no longer makes this part, and there's no substitute part

Screw 76008
#29

Replacement parts diagram

Screw

Part #76008

The manufacturer no longer makes this part, and there's no substitute part

Nut 93782
#13

Replacement parts diagram

Nut

Part #93782

The manufacturer no longer makes this part, and there's no substitute part
