Model # N8MPL100J22A1 Official ICP 80+ single-stage gas furnace

Here are the diagrams and repair parts for Official ICP N8MPL100J22A1 80+ single-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#12

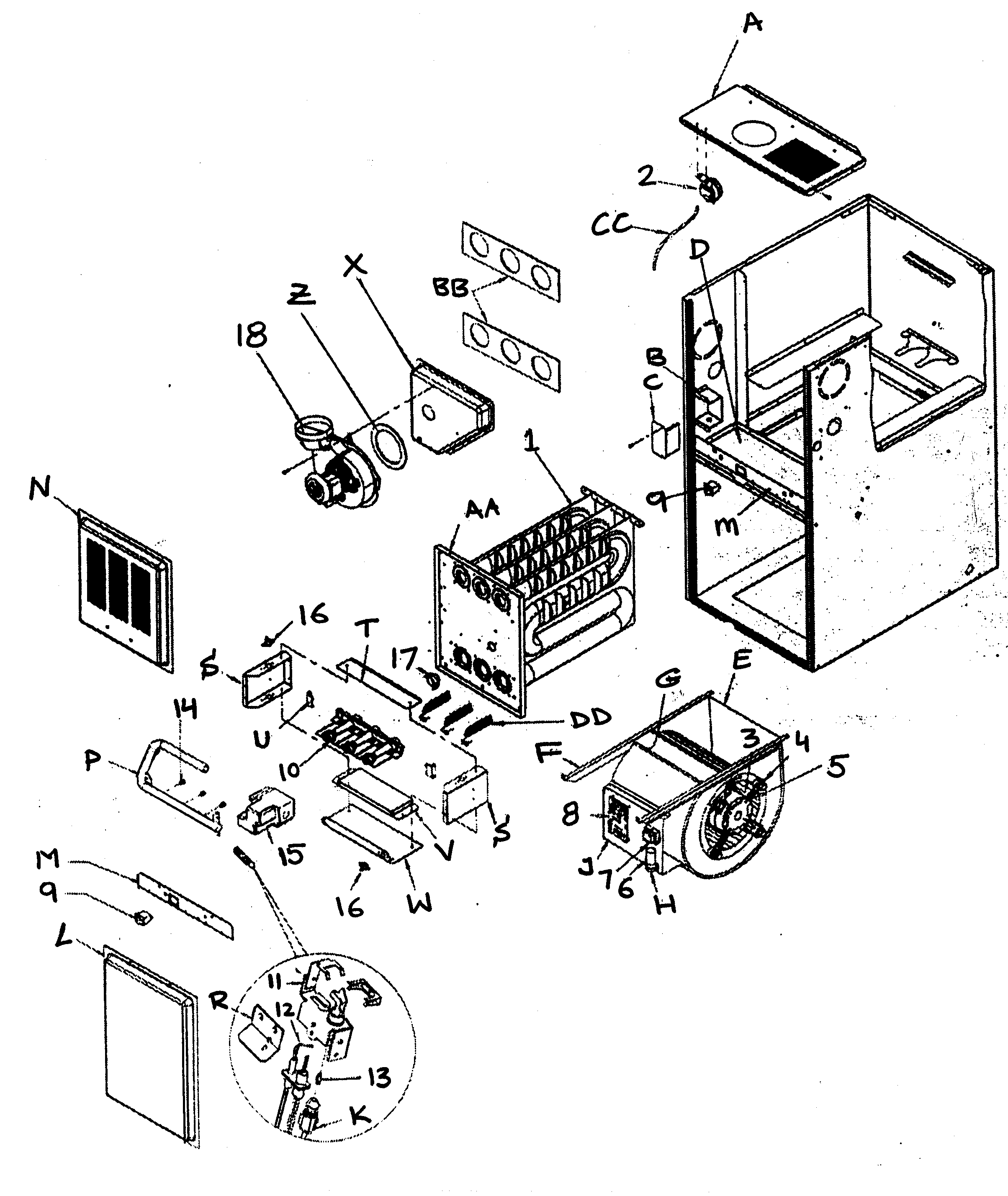

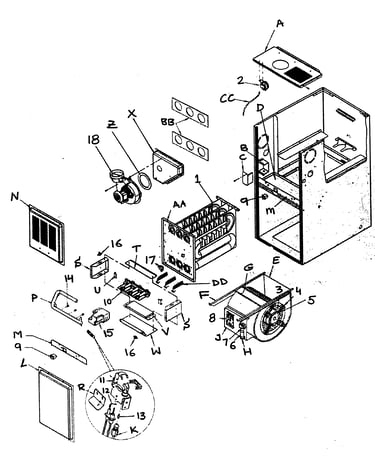

Furnace diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Switch 1013529
#2

Furnace diagram

Switch

Part #1013529

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1013529. Substitute parts can look different from the original.
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Top Burner 1014481
#T

Furnace diagram

Top burner

Part #1014481

$7.63
In Stock
Box Collec 1012738
#X

Furnace diagram

Box collec

Part #1012738

$51.38
In Stock
Panel Cutoff 721020008
#G

Furnace diagram

Panel cutoff

Part #721020008

$252.09
In Stock
Furnace Burner (replaces 1012384) 1008725
#10

Furnace diagram

Furnace burner (replaces 1012384)

Part #1008725

$129.04
In Stock
Baffle 1012339
#V

Furnace diagram

Baffle

Part #1012339

$335.40
In Stock
Bracket 1012532
#U

Furnace diagram

Bracket

Part #1012532

$296.29
In Stock
Panel Frnt 1013784
#AA

Furnace diagram

Panel frnt

Part #1013784

$54.78
In Stock
Manifold 1012789
#P

Furnace diagram

Manifold

Part #1012789

$67.00
In Stock
