Craftsman
Front-Engine Lawn Tractor

Model # 917270913 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917270913 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

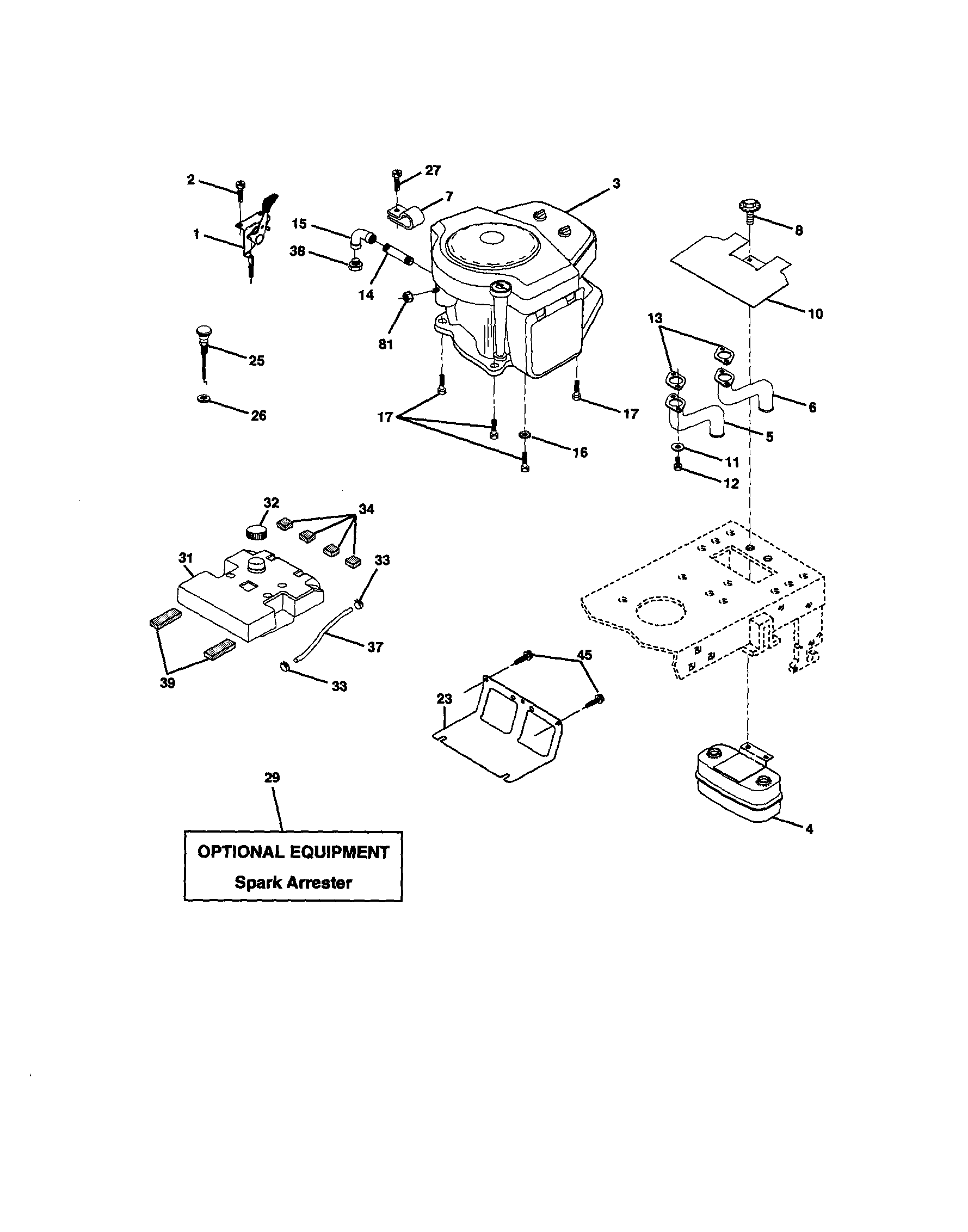

  View engine

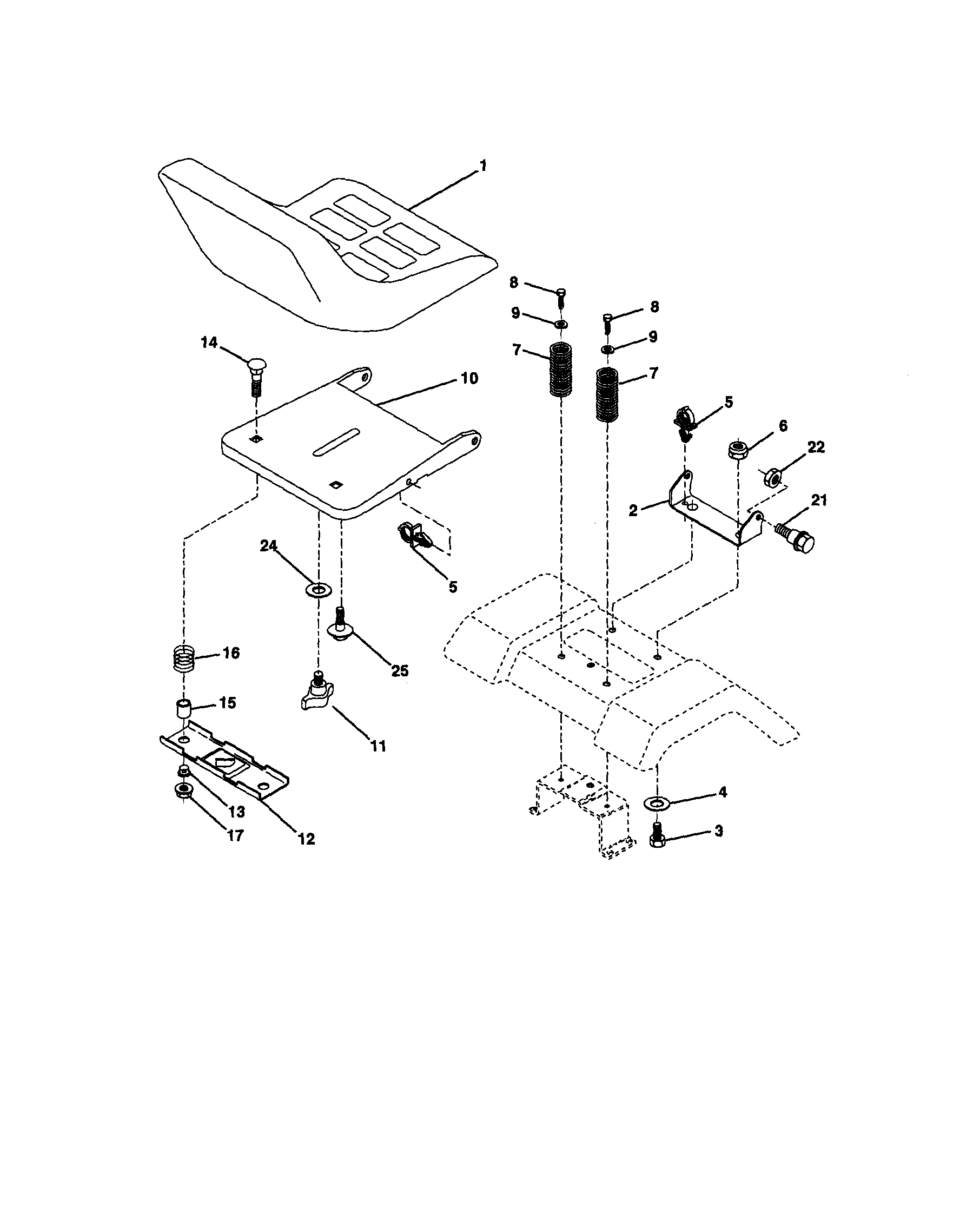

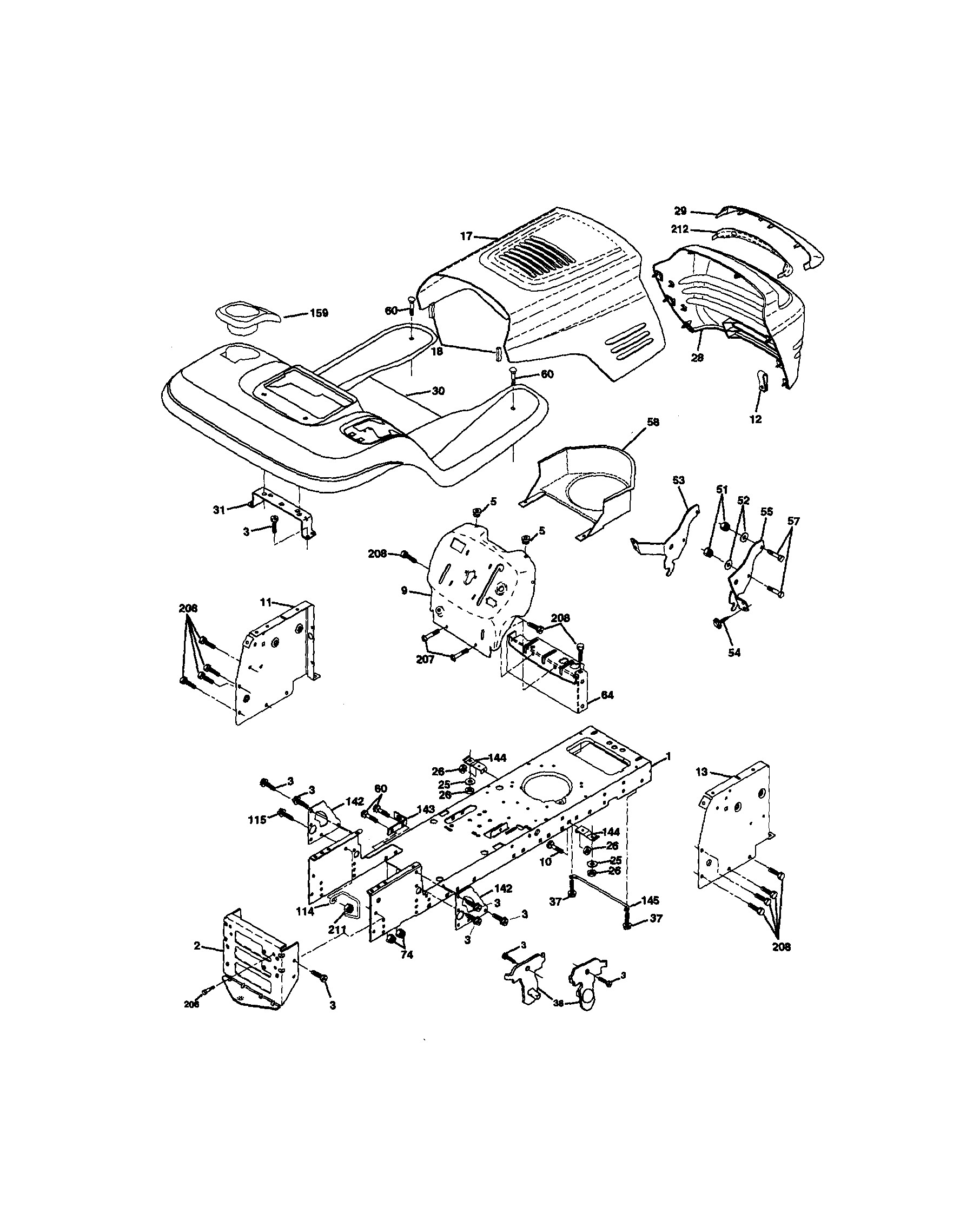

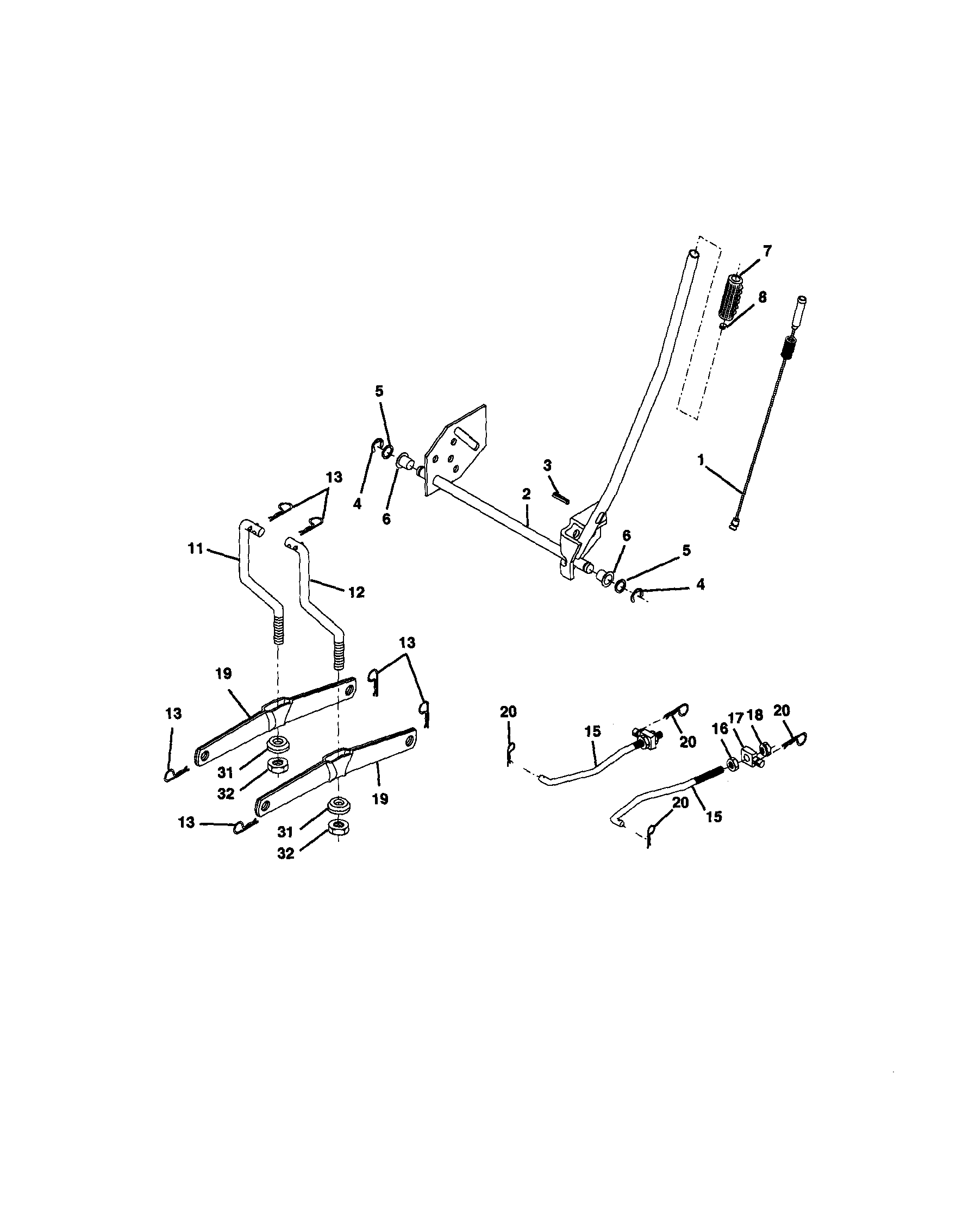

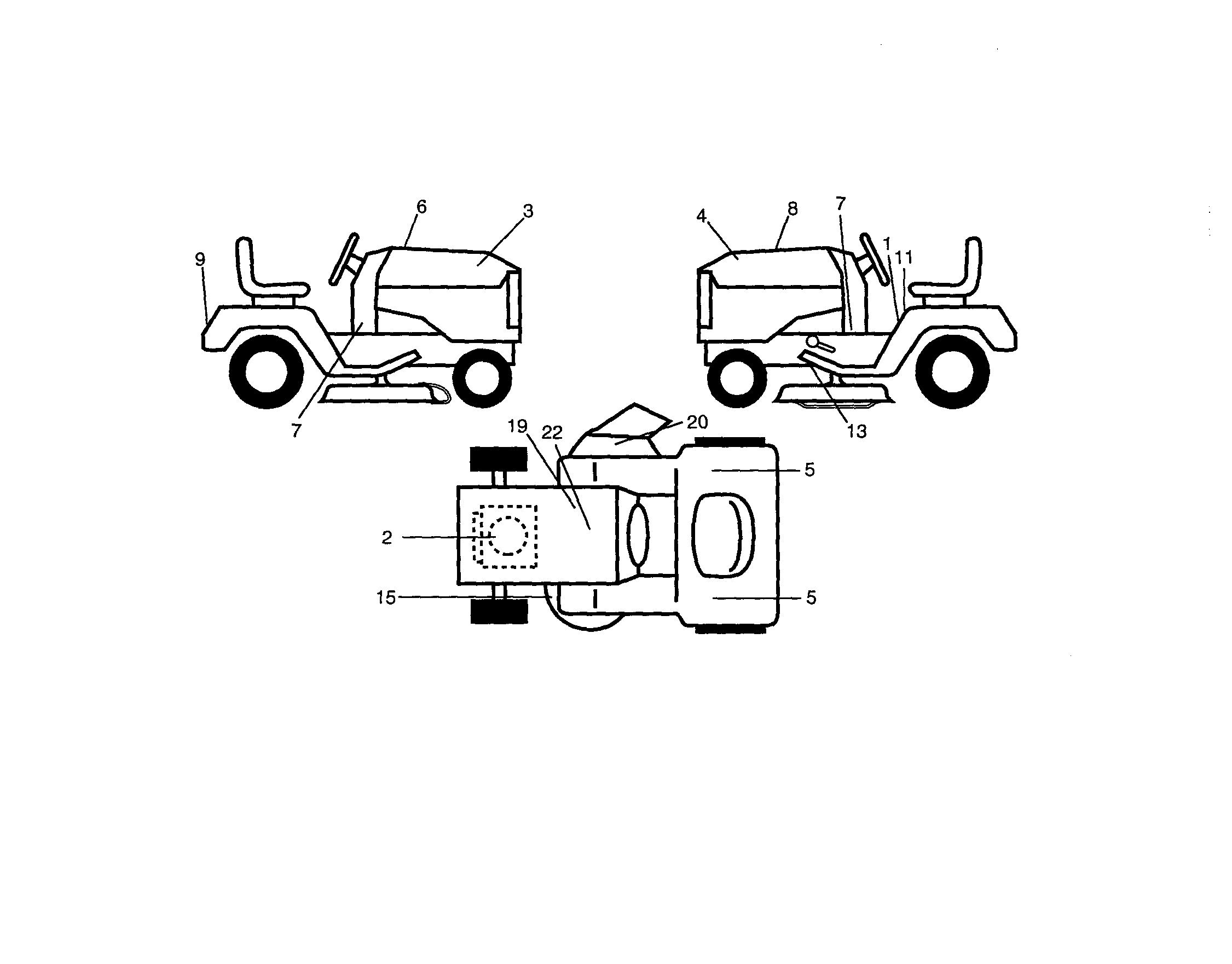

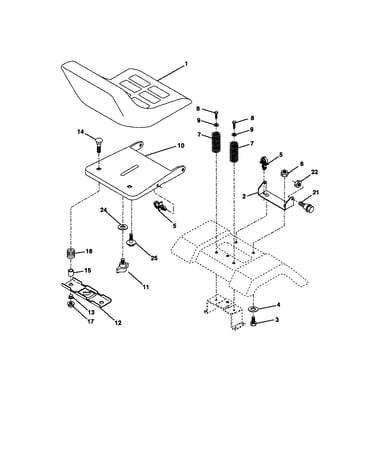

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 648 parts  |
Lawn Tractor V-belt 144959
#68

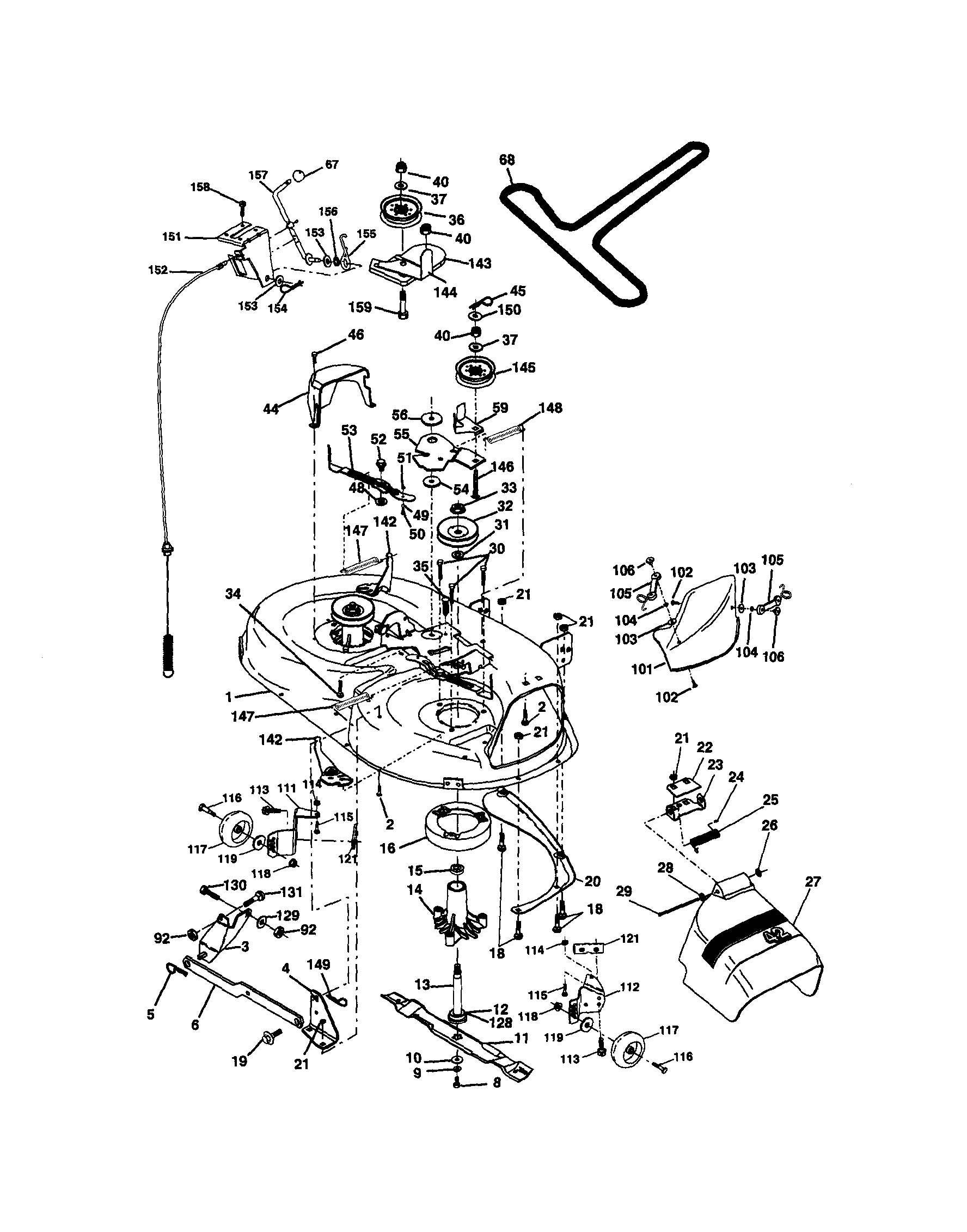

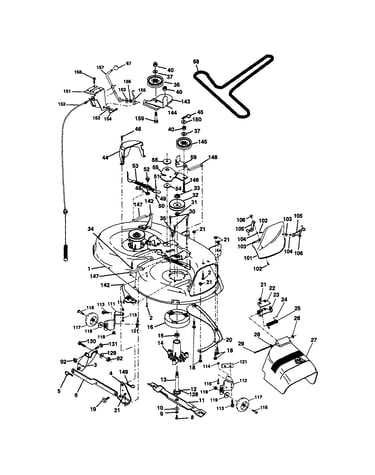

Mower deck diagram

Lawn tractor v-belt

Part #144959

Replaced by #532144959

?
Manufacturer substitution
This part replaces 144959. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$36.74 |
14% OFF Phone Price : $42.74
In Stock
Lawn Tractor Mulching Blade 134149
#11

Mower deck diagram

Lawn tractor mulching blade

Part #134149

Replaced by #532134149

?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14 |
21% OFF Phone Price : $28.14
In Stock
Hub Cap 104757X
#11

Wheels and tires diagram

Hub cap

Part #104757X

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Blade Engagement Cable 169676
#152

Mower deck diagram

Lawn tractor blade engagement cable

Part #169676

Replaced by #532175067

?
Manufacturer substitution
This part replaces 169676. Substitute parts can look different from the original.
BEST SELLER
$41.18 |
13% OFF Phone Price : $47.18
In Stock
V-belt 130801
#57

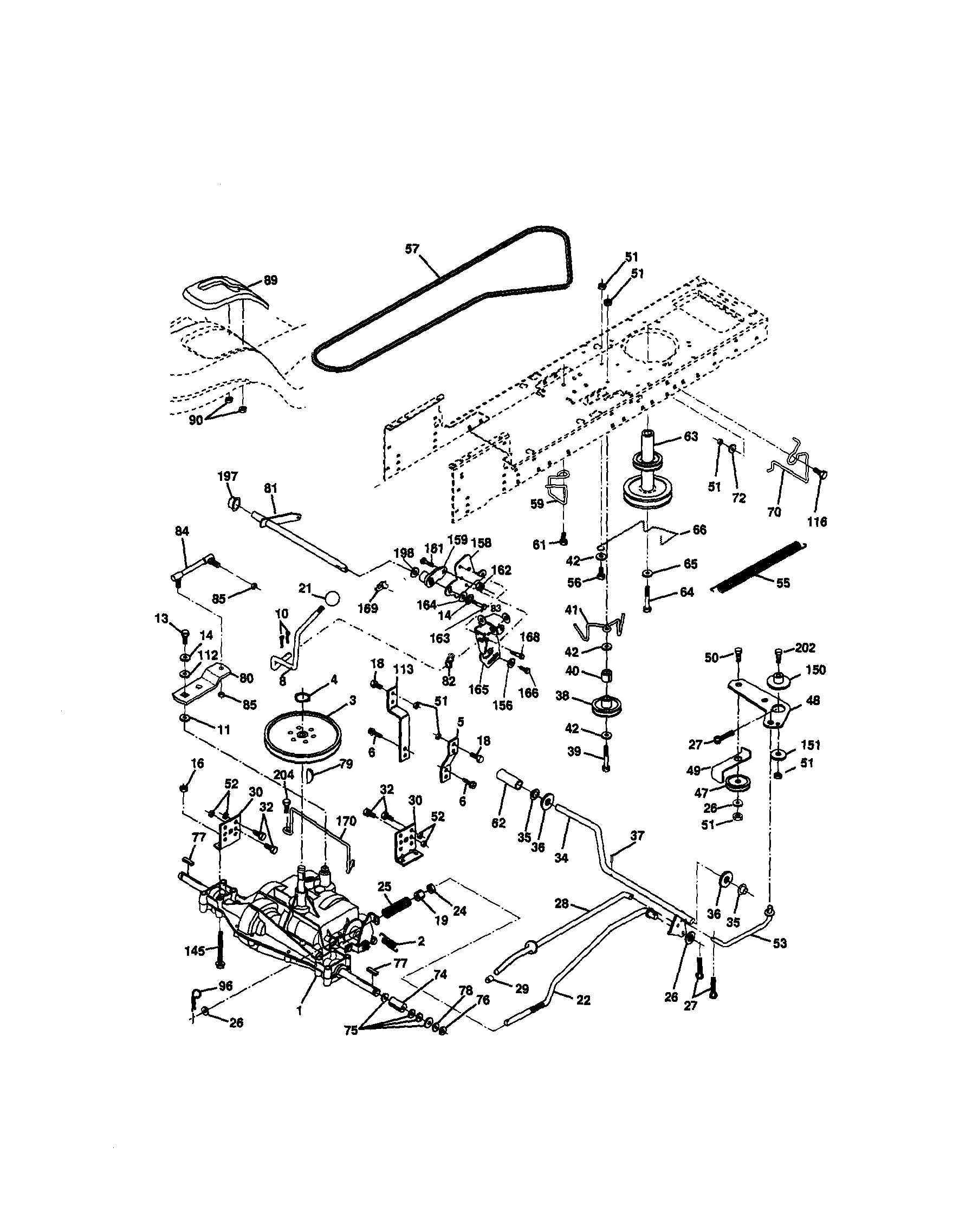

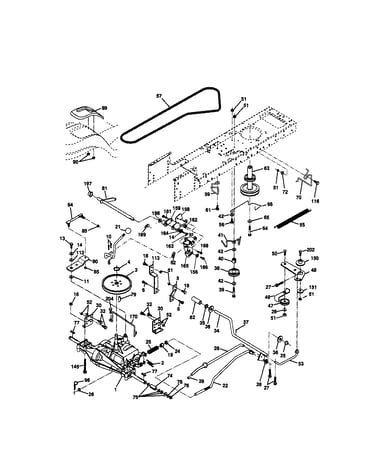

Ground drive diagram

V-belt

Part #130801

Replaced by #532138255

?
Manufacturer substitution
This part replaces 130801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.30 |
16% OFF Phone Price : $38.30
In Stock
Hex Flange Lock Nut 145212
Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Molded Ignition Key 140403
#33

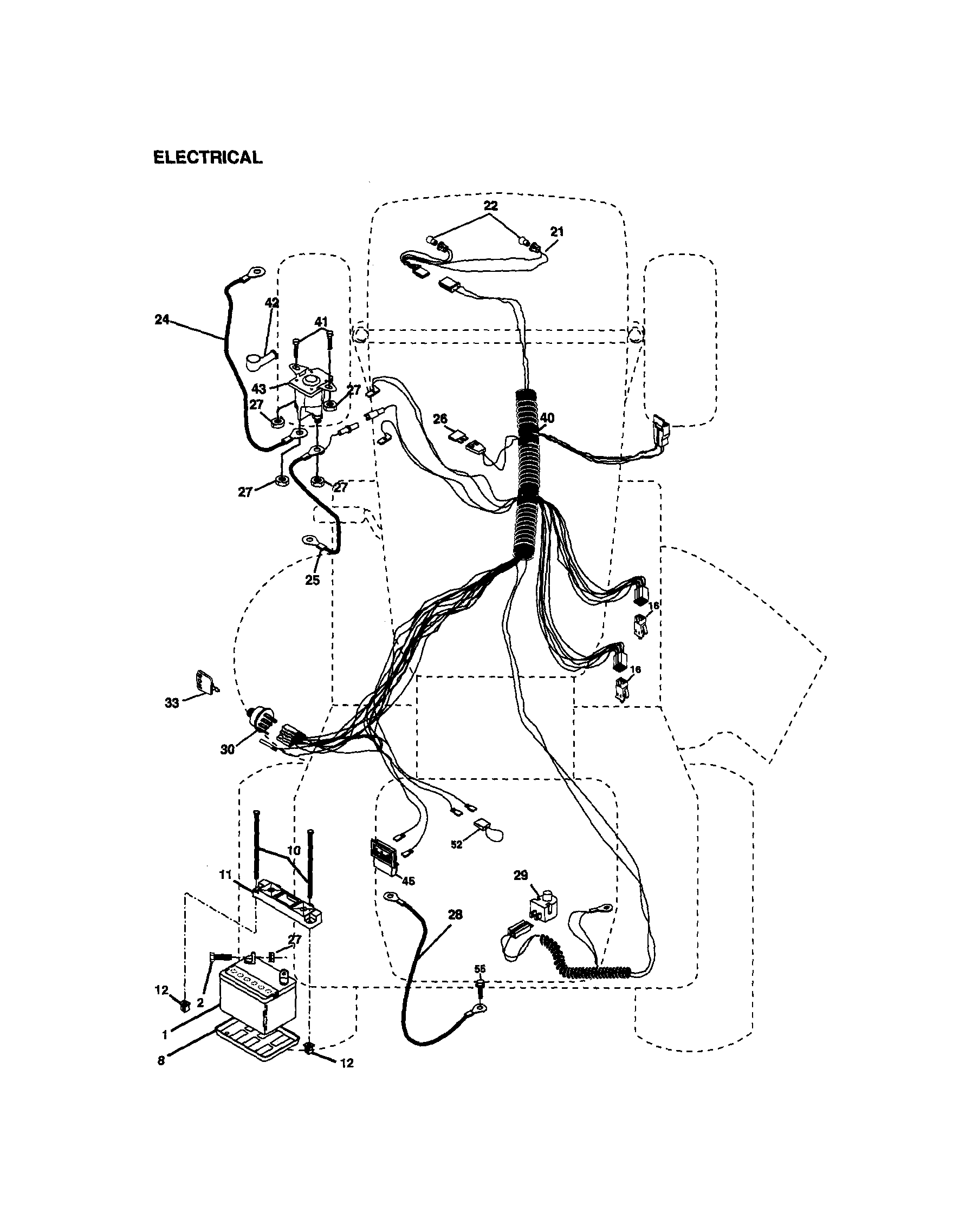

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Tire 106222X
#3

Wheels and tires diagram

Tire

Part #106222X

Replaced by #532122073

?
Manufacturer substitution
This part replaces 106222X. Substitute parts can look different from the original.
BEST SELLER
$61.64 |
9% OFF Phone Price : $67.64
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
Axle Assembly 154427
#2

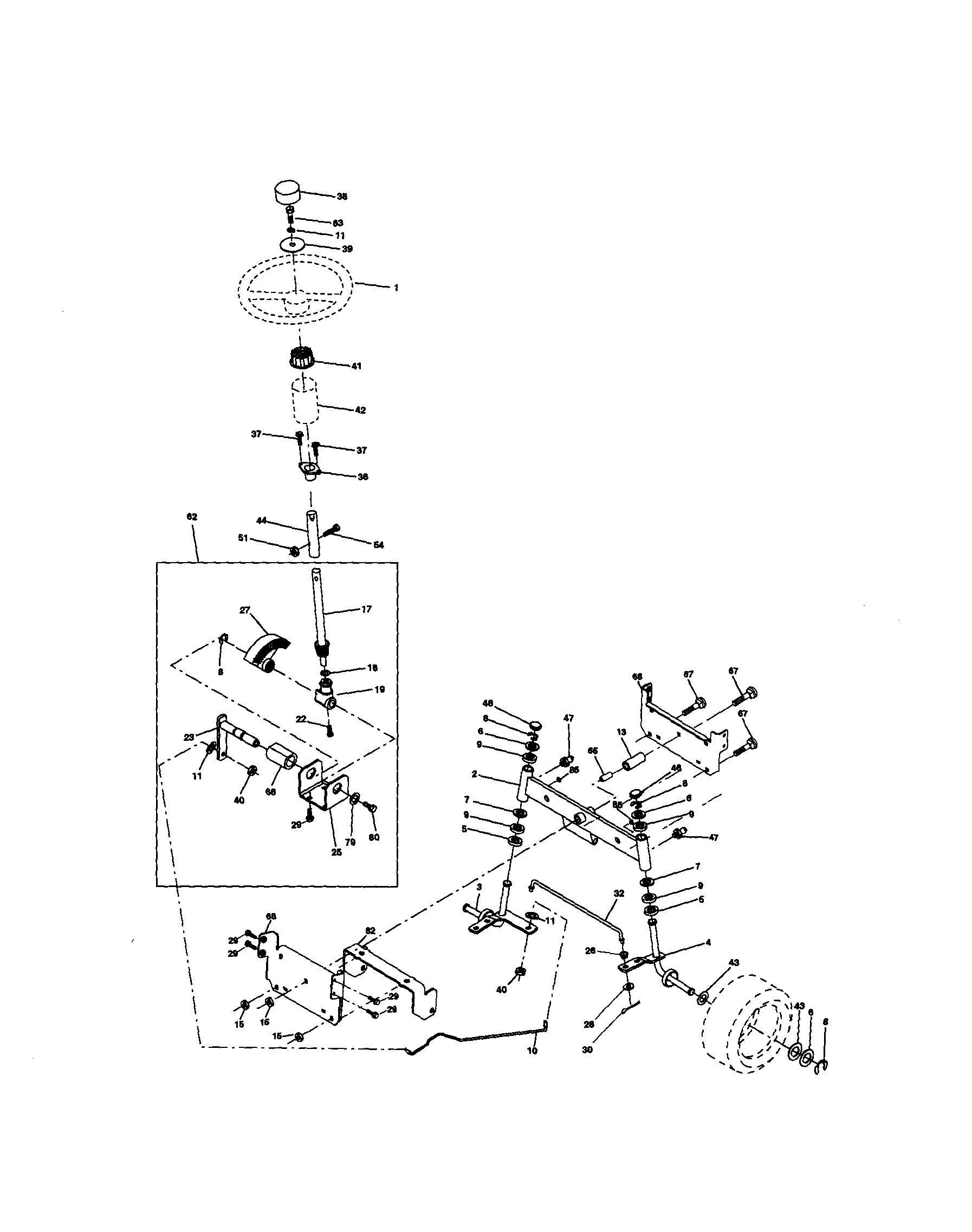

Steering diagram

Axle assembly

Part #154427

Replaced by #531171101

?
Manufacturer substitution
This part replaces 154427. Substitute parts can look different from the original.
BEST SELLER
$55.37 |
10% OFF Phone Price : $61.37
In Stock
