Bosch
Side-By-Side Refrigerator

Model # B20CS80SNB/01 Official Bosch refrigerator

Here are the diagrams and repair parts for Official Bosch B20CS80SNB-01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Refrigerator Filter 601057

#527

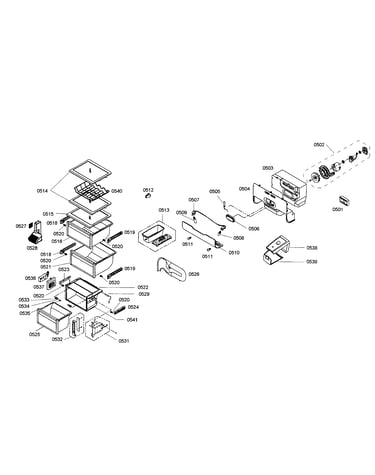

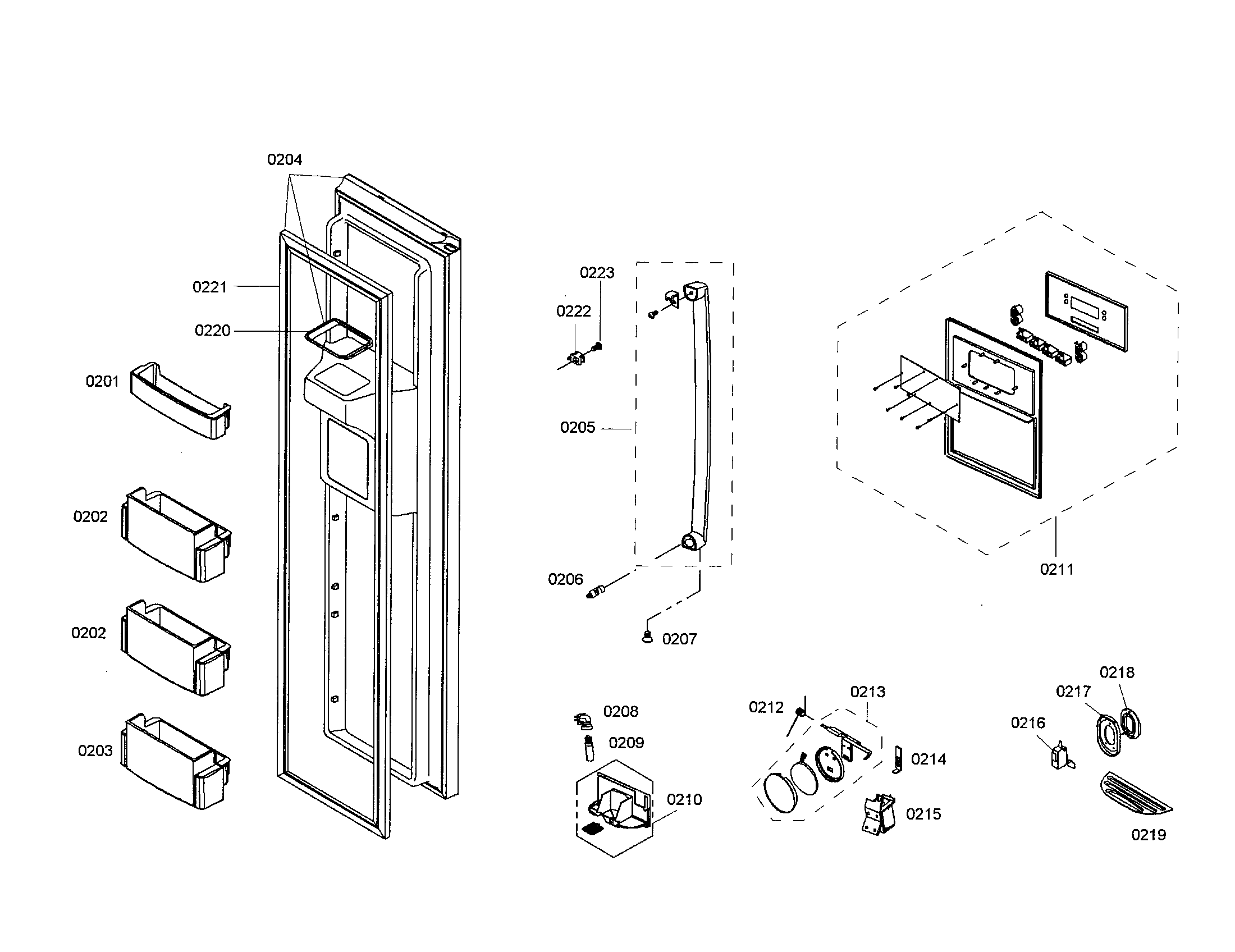

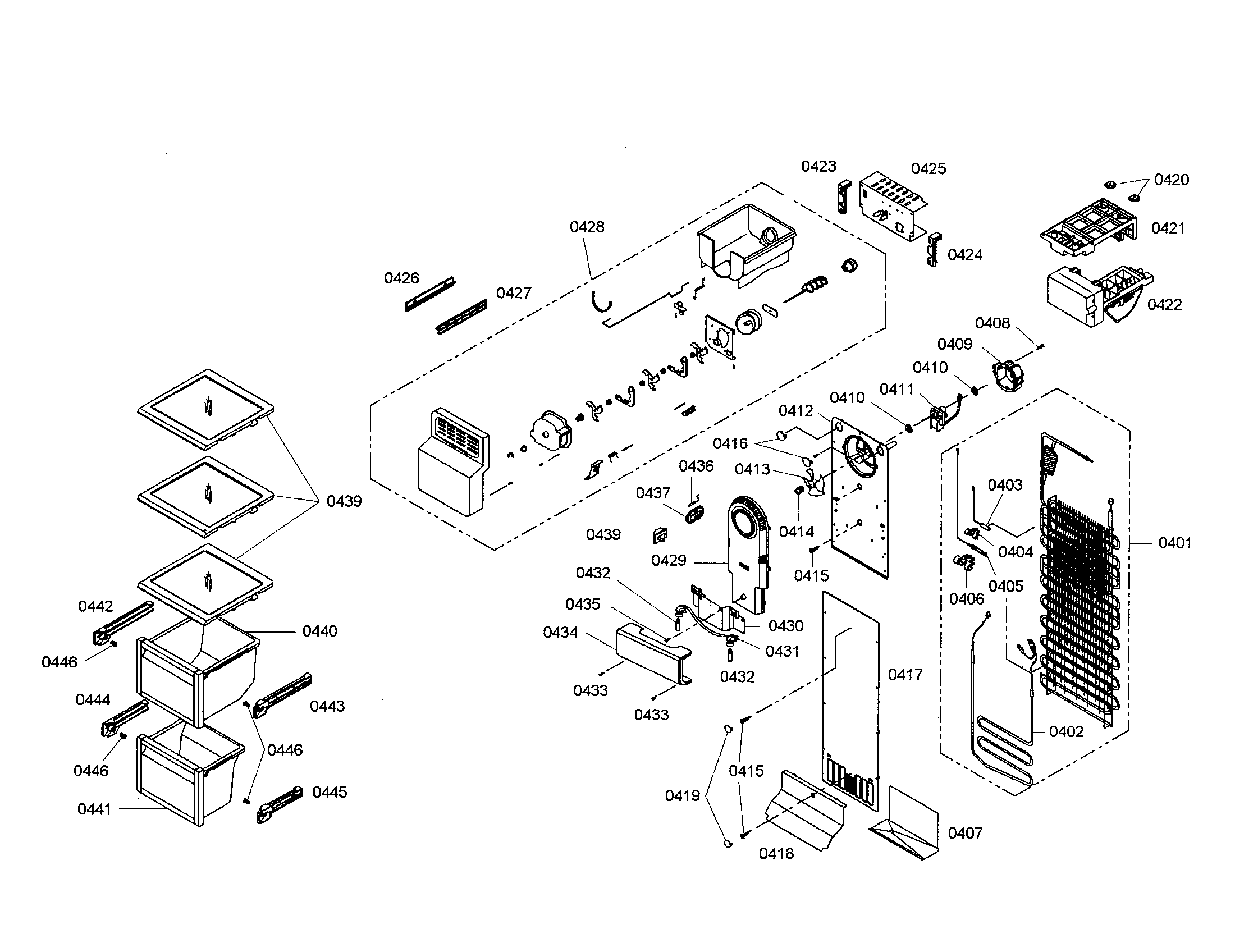

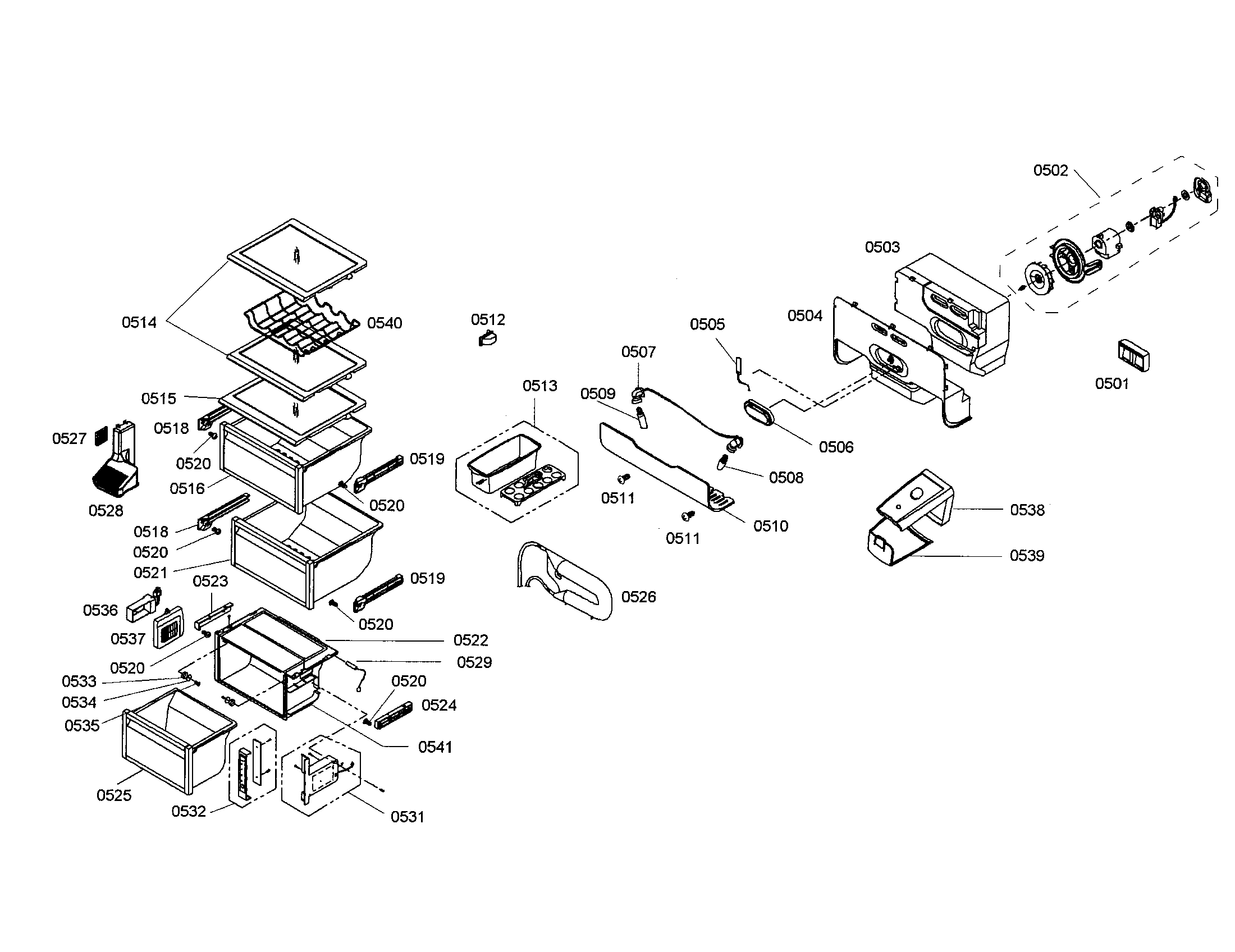

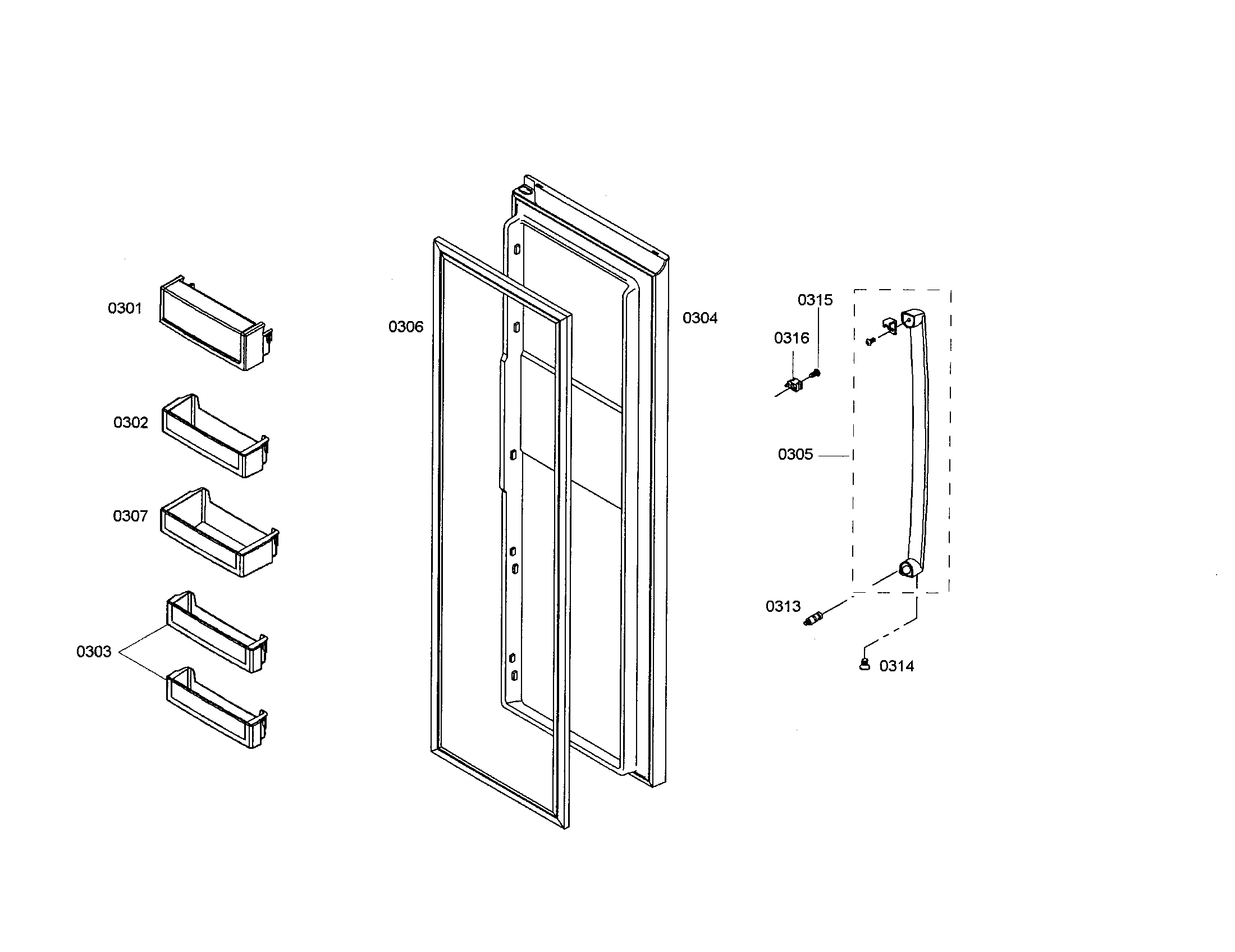

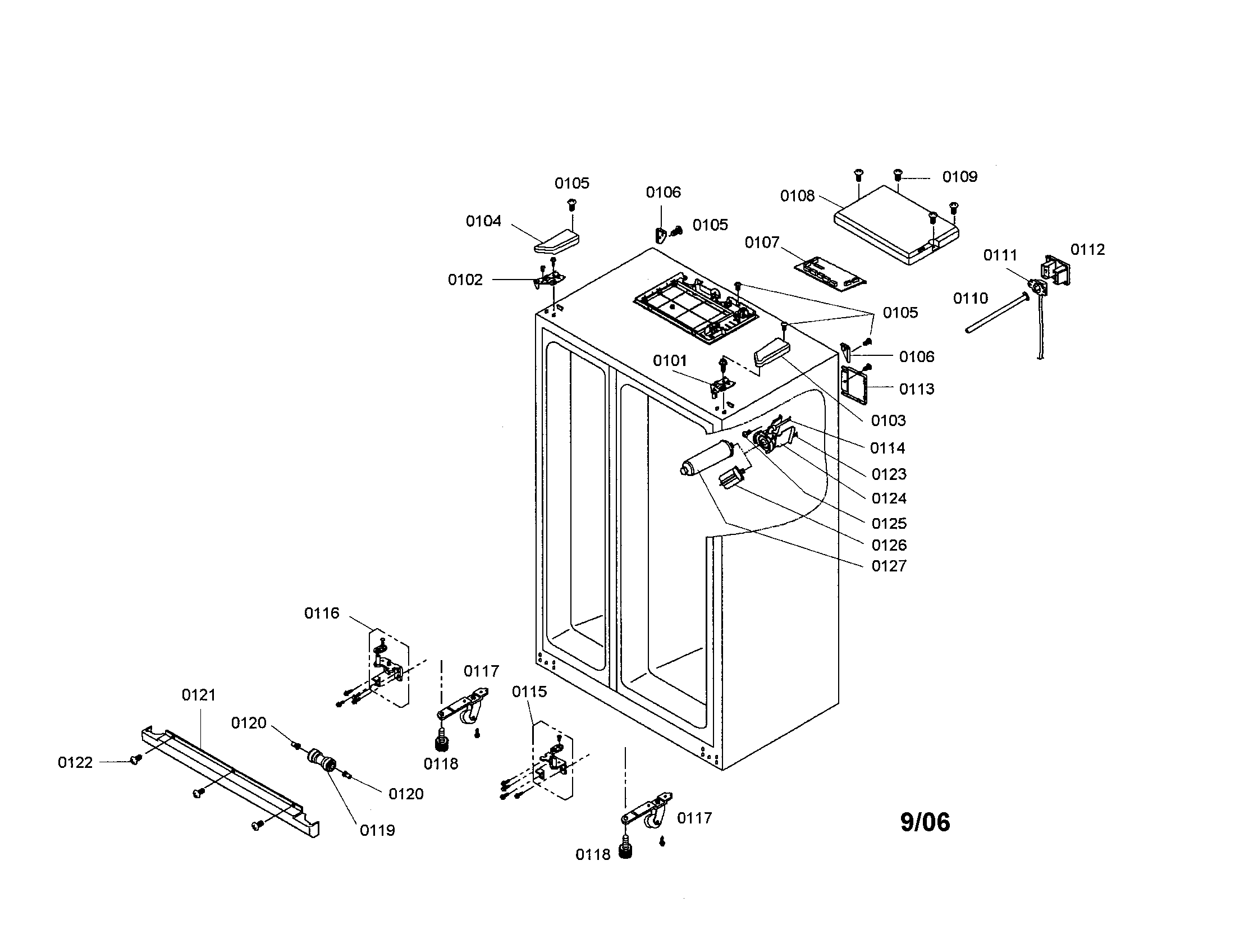

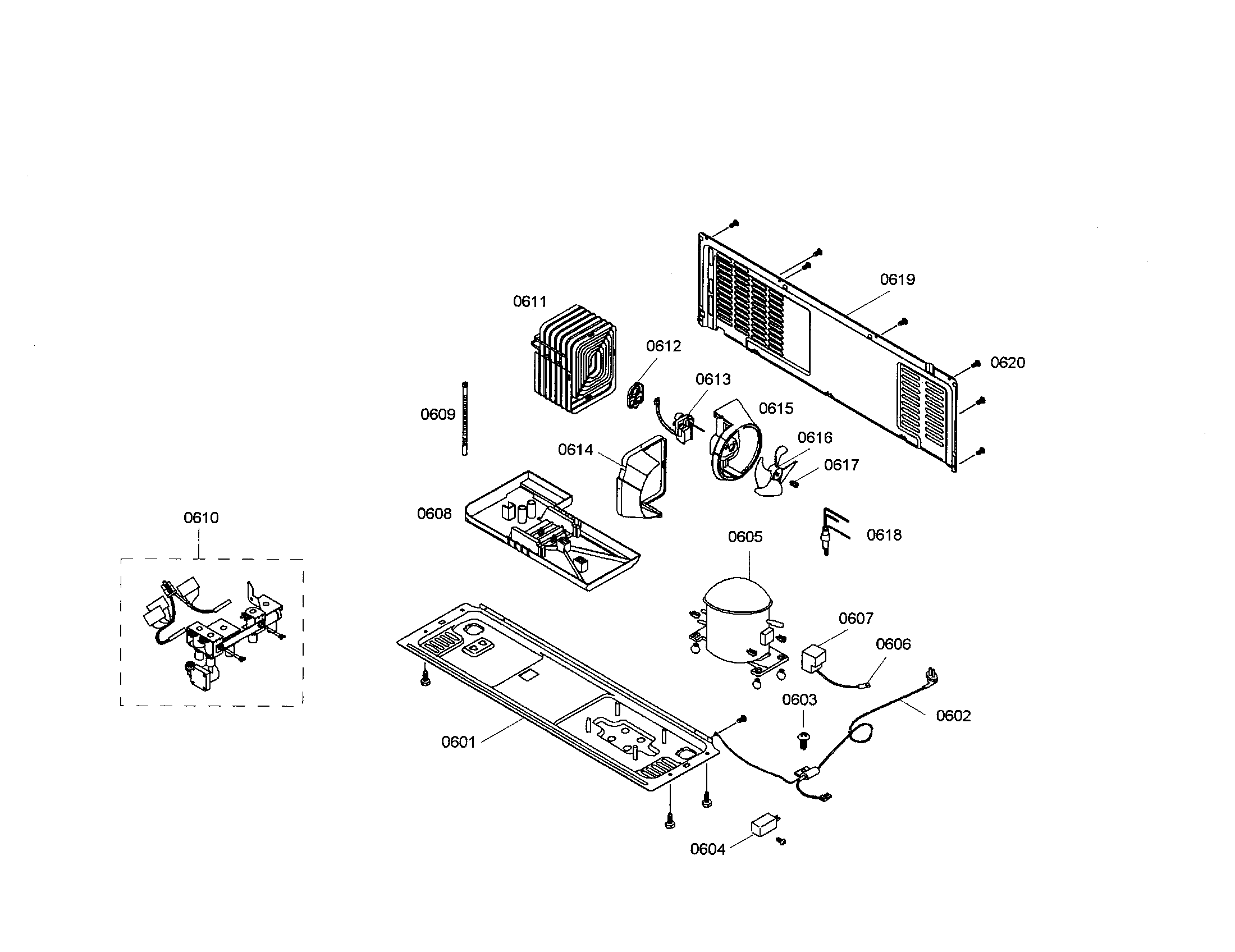

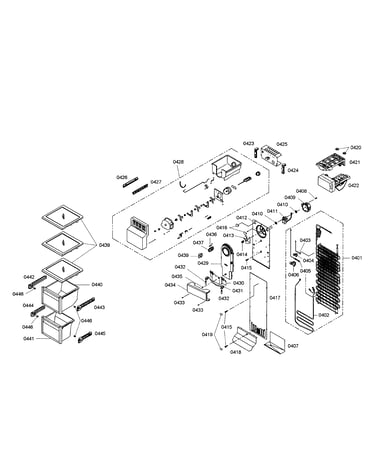

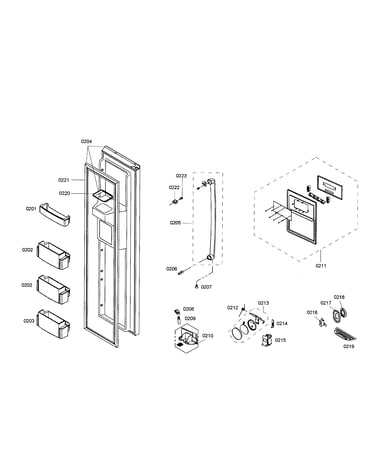

All parts diagram

Refrigerator filter

Part #601057

Replaced by #00601057

?
Manufacturer substitution
This part replaces 601057. Substitute parts can look different from the original.
