Kenmore
Electric Range

Model # 1039357540 Official Kenmore 30" electric range with self-cleaning oven

Here are the diagrams and repair parts for Official Kenmore 1039357540 30" electric range with self-cleaning oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

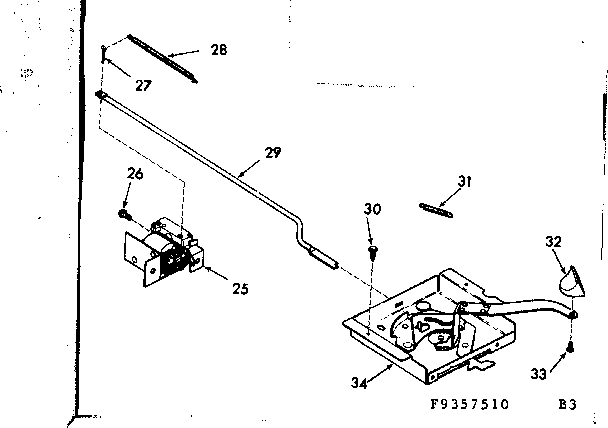

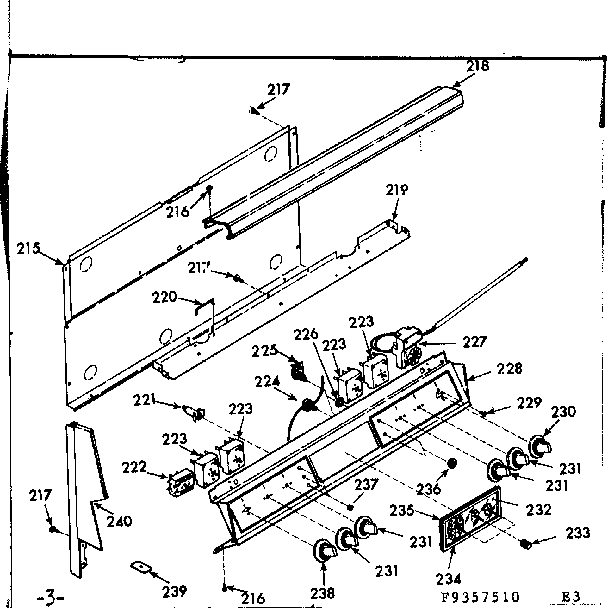

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Range Oven Light Bulb 111257
#99

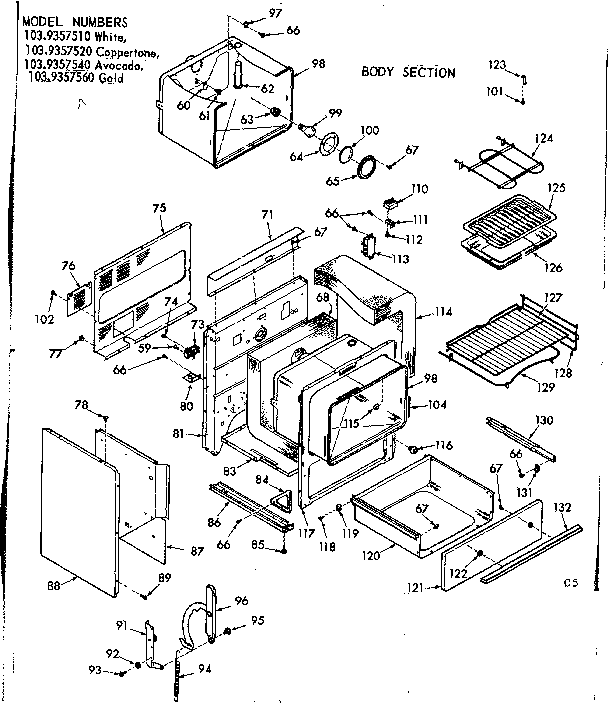

Body section diagram

Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 293798
#3

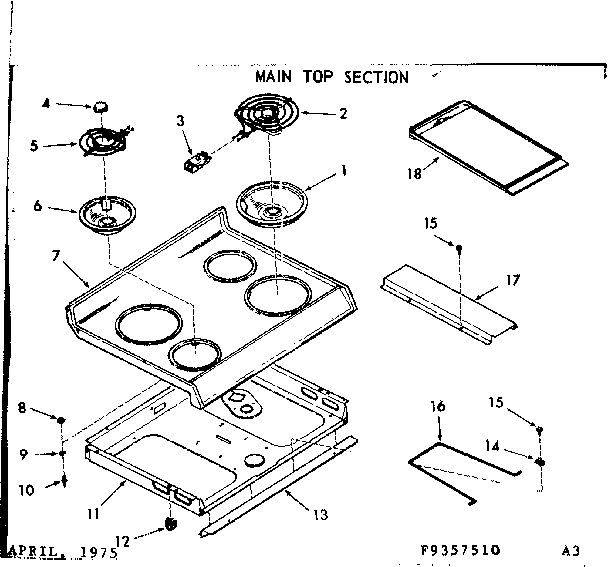

Main top section diagram

Terminal block

Part #293798

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces 293798. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Bowl 281349
#1

Main top section diagram

Bowl

Part #281349

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 281349. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Screw 105771
Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Gasket 292244
#190

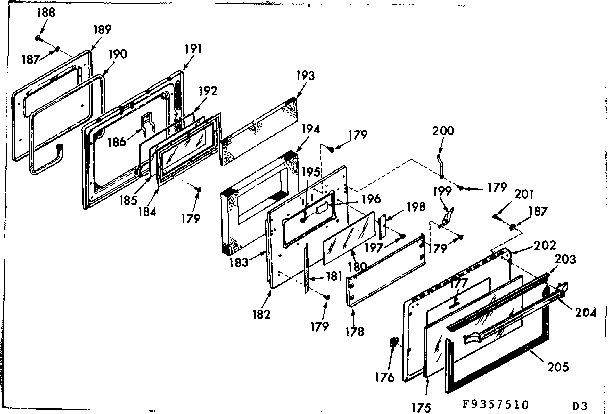

Oven door section diagram

Gasket

Part #292244

Replaced by #WB2X9373

?
Manufacturer substitution
This part replaces 292244. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Unit 112696
#5A

Main top section diagram

Unit

Part #112696

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire (white) 284278
#262A

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
$2.29
In Stock
Wire Cover 281938
#75

Body section diagram

Wire cover

Part #281938

$14.49
In Stock
Door Lining 299878
#191

Oven door section diagram

Door lining

Part #299878

$83.49
In Stock
Medallion 112941
#4

Main top section diagram

Medallion

Part #112941

The manufacturer no longer makes this part, and there's no substitute part
