Model # TBH19ZABTRWW Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE TBH19ZABTRWW refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

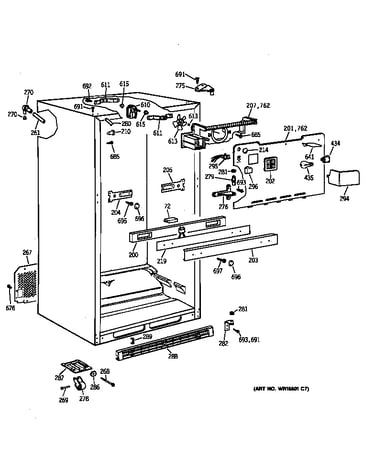

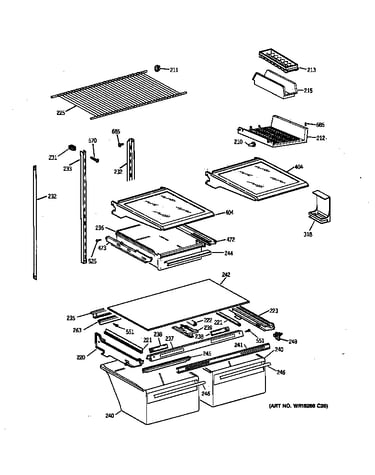

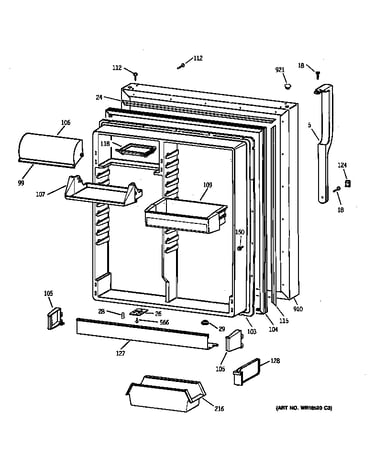

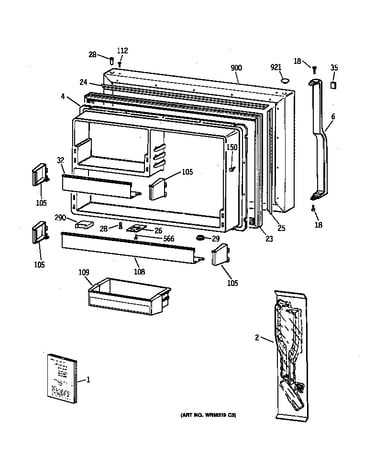

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Refrigerator Filter Dryer WR86X96
#740

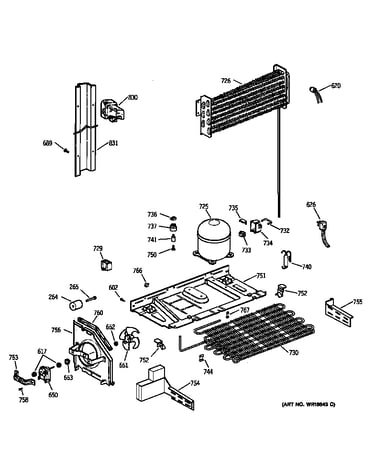

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Run Capacitor WR62X79
#729

Unit parts diagram

Refrigerator run capacitor

Part #WR62X79

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X79. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Refrigerator Compressor Kit WR87X475
#725

Unit parts diagram

Refrigerator compressor kit

Part #WR87X475

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X475. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Technician Refrigerator Light Socket (replaces Swr2x7270, Wr02x11990, Wr02x9391, Wr2x7270, Wr2x8265) WR2X9391
#433

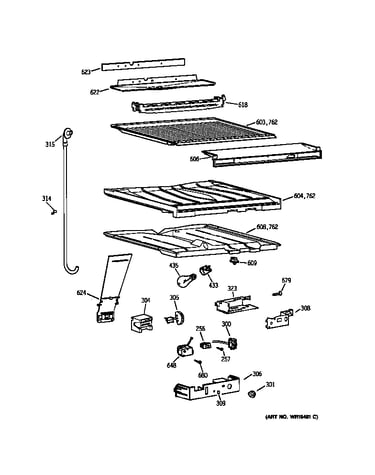

Compartment separator parts diagram
