WisperKool
Evaporative Cooler

Model # RD63D Official WisperKool wisper cool down-discharge evaporative cooler

Here are the diagrams and repair parts for Official WisperKool RD63D wisper cool down-discharge evaporative cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Receptacle P2-907
#4

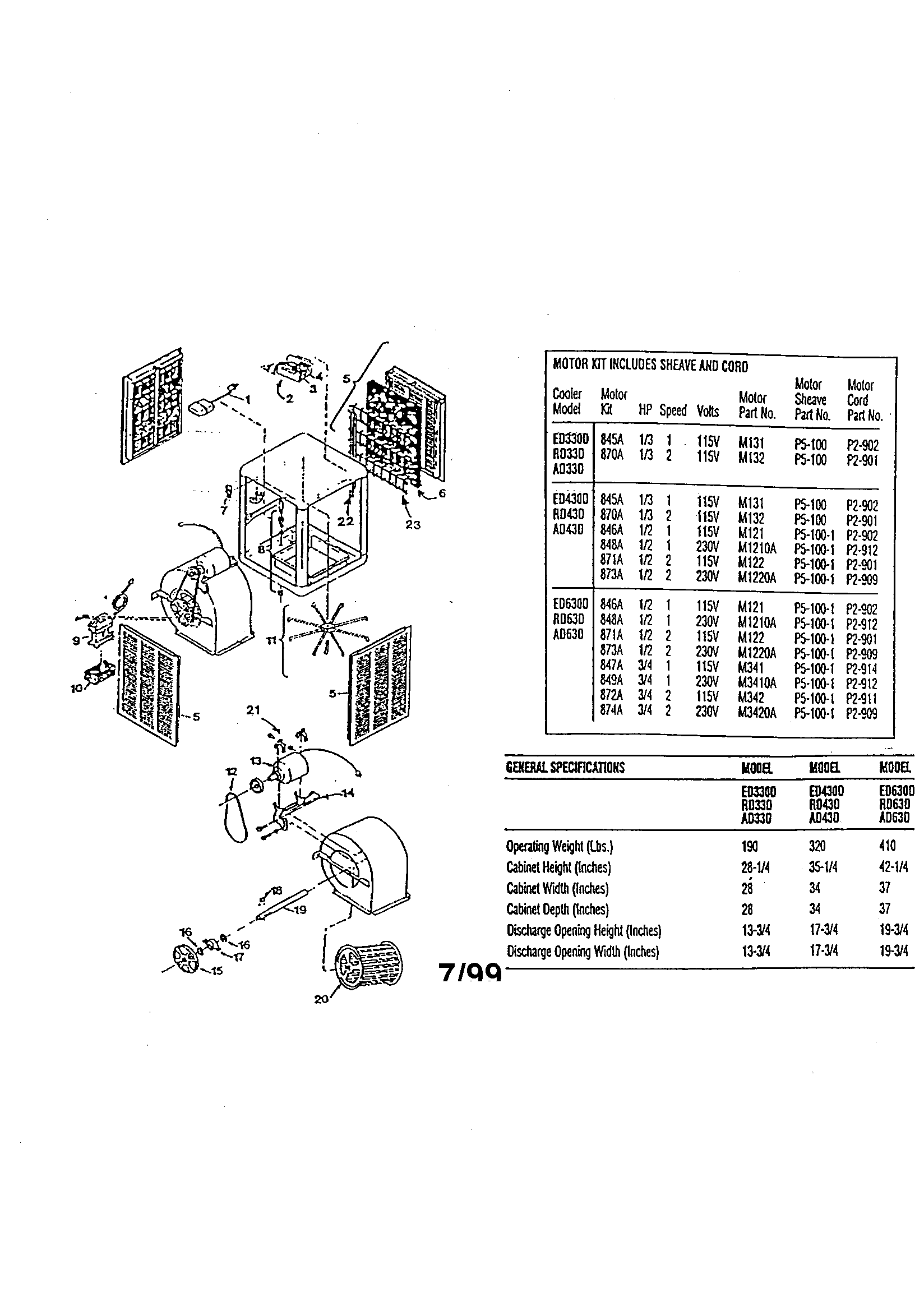

Replacement parts diagram

Receptacle

Part #P2-907

The manufacturer no longer makes this part, and there's no substitute part

Distributor WC400A
#11

Replacement parts diagram

Distributor

Part #WC400A

The manufacturer no longer makes this part, and there's no substitute part

Bearing RK111A
#17

Replacement parts diagram

Bearing

Part #RK111A

The manufacturer no longer makes this part, and there's no substitute part

Pump Assembly (ad63d, Ad43d) EP200A/PMP651
#9A

Replacement parts diagram

Pump assembly (ad63d, ad43d)

Part #EP200A/PMP651

The manufacturer no longer makes this part, and there's no substitute part

Key M714002A
#18

Replacement parts diagram

Key

Part #M714002A

The manufacturer no longer makes this part, and there's no substitute part

Stiffener M504902J
#22A

Replacement parts diagram

Stiffener

Part #M504902J

The manufacturer no longer makes this part, and there's no substitute part

Motor Support RK103A
#14B

Replacement parts diagram

Motor support

Part #RK103A

The manufacturer no longer makes this part, and there's no substitute part

Pad Assembly PF632A
#5B

Replacement parts diagram

Pad assembly

Part #PF632A

The manufacturer no longer makes this part, and there's no substitute part

Hollow Shaft M311003A
#19B

Replacement parts diagram

Hollow shaft

Part #M311003A

The manufacturer no longer makes this part, and there's no substitute part

Belt (ad33d) P301044A
#12

Replacement parts diagram

Belt (ad33d)

Part #P301044A

The manufacturer no longer makes this part, and there's no substitute part
