Model # SHE55C05UC/58 Official Bosch dishwasher
Here are the diagrams and repair parts for Official Bosch SHE55C05UC/58 dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part

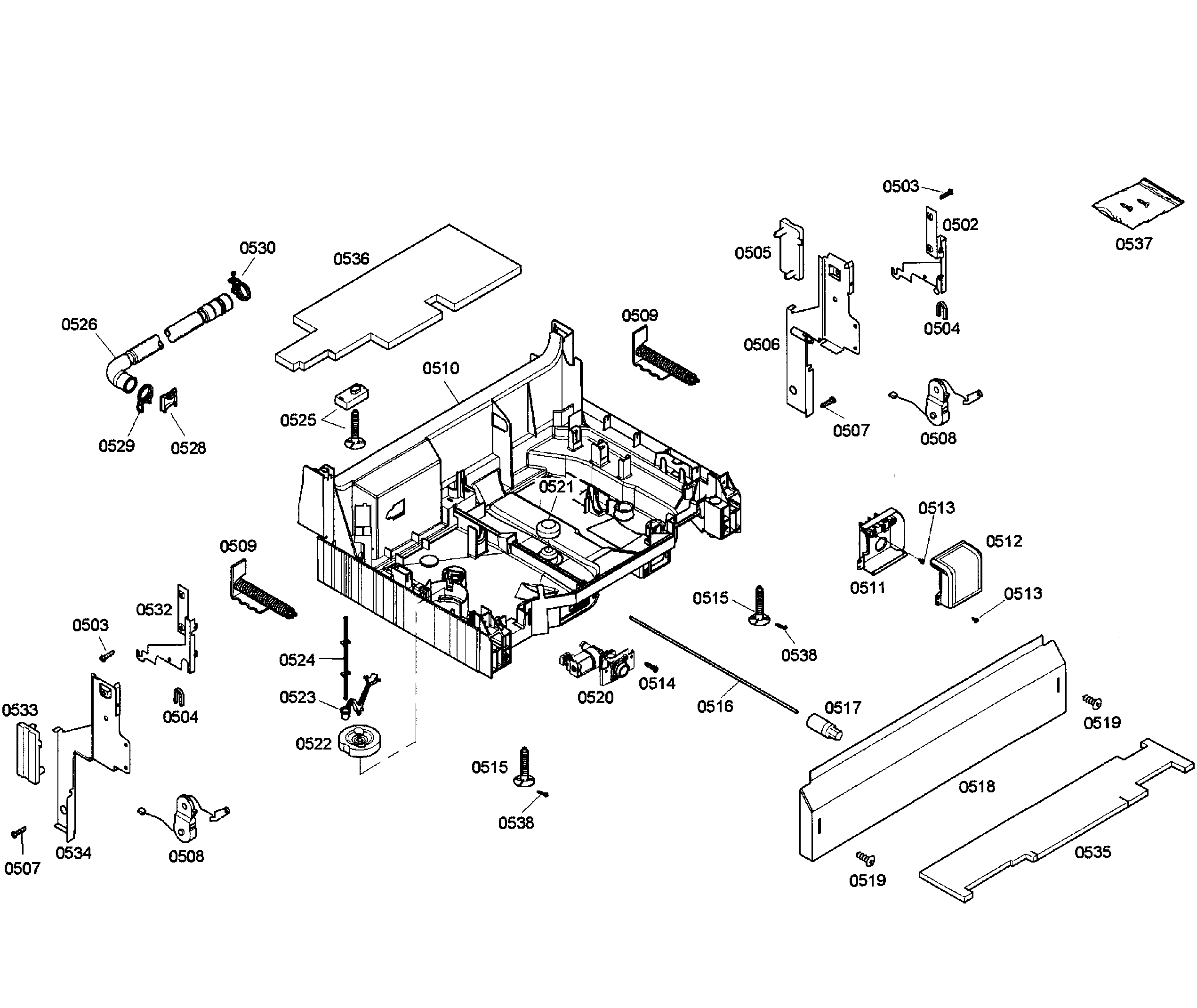

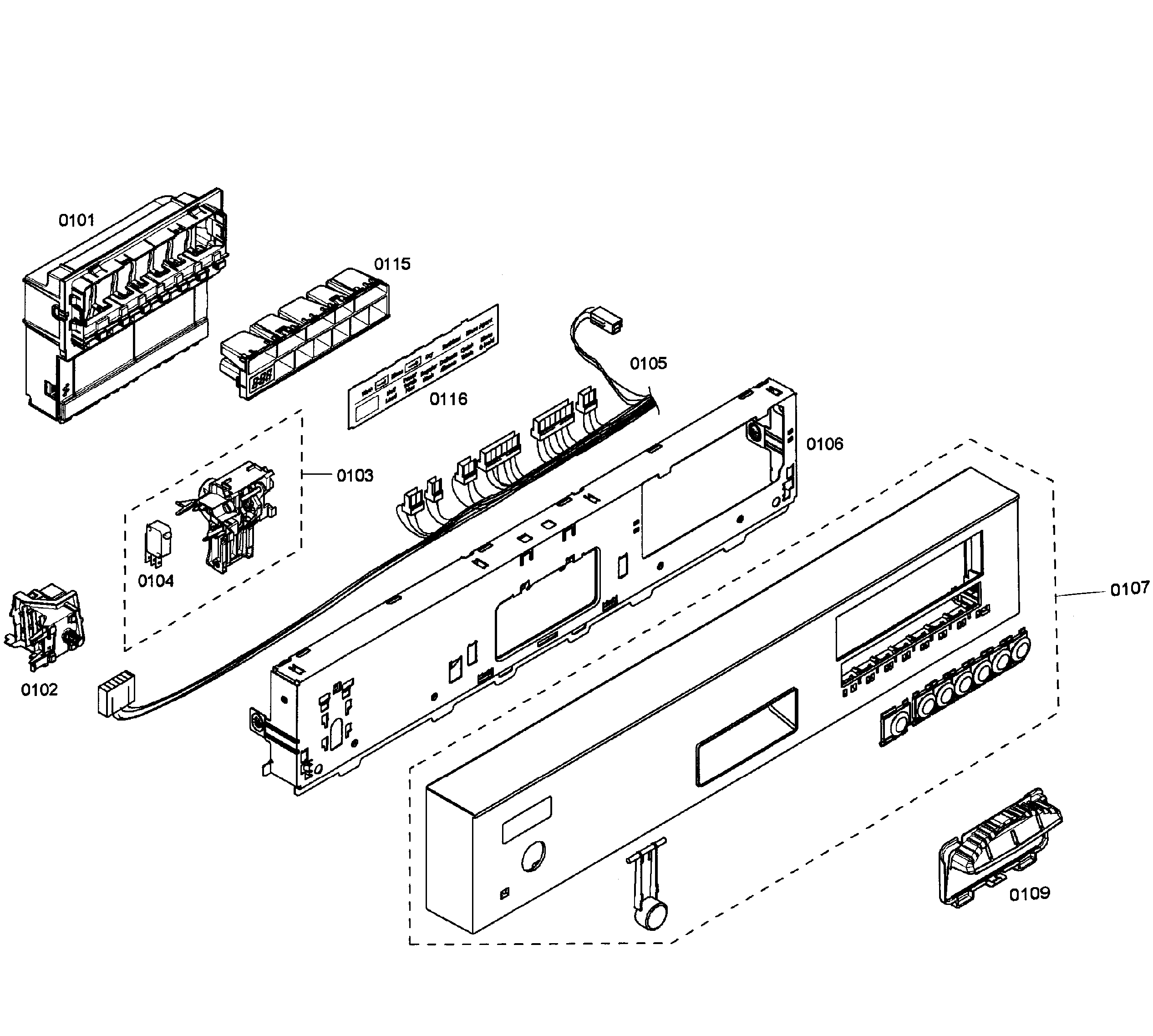

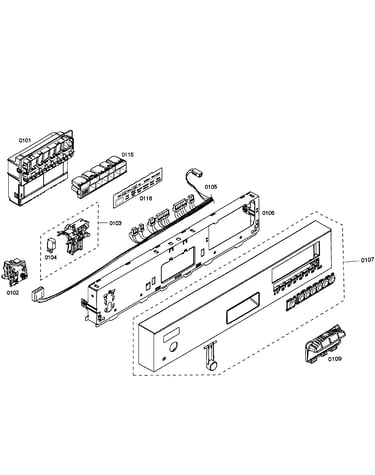

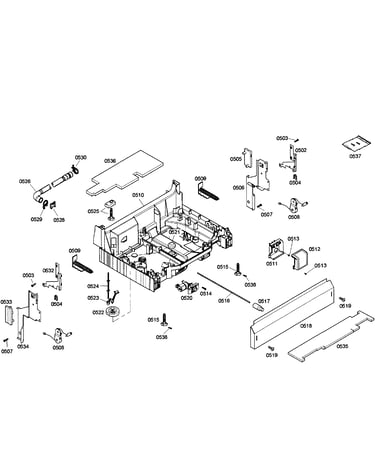

SELECT DIAGRAM
Browse Parts for
SHE55C05UC/58 Dishwasher
#307

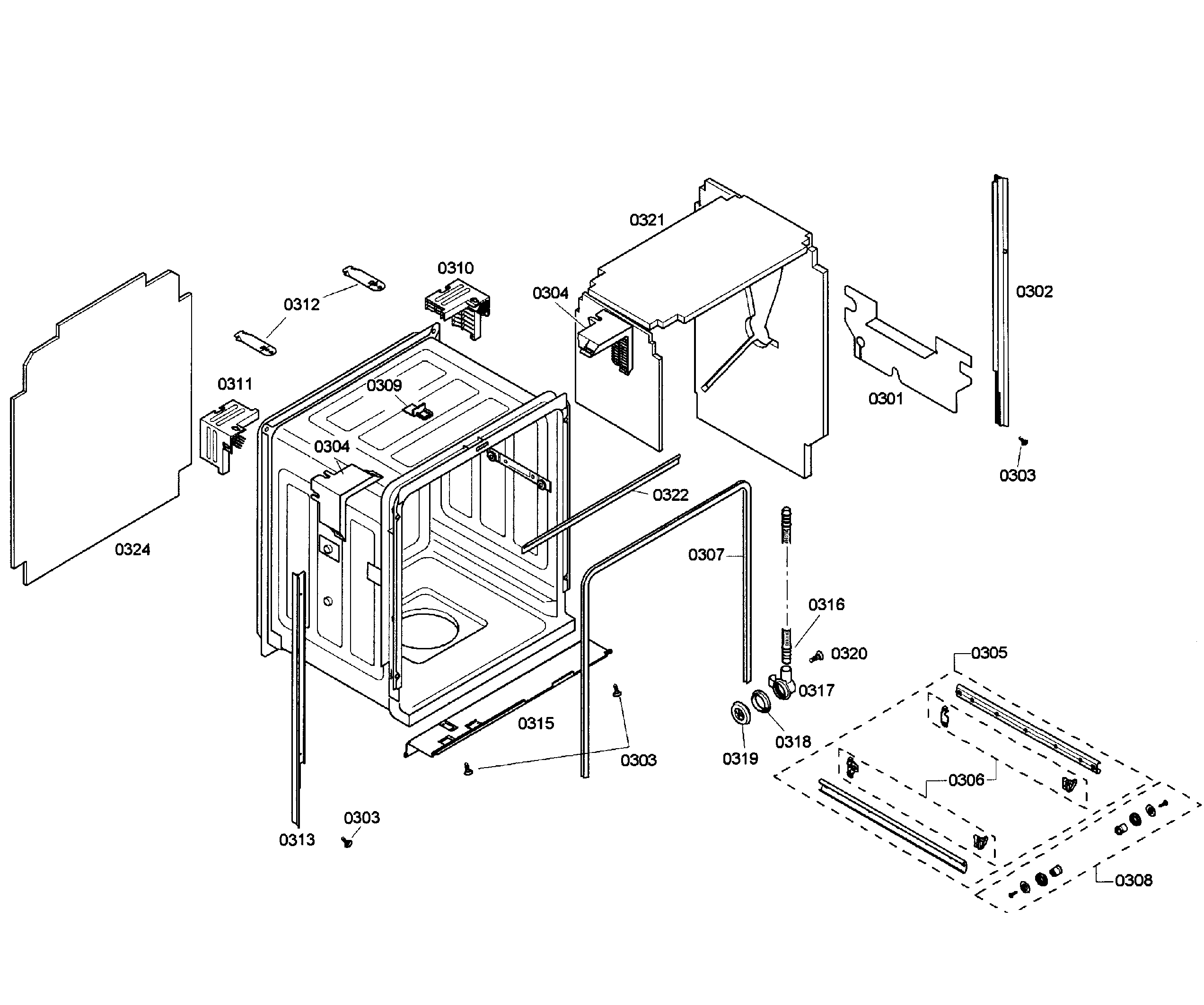

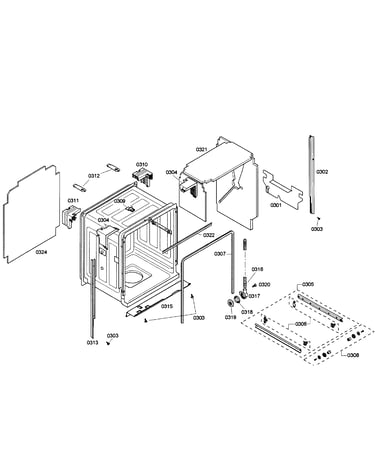

Cabinet diagram

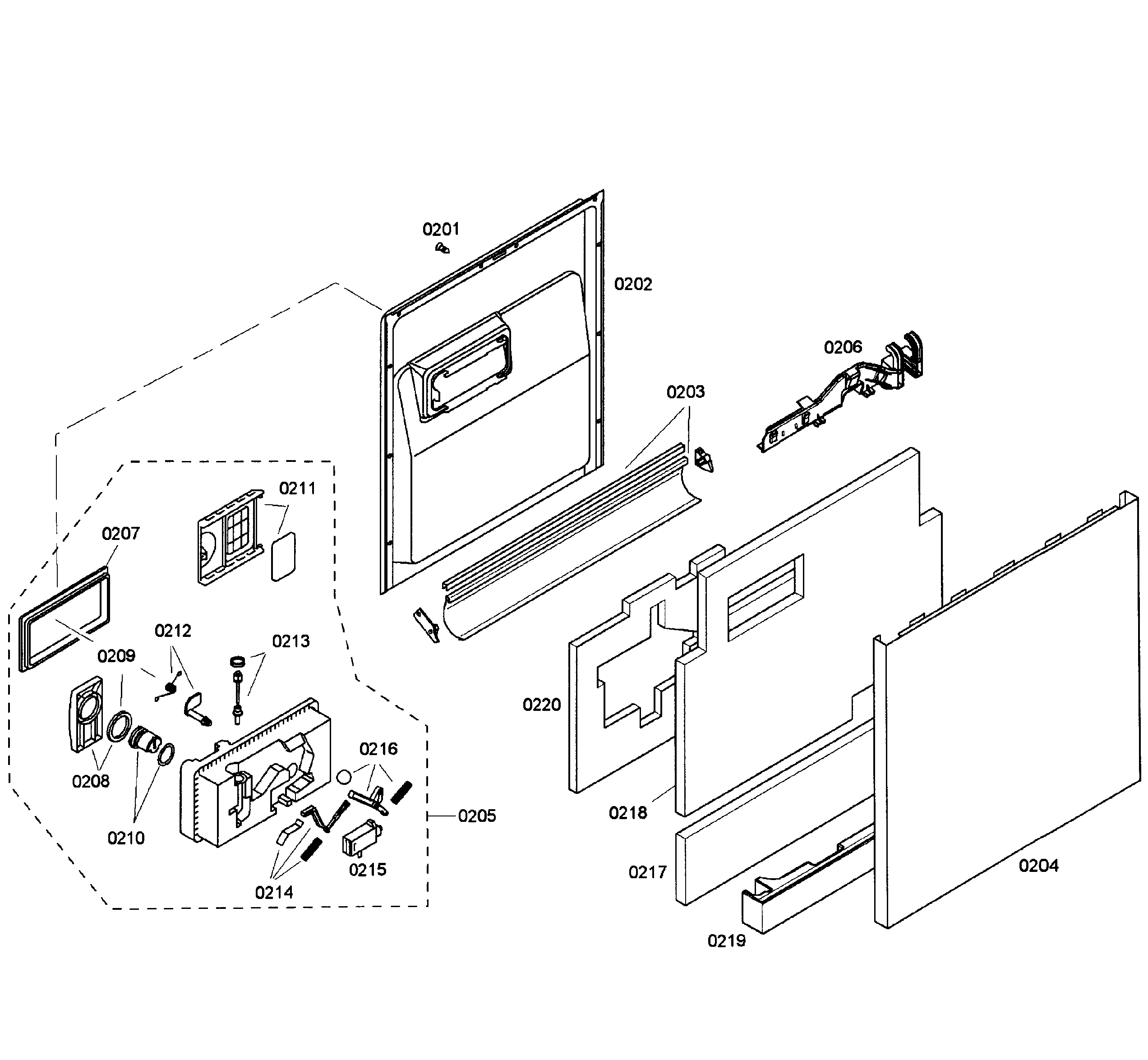

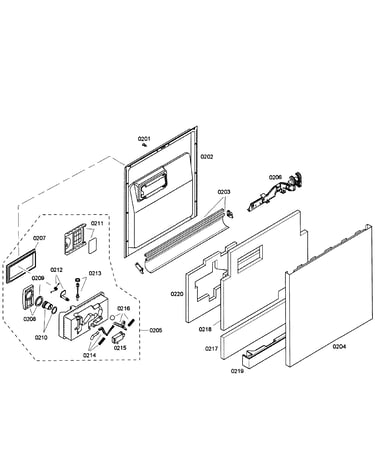

Door gasket
Part #494772
Replaced by #00494772
?
Manufacturer substitution
This part replaces 494772. Substitute parts can look different from the original.
$31.00 |
16% OFF Phone Price : $37.00
In Stock
#419

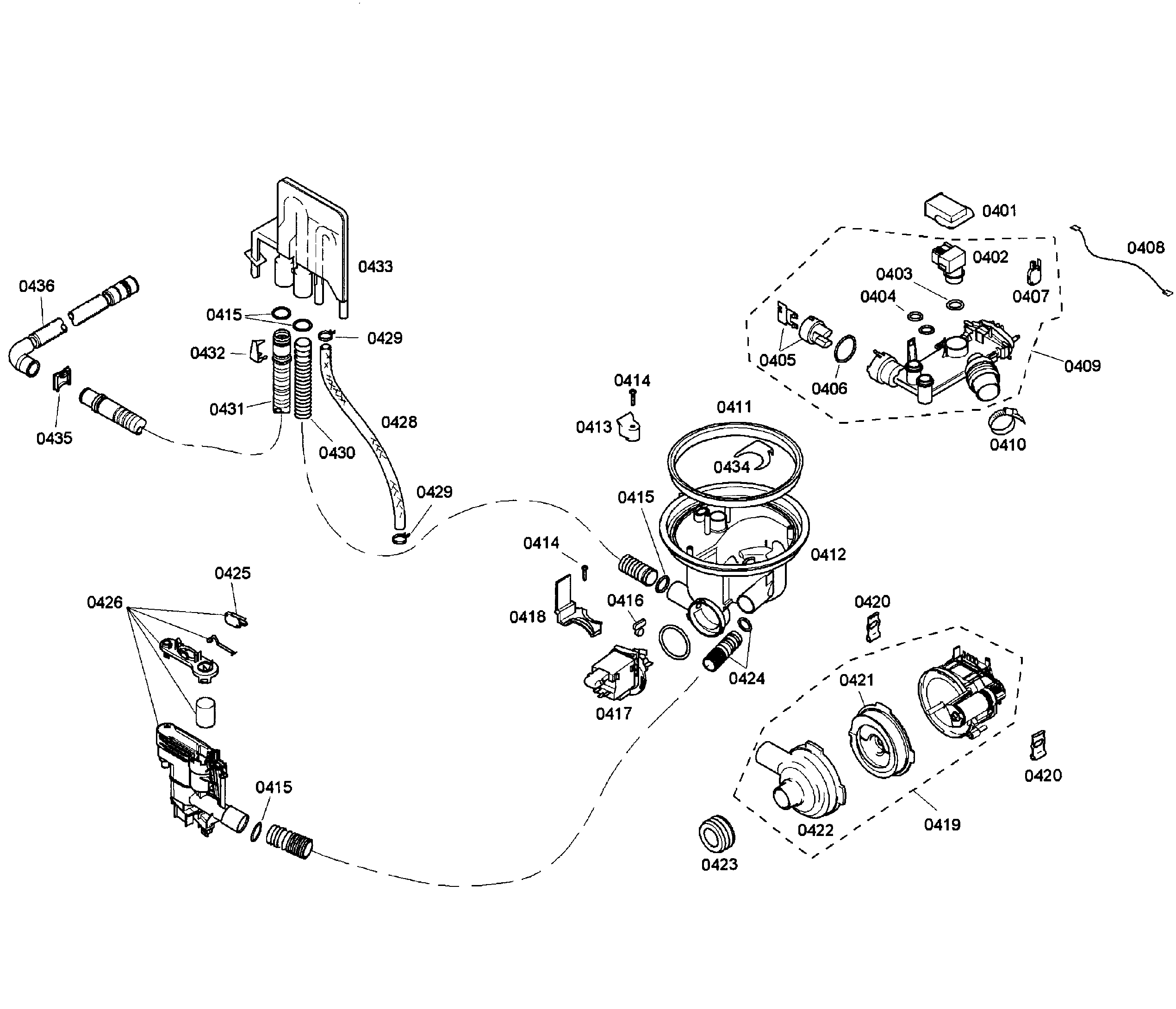

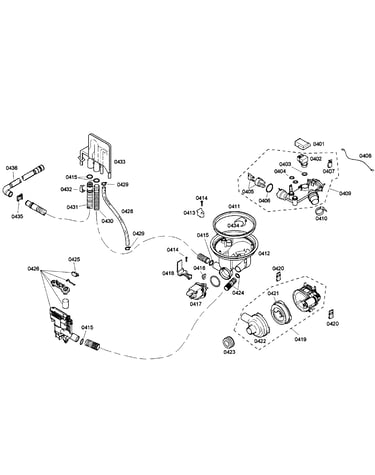

Pump assy diagram
Dishwasher recirculation pump assembly
Part #442548
Replaced by #00442548
?
Manufacturer substitution
This part replaces 442548. Substitute parts can look different from the original.
$255.91 |
$12.00 OFF Phone Price : $267.91
In Stock
#423
Pump assy diagram
Dishwasher wash pump gasket
Part #171598
Replaced by #00171598
?
Manufacturer substitution
This part replaces 171598. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
#409
Pump assy diagram
Heater
Part #480317
Replaced by #00480317
?
Manufacturer substitution
This part replaces 480317. Substitute parts can look different from the original.
$260.67 |
$12.00 OFF Phone Price : $272.67
In Stock
#312
Cabinet diagram
Dishwasher mounting set
Part #619985
Replaced by #00619985
?
Manufacturer substitution
This part replaces 619985. Substitute parts can look different from the original.
$13.89 |
13% OFF Phone Price : $15.89
In Stock
#433
Pump assy diagram
Dishwasher water inlet valve
Part #263833
Replaced by #00263833
?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$150.10 |
7% OFF Phone Price : $162.10
In Stock
#626

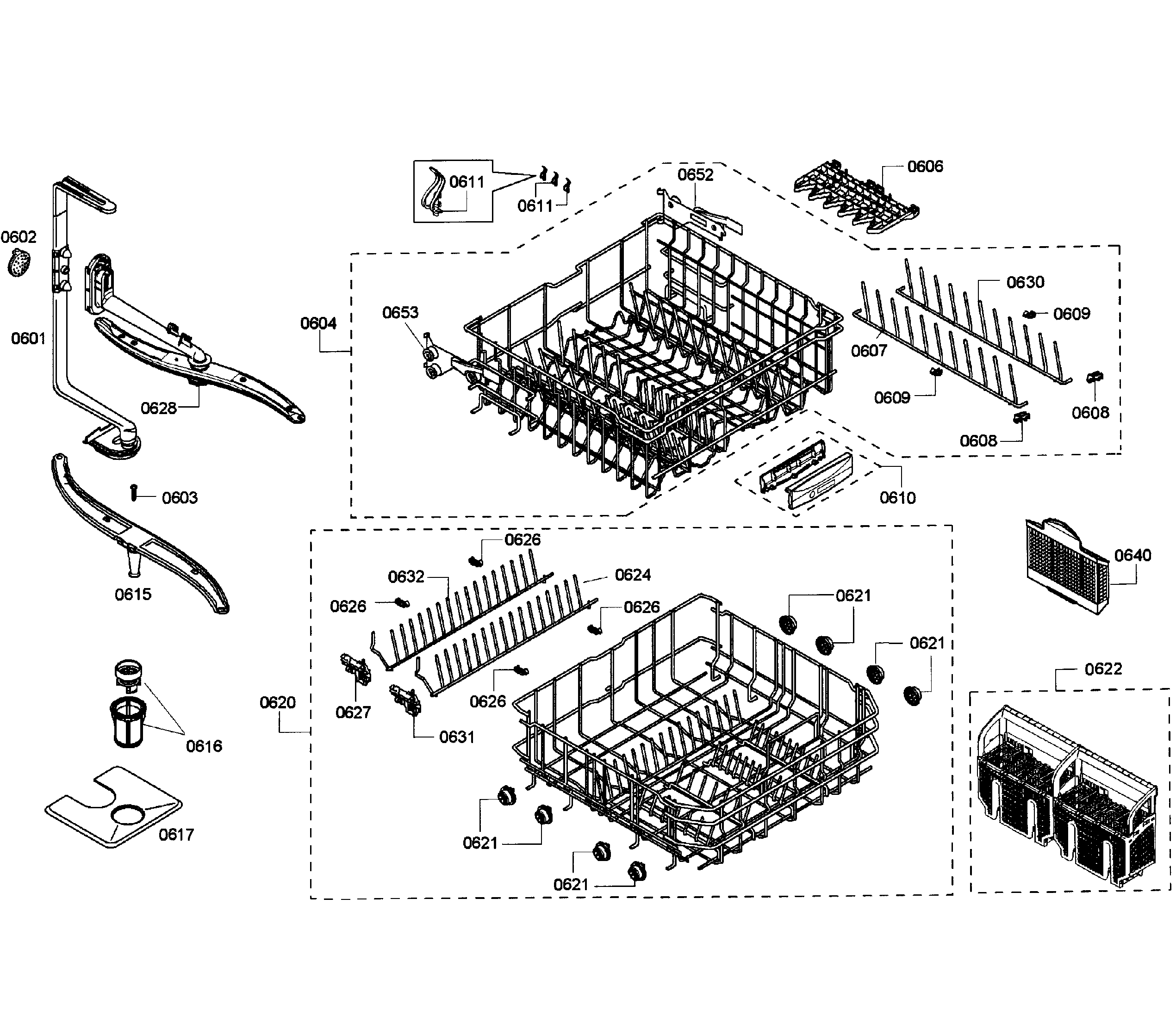

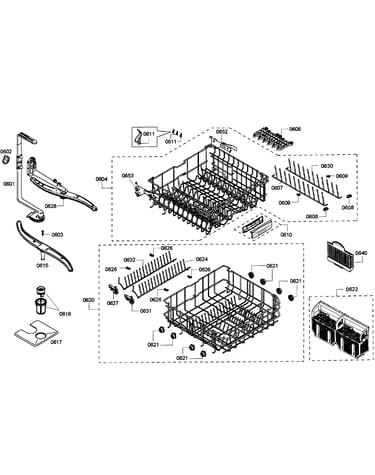

Baskets diagram
Holder
Part #611981
Replaced by #00611981
?
Manufacturer substitution
This part replaces 611981. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
#608
Baskets diagram
Holder
Part #616990
The manufacturer no longer makes this part, and there's no substitute part
#616
Baskets diagram
Diswasher mesh filter
Part #615079
Replaced by #00615079
?
Manufacturer substitution
This part replaces 615079. Substitute parts can look different from the original.
$25.69 |
19% OFF Phone Price : $31.69
In Stock
#431
Pump assy diagram
Dishwasher drain hose
Part #668109
Replaced by #00668109
?
Manufacturer substitution
This part replaces 668109. Substitute parts can look different from the original.
$45.19 |
12% OFF Phone Price : $51.19
In Stock
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: broken door spring, damaged or broken door hinge…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main cause: damaged rack height adjuster…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
