Digital Camcorder

Model # PV-DC352-K Official Panasonic digital camcorder

Here are the diagrams and repair parts for Official Panasonic PV-DC352-K digital camcorder, as well as links to manuals and error code tables, if available.

By Schematic

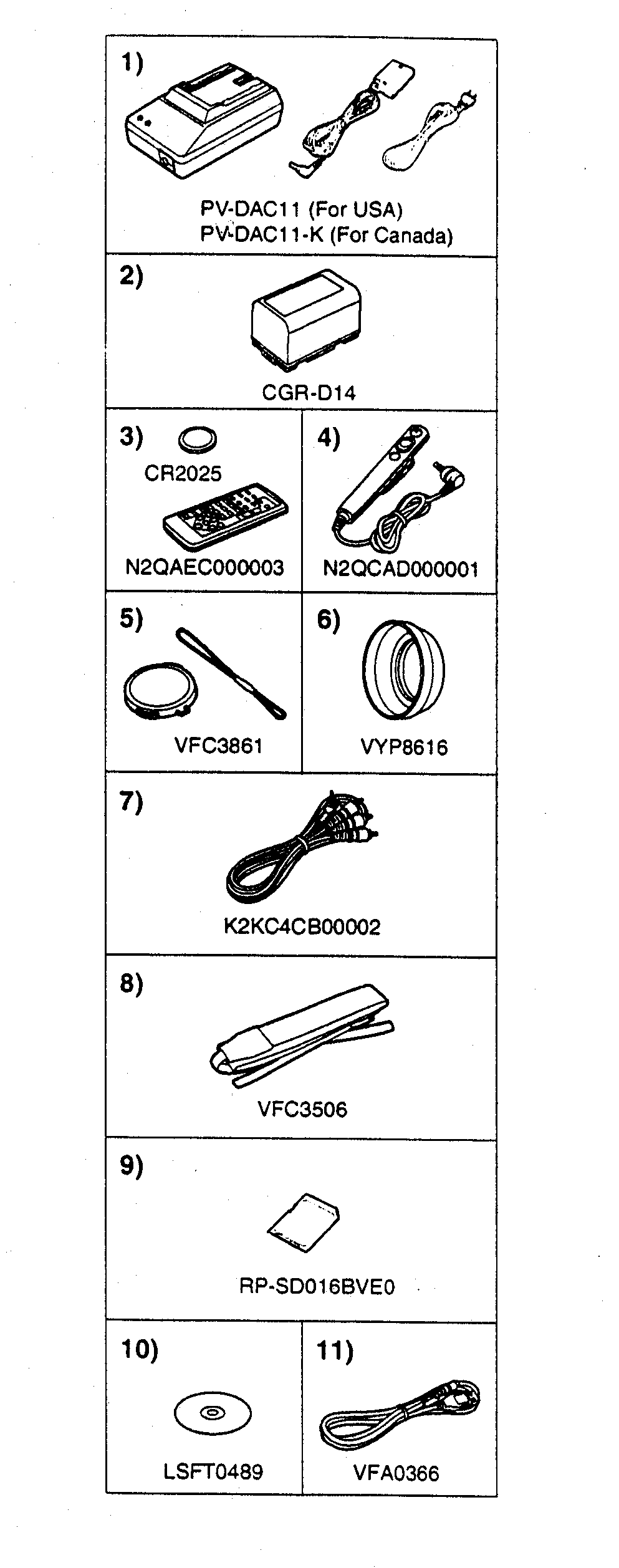

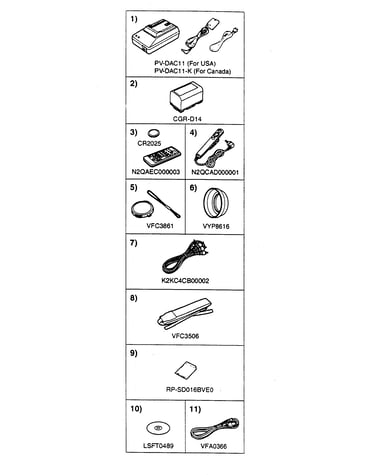

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
PV-DC352-K Camcorders
Reflector VDL1151
#31

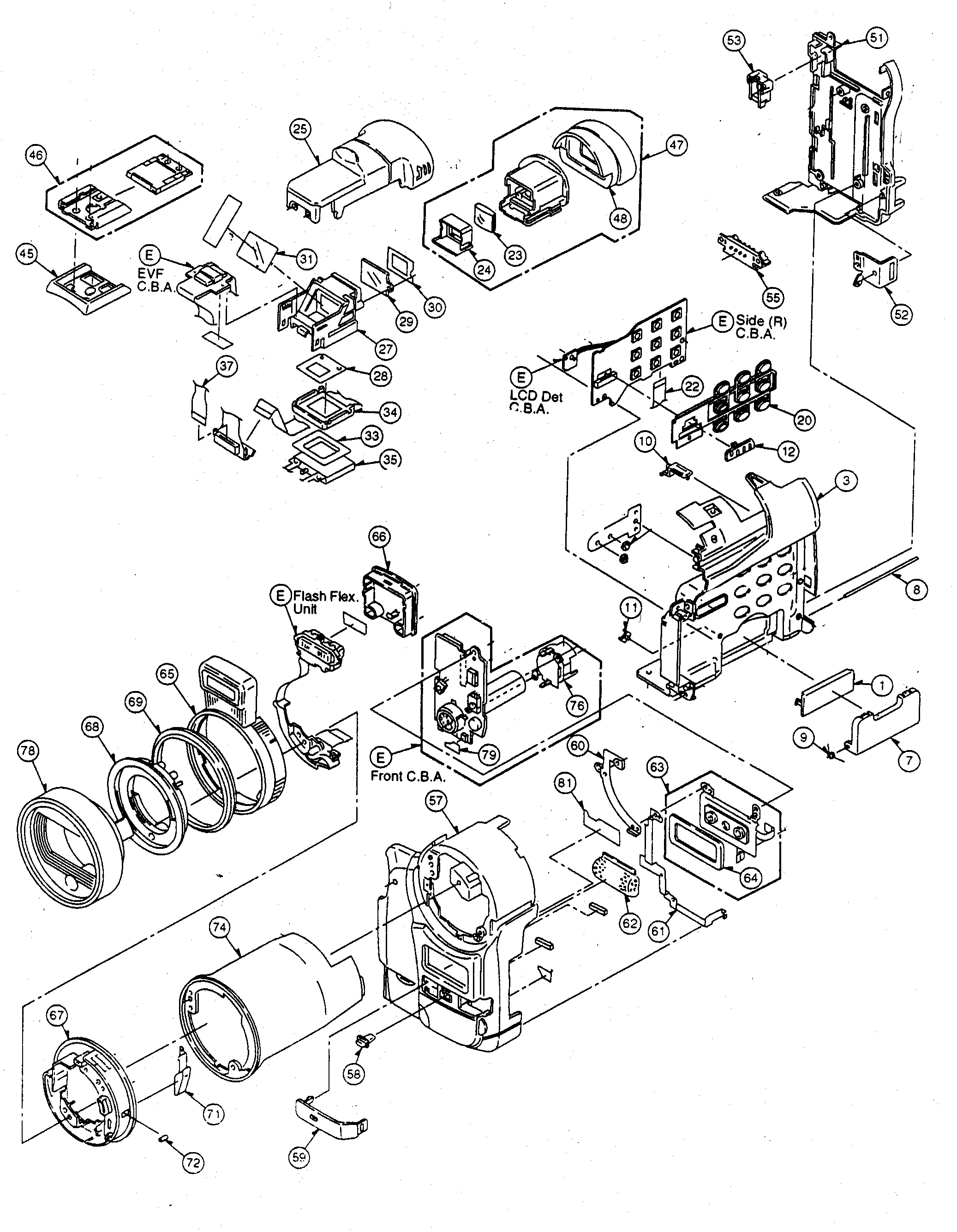

Cabinet parts 1 diagram

Reflector

Part #VDL1151

The manufacturer no longer makes this part, and there's no substitute part

Jack Flex VWJ1547
#133

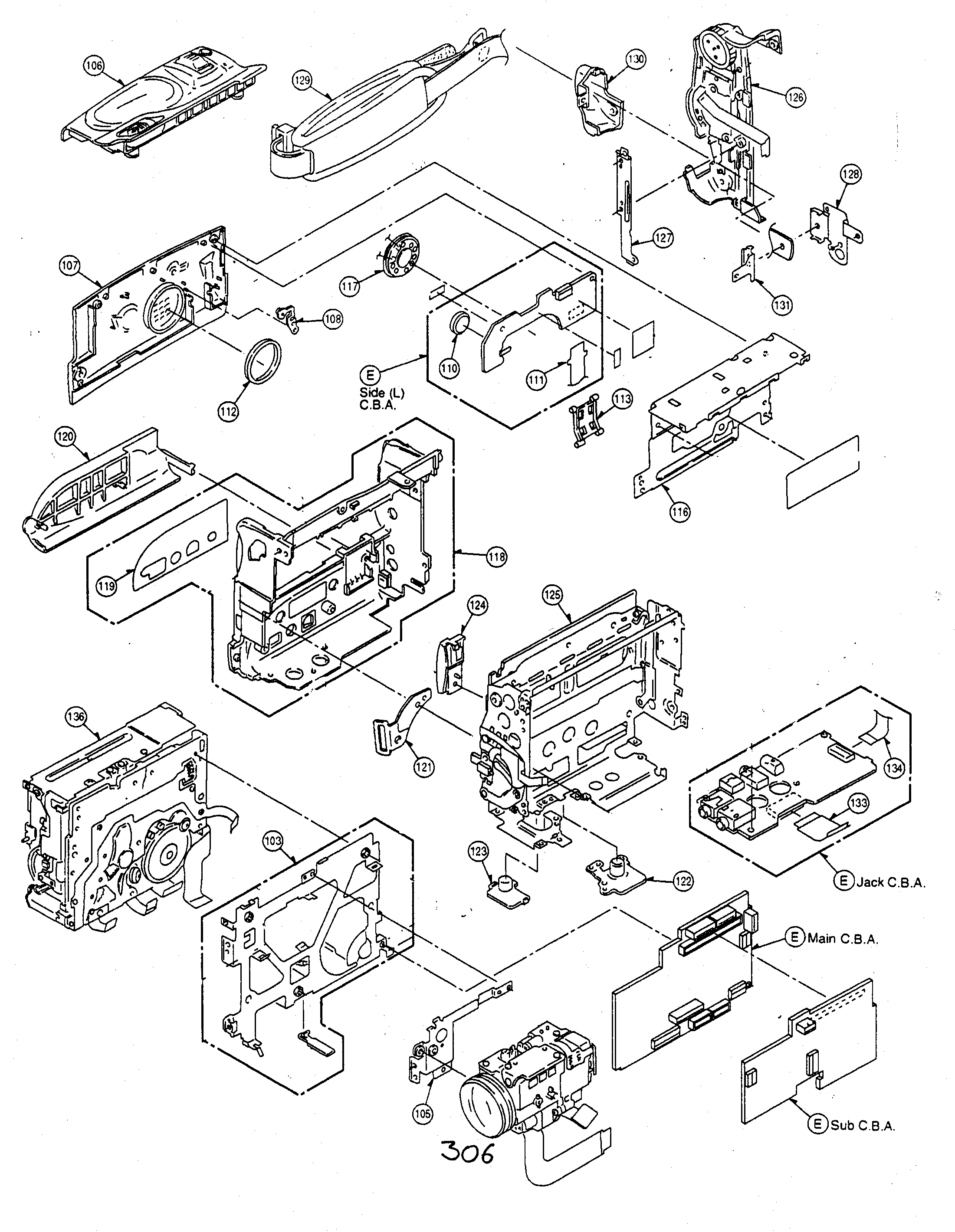

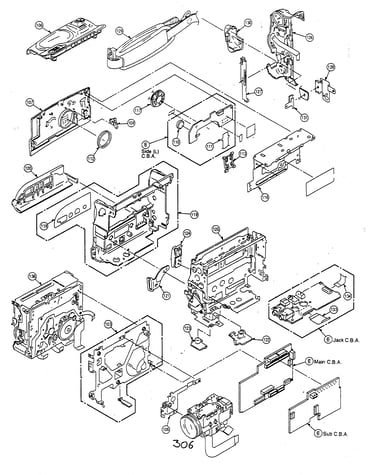

Cabinet parts 2 diagram

Jack flex

Part #VWJ1547

The manufacturer no longer makes this part, and there's no substitute part

Bracket VMP7183
#60

Cabinet parts 1 diagram

Bracket

Part #VMP7183

The manufacturer no longer makes this part, and there's no substitute part

Jack Cover VKF3523
#120

Cabinet parts 2 diagram

Jack cover

Part #VKF3523

The manufacturer no longer makes this part, and there's no substitute part

Sensor CNA1312K01VT
#NI

Cabinet parts 1 diagram

Sensor

Part #CNA1312K01VT

The manufacturer no longer makes this part, and there's no substitute part

Lcd Hinge VXD0367
#206

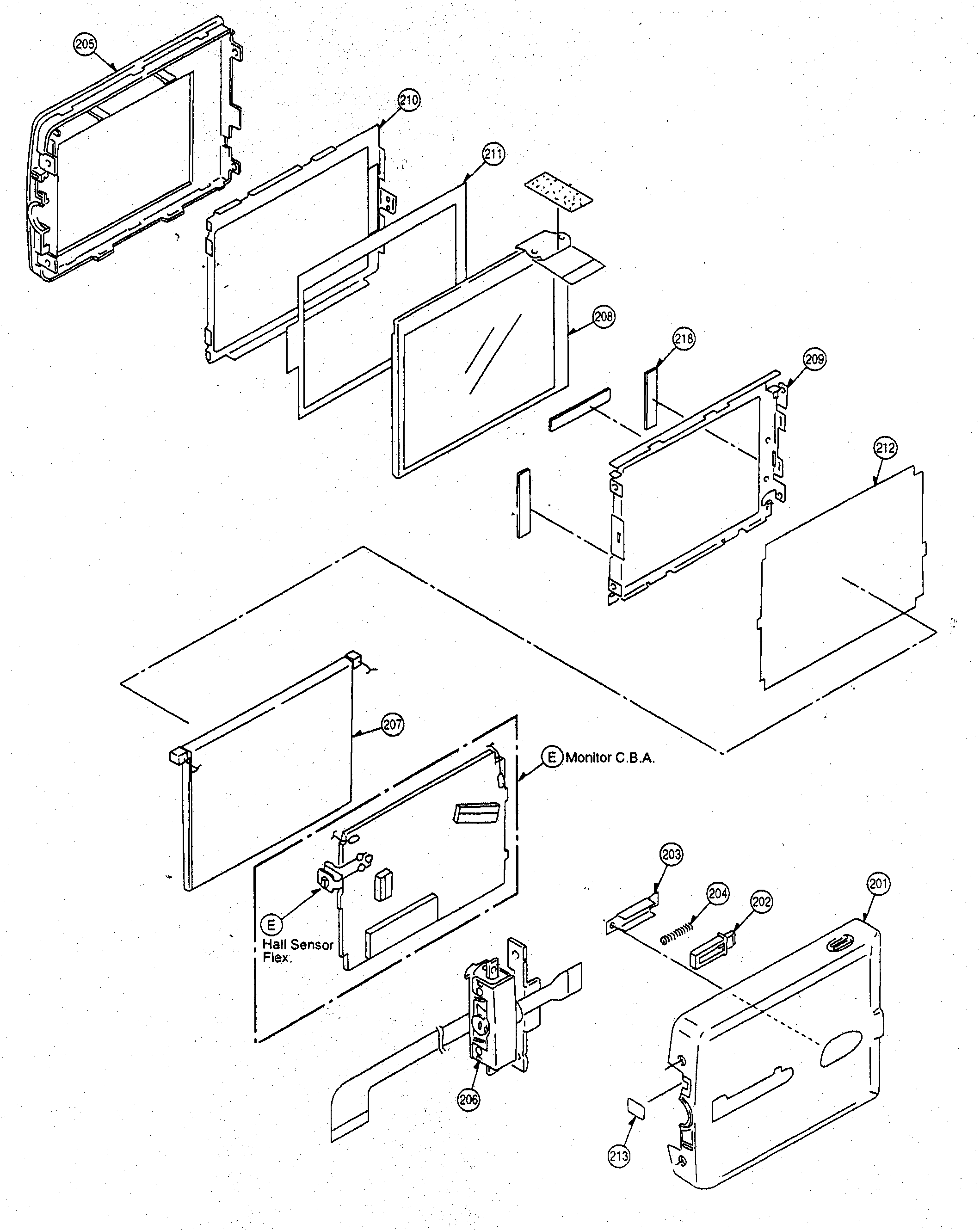

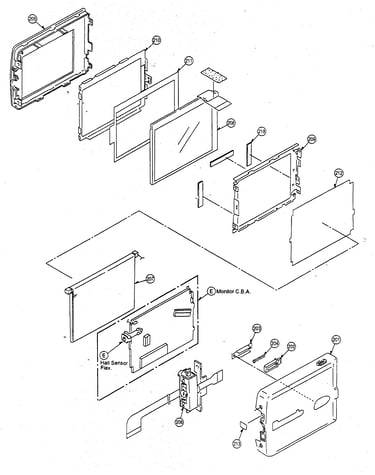

Lcd assy diagram

Lcd hinge

Part #VXD0367

The manufacturer no longer makes this part, and there's no substitute part

Eye Capacitor VMG1441
#48

Cabinet parts 1 diagram

Eye capacitor

Part #VMG1441

The manufacturer no longer makes this part, and there's no substitute part

Bracket VMP7184
#61

Cabinet parts 1 diagram

Bracket

Part #VMP7184

The manufacturer no longer makes this part, and there's no substitute part

Sheet Speaker VGQ5908
#112

Cabinet parts 2 diagram

Sheet speaker

Part #VGQ5908

The manufacturer no longer makes this part, and there's no substitute part

Backlight VYK0F26
#207

Lcd assy diagram

Backlight

Part #VYK0F26

The manufacturer no longer makes this part, and there's no substitute part
