Craftsman
Gas Walk-Behind Mower

Model # 917978303 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 917978303 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Selector Knob 77865
#53

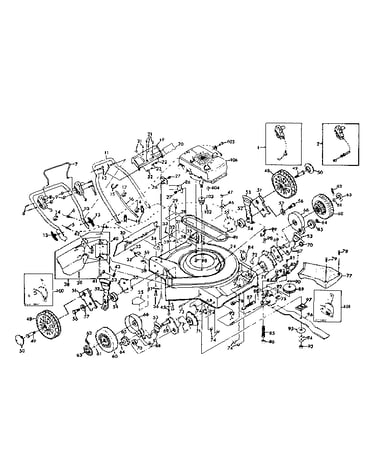

Replacement parts diagram

Selector knob

Part #77865

Replaced by #532701037

?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Handle Knob 63688
#13

Replacement parts diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98
14% OFF Phone Price : $13.98
In Stock
Selctr Sprng 84888
#52

Replacement parts diagram

Selctr sprng

Part #84888

Replaced by #532401621

?
Manufacturer substitution
This part replaces 84888. Substitute parts can look different from the original.
In Stock
Lawn & Garden Equipment Bearing 77881
#7

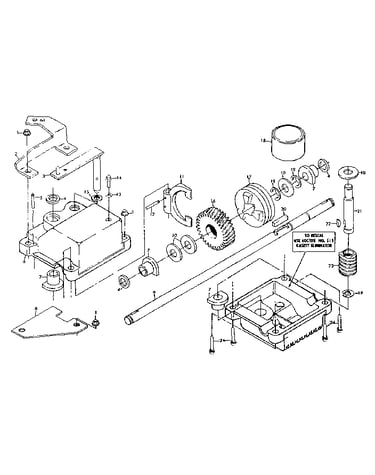

Gear case assembly diagram

Lawn & garden equipment bearing

Part #77881

Replaced by #532077881

?
Manufacturer substitution
This part replaces 77881. Substitute parts can look different from the original.
In Stock
Spring 83632
#85

Replacement parts diagram

Spring

Part #83632

Replaced by #532137090

?
Manufacturer substitution
This part replaces 83632. Substitute parts can look different from the original.
In Stock
Bracket Assembly 62886
#34

Replacement parts diagram

Bracket assembly

Part #62886

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62886. Substitute parts can look different from the original.
In Stock
Washer 59289
#36

Replacement parts diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bracket Support 62887
#35

Replacement parts diagram

Bracket support

Part #62887

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62887. Substitute parts can look different from the original.
In Stock
Lawn Mower Retainer Clip, 4-pack 55015
#62

Replacement parts diagram

Lawn mower retainer clip, 4-pack

Part #55015

Replaced by #582934801

?
Manufacturer substitution
This part replaces 55015. Substitute parts can look different from the original.
This item is not returnable
In Stock
Engine Pulley 83121
#103

Replacement parts diagram

Engine pulley

Part #83121

Replaced by #532084596

?
Manufacturer substitution
This part replaces 83121. Substitute parts can look different from the original.
$27.98
18% OFF Phone Price : $33.98
In Stock
