Maytag
Refrigerator

Model # MX410 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MX410 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

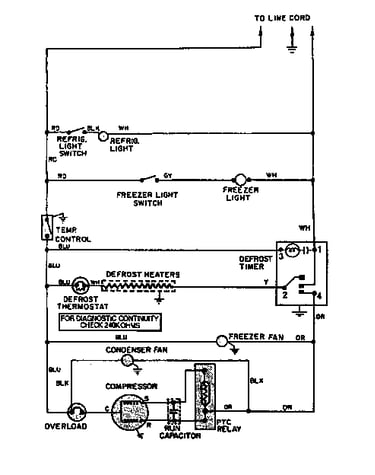

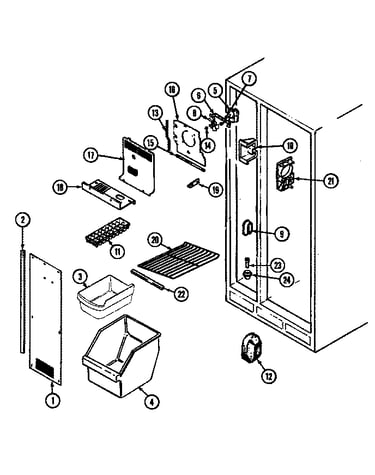

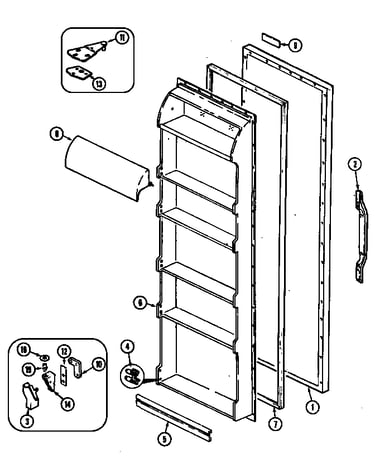

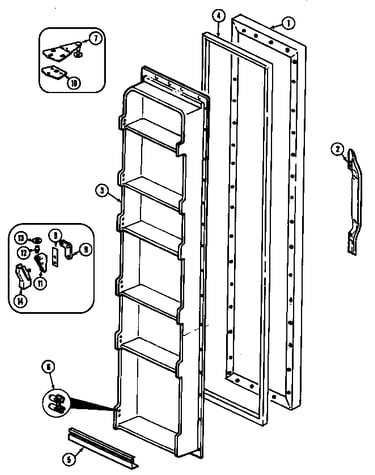

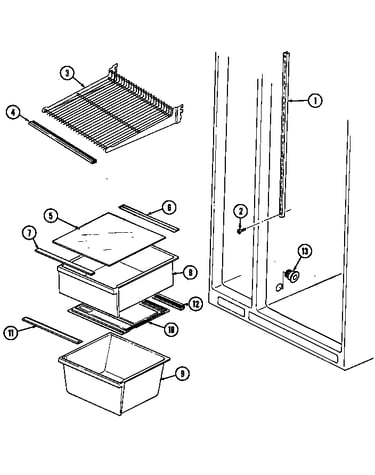

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Drier 13900
#29

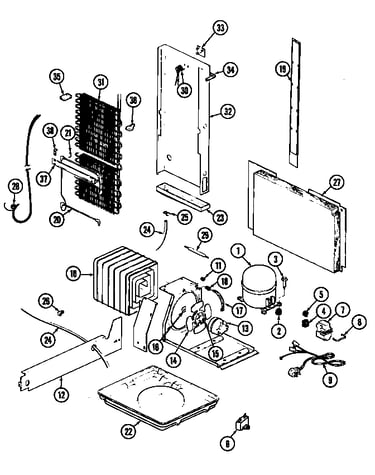

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 66987-1
#18

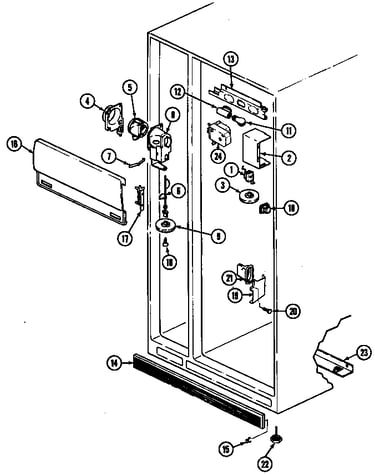

Fresh food compartment diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drain Hose Clamp 9602-3
#25

Unit compartment & system diagram

Drain hose clamp

Part #9602-3

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 9602-3. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Condenser Fan Motor 68445-7
#13

Unit compartment & system diagram

Refrigerator condenser fan motor

Part #68445-7

Replaced by #833697

?
Manufacturer substitution
This part replaces 68445-7. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Compressor Start Capacitor 65889-4
Refrigerator compressor start capacitor

Part #65889-4

Replaced by #WP65889-4

?
Manufacturer substitution
This part replaces 65889-4. Substitute parts can look different from the original.
BEST SELLER
$55.99 |
10% OFF Phone Price : $61.99
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Defrost Heater 69848-1
#20

Unit compartment & system diagram

Refrigerator defrost heater

Part #69848-1

Replaced by #WP61001846

?
Manufacturer substitution
This part replaces 69848-1. Substitute parts can look different from the original.
$31.79 |
16% OFF Phone Price : $37.79
In Stock
Refrigerator Defrost Timer 68233-3
#24

Fresh food compartment diagram

Refrigerator defrost timer

Part #68233-3

Replaced by #WP68233-3

?
Manufacturer substitution
This part replaces 68233-3. Substitute parts can look different from the original.
$80.02 |
7% OFF Phone Price : $86.02
In Stock
Refrigerator Light Bulb 55771-2
#11

Fresh food compartment diagram

Refrigerator light bulb

Part #55771-2

Replaced by #W10887190

?
Manufacturer substitution
This part replaces 55771-2. Substitute parts can look different from the original.
This item is not returnable
$12.99 |
13% OFF Phone Price : $14.99
In Stock
Refrigerator Screw 65275-80
Refrigerator screw

Part #65275-80

Replaced by #W10856122

?
Manufacturer substitution
This part replaces 65275-80. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
