Handheld Vacuum

Model # S1059030 Official Hoover handheld vacuum

Here are the diagrams and repair parts for Official Hoover S1059030 handheld vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
S1059030 Vacuum Cleaners
Kenmore Terminal 27666702
#8A

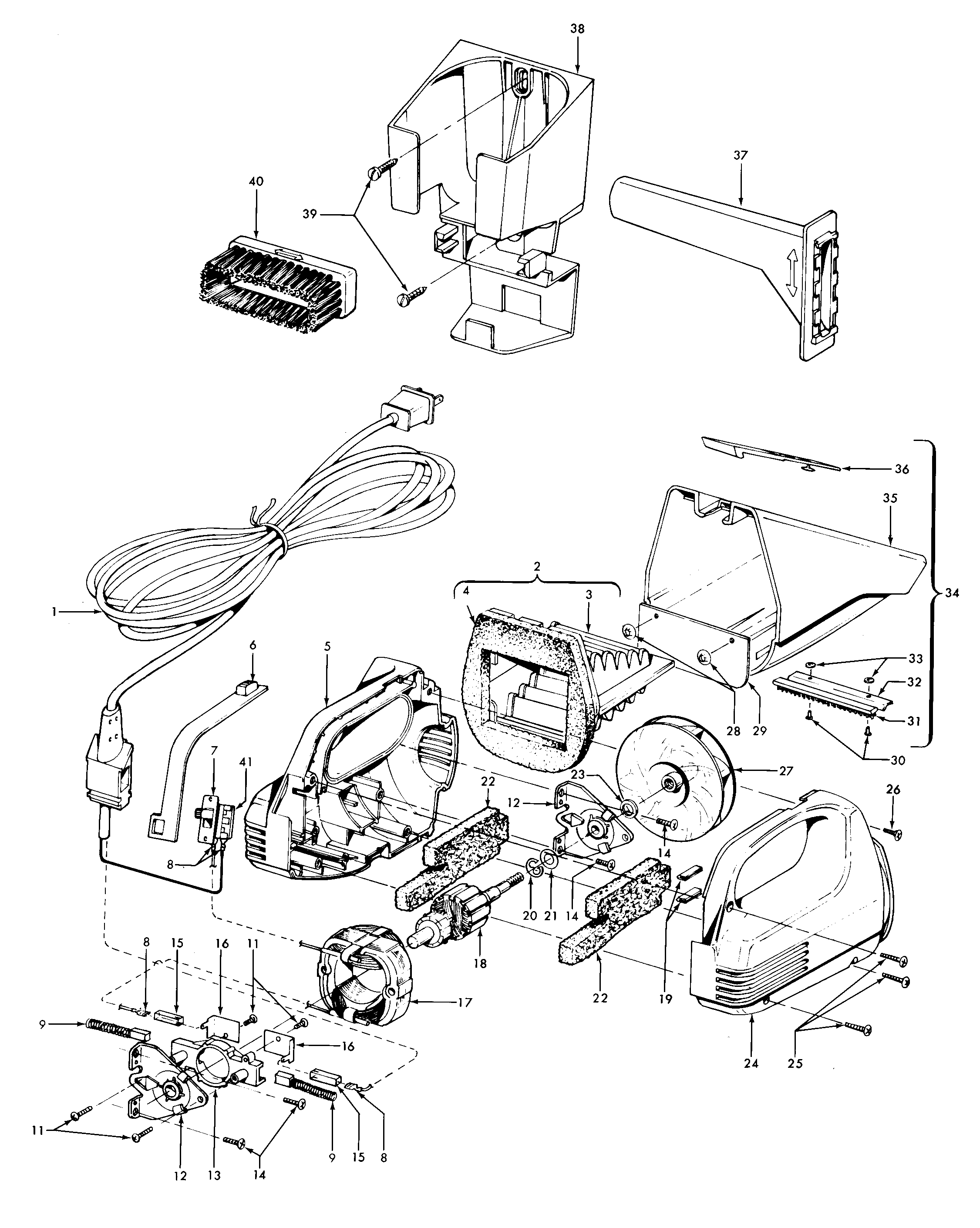

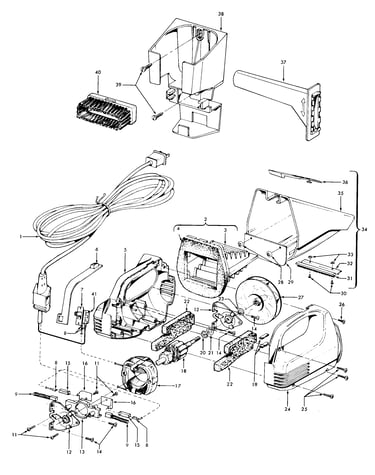

Motor, cleaningtools, motorhousing diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Dust Cup Assembly 43645024
#34A

Motor, cleaningtools, motorhousing diagram

Dust cup assembly

Part #43645024

The manufacturer no longer makes this part, and there's no substitute part

Switch 281770KD
#7A

Motor, cleaningtools, motorhousing diagram

Switch

Part #281770KD

The manufacturer no longer makes this part, and there's no substitute part

Washer 160030--
#23

Motor, cleaningtools, motorhousing diagram

Washer

Part #160030--

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 43615051
#2

Motor, cleaningtools, motorhousing diagram

Filter, 1-pack

Part #43615051

The manufacturer no longer makes this part, and there's no substitute part

Shield 37258082
#41

Motor, cleaningtools, motorhousing diagram

Shield

Part #37258082

The manufacturer no longer makes this part, and there's no substitute part

Screw Packet-s1073 40201053
#39

Motor, cleaningtools, motorhousing diagram

Screw packet-s1073

Part #40201053

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring 013730--
#20

Motor, cleaningtools, motorhousing diagram

Lock ring

Part #013730--

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 48451001
#40

Motor, cleaningtools, motorhousing diagram

Vacuum dust brush

Part #48451001

The manufacturer no longer makes this part, and there's no substitute part

Actuator 38452057
#6

Motor, cleaningtools, motorhousing diagram

Actuator

Part #38452057

The manufacturer no longer makes this part, and there's no substitute part
