Model # BT-2500 Official Ryobi table saw

Here are the diagrams and repair parts for Official Ryobi BT-2500 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Scale 6921135

#116

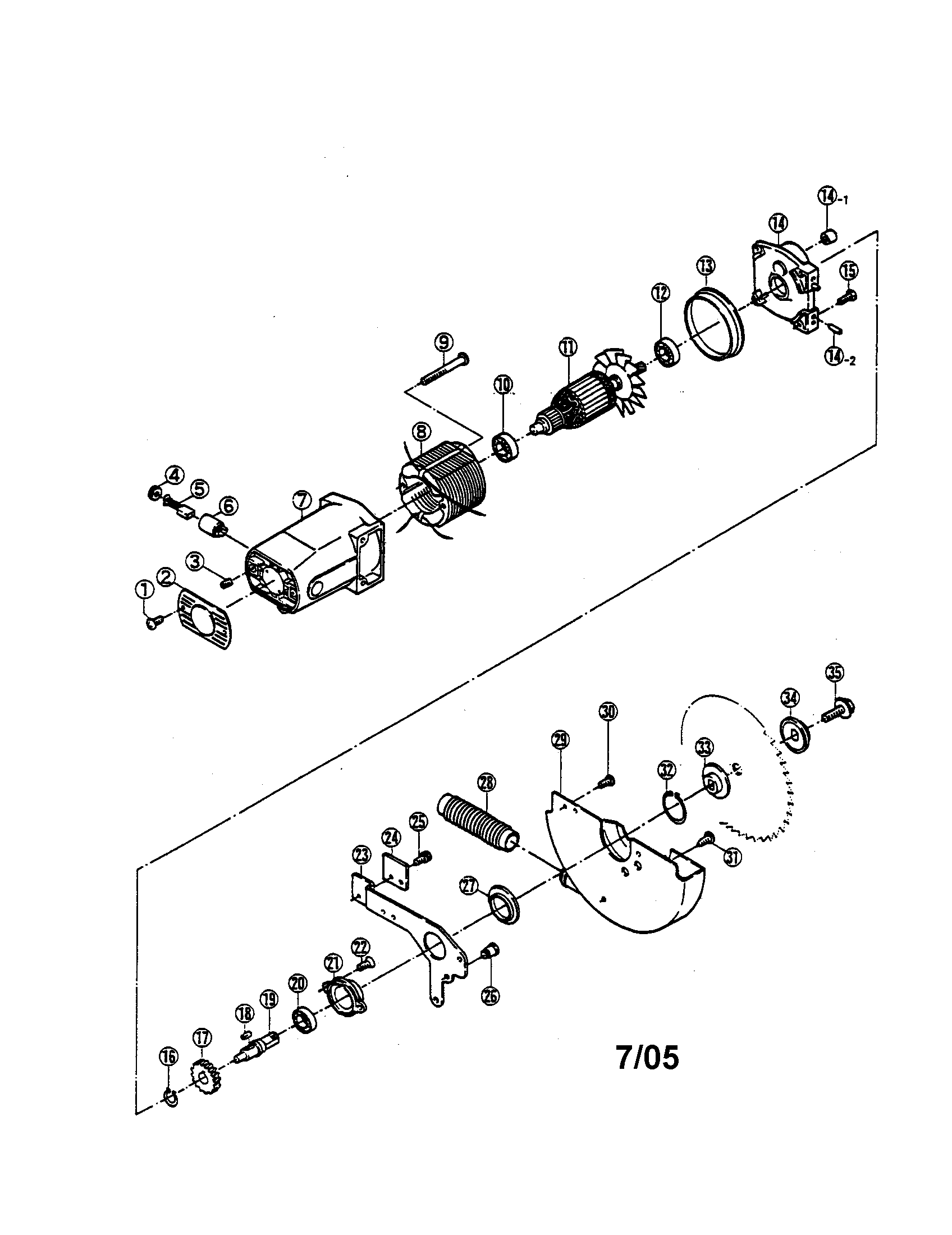

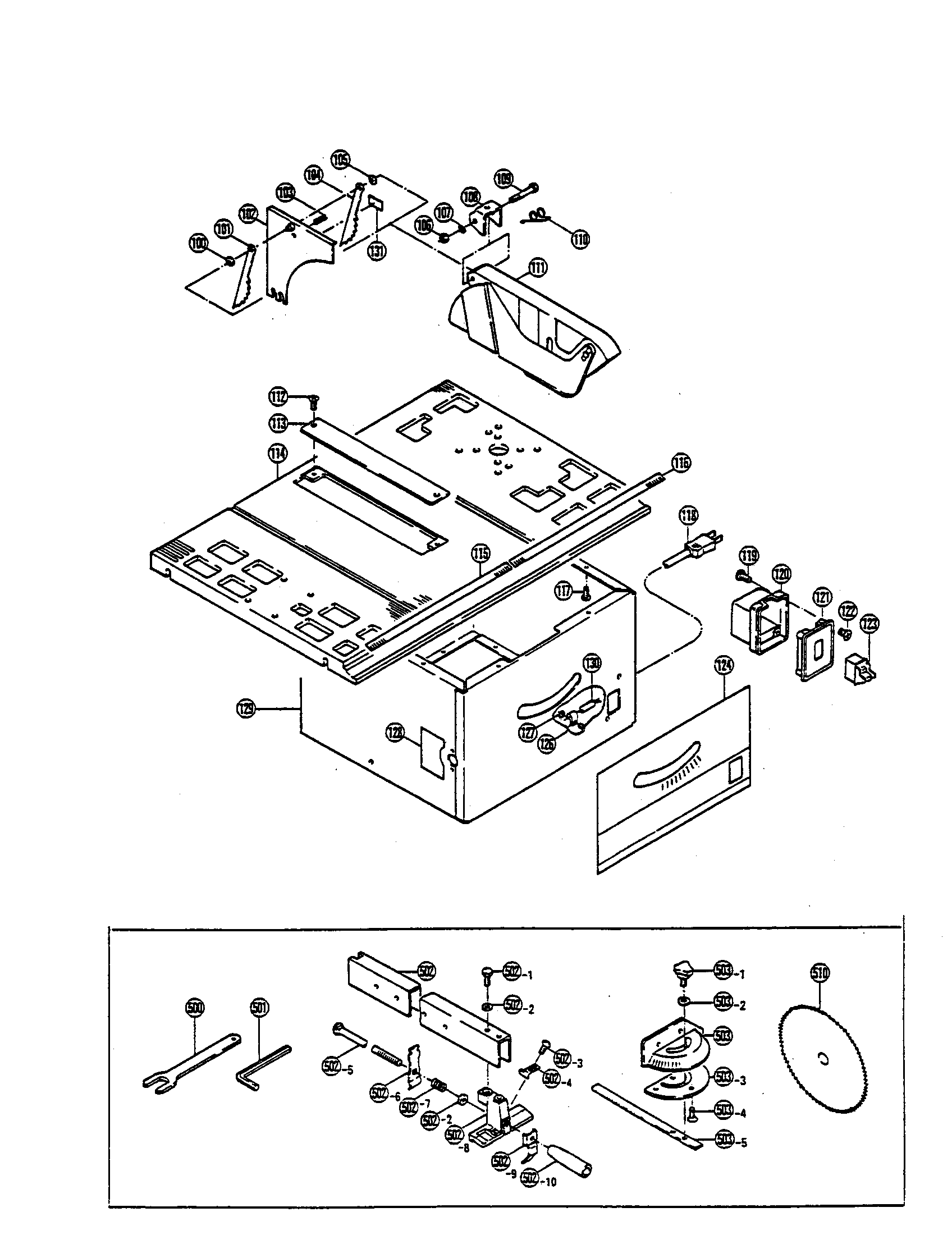

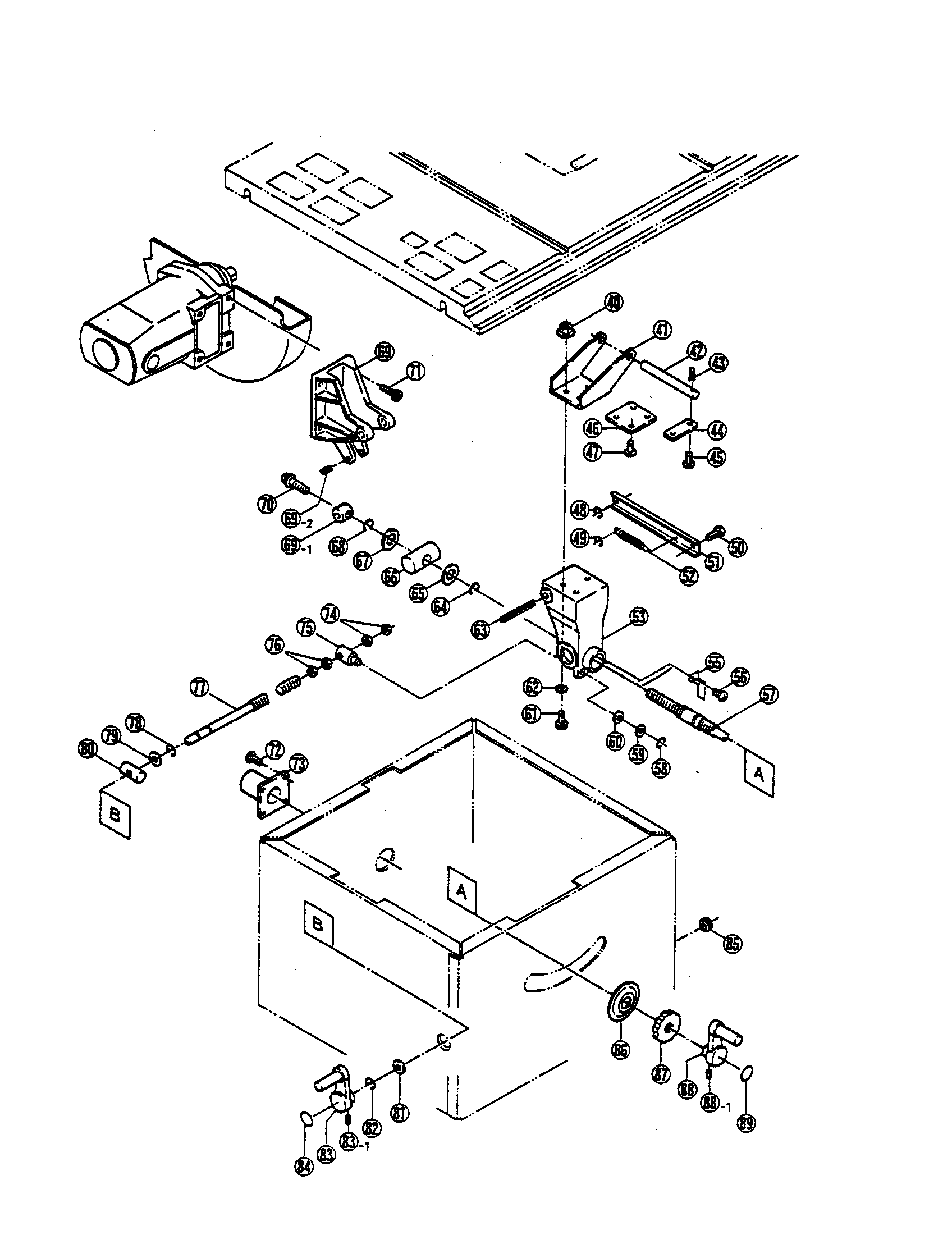

All parts diagram

Scale

Part #6921135

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 9406012

#69-2

All parts diagram

Spring pin

Part #9406012

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 9300600

#106

All parts diagram

Hex nut

Part #9300600

The manufacturer no longer makes this part, and there's no substitute part

Wrench 6241093

#501A

All parts diagram

Wrench

Part #6241093

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060535

#15

All parts diagram

Screw

Part #9060535

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 6570107

#4

All parts diagram

Brush cap

Part #6570107

The manufacturer no longer makes this part, and there's no substitute part

Clamp Screw 9280508

#83-1

All parts diagram

Clamp screw

Part #9280508

The manufacturer no longer makes this part, and there's no substitute part

Plate 6150345

#86

All parts diagram

Plate

Part #6150345

The manufacturer no longer makes this part, and there's no substitute part

Tension Spring 6180439

#52

All parts diagram

Tension spring

Part #6180439

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 969235003

#20

All parts diagram

Ball bearing

Part #969235003

The manufacturer no longer makes this part, and there's no substitute part
