DeWalt
Angle Grinder

Model # DWE4214 TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DWE4214-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
O N355619
#10

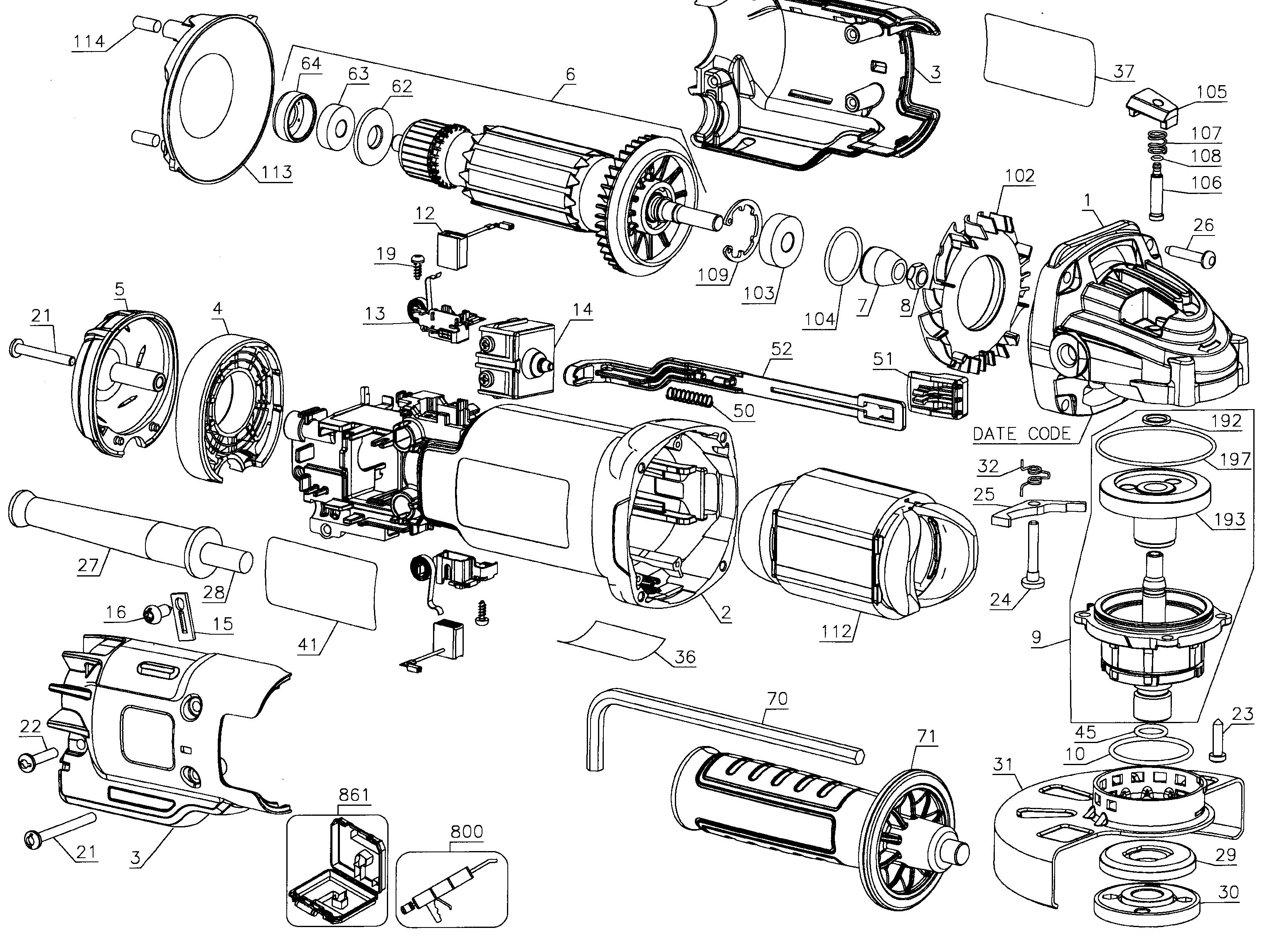

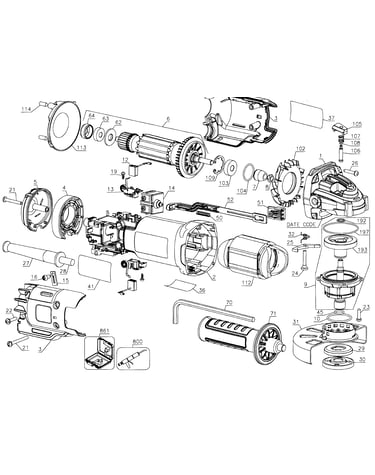

Grinder assy diagram

O

Part #N355619

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Cordset N387339
#28

Grinder assy diagram

Dewalt cordset

Part #N387339

The manufacturer no longer makes this part, and there's no substitute part

End N393513
#5

Grinder assy diagram

End

Part #N393513

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Flange Nut N134467
#30

Grinder assy diagram

Angle grinder flange nut

Part #N134467

The manufacturer no longer makes this part, and there's no substitute part

Grease 30301914-01
#800

Grinder assy diagram

Grease

Part #30301914-01

The manufacturer no longer makes this part, and there's no substitute part

Bolt 330045-06
#23

Grinder assy diagram

Bolt

Part #330045-06

The manufacturer no longer makes this part, and there's no substitute part

Hex Wrench N107295
#70

Grinder assy diagram

Hex wrench

Part #N107295

The manufacturer no longer makes this part, and there's no substitute part

Label N400503
#36

Grinder assy diagram

Label

Part #N400503

The manufacturer no longer makes this part, and there's no substitute part

Switch N396008
#14

Grinder assy diagram

Switch

Part #N396008

The manufacturer no longer makes this part, and there's no substitute part

Screw 330065-06
#16

Grinder assy diagram

Screw

Part #330065-06

The manufacturer no longer makes this part, and there's no substitute part
