Room Air Conditioner

Model # AEE12DRL1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEE12DRL1 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAEE12DRL1 Room Air Conditioner

  • Remote WJ26X10354
    #46

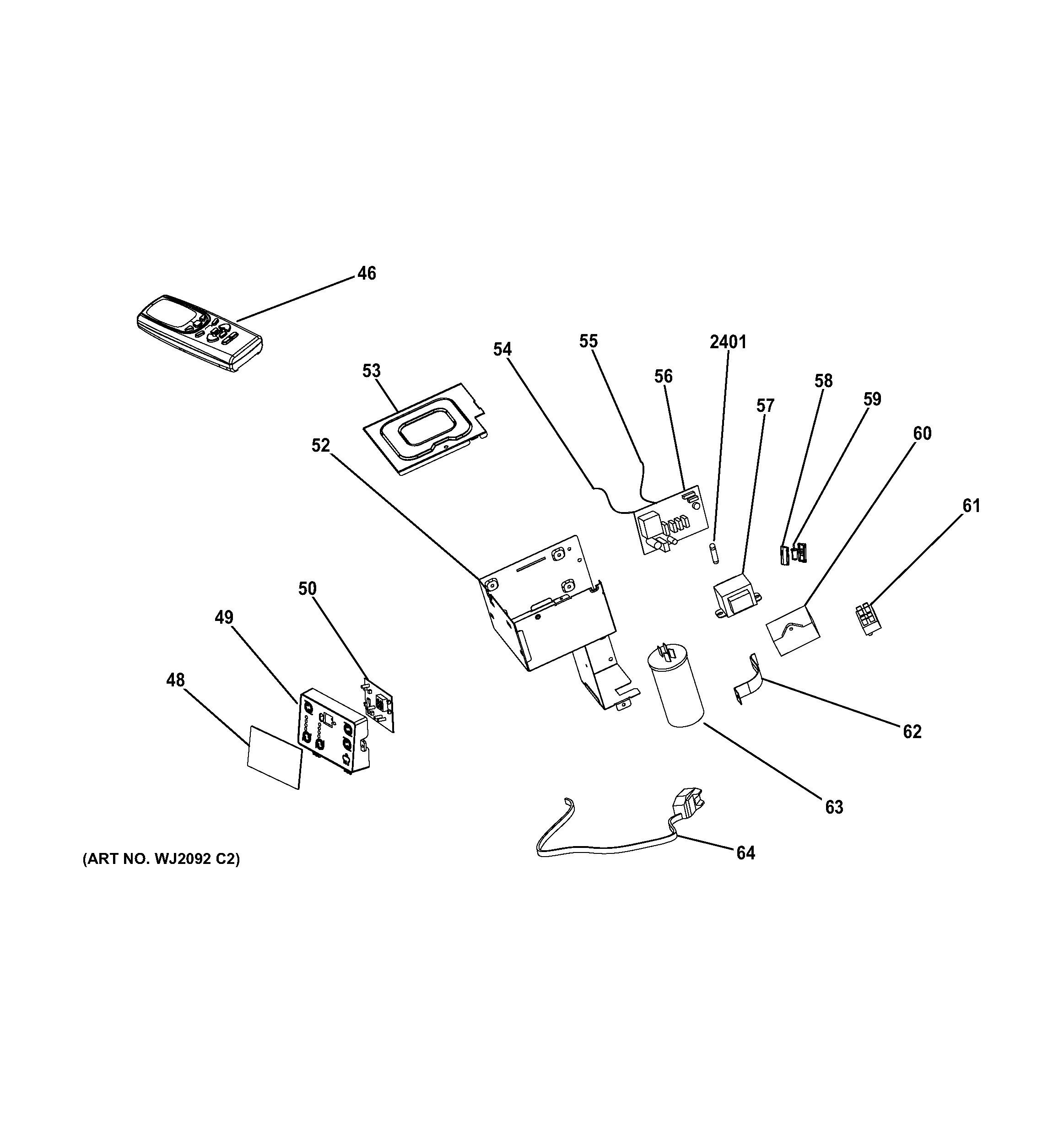

    Control parts diagram

    Remote

    Part #WJ26X10354

    Replaced by #WJ26X20522

    ?
    Manufacturer substitution
    This part replaces WJ26X10354. Substitute parts can look different from the original.
    $51.02 |
    11% OFF Phone Price : $57.02
    In Stock
  • U&c/iis Room 49-7665-1
    #9999

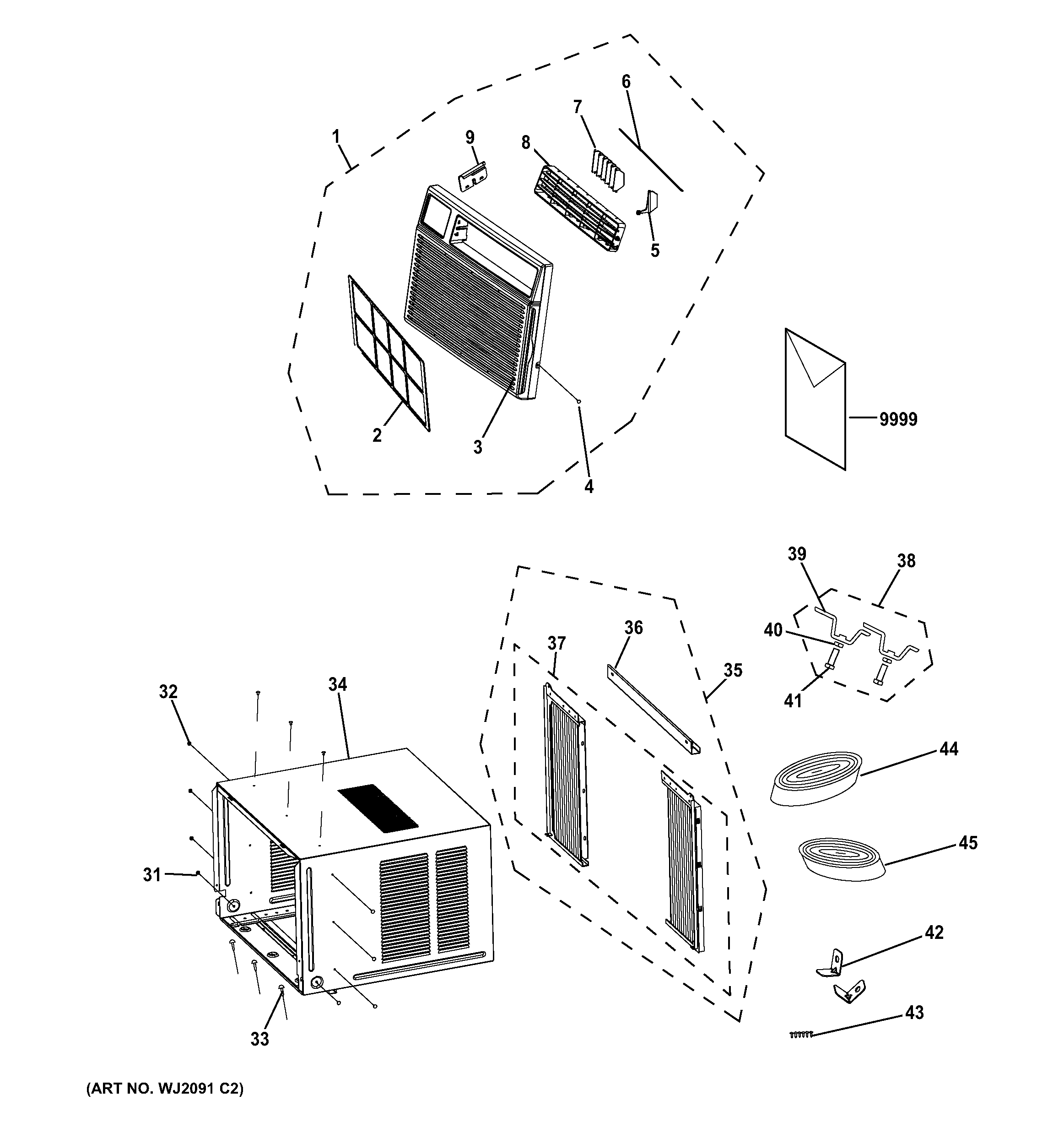

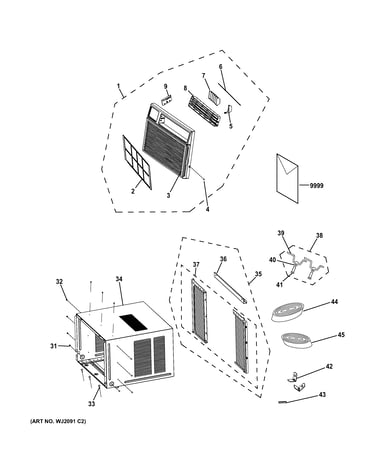

    Grille & chassis parts diagram

    U&c/iis room

    Part #49-7665-1

    $22.99
    In Stock
  • Screw WJ01X10351
    #43

    Grille & chassis parts diagram

    Screw

    Part #WJ01X10351

    $9.51
    In Stock
  • Room Sensor WJ27X10168
    #54

    Control parts diagram

    Room sensor

    Part #WJ27X10168

    This item is not returnable
    $14.98 |
    12% OFF Phone Price : $16.98
    In Stock
  • Room Air Conditioner Fan Motor WJ95X10034
    #24

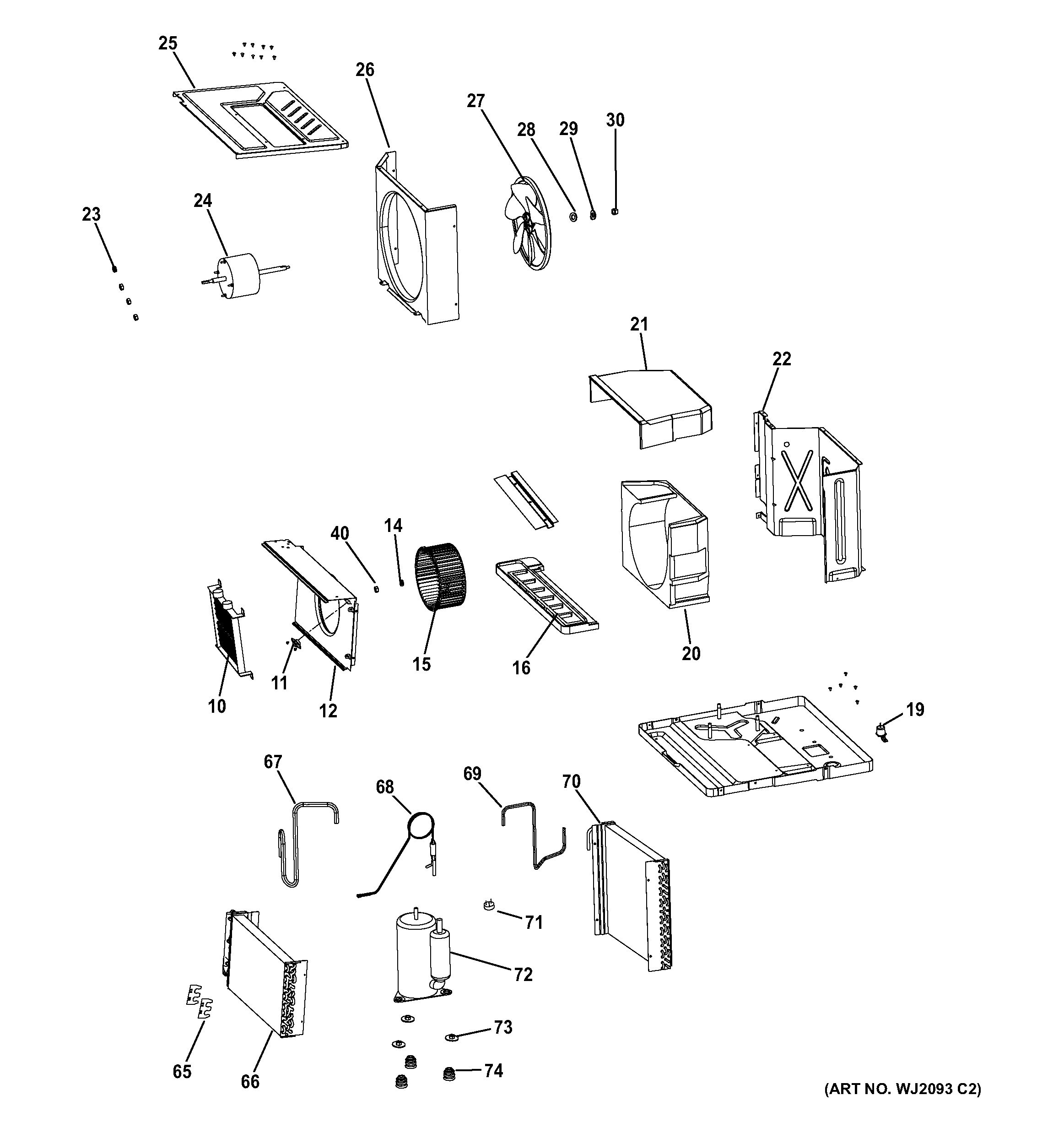

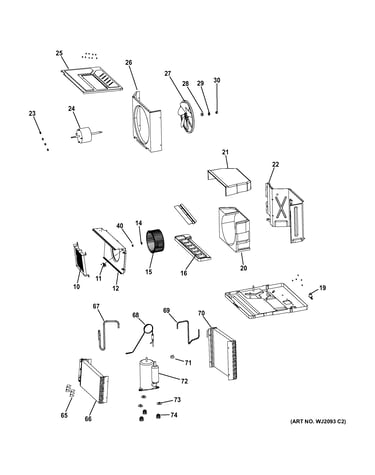

    Base pan & unit parts diagram

    Room air conditioner fan motor

    Part #WJ95X10034

    $175.38
    In Stock
  • Seal Strip 1 WJ44X10015
    #44

    Grille & chassis parts diagram

    Seal strip 1

    Part #WJ44X10015

    $22.46
    In Stock
  • Air Sensor WJ27X10169
    #55

    Control parts diagram

    Air sensor

    Part #WJ27X10169

    $18.11
    In Stock
  • Nut With Was WJ01X10335
    #74

    Base pan & unit parts diagram

    Nut with was

    Part #WJ01X10335

    $8.37
    In Stock
  • Mounted Flex WJ71X10575
    #35

    Grille & chassis parts diagram

    Mounted flex

    Part #WJ71X10575

    $73.04
    In Stock
  • Capacitor WJ20X10202
    #63

    Control parts diagram

    Capacitor

    Part #WJ20X10202

    $62.69
    In Stock
