Model # 35120651 Official Craftsman 8" jointer & stand

Here are the diagrams and repair parts for Official Craftsman 35120651 8" jointer & stand, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 141 parts |

#25

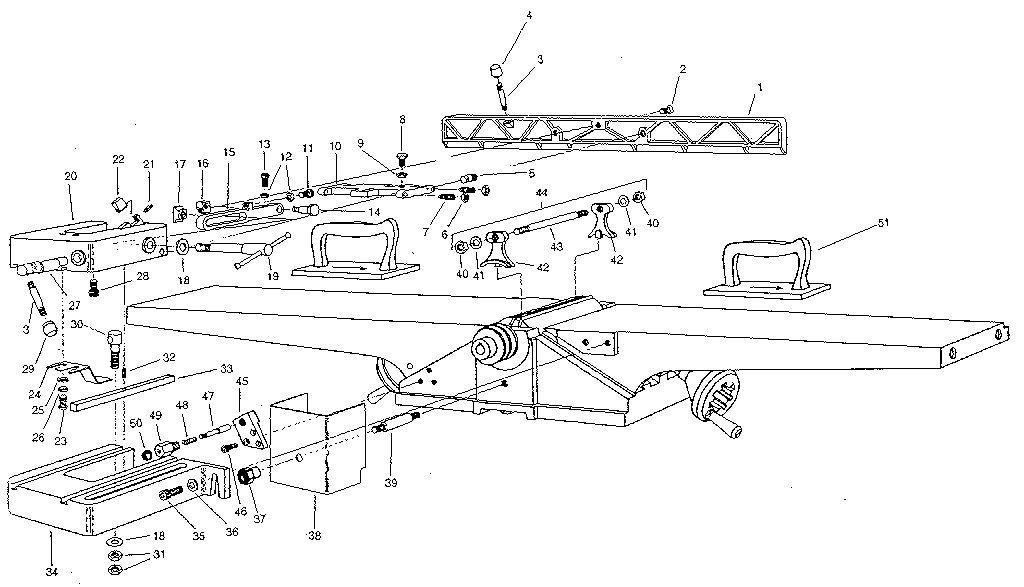

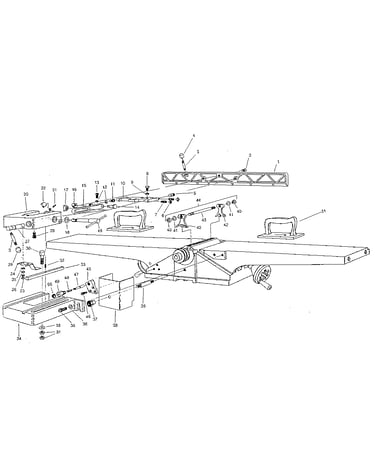

Fencing assembly diagram

Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

#12

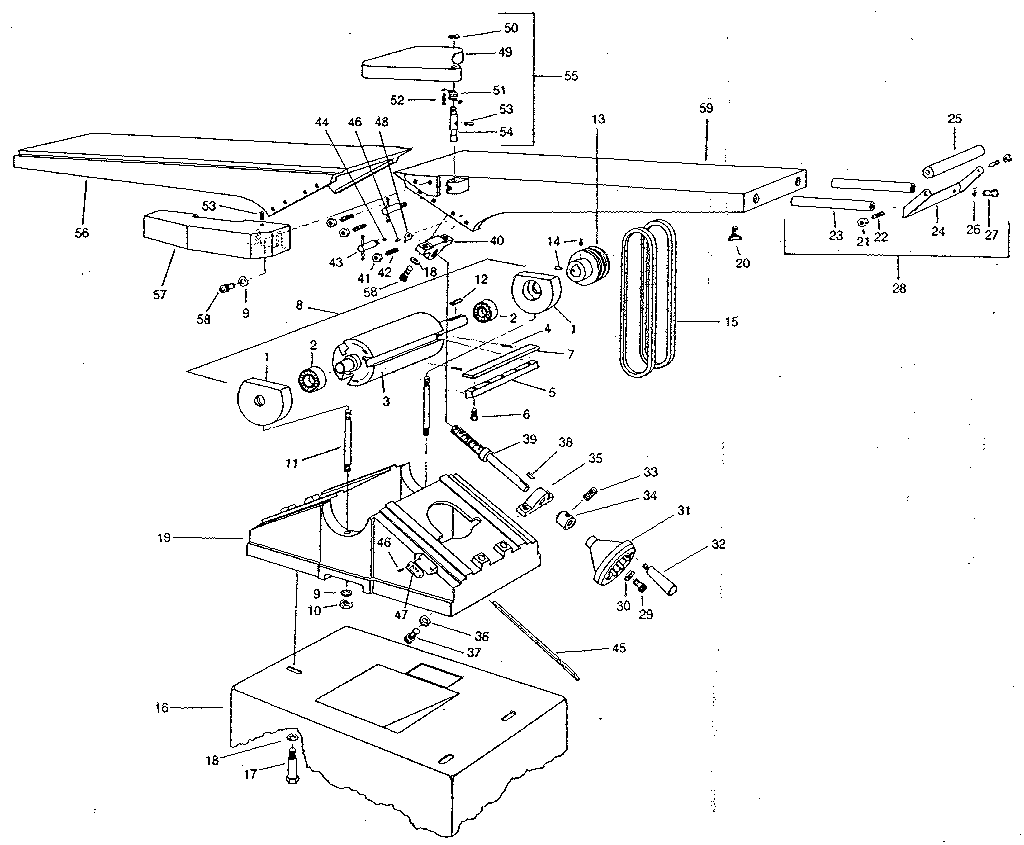

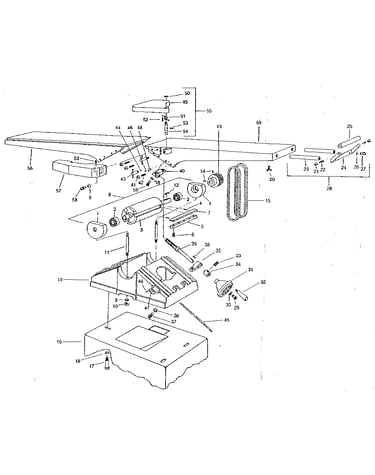

Base assembly diagram

Key

Part #2712.00

The manufacturer no longer makes this part, and there's no substitute part

#34

Base assembly diagram

Collar

Part #2849.00

The manufacturer no longer makes this part, and there's no substitute part

Base assembly diagram

Spring

Part #2704.00

The manufacturer no longer makes this part, and there's no substitute part

Hex nut

Part #STD541031

The manufacturer no longer makes this part, and there's no substitute part

#27

Base assembly diagram

Socket bolt

Part #2727.00

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 3/8-16 X 1-3/4-in STD523717

#45

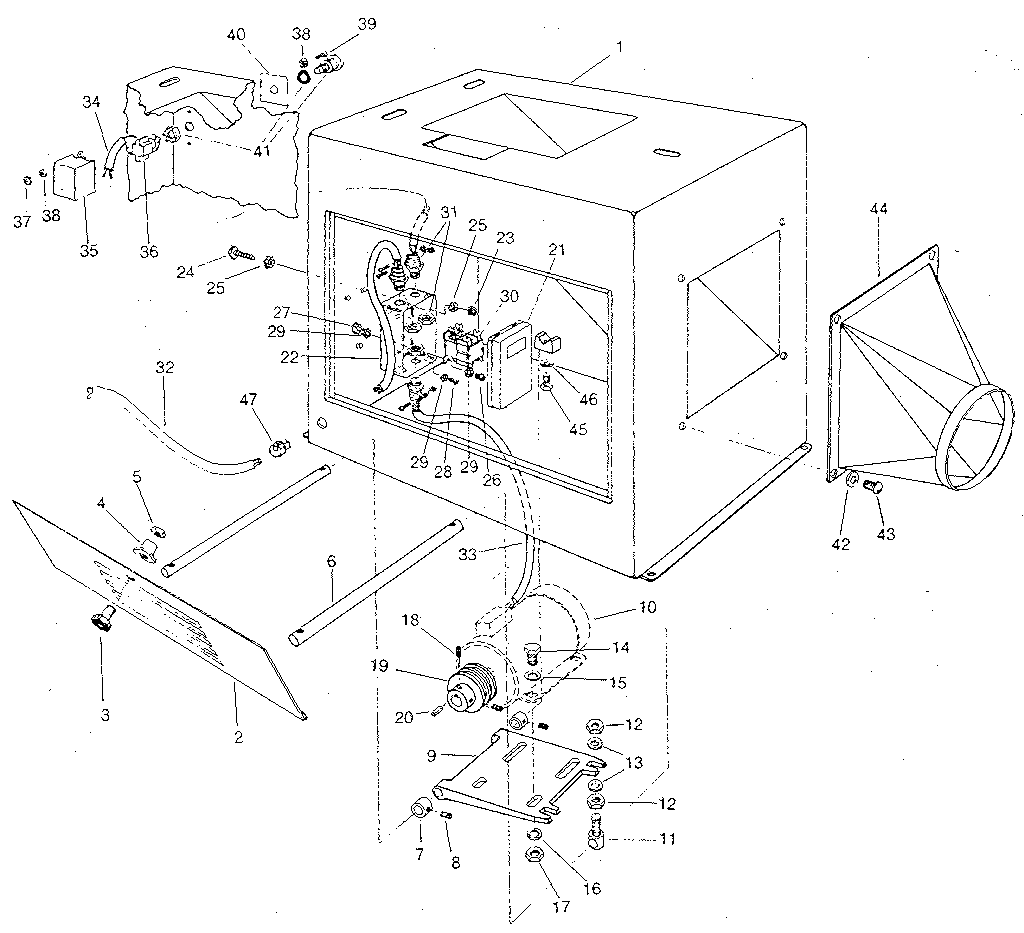

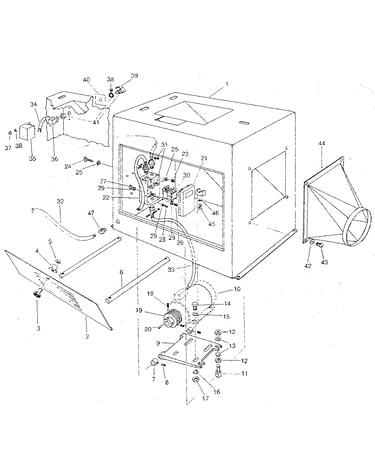

Unit parts diagram

Hex head bolt, 3/8-16 x 1-3/4-in

Part #STD523717

The manufacturer no longer makes this part, and there's no substitute part

#39

Unit parts diagram

Machine screw, #10-24 x 1-in

Part #STD511010

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Handwheel

Part #2798.00

The manufacturer no longer makes this part, and there's no substitute part

#53

Base assembly diagram

Roll pin

Part #2753.00

The manufacturer no longer makes this part, and there's no substitute part
