Craftsman
Front-Engine Lawn Tractor

Model # 917277580 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917277580 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

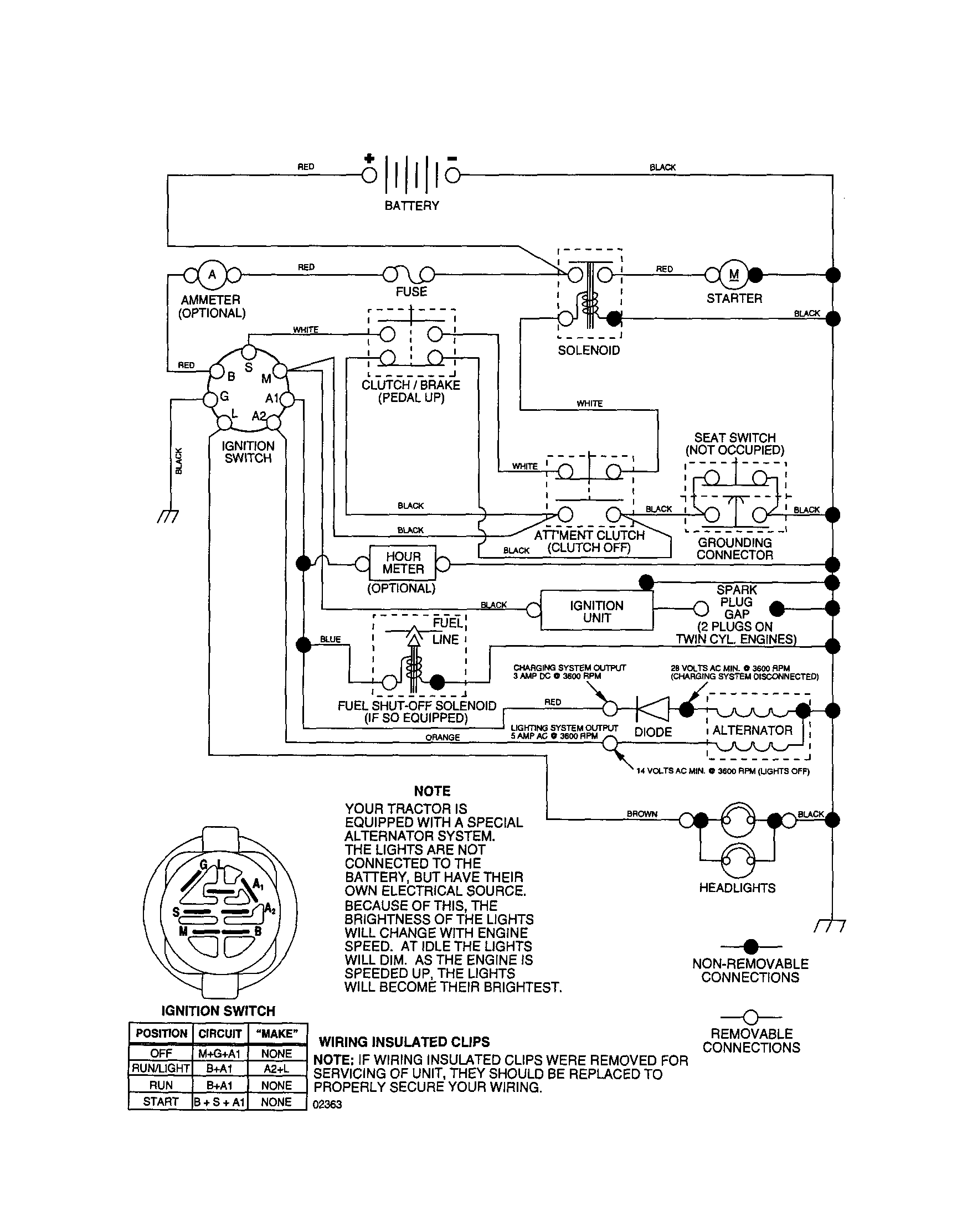

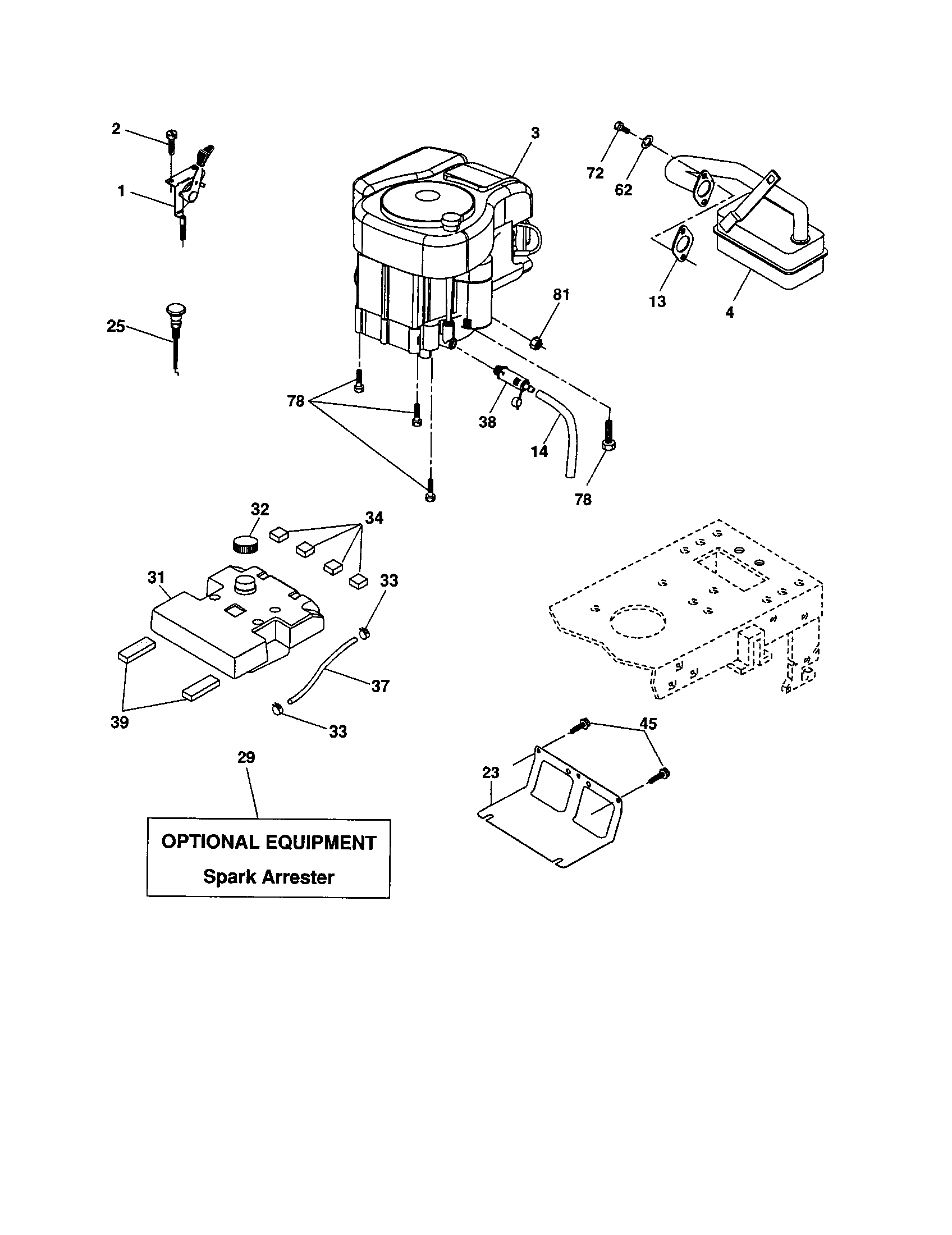

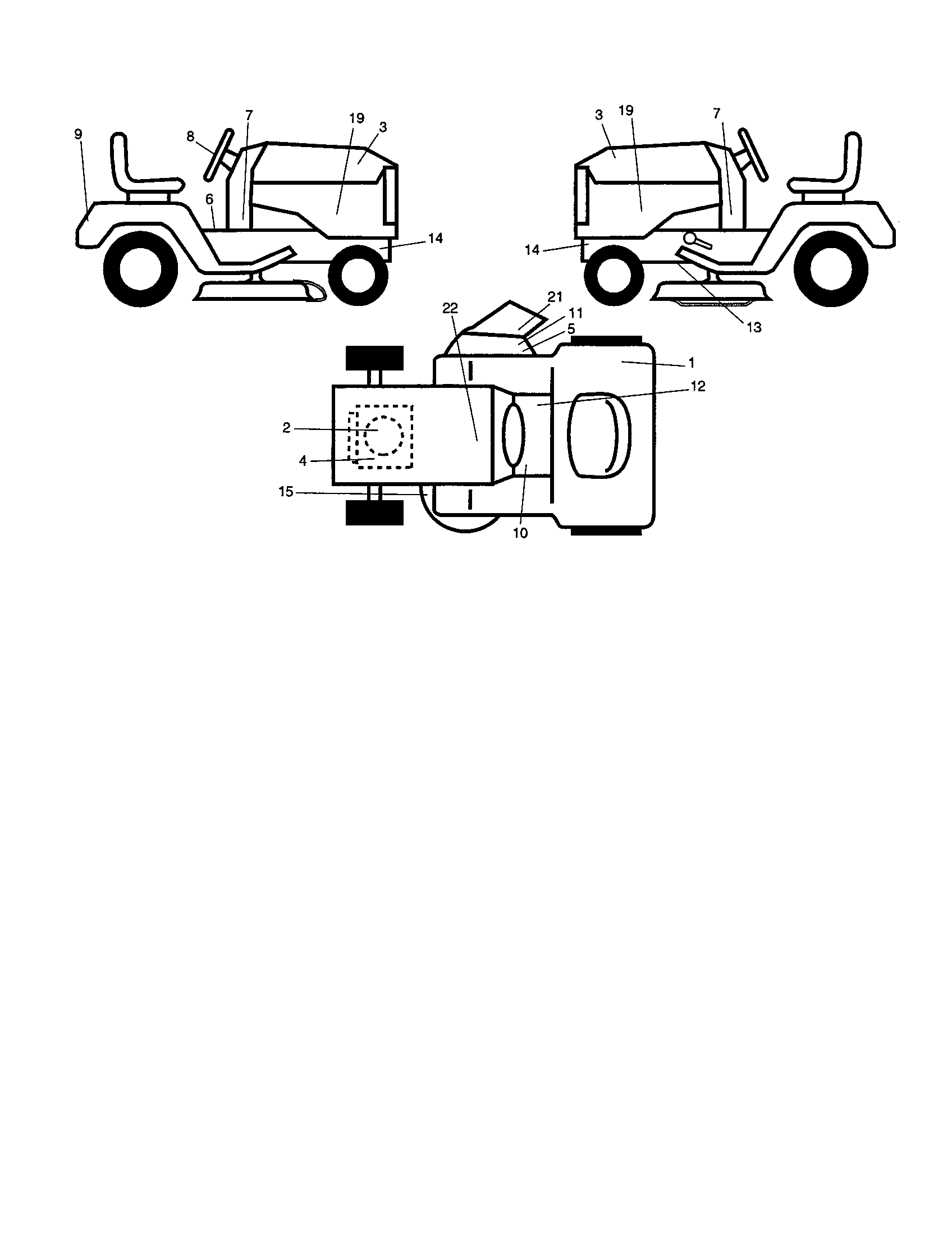

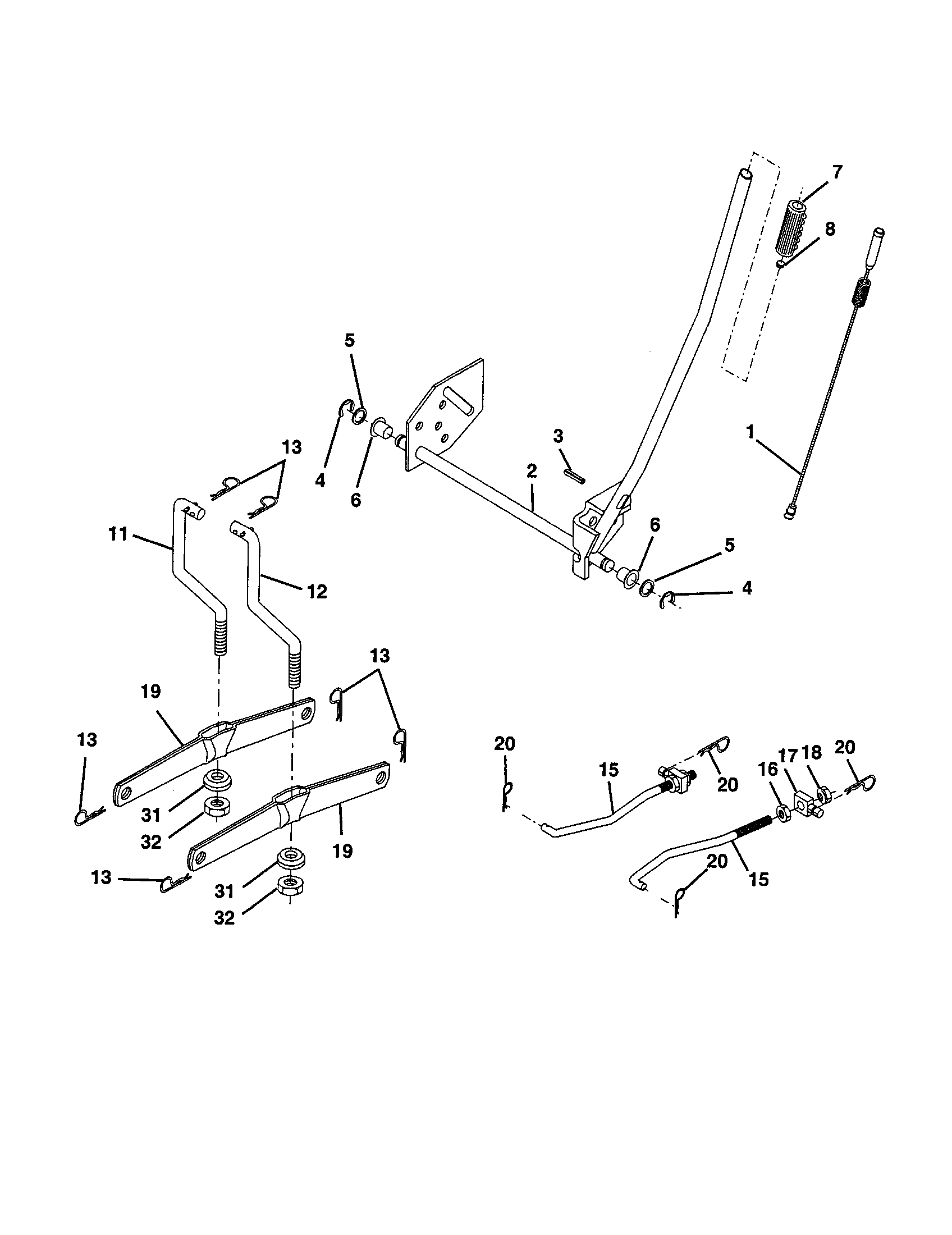

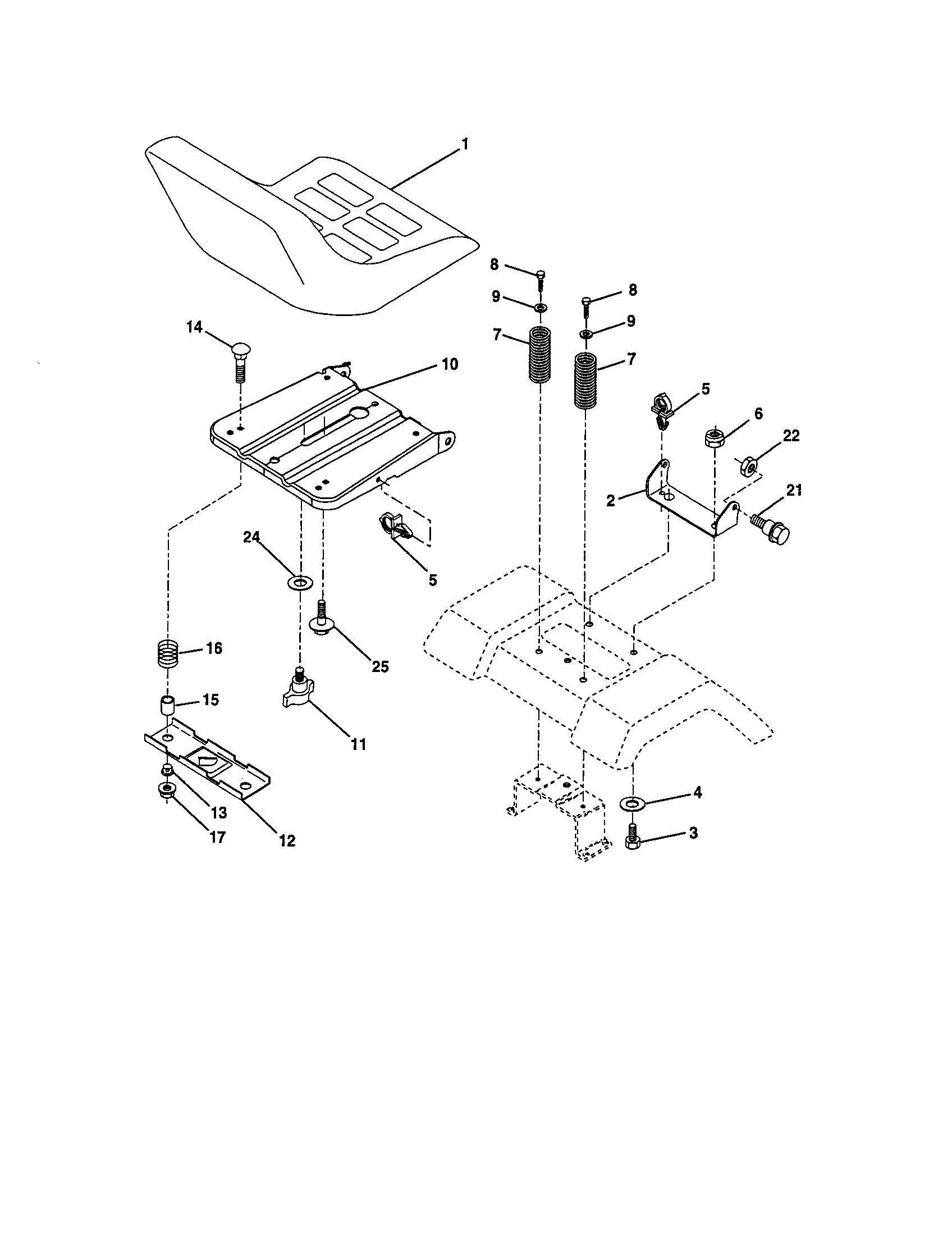

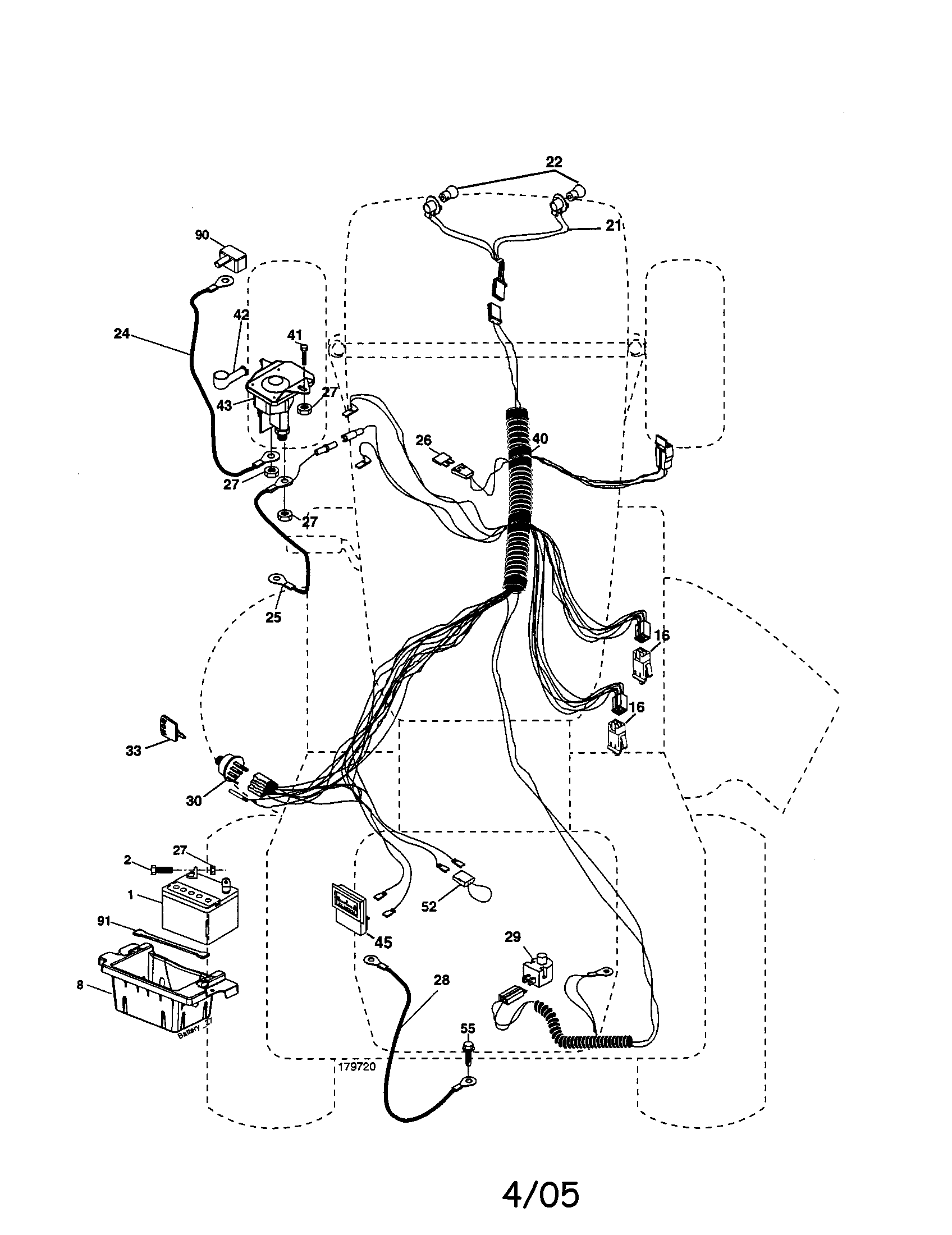

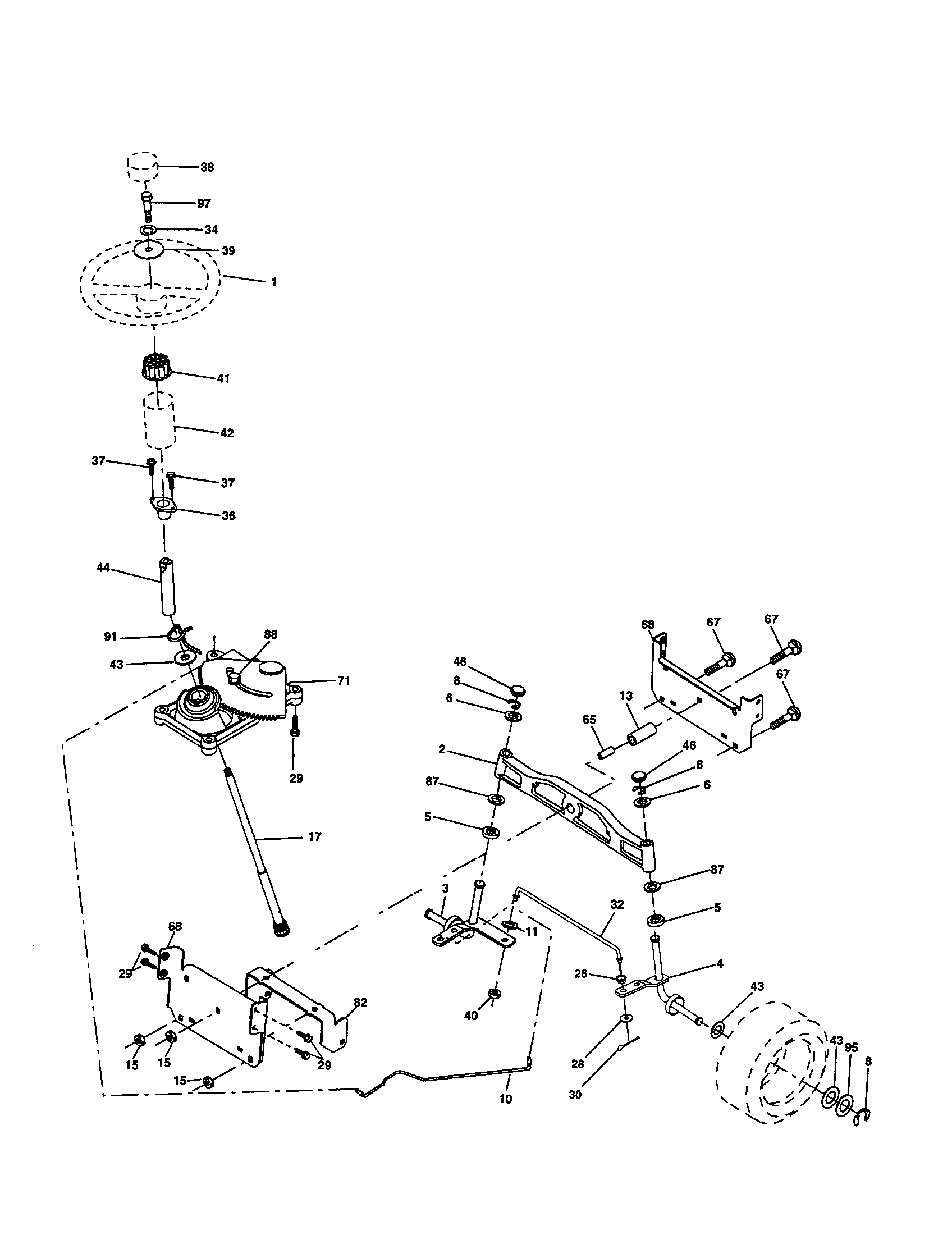

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 462 parts  |
Lawn Tractor Mulching Blade 134149
#11

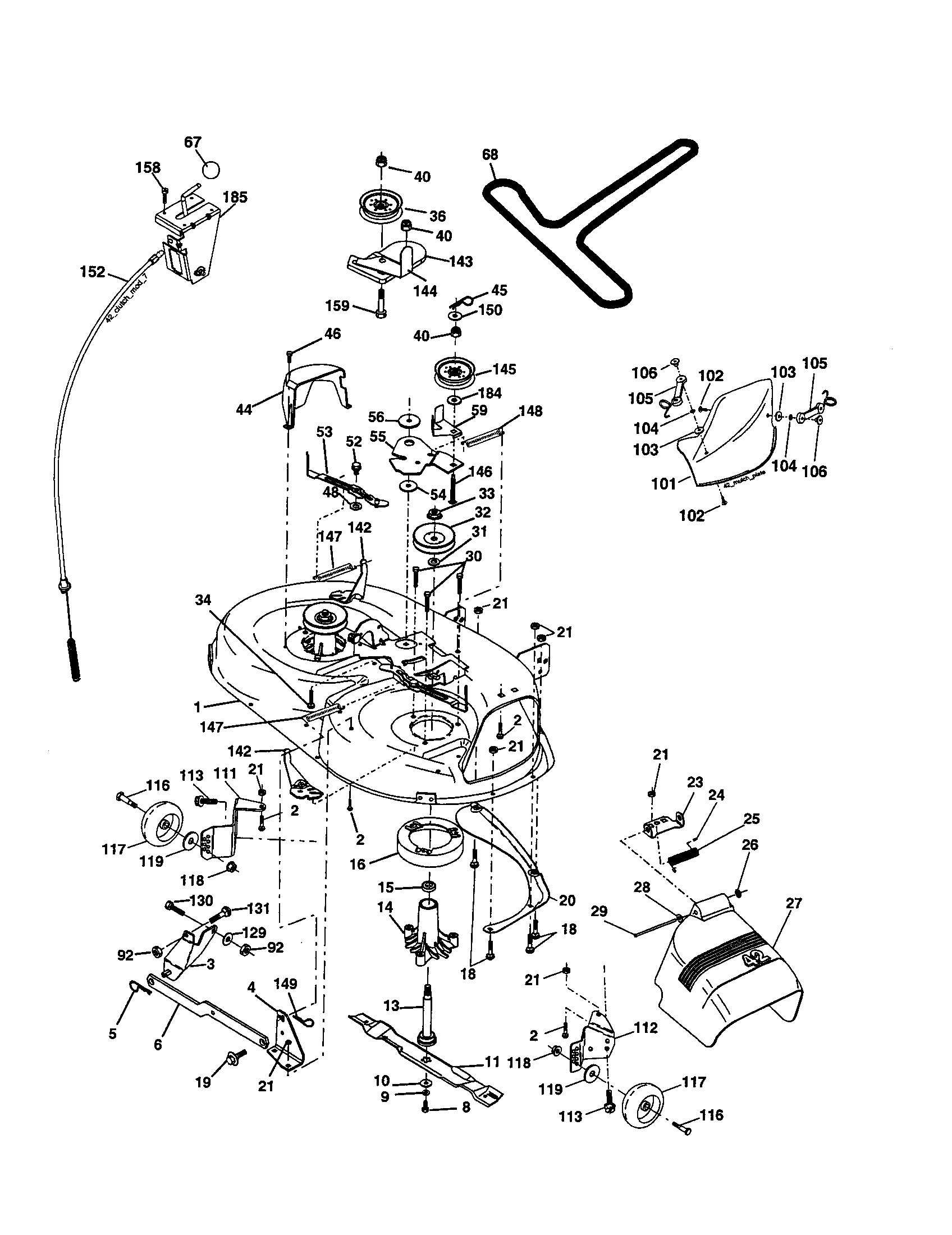

Mower diagram

Lawn tractor mulching blade

Part #134149

Replaced by #532134149

?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14 |
21% OFF Phone Price : $28.14
In Stock
Lawn Tractor Axle Cap 104757X428
#11

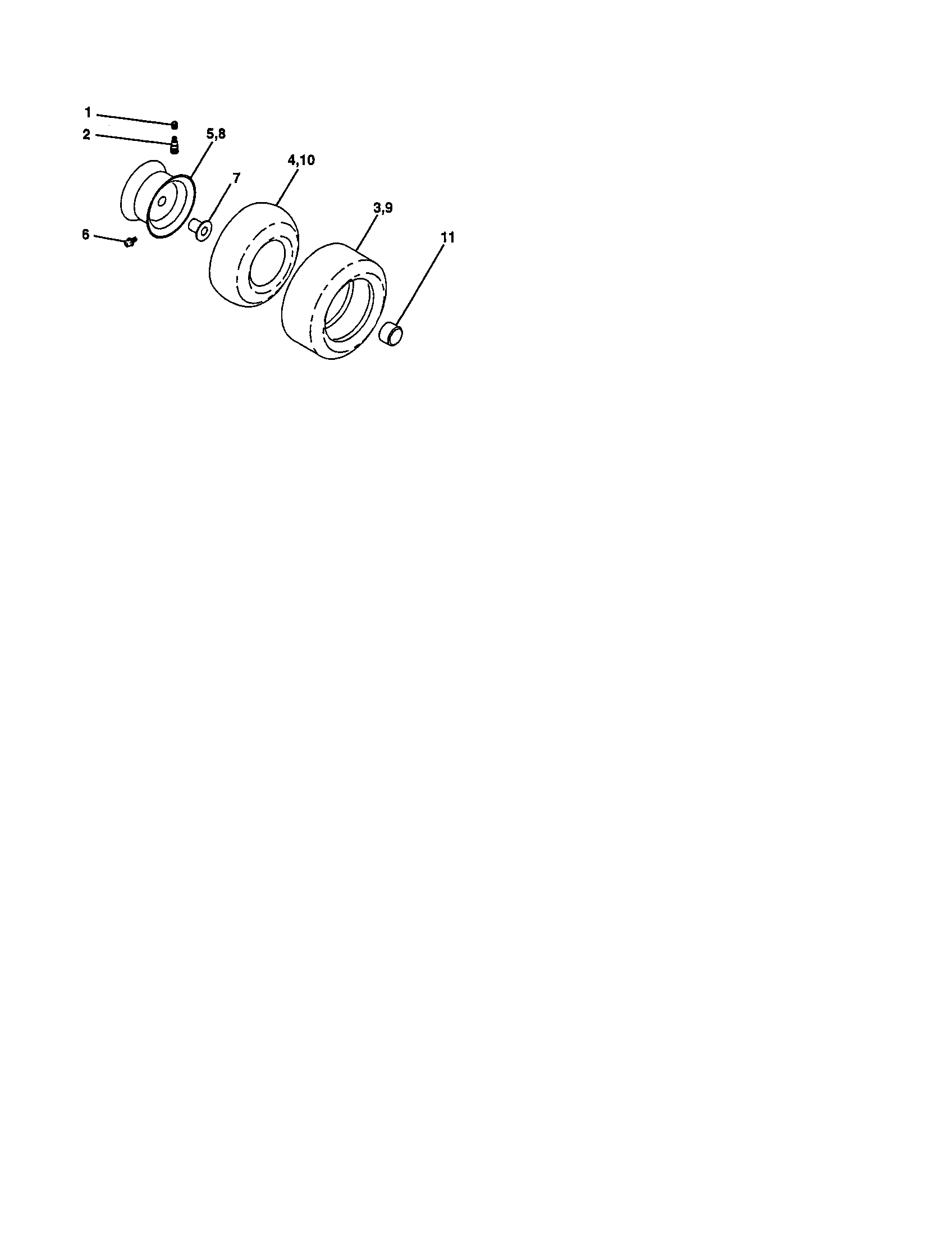

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.47 |
15% OFF Phone Price : $6.47
In Stock
Hex Flange Lock Nut 145212
Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 73900600
Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Deflector Shield 130968X428
#27

Mower diagram

Lawn tractor deflector shield

Part #130968X428

Replaced by #532130968

?
Manufacturer substitution
This part replaces 130968X428. Substitute parts can look different from the original.
BEST SELLER
$36.03 |
14% OFF Phone Price : $42.03
In Stock
Flanged Toplock Nut 178342
#33

Mower diagram

Flanged toplock nut

Part #178342

Replaced by #596134801

?
Manufacturer substitution
This part replaces 178342. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Vented Mandrel Shaft Assembly 137645
#13

Mower diagram

Vented mandrel shaft assembly

Part #137645

Replaced by #532137646

?
Manufacturer substitution
This part replaces 137645. Substitute parts can look different from the original.
BEST SELLER
$28.51 |
17% OFF Phone Price : $34.51
In Stock
Brake Pad 799021
#38

Peerless transaxle - 2000-006a diagram

Brake pad

Part #799021

Replaced by #799021

?
Manufacturer substitution
This part replaces 799021. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Lawn Tractor Blade Idler Pulley 127783
#47

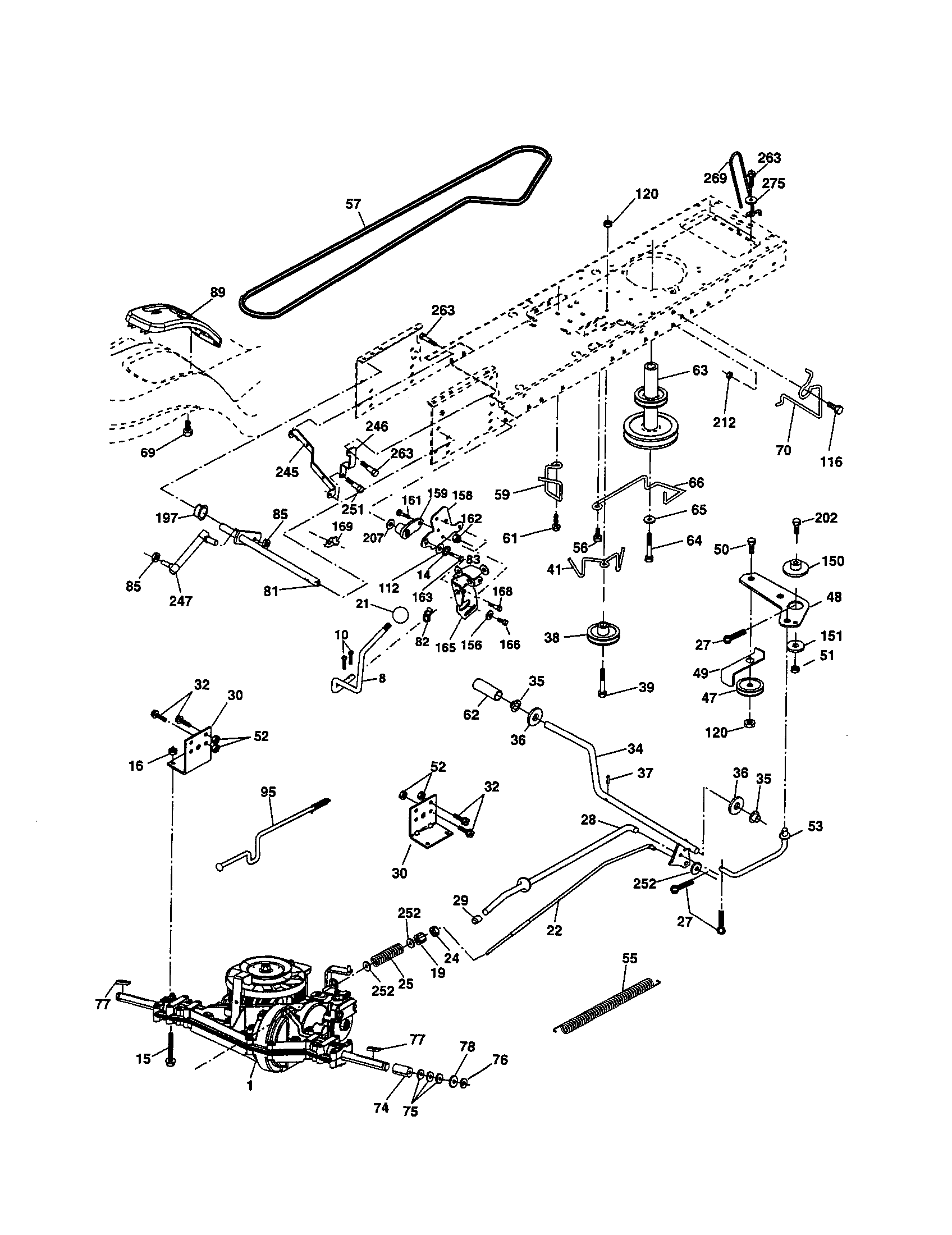

Drive diagram

Lawn tractor blade idler pulley

Part #127783

Replaced by #532139245

?
Manufacturer substitution
This part replaces 127783. Substitute parts can look different from the original.
BEST SELLER
$30.45 |
16% OFF Phone Price : $36.45
In Stock
Lawn Tractor Blade Idler Pulley Arm 155046
#55

Mower diagram

Lawn tractor blade idler pulley arm

Part #155046

Replaced by #531166601

?
Manufacturer substitution
This part replaces 155046. Substitute parts can look different from the original.
BEST SELLER
$18.93 |
10% OFF Phone Price : $20.93
In Stock
