Weber
Gas Grill

Model # 91710001 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber 91710001 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Lid Assembly 70281
#2

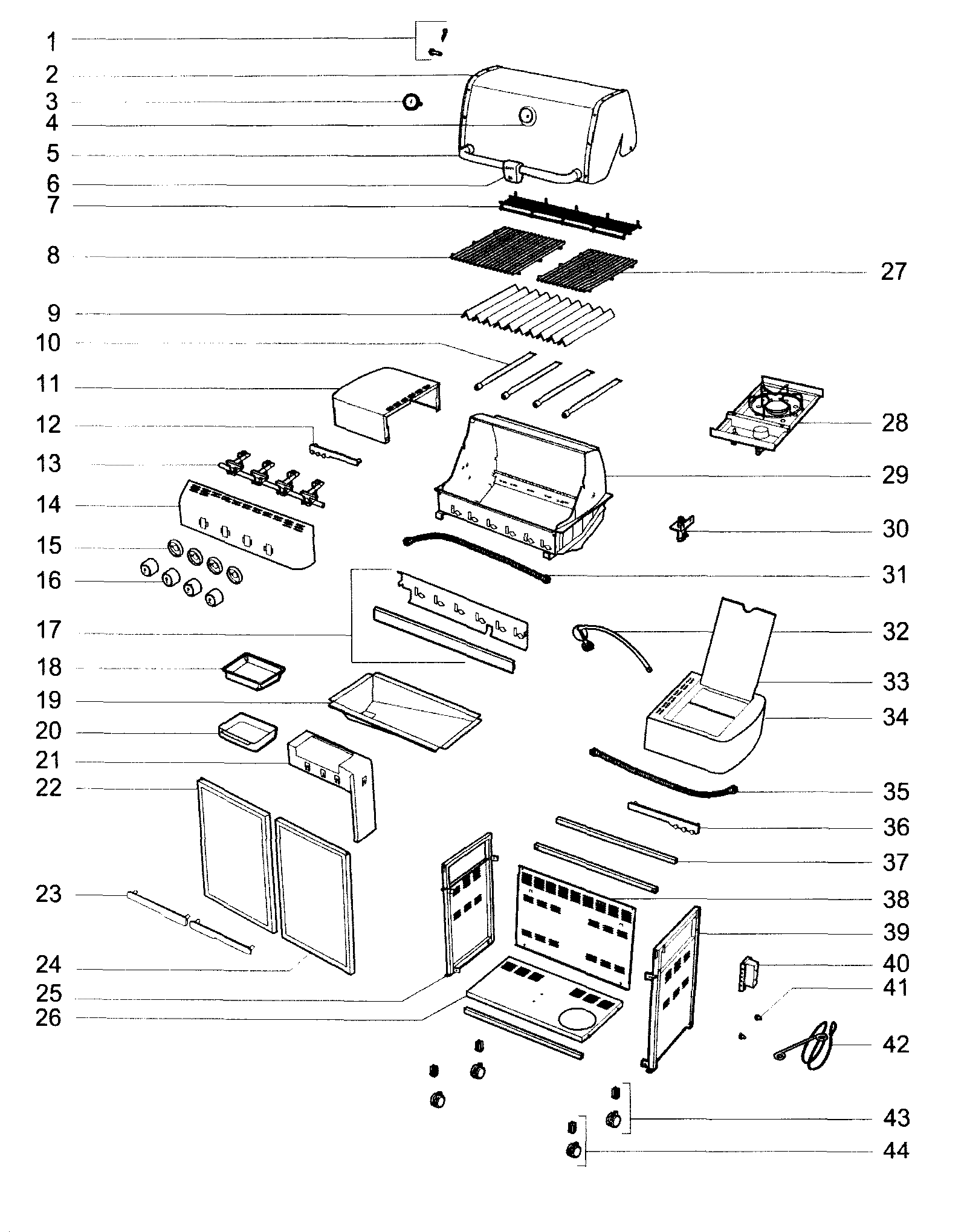

Grill parts diagram

Lid assembly

Part #70281

The manufacturer no longer makes this part, and there's no substitute part

Caster Fixed 70359
#43

Grill parts diagram

Caster fixed

Part #70359

The manufacturer no longer makes this part, and there's no substitute part

Flaverizer Bar, 70376
#9A

Grill parts diagram

Flaverizer bar,

Part #70376

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Flame Tamer 70375
#9

Grill parts diagram

Gas grill flame tamer

Part #70375

The manufacturer no longer makes this part, and there's no substitute part

Frame 70897
#25

Grill parts diagram

Frame

Part #70897

The manufacturer no longer makes this part, and there's no substitute part

Back Panel 70352
#38

Grill parts diagram

Back panel

Part #70352

The manufacturer no longer makes this part, and there's no substitute part

Bezel 67717
#4

Grill parts diagram

Bezel

Part #67717

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 70316
#14

Grill parts diagram

Control panel

Part #70316

The manufacturer no longer makes this part, and there's no substitute part

Hardware 88067
#13A

Grill parts diagram

Hardware

Part #88067

The manufacturer no longer makes this part, and there's no substitute part

Burner,lp,side 70396
#28

Grill parts diagram

Burner,lp,side

Part #70396

The manufacturer no longer makes this part, and there's no substitute part
