Model # JE940PW01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE940PW01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

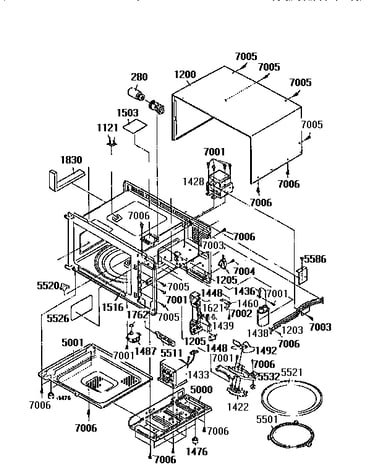

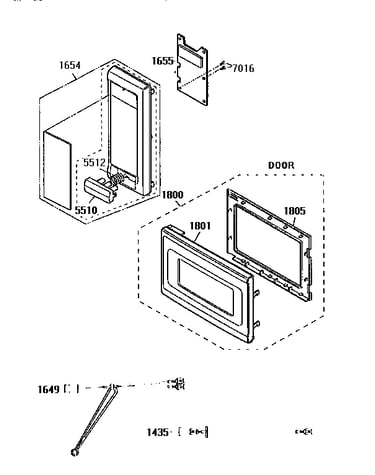

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Use/care Gui 49-8649

#*67560

All parts diagram

Use/care gui

Part #49-8649

This item is not returnable
$2.99
In Stock
Screw WB01X1246

#7006

All parts diagram

Screw

Part #WB01X1246

The manufacturer no longer makes this part, and there's no substitute part

Fuse Switch WB27X0895

#1439

All parts diagram

Fuse switch

Part #WB27X0895

The manufacturer no longer makes this part, and there's no substitute part

Screw WB01X1247

#7005

All parts diagram

Screw

Part #WB01X1247

The manufacturer no longer makes this part, and there's no substitute part

Smartboard WB27X1073

#1655

All parts diagram

Smartboard

Part #WB27X1073

The manufacturer no longer makes this part, and there's no substitute part

Screw WB01X1240

#7001

All parts diagram

Screw

Part #WB01X1240

The manufacturer no longer makes this part, and there's no substitute part

Screw WB01X1445

#7002

All parts diagram

Screw

Part #WB01X1445

The manufacturer no longer makes this part, and there's no substitute part

Door WB55X0952

#1800A

All parts diagram

Door

Part #WB55X0952

The manufacturer no longer makes this part, and there's no substitute part

Clip WB02X9254

#5586

All parts diagram

Clip

Part #WB02X9254

The manufacturer no longer makes this part, and there's no substitute part

Power Transformer WB27X1048

#1433

All parts diagram

Power transformer

Part #WB27X1048

The manufacturer no longer makes this part, and there's no substitute part
