Midea
Dehumidifier

Model # MDK-70AEN1-BA9 Official Midea dehumidifier

Here are the diagrams and repair parts for Official Midea MDK-70AEN1-BA9 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Dehumidifier Drain Plug 202726590142
#7

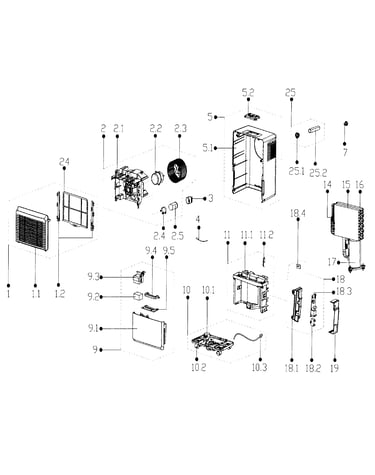

Main assy diagram

Dehumidifier drain plug

Part #202726590142

$9.49
In Stock
Midea Float 201126790161
#9.3

Main assy diagram

Midea float

Part #201126790161

$21.99
In Stock
Sensor 201326590058
#18.4

Main assy diagram

Sensor

Part #201326590058

Replaced by #17120100000344

?
Manufacturer substitution
This part replaces 201326590058. Substitute parts can look different from the original.
$15.43
In Stock
Dehumidifier Drain Tube 201126790338
#25.2

Main assy diagram

Dehumidifier drain tube

Part #201126790338

$94.07 |
6% OFF Phone Price : $100.07
In Stock
Capacitor 202401100977
#18.2

Main assy diagram

Capacitor

Part #202401100977

$34.49
In Stock
Cover 201126790267
#9.5

Main assy diagram

Cover

Part #201126790267

$18.99
In Stock
Kenmore Capacitor 202401000752
#2.5

Main assy diagram

Kenmore capacitor

Part #202401000752

$34.49
In Stock
Dobber 202226790001
#9.2

Main assy diagram

Dobber

Part #202226790001

$13.99
In Stock
Kenmore Elite Capillary 201626790131
#14

Main assy diagram

Kenmore elite capillary

Part #201626790131

$50.49
In Stock
Fan 201100100064
#2.3

Main assy diagram

Fan

Part #201100100064

The manufacturer no longer makes this part, and there's no substitute part
