Model # EB720D-1 Official Proform pursuit 720d ergometer

Here are the diagrams and repair parts for Official Proform EB720D-1 pursuit 720d ergometer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Carriage Bolt 013001
#12

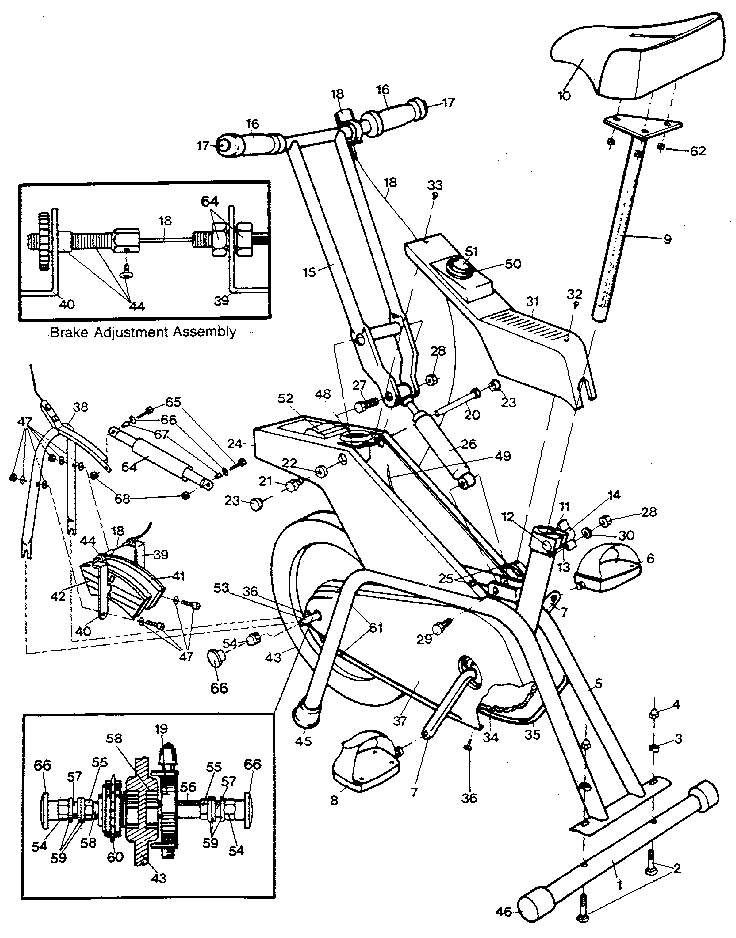

Unit parts diagram

Carriage bolt

Part #013001

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014041
Exercise equipment flat washer

Part #014041

This item is not returnable
In Stock
Carriage Bolt 013011
#2

Unit parts diagram

Carriage bolt

Part #013011

This item is not returnable
In Stock
Image Exercise Equipment Flat Washer 014033
#22

Unit parts diagram

Image exercise equipment flat washer

Part #014033

This item is not returnable
In Stock
Weider Exercise Equipment Screw 013028
#32

Unit parts diagram

Weider exercise equipment screw

Part #013028

This item is not returnable
In Stock
Nordictrack Exercise Equipment Nut 012002
Nordictrack exercise equipment nut

Part #012002

This item is not returnable
In Stock
Wshr,flat,zp 014015
#59

Unit parts diagram

Wshr,flat,zp

Part #014015

The manufacturer no longer makes this part, and there's no substitute part

Tcd,brake Sh 072002
#40

Unit parts diagram

Tcd,brake sh

Part #072002

The manufacturer no longer makes this part, and there's no substitute part

Newton Meter 034011
#52

Unit parts diagram

Newton meter

Part #034011

The manufacturer no longer makes this part, and there's no substitute part

Shoe,right,e 036001
#41

Unit parts diagram

Shoe,right,e

Part #036001

The manufacturer no longer makes this part, and there's no substitute part
