Model # CCP06DP3PCD1 Official GE beverage center

Here are the diagrams and repair parts for Official GE CCP06DP3PCD1 beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Leveling Feet & Rollers

ALL PARTS

Showing 10 of 68 parts |

Machine compartment diagram

R600 process

Part #WR87X30876

$11.41 |

15% OFF Phone Price : $13.41

In Stock

Qty

Refrigerator Evaporator Fan Motor Assembly WR60X32071

#21

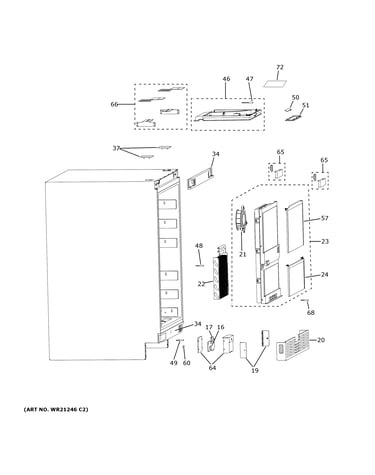

Cabinet diagram

Refrigerator evaporator fan motor assembly

Part #WR60X32071

$69.06 |

8% OFF Phone Price : $75.06

In Stock

Qty

#60

Cabinet diagram

Reed switch

Part #WR55X31994

$14.34 |

12% OFF Phone Price : $16.34

In Stock

Qty

#7001

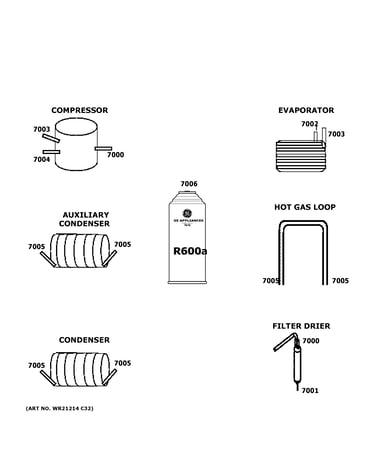

Lokring connectors diagram

Br 1/4-.071

Part #WR97X10085

$37.04

In Stock

Qty

#7003

Lokring connectors diagram

Union 1/4

Part #WR97X10031

$25.40

In Stock

Qty

#16

Cabinet diagram

Wifi and humidity board

Part #WR55X34645

$92.18

In Stock

Qty

Condenser Fan & Bracket Assembly WR87X34926

#13

Machine compartment diagram

Condenser fan & bracket assembly

Part #WR87X34926

$77.93

In Stock

Qty

#17

Cabinet diagram

Motion sense module

Part #WR55X34947

$91.93

In Stock

Qty

Machine compartment diagram

Compressor

Part #WR87X34745

$172.62

In Stock

Qty

#29

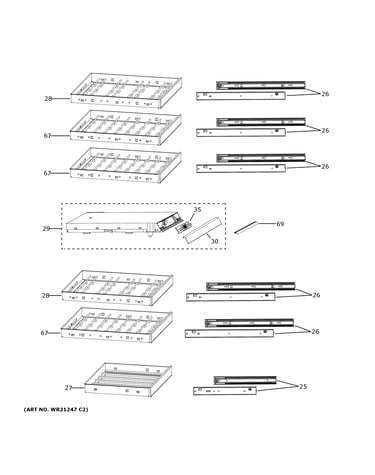

Shelves diagram

Mullion

Part #WR02X44585

$259.82

In Stock

Qty

Symptoms for top-mount refrigerators

Why is there water in the bottom of the fridge under vegetable drawers?

Main causes: frozen or clogged defrost drain tube, cracked water system tubing…

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair difficulty

Time required

15 minutes or less

How to replace the evaporator fan motor in a top-freezer refrigerator

The evaporator fan motor blows air across the evaporator coils and through the refrigerator cabinet for cooling. Replace…

Repair difficulty

Time required

15 minutes or less

How to replace the compressor start relay in a top-freezer refrigerator

The compressor start relay starts the compressor and shuts it off if the motor overheats. Replace the start relay if it'…

Repair difficulty

Time required

15 minutes or less

Articles and videos for top-mount refrigerators

How to Replace the Water Filter in a GE Refrigerator

Model # CCP06DP3PCD1 Official GE beverage center

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Symptoms for top-mount refrigerators

Why is there water in the bottom of the fridge under vegetable drawers?

Repair guides for top-mount refrigerators

How to replace a refrigerator water valve

How to replace the evaporator fan motor in a top-freezer refrigerator

How to replace the compressor start relay in a top-freezer refrigerator

Articles and videos for top-mount refrigerators

How to Replace the Water Filter in a GE Refrigerator
