Kenmore
Electric Cooktop

Model # 79042499400 Official Kenmore electric cooktop

Here are the diagrams and repair parts for Official Kenmore 79042499400 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

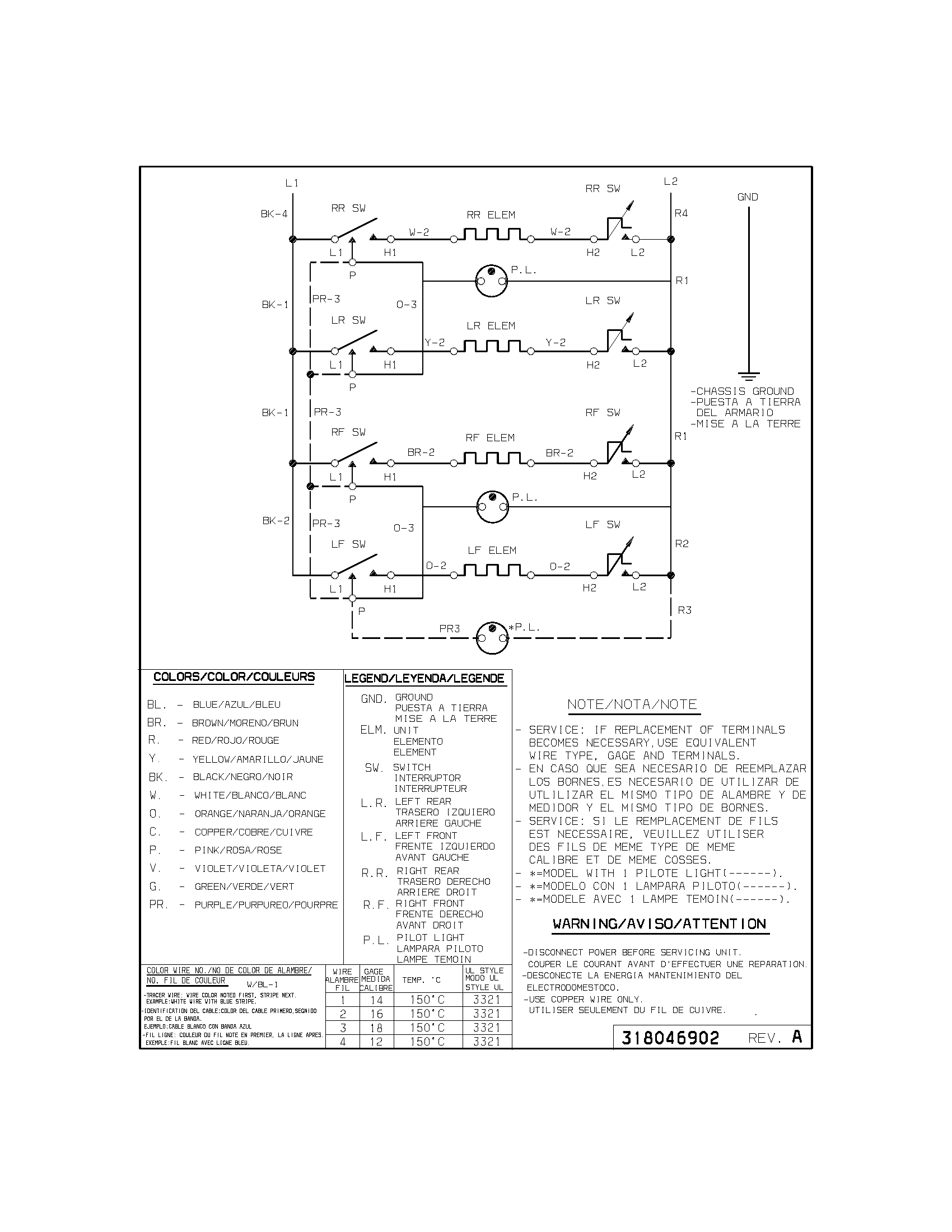

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Switch 318220074
#54

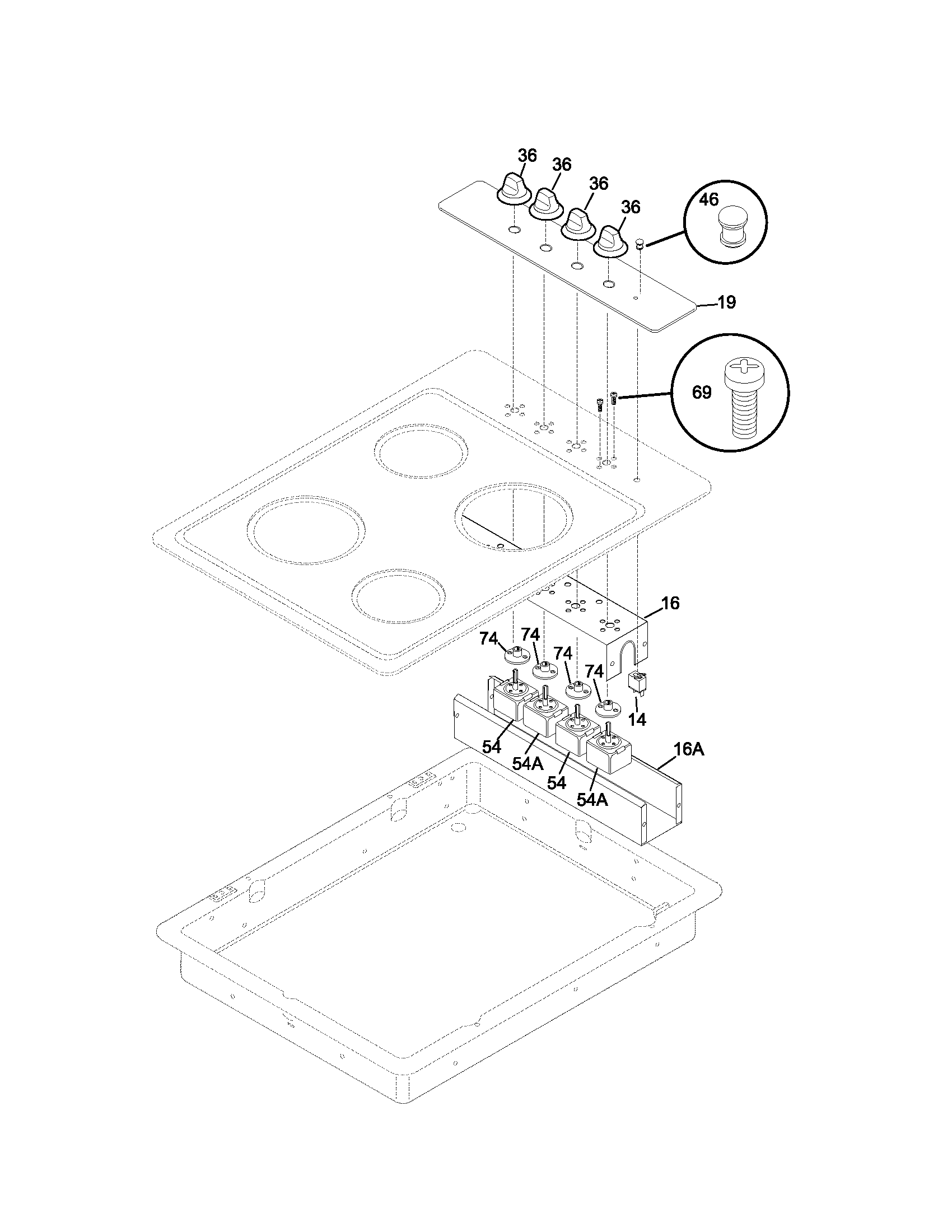

Controls diagram

Switch

Part #318220074

Replaced by #318293818

?
Manufacturer substitution
This part replaces 318220074. Substitute parts can look different from the original.
$63.74 |
9% OFF Phone Price : $69.74
In Stock
Element 5304437242
#15

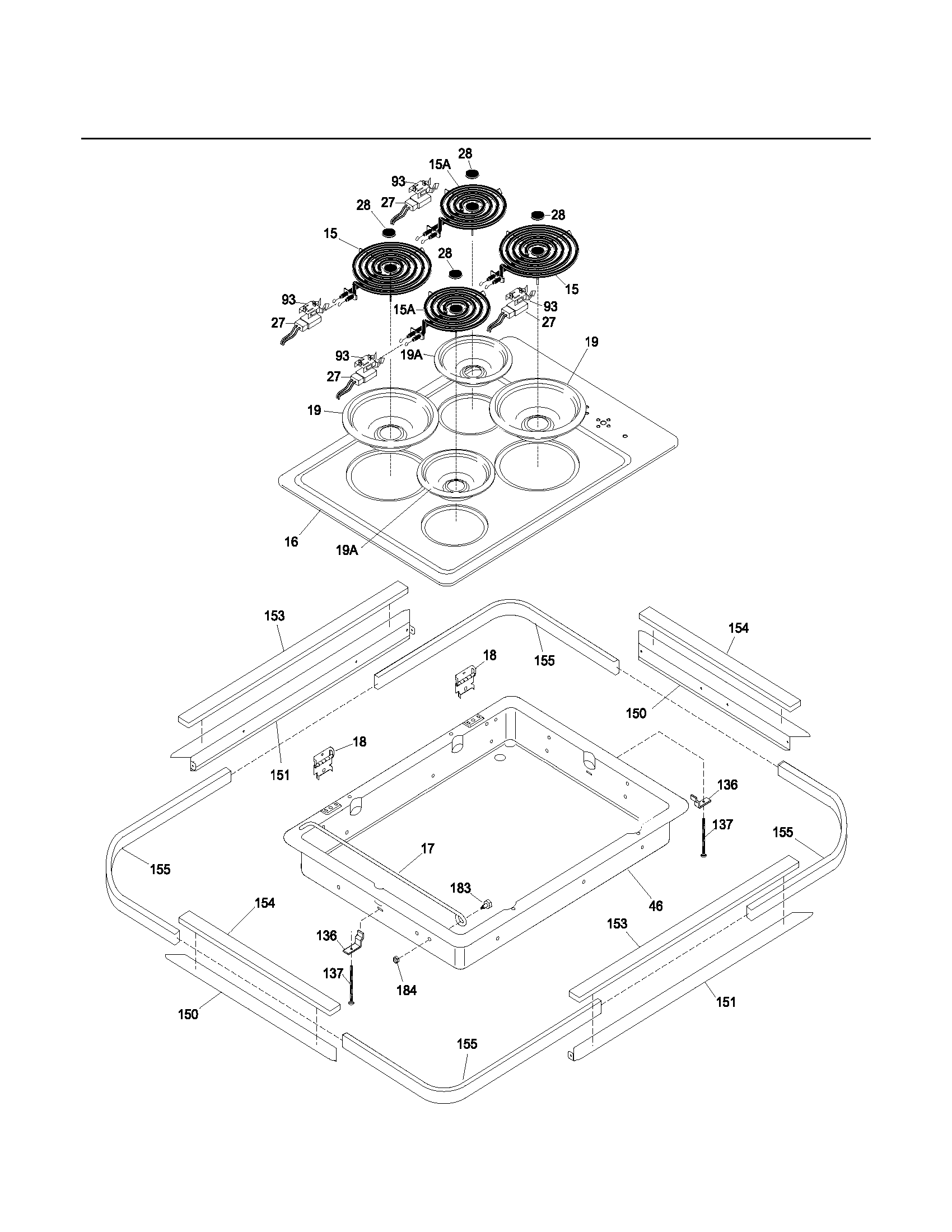

Maintop diagram

Element

Part #5304437242

Replaced by #316442303

?
Manufacturer substitution
This part replaces 5304437242. Substitute parts can look different from the original.
$172.03 |
7% OFF Phone Price : $184.03
In Stock
Element 5304437241
#15A

Maintop diagram

Element

Part #5304437241

Replaced by #316439802

?
Manufacturer substitution
This part replaces 5304437241. Substitute parts can look different from the original.
$141.55 |
8% OFF Phone Price : $153.55
In Stock
Light 3200297
#14

Controls diagram

Light

Part #3200297

Replaced by #316022503

?
Manufacturer substitution
This part replaces 3200297. Substitute parts can look different from the original.
$57.09 |
10% OFF Phone Price : $63.09
In Stock
Cooktop Element Control Knob Bushing 318146010
#74

Controls diagram

Cooktop element control knob bushing

Part #318146010

$18.86
In Stock
Screw 5303305528
#69

Controls diagram

Screw

Part #5303305528

Replaced by #5303323137

?
Manufacturer substitution
This part replaces 5303305528. Substitute parts can look different from the original.
$10.97
In Stock
Gibson Cooktop Element Center Medallion 5303301461
#28

Maintop diagram

Gibson cooktop element center medallion

Part #5303301461

$54.40
In Stock
Range Surface Element Control Switch (replaces 318293821, 318369613) 318293827
#54

Controls diagram

Range surface element control switch (replaces 318293821, 318369613)

Part #318293827

$65.86 |
8% OFF Phone Price : $71.86
In Stock
Cooktop Element Terminal Block 318223423
#27

Maintop diagram

Cooktop element terminal block

Part #318223423

$67.73
In Stock
Pan Element 318067046
#19A

Maintop diagram

Pan element

Part #318067046

Replaced by #316048414

?
Manufacturer substitution
This part replaces 318067046. Substitute parts can look different from the original.
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
