Model # RGB745WEA1WW Official Hotpoint gas range

Here are the diagrams and repair parts for Official Hotpoint RGB745WEA1WW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 247 parts  |
Wb2x9154 WB13K0003
#218

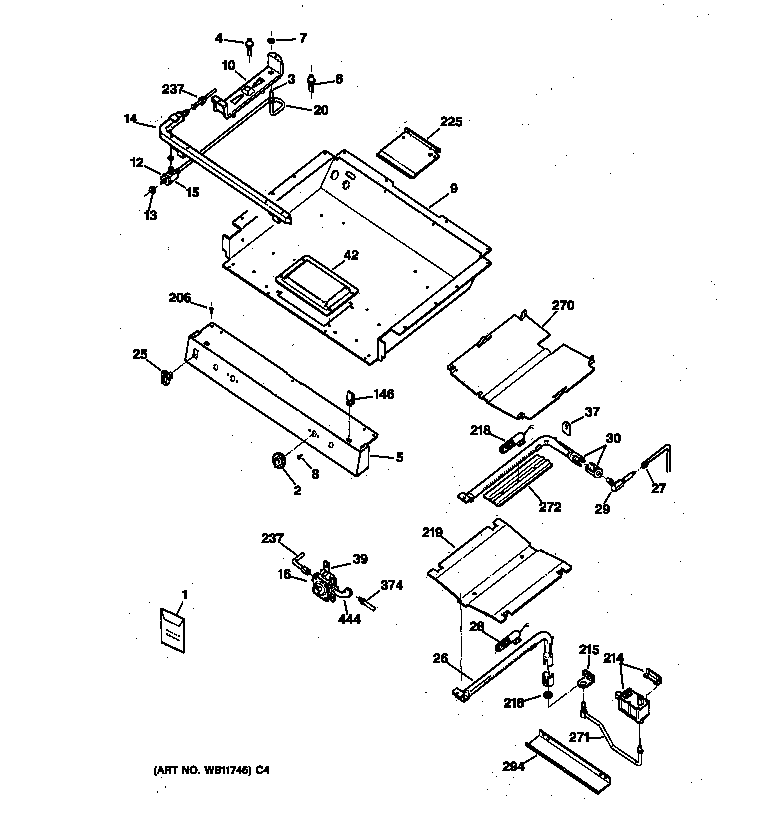

Gas burner parts diagram

Wb2x9154

Part #WB13K0003

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0003. Substitute parts can look different from the original.
BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
Igniter WB13K0004
#28B

Gas burner parts diagram

Igniter

Part #WB13K0004

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0004. Substitute parts can look different from the original.
BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
40a15bulb STD372401
#235

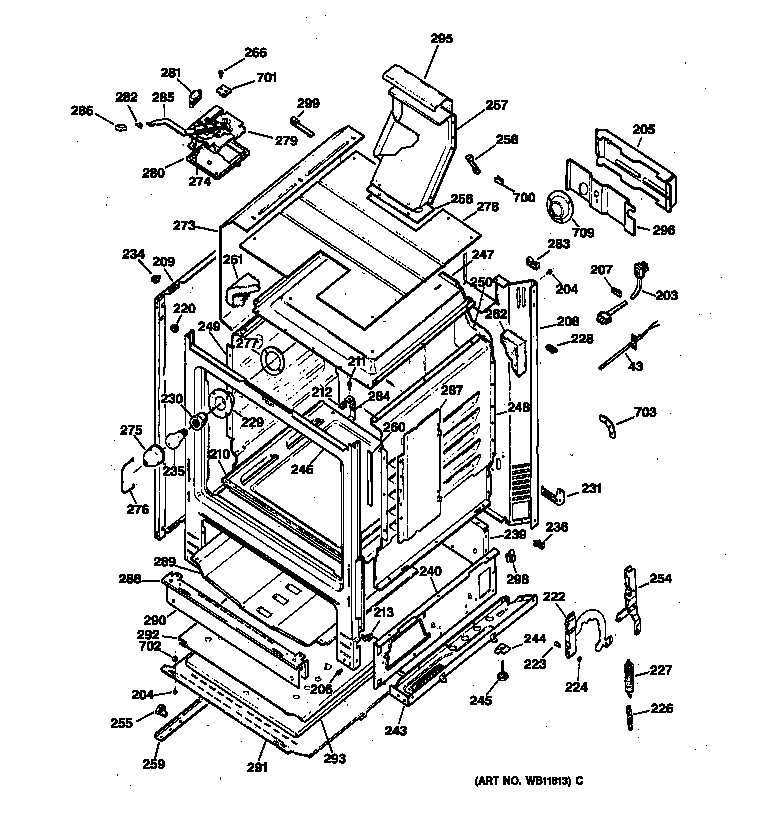

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Burner Igniter (replaces Wb13k0018) WB13K18
#154

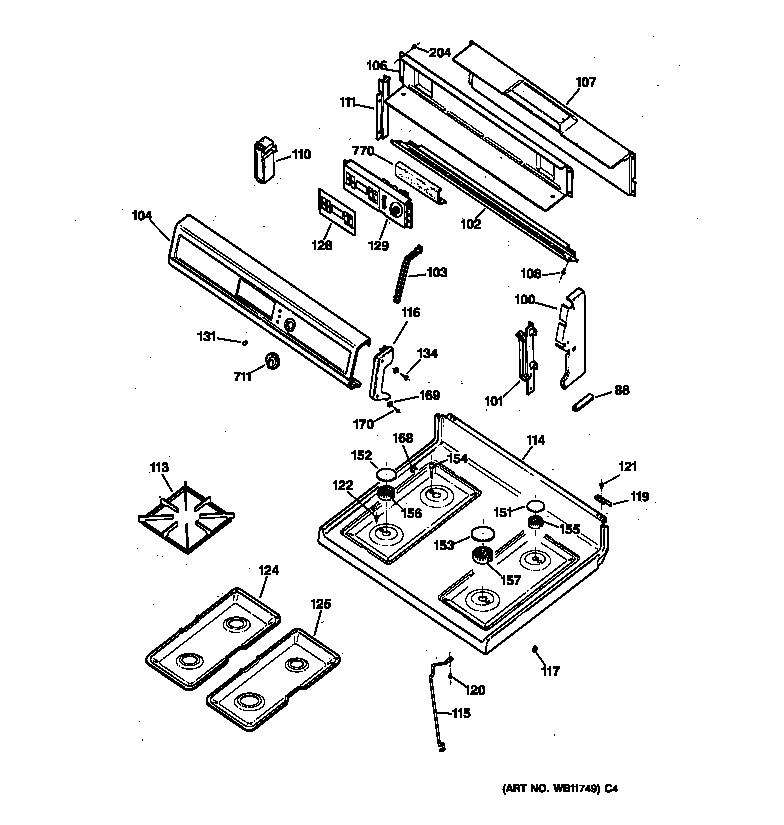

Control panel & cooktop diagram

Range surface burner igniter (replaces wb13k0018)

Part #WB13K18

$31.68 |
16% OFF Phone Price : $37.68
In Stock
Screw WB1K50
#28A

Gas burner parts diagram

Screw

Part #WB1K50

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB1K50. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Handle End Cap, Right (replaces Wb07x7183, Wb15k5069, Wb7x7321) WB7X7183
#397

Door & drawer parts diagram

Range oven door handle end cap, right (replaces wb07x7183, wb15k5069, wb7x7321)

Part #WB7X7183

$15.82 |
11% OFF Phone Price : $17.82
In Stock
Trim B. D WB7K379
#359

Door & drawer parts diagram

Trim b. d

Part #WB7K379

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB7K379. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
Range Anti-tip Bracket WB2K20
#1A

Gas burner parts diagram

Range anti-tip bracket

Part #WB2K20

$11.37 |
15% OFF Phone Price : $13.37
In Stock
Range Oven Door Hinge Roller WB10K12
#222

Body parts diagram

Range oven door hinge roller

Part #WB10K12

$31.51 |
16% OFF Phone Price : $37.51
In Stock
Drawer Support WB2K43
#255

Body parts diagram

Drawer support

Part #WB2K43

Replaced by #WB02K10158

?
Manufacturer substitution
This part replaces WB2K43. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
