Frigidaire
Gas Cooktop

Model # FGC36S8HBA Official Frigidaire gas cooktop

Here are the diagrams and repair parts for Official Frigidaire FGC36S8HBA gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

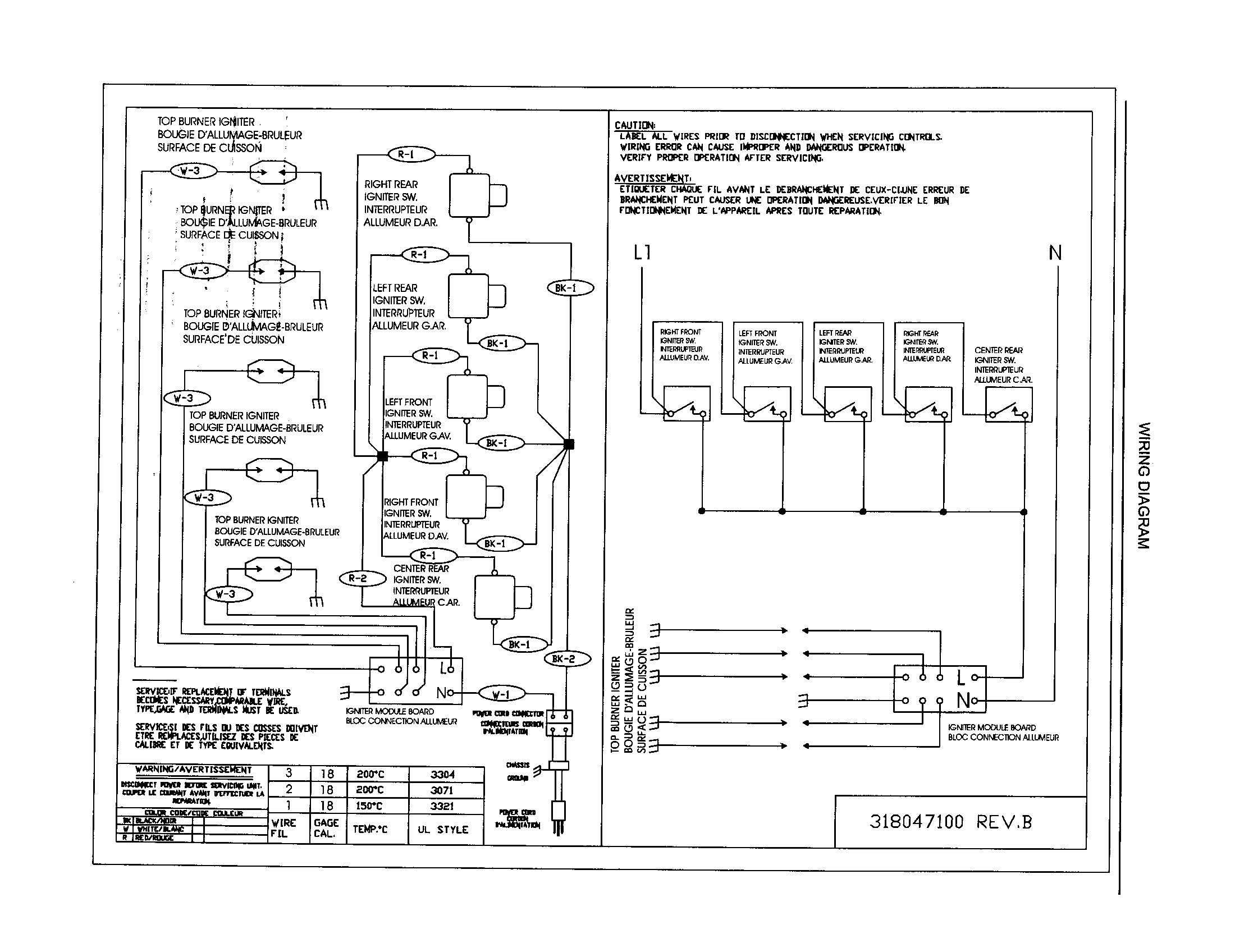

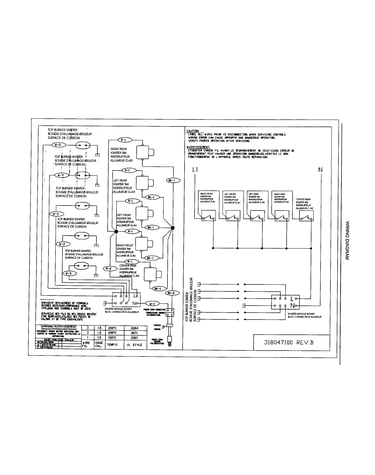

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Burner Cap 318076410
#22C

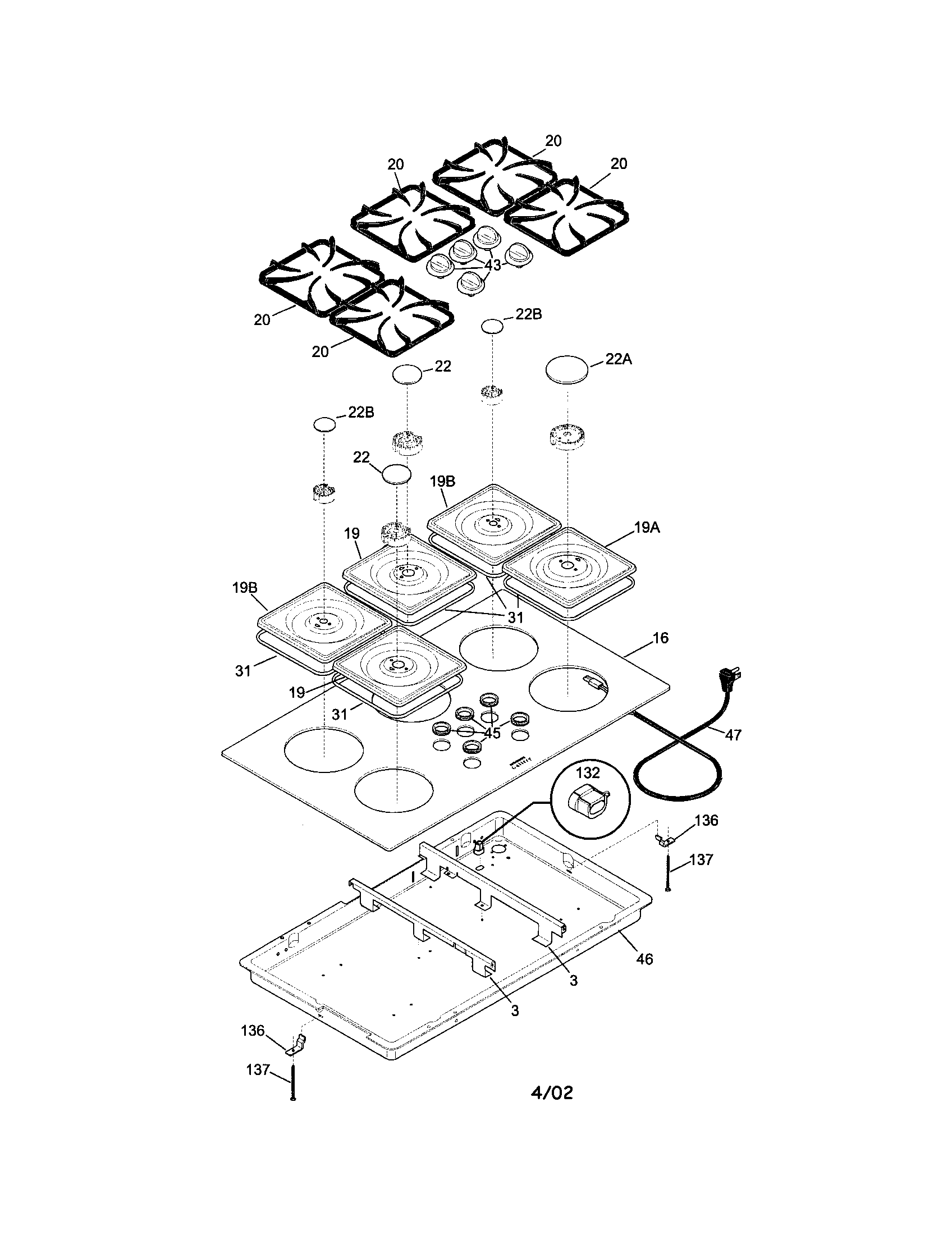

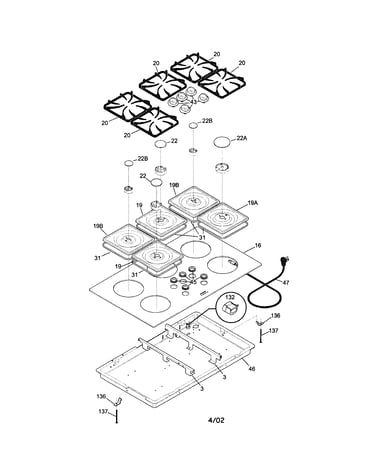

Cooktop diagram

Burner cap

Part #318076410

Replaced by #316213500

?
Manufacturer substitution
This part replaces 318076410. Substitute parts can look different from the original.
$32.19 |
16% OFF Phone Price : $38.19
In Stock
Cooktop Burner Igniter 318148700
#74

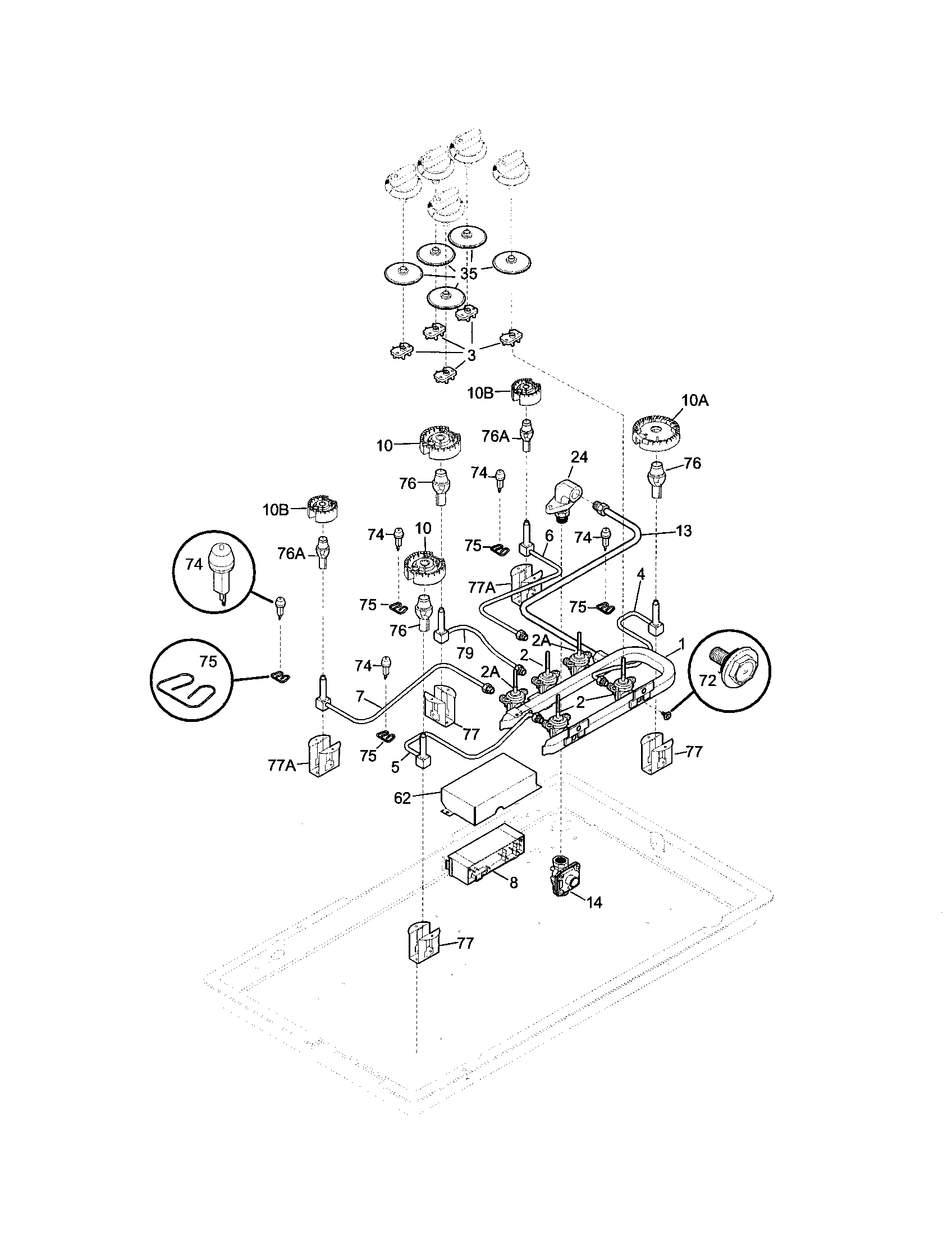

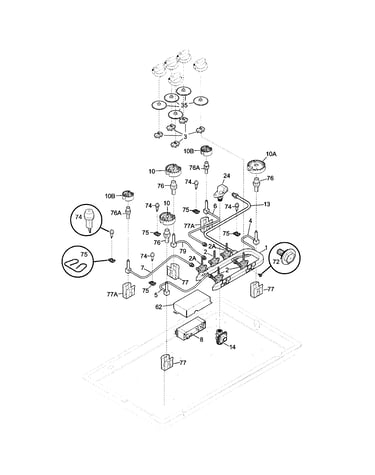

Burner diagram

Cooktop burner igniter

Part #318148700

$47.39 |
11% OFF Phone Price : $53.39
In Stock
Gasket Seal 318053900
#31

Cooktop diagram

Gasket seal

Part #318053900

Replaced by #318053901

?
Manufacturer substitution
This part replaces 318053900. Substitute parts can look different from the original.
$24.70 |
20% OFF Phone Price : $30.70
In Stock
Range Screw 5303311174

#NI05

All parts diagram

Range screw

Part #5303311174

This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Range Drip Pan 318168114
#19C

Cooktop diagram

Range drip pan

Part #318168114

$117.33 |
9% OFF Phone Price : $129.33
In Stock
Cooktop Medium And Large Burner Venturi Nozzle 318167801
#76

Burner diagram

Cooktop medium and large burner venturi nozzle

Part #318167801

$74.99 |
7% OFF Phone Price : $80.99
In Stock
Range Drip Pan 318168124
#19AA

Cooktop diagram

Range drip pan

Part #318168124

$122.59 |
9% OFF Phone Price : $134.59
In Stock
Range Drip Pan 318168104
#19BA

Cooktop diagram

Range drip pan

Part #318168104

$116.47 |
9% OFF Phone Price : $128.47
In Stock
Cooktop Burner 318148000
#10B

Burner diagram

Cooktop burner

Part #318148000

$186.69 |
6% OFF Phone Price : $198.69
In Stock
Cooktop Installation Bracket Kit (replaces 5303283686, 5303283687, 5303302432) 5303935029
#136

Cooktop diagram

Cooktop installation bracket kit (replaces 5303283686, 5303283687, 5303302432)

Part #5303935029

$49.83 |
11% OFF Phone Price : $55.83
In Stock
