Maytag
Electric Range

Model # MER6555ACW Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag MER6555ACW electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

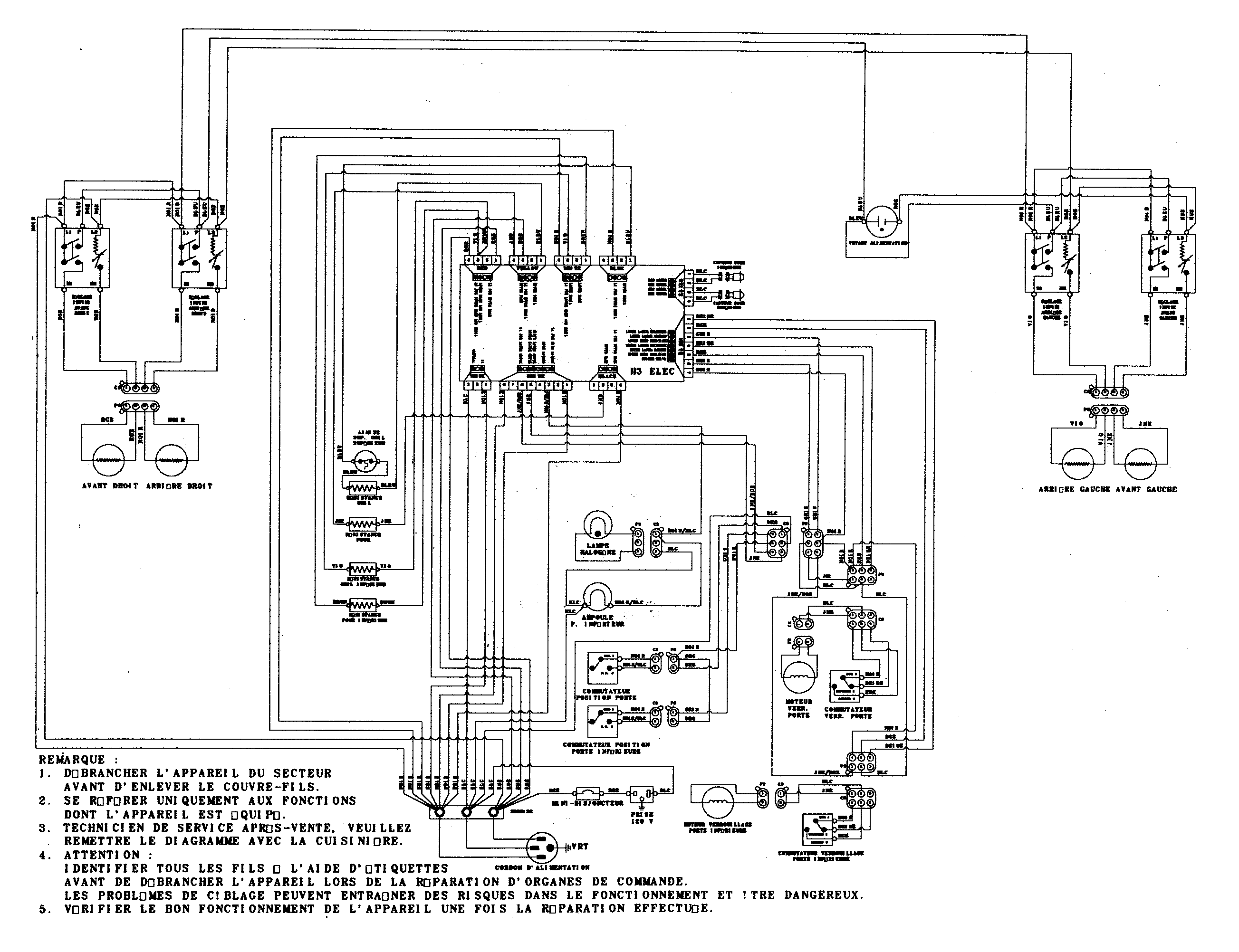

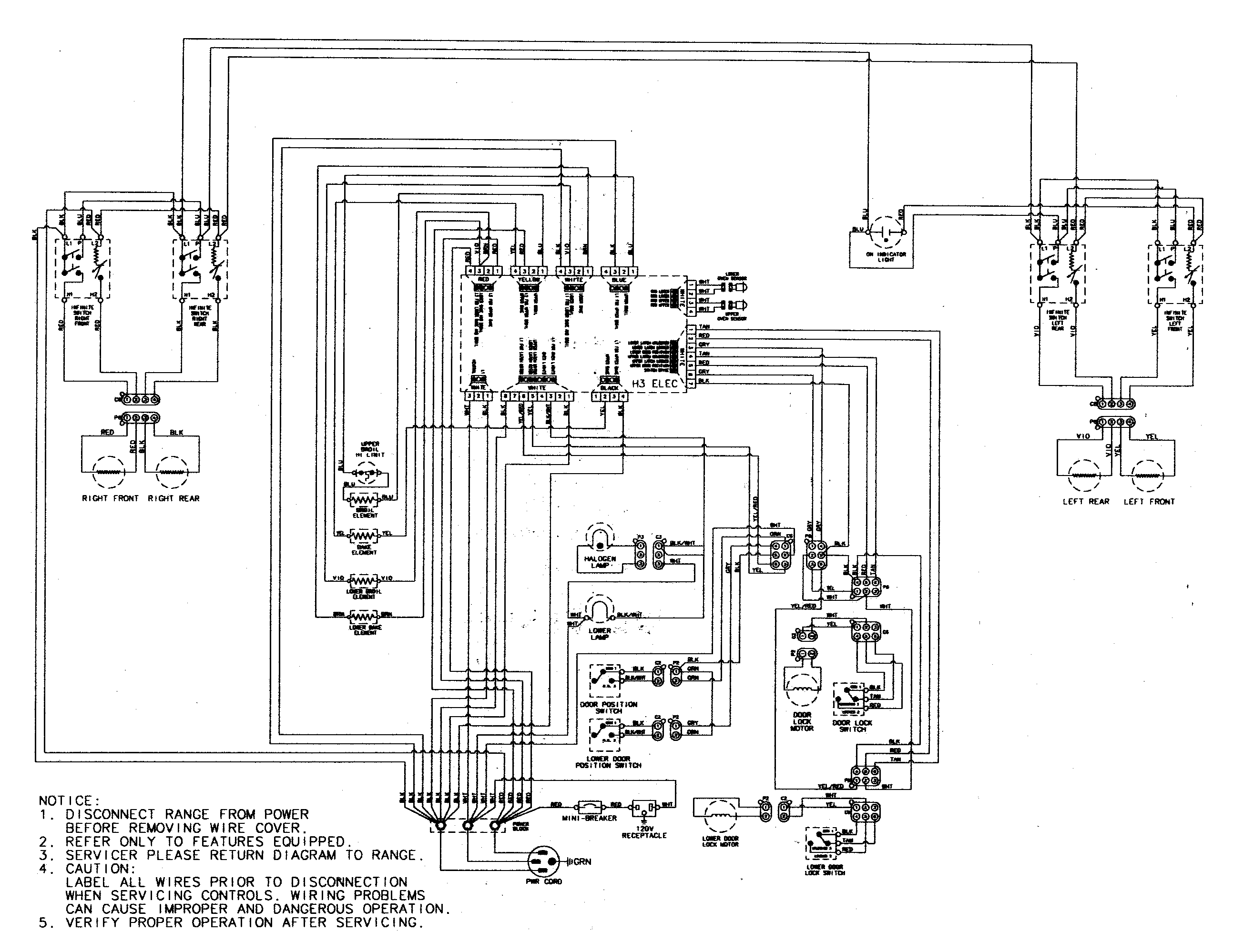

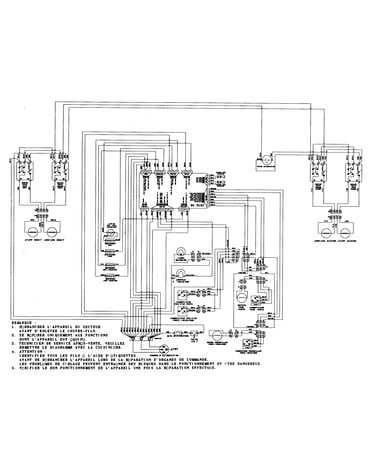

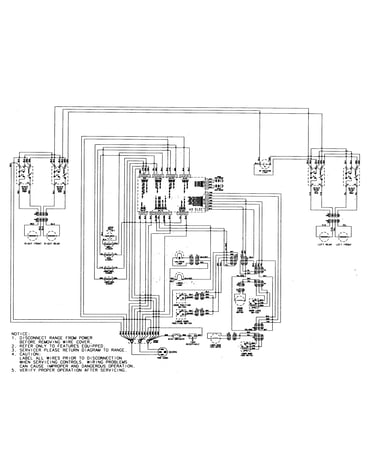

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Terminal Block 7401P038-60
#30

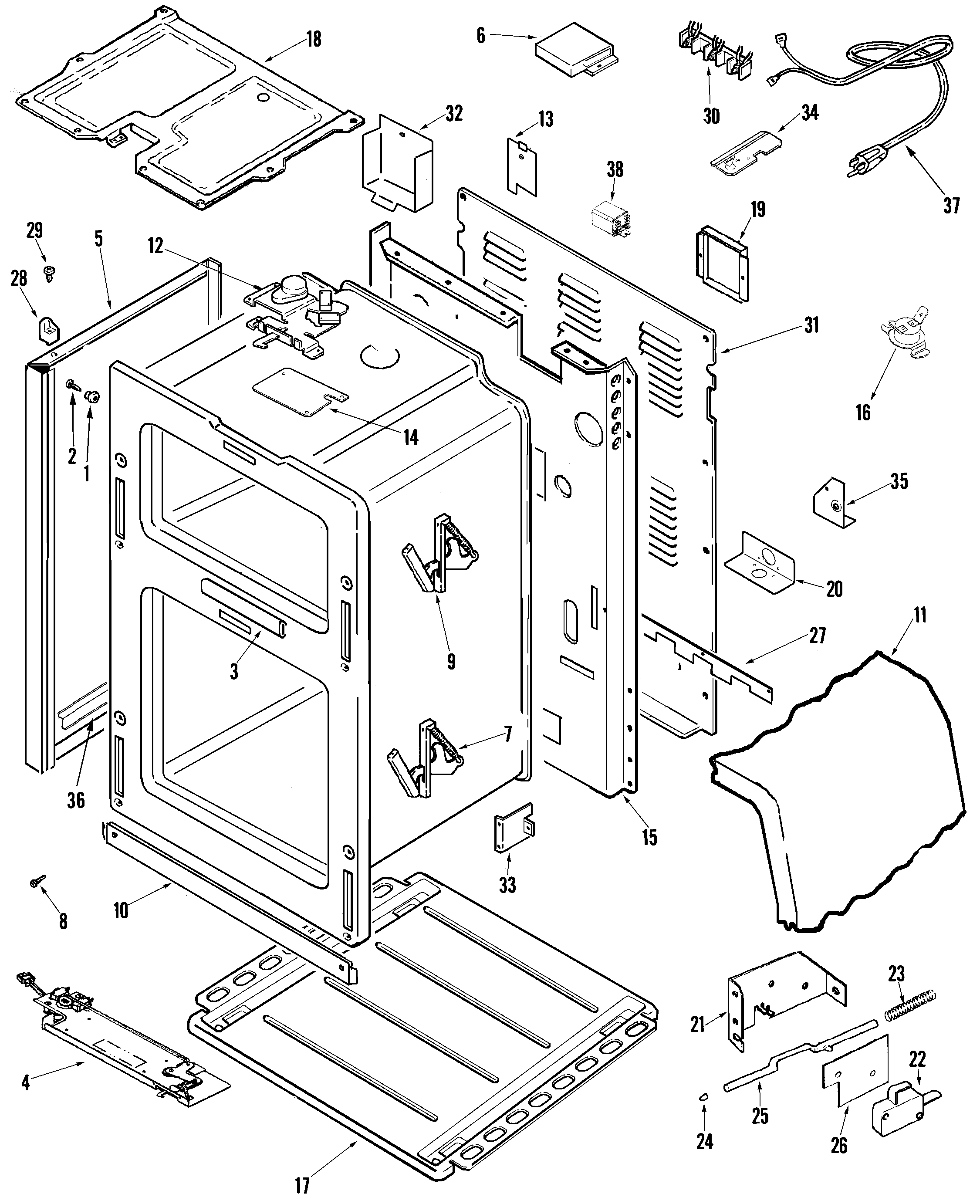

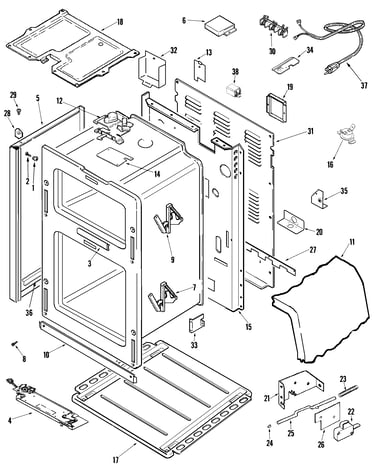

Body diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74004943
#7

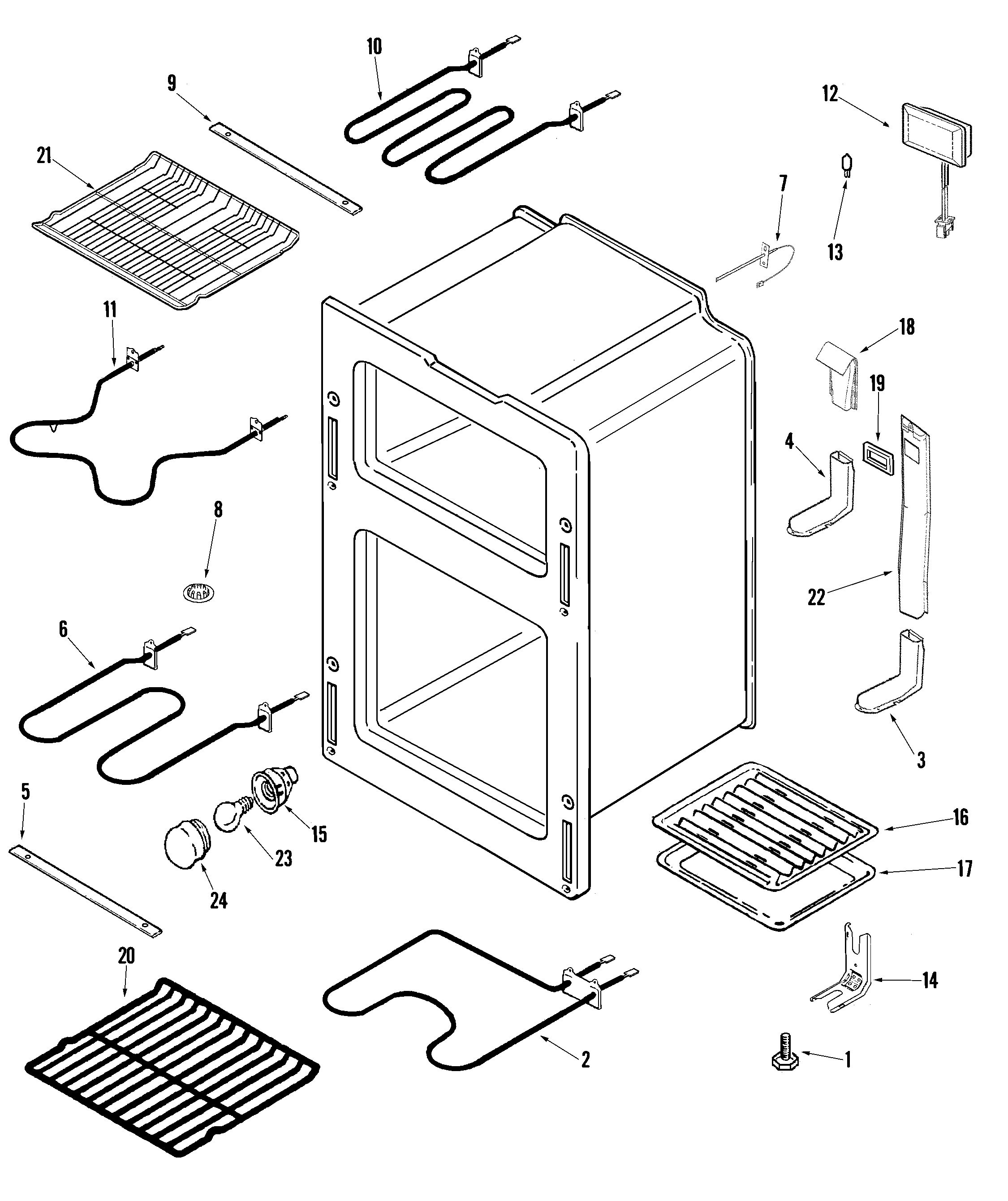

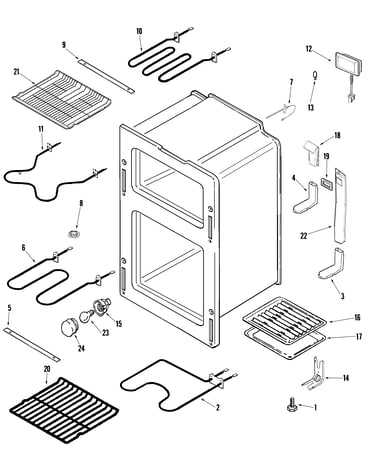

Oven diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Range Oven Light Bulb 74009925
#13

Oven diagram

Range oven light bulb

Part #74009925

Replaced by #WP74009925

?
Manufacturer substitution
This part replaces 74009925. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$19.38 |
9% OFF Phone Price : $21.38
In Stock
Range Surface Element Receptacle Kit (replaces 4381814, 4381831, 700125, Y04100394, Y0b03600499, Y0r01500199, Y0r01500299, Y0r01500399, Y0r01500599, Y712143, Y712361) 12001676
#21

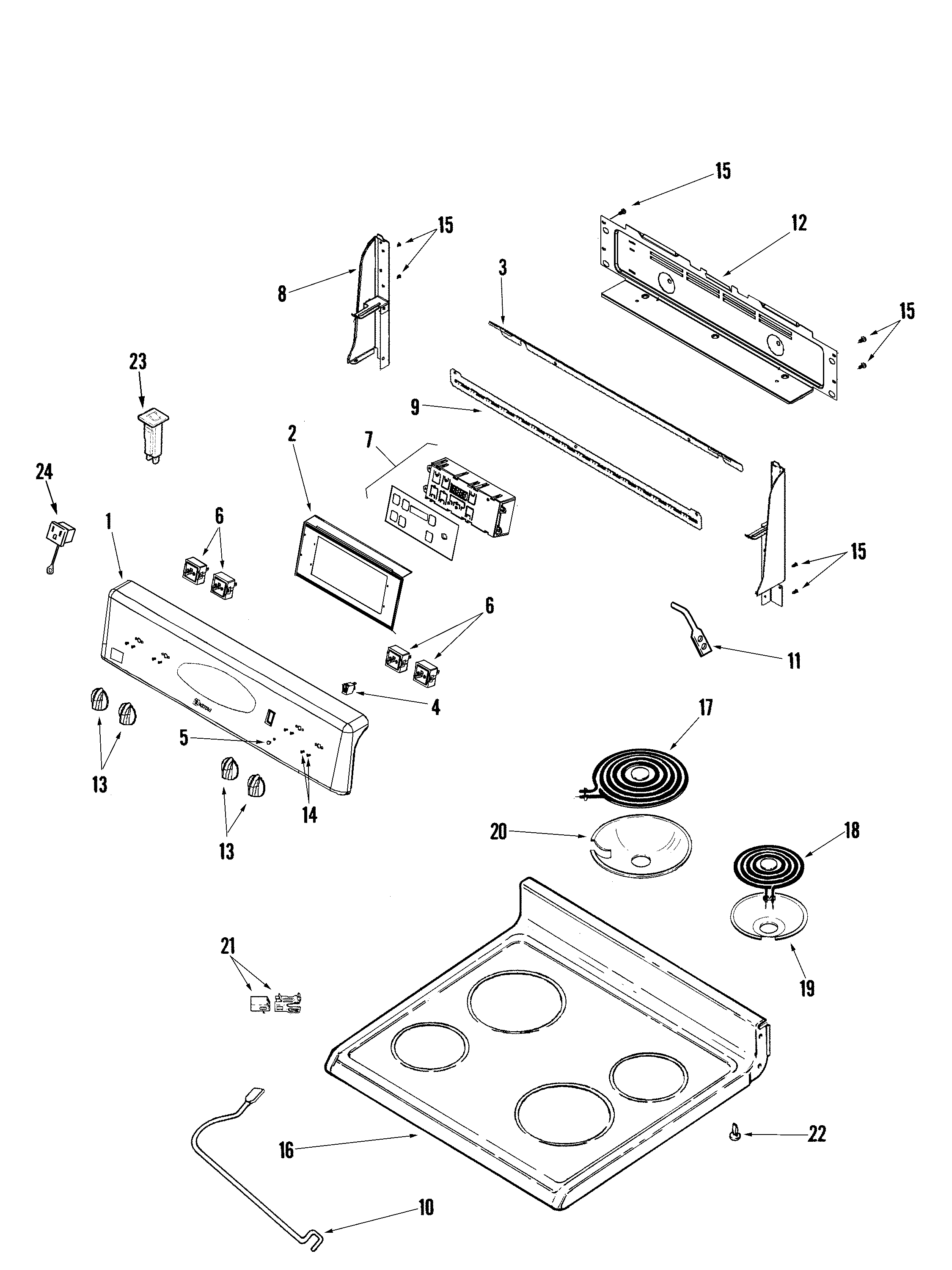

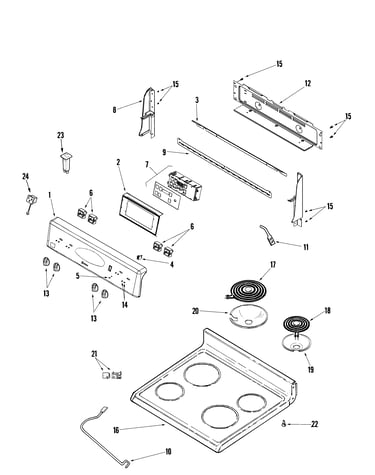

Control panel/top assembly diagram

Range surface element receptacle kit (replaces 4381814, 4381831, 700125, y04100394, y0b03600499, y0r01500199, y0r01500299, y0r01500399, y0r01500599, y712143, y712361)

Part #12001676

$10.73 |
16% OFF Phone Price : $12.73
In Stock
Door Gasket 7201P046-60
#15

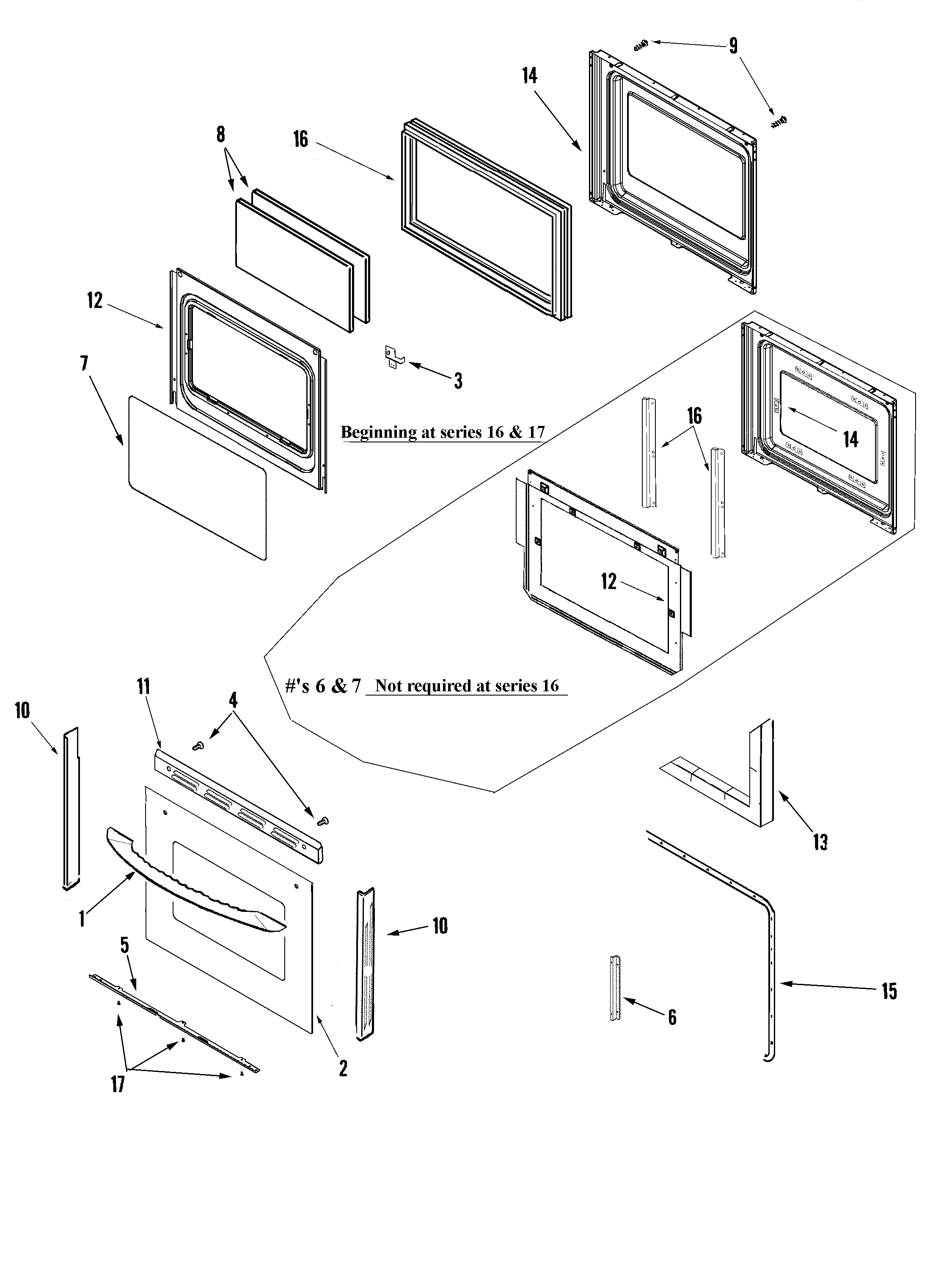

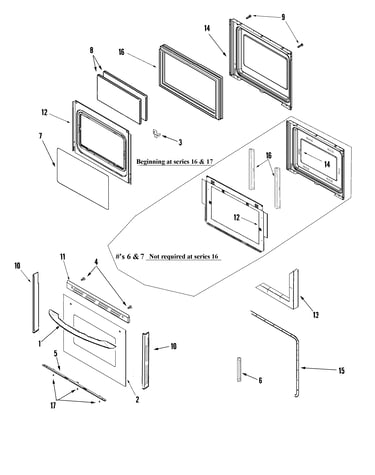

Door (lower) diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
#8

Door (lower) diagram

Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Surface Element 74007157
#18

Control panel/top assembly diagram

Surface element

Part #74007157

Replaced by #WPW10259868

?
Manufacturer substitution
This part replaces 74007157. Substitute parts can look different from the original.
$76.43 |
7% OFF Phone Price : $82.43
In Stock
Oven Rack 74001757
#20

Oven diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Microwave Door Handle 74011768
Microwave door handle

Part #74011768

Replaced by #WP74011768

?
Manufacturer substitution
This part replaces 74011768. Substitute parts can look different from the original.
$84.55 |
7% OFF Phone Price : $90.55
In Stock
Door Handle 74008942
Door handle

Part #74008942

Replaced by #WP74011768

?
Manufacturer substitution
This part replaces 74008942. Substitute parts can look different from the original.
$84.55 |
7% OFF Phone Price : $90.55
In Stock
