Model # 143948005 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143948005 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Lawn Mower O-ring 631028
#29

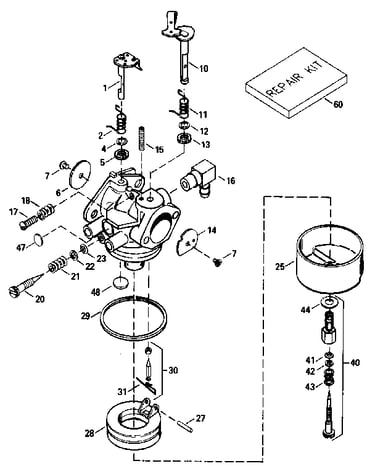

Replacement parts diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Spark Plug 33636
#135

Replacement parts diagram

Spark plug

Part #33636

Replaced by #J19LM

?
Manufacturer substitution
This part replaces 33636. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.80 |
17% OFF Phone Price : $5.80
In Stock
Gasket 27110
#44

Replacement parts diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#292

Replacement parts diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Float 632019
#28

Replacement parts diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Carburetor Manifold Gasket 33263
#184

Replacement parts diagram

Cook top side trim kit lawn & garden equipment engine carburetor manifold gasket

Part #33263

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Air Filter 33268
#245

Replacement parts diagram

Cook top side trim kit lawn & garden equipment engine air filter

Part #33268

This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Troybilt Lawn & Garden Equipment Engine Spark Plug Boot (replaces 27276, Tc-610118) 610118
#101

Replacement parts diagram

Troybilt lawn & garden equipment engine spark plug boot (replaces 27276, tc-610118)

Part #610118

This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Lawn & Garden Equipment Engine Carburetor Fuel Inlet Fitting (replaces 631470) 631807
#16

Replacement parts diagram

Lawn & garden equipment engine carburetor fuel inlet fitting (replaces 631470)

Part #631807

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Generac Lawn & Garden Equipment Engine Service Manual (replaces 692509, 730546, 740048) 740049

#NI

All parts diagram

Generac lawn & garden equipment engine service manual (replaces 692509, 730546, 740048)

Part #740049

This item is not returnable
$12.19 |
14% OFF Phone Price : $14.19
Back Order
