Samsung
Bottom-Mount Refrigerator

Model # RF268ACBP/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF268ACBP-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

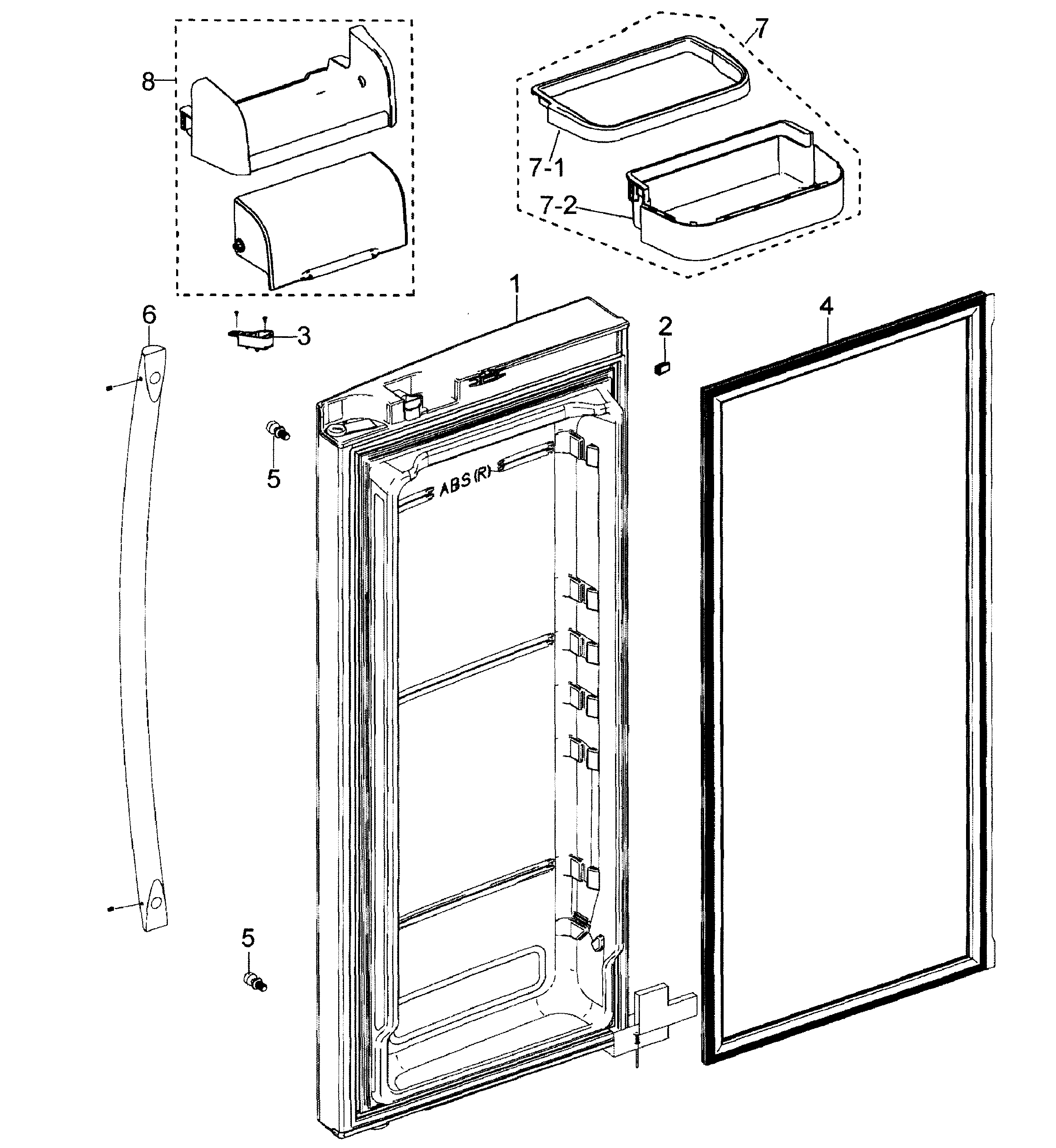

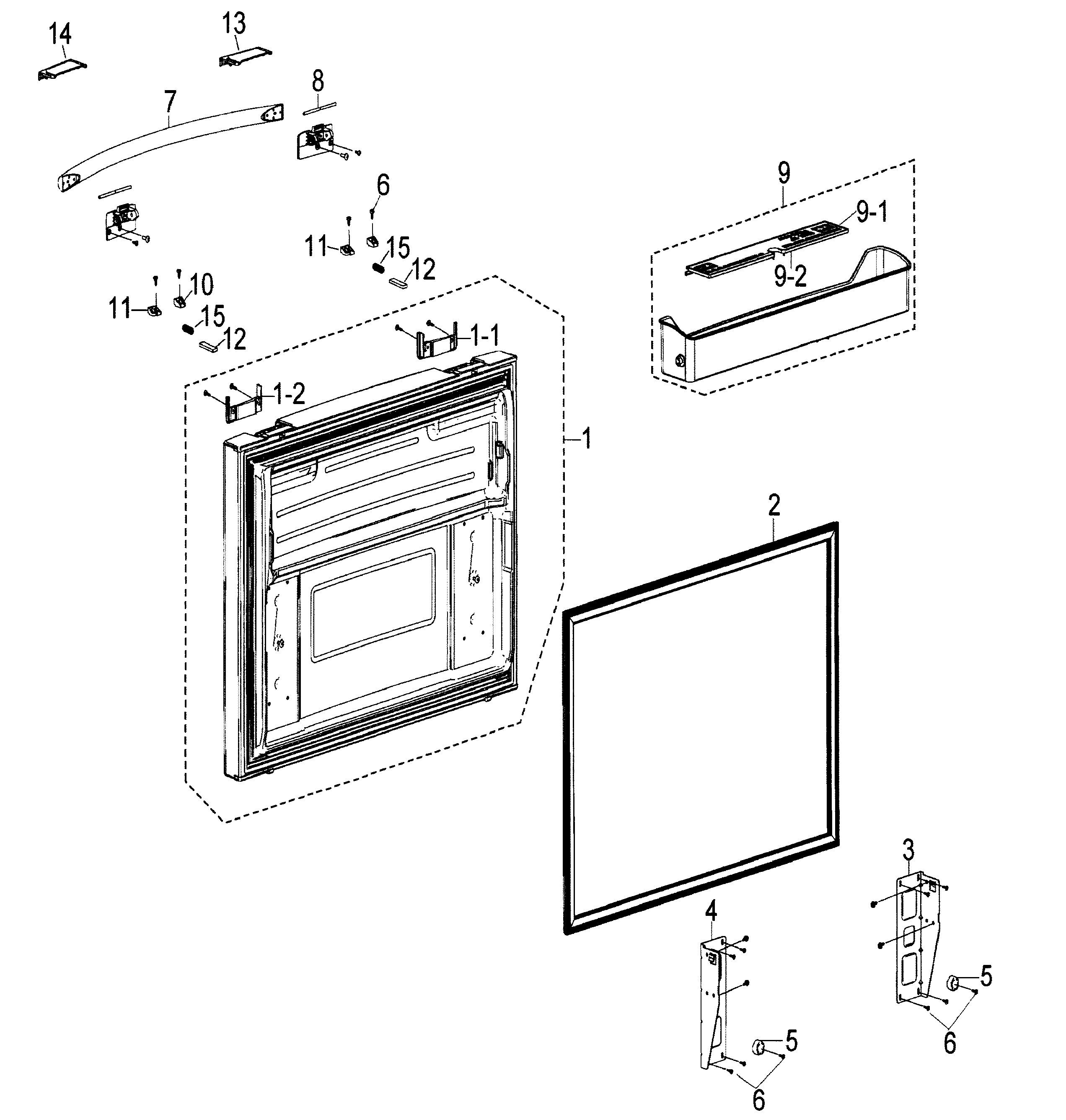

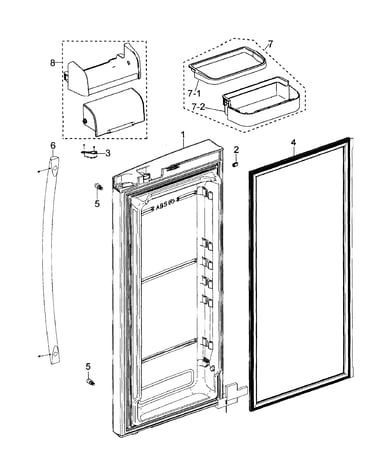

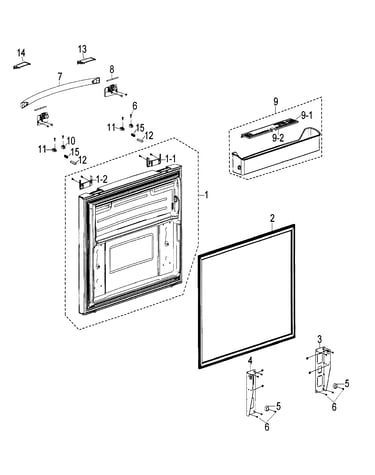

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Refrigerator Protector DA47-00243C
#1-3

Refrigerator diagram

Refrigerator protector

Part #DA47-00243C

Replaced by #DA47-00243K

?
Manufacturer substitution
This part replaces DA47-00243C. Substitute parts can look different from the original.
BEST SELLER
$42.63 |
12% OFF Phone Price : $48.63
In Stock
Refrigerator Protector DA47-00243B
#1-3

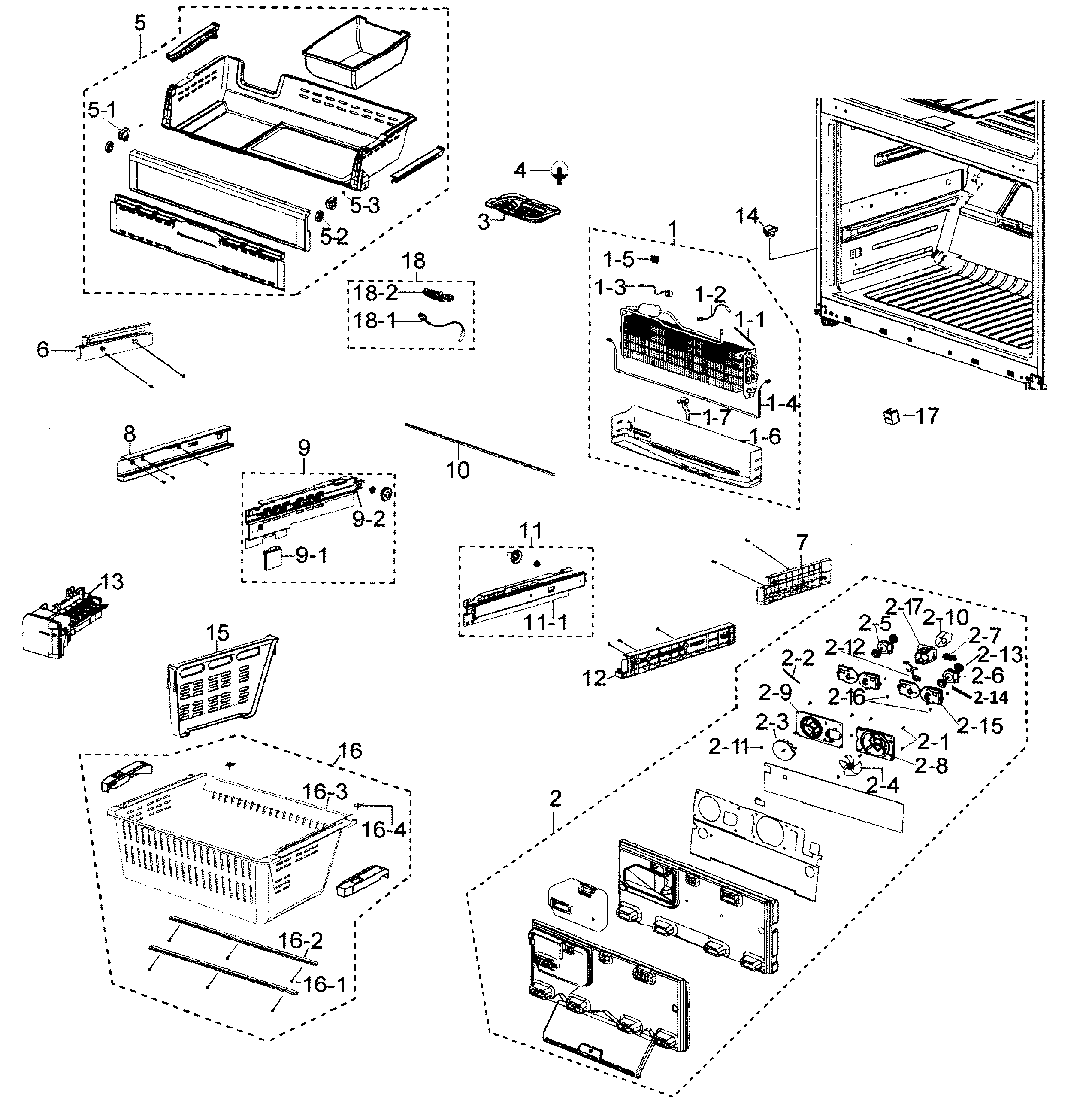

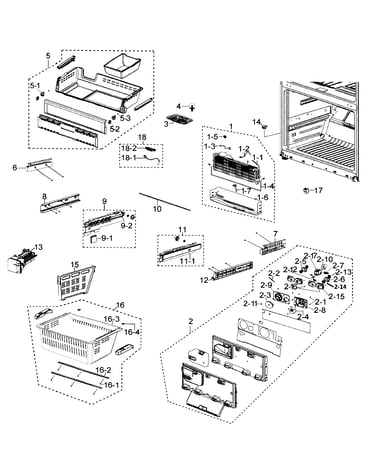

Freezer assy diagram

Refrigerator protector

Part #DA47-00243B

Replaced by #DA47-00243K

?
Manufacturer substitution
This part replaces DA47-00243B. Substitute parts can look different from the original.
BEST SELLER
$42.63 |
12% OFF Phone Price : $48.63
In Stock
Refrigerator Compressor (replaces Bk190cl2c/e01, Bk190cl2ce01, Bk190cl2ce02) BK190CL2C/E02
#17

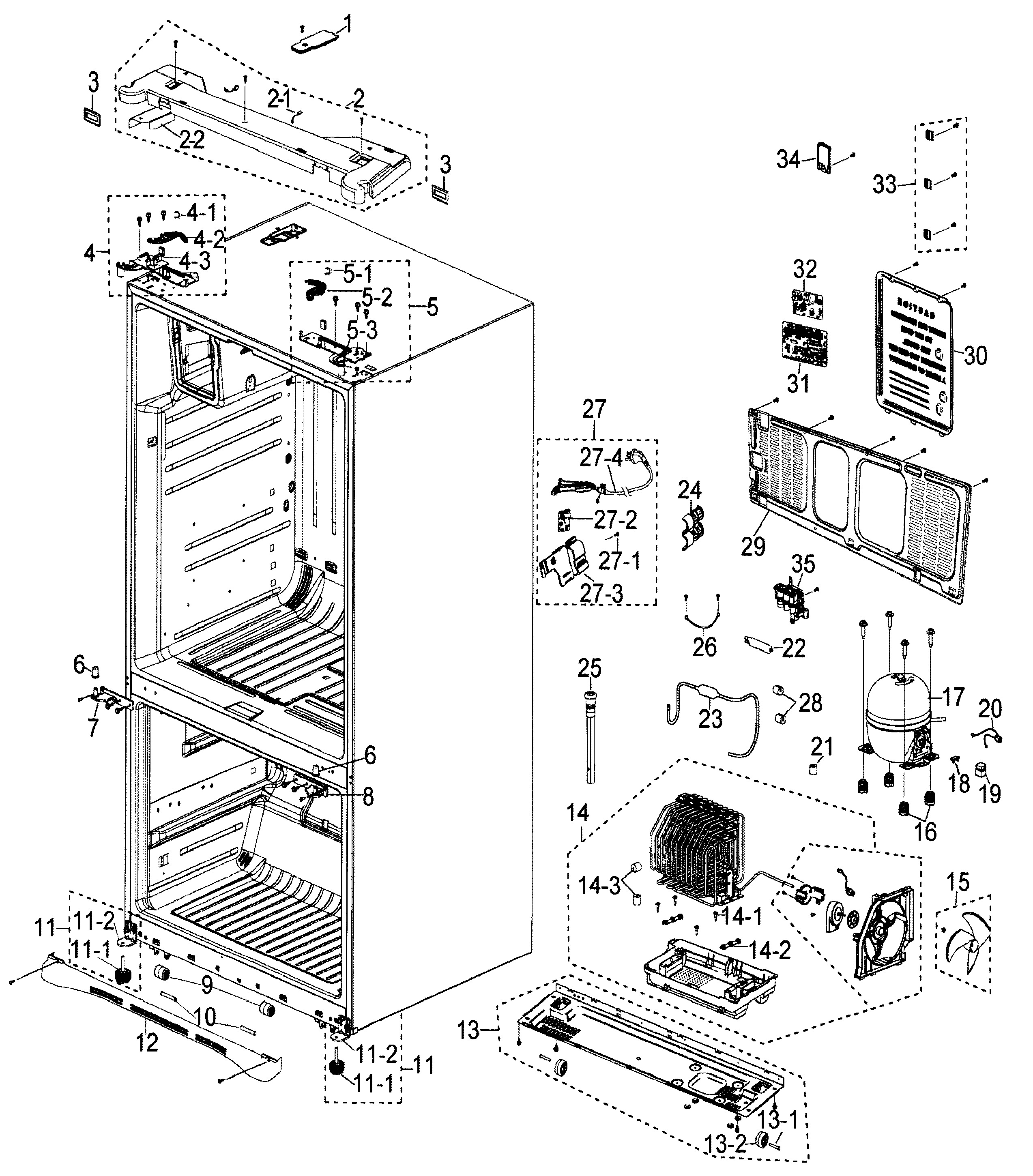

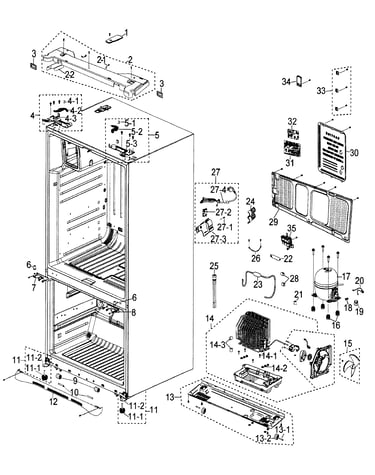

Cabinet assy diagram

Refrigerator compressor (replaces bk190cl2c/e01, bk190cl2ce01, bk190cl2ce02)

Part #BK190CL2C/E02

BEST SELLER
$278.27 |
$12.00 OFF Phone Price : $290.27
Back Order
Refrigerator Evaporator Fan Motor (replaces Da31-00146c) DA31-00146H
#3-3

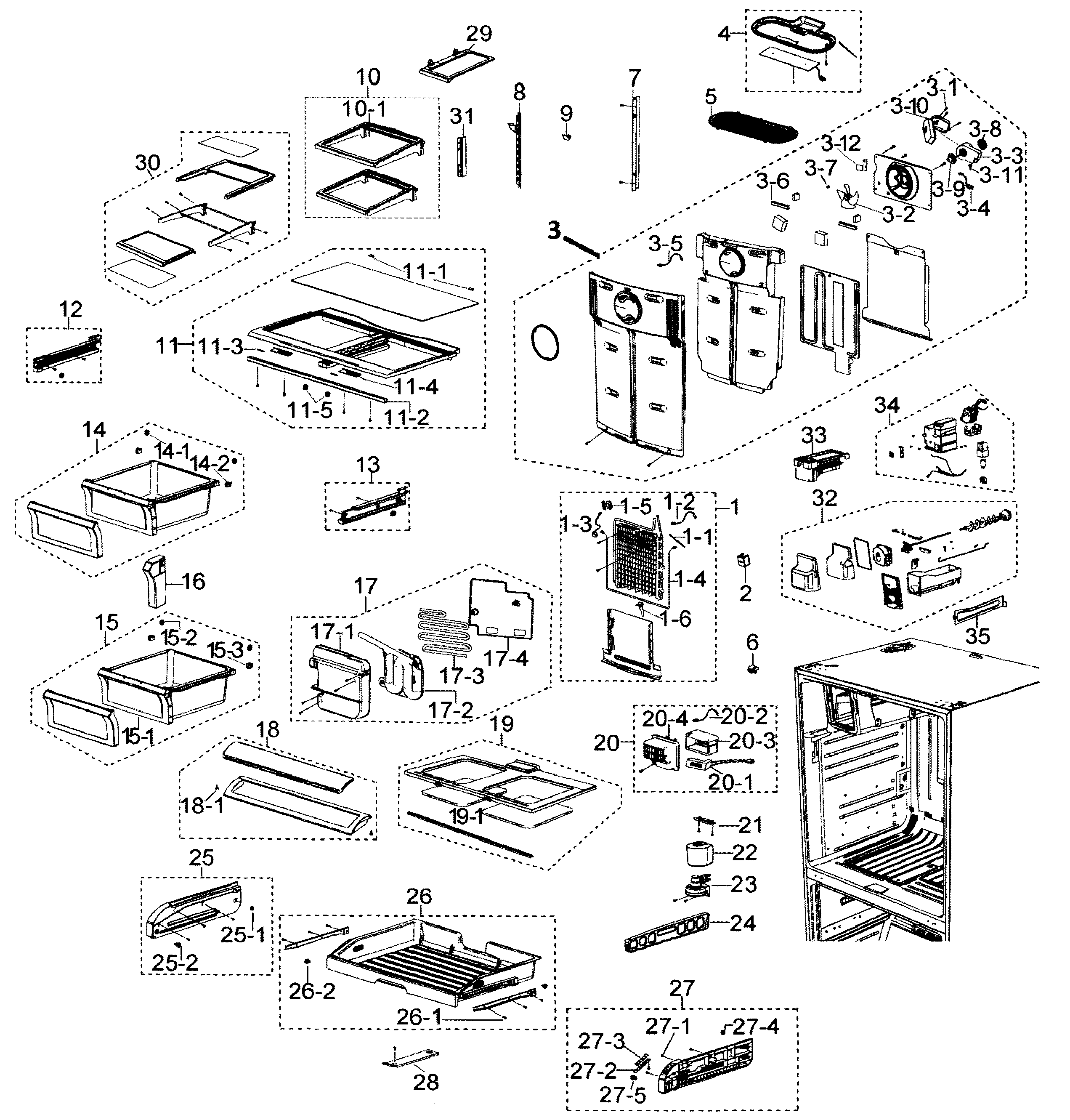

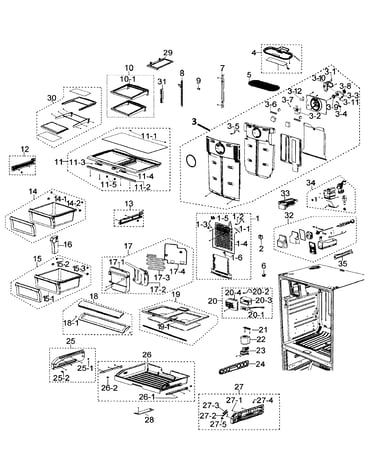

Refrigerator diagram

Refrigerator evaporator fan motor (replaces da31-00146c)

Part #DA31-00146H

BEST SELLER
$96.97 |
11% OFF Phone Price : $108.97
In Stock
Refrigerator Flipper Assembly DA97-07276B
#8

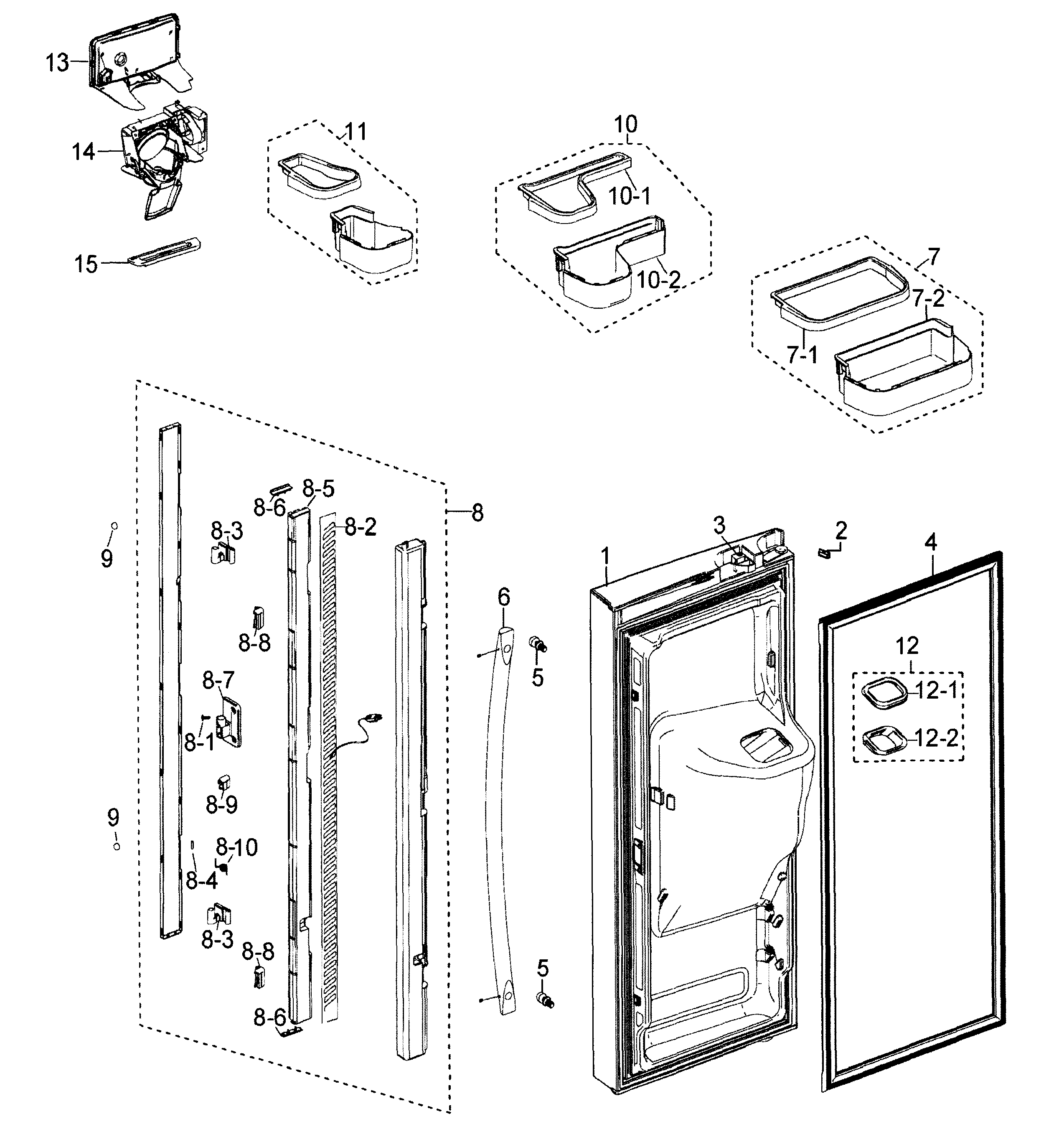

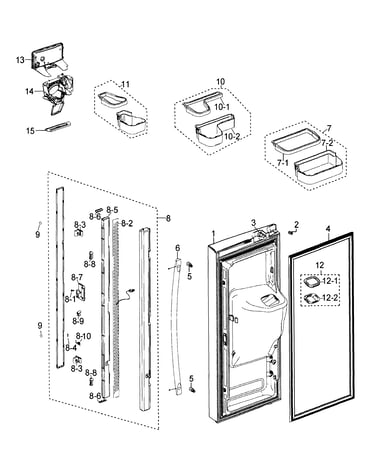

Left door diagram

Refrigerator flipper assembly

Part #DA97-07276B

Replaced by #DA97-12683B

?
Manufacturer substitution
This part replaces DA97-07276B. Substitute parts can look different from the original.
BEST SELLER
$124.80 |
9% OFF Phone Price : $136.80
In Stock
Refrigerator Compressor Overload Protector DA34-00004D
#18

Cabinet assy diagram

Refrigerator compressor overload protector

Part #DA34-00004D

BEST SELLER
$43.34 |
12% OFF Phone Price : $49.34
In Stock
Refrigerator Spring (replaces Da61-07471a, Da81-01345a) DA81-01345B
#8-10

Left door diagram

Refrigerator spring (replaces da61-07471a, da81-01345a)

Part #DA81-01345B

BEST SELLER
$9.55 |
9% OFF Phone Price : $10.55
In Stock
Refrigerator Condenser Fan (replaces Da31-00220a) DA31-00146B
#2-5

Freezer assy diagram

Refrigerator condenser fan (replaces da31-00220a)

Part #DA31-00146B

BEST SELLER
$92.34 |
6% OFF Phone Price : $98.34
In Stock
Refrigerator Screw (replaces 6002-000231, 6002-000494) 6002-000213
Refrigerator screw (replaces 6002-000231, 6002-000494)

Part #6002-000213

BEST SELLER
This item is not returnable
$2.26
In Stock
Refrigerator Freezer Evaporator Fan Motor (replaces Da31-00146g, W10126745, W10126746) DA31-00146E
#2-6

Freezer assy diagram

Refrigerator freezer evaporator fan motor (replaces da31-00146g, w10126745, w10126746)

Part #DA31-00146E

BEST SELLER
$99.11 |
11% OFF Phone Price : $111.11
In Stock
