Model # KM908FMP1 Official Hotpoint air conditioner

Here are the diagrams and repair parts for Official Hotpoint KM908FMP1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Screw WZ4X386

#NI

All parts diagram

Screw

Part #WZ4X386

This item is not returnable
$3.49
In Stock
Spring Gr WJ2X258
#400B

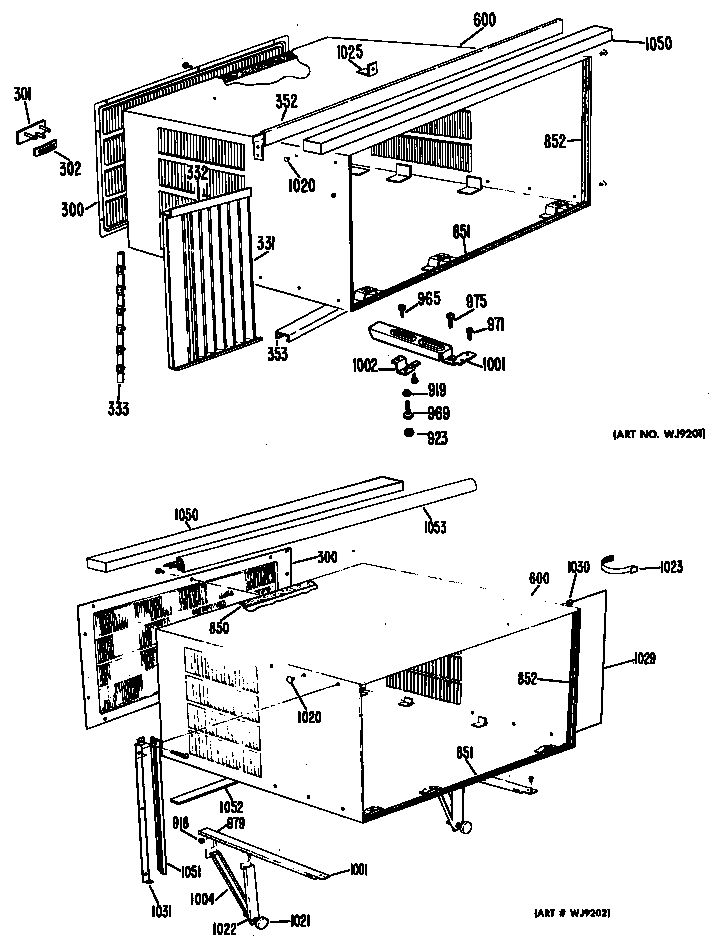

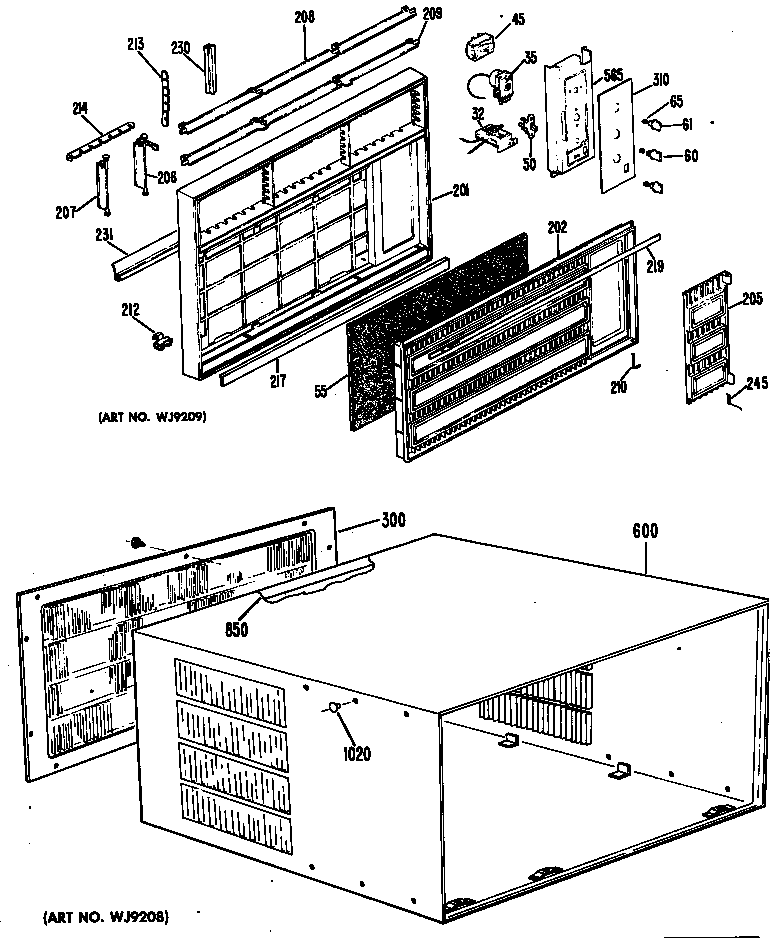

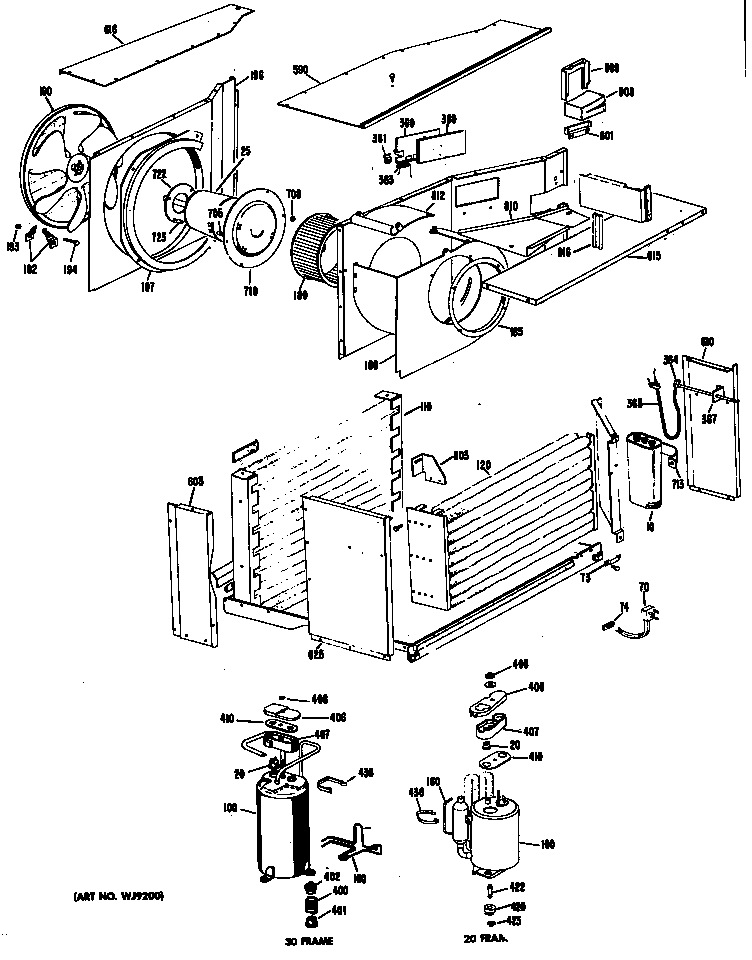

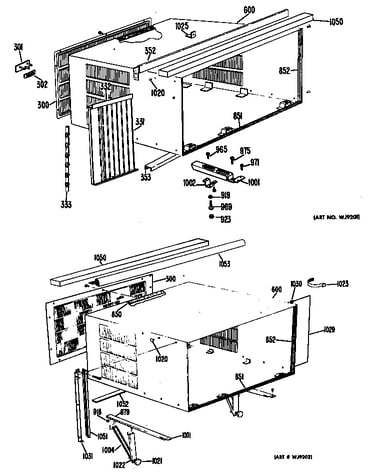

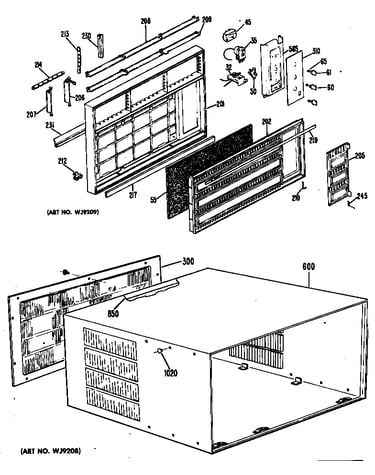

Chassis diagram

Spring gr

Part #WJ2X258

$17.49
In Stock
Com Overload WJ23X174
#20

Chassis diagram

Com overload

Part #WJ23X174

$38.49
In Stock
Gasket WJ43X333
#410

Chassis diagram

Gasket

Part #WJ43X333

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer WJ1X292
#408

Chassis diagram

Nut washer

Part #WJ1X292

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly WJ79X232
#590

Chassis diagram

Cover assembly

Part #WJ79X232

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly WJ90X43
Cabinet assembly

Part #WJ90X43

The manufacturer no longer makes this part, and there's no substitute part

Motor Resistor WJ94X517
#0

Chassis diagram

Motor resistor

Part #WJ94X517

The manufacturer no longer makes this part, and there's no substitute part

Screw WZ2X529

#NI

All parts diagram

Screw

Part #WZ2X529

The manufacturer no longer makes this part, and there's no substitute part
