Craftsman
Miter Saw

Model # 113234580 Official Craftsman 8-1/4" compound miter saw

Here are the diagrams and repair parts for Official Craftsman 113234580 8-1/4" compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Lock Nut 818656
Lock nut

Part #818656

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Pivot Clamp Bolt 816863
#17

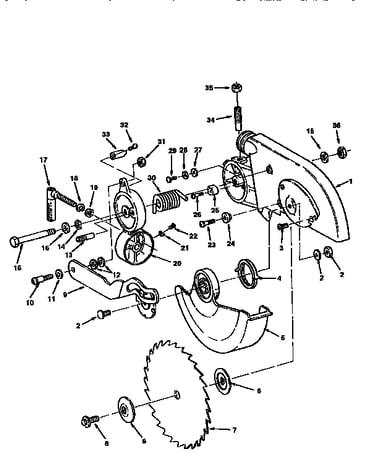

Guard assembly diagram

Miter saw pivot clamp bolt

Part #816863

The manufacturer no longer makes this part, and there's no substitute part

Nut 817449-1
#31

Guard assembly diagram

Nut

Part #817449-1

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Motor Brush 818664
#3

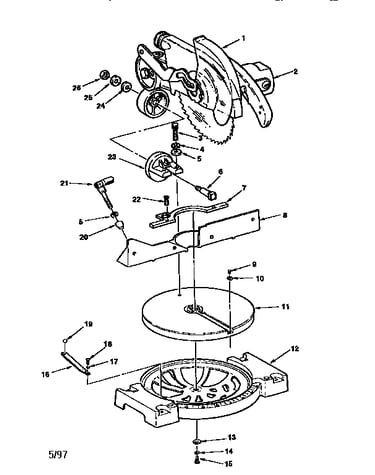

Motor and gear box assembly diagram

Miter saw motor brush

Part #818664

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Screw, M4 X 12 (black) 817357-1
#12

Motor and gear box assembly diagram

Pan head screw, m4 x 12 (black)

Part #817357-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 808277-11
#5

Motor and gear box assembly diagram

Screw

Part #808277-11

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 821859
#24

Guard assembly diagram

Sleeve

Part #821859

The manufacturer no longer makes this part, and there's no substitute part

Screw 813313-2
#26

Guard assembly diagram

Screw

Part #813313-2

The manufacturer no longer makes this part, and there's no substitute part

Guard 821986
#4

Guard assembly diagram

Guard

Part #821986

The manufacturer no longer makes this part, and there's no substitute part

Lock Button 818786
#10

Motor and gear box assembly diagram

Lock button

Part #818786

The manufacturer no longer makes this part, and there's no substitute part
