Model # WR87X0265 Official Hotpoint hi-side assembly

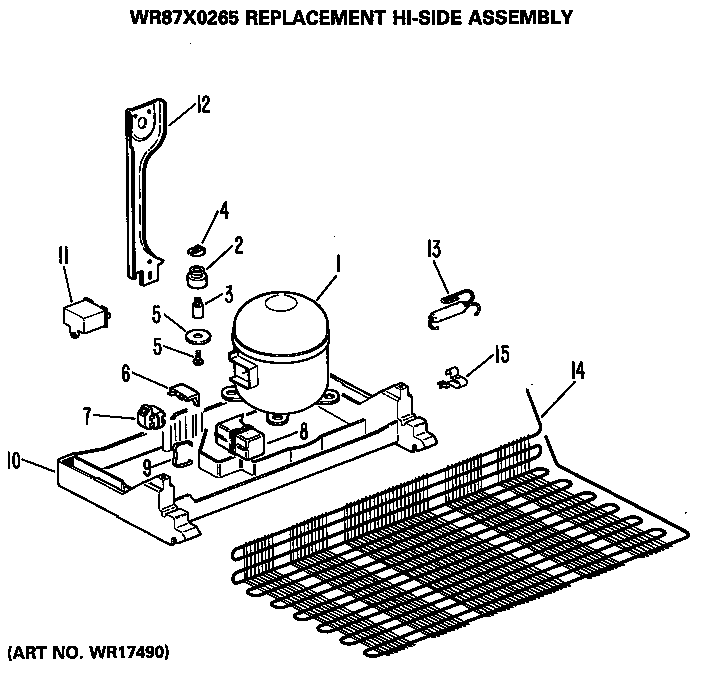

Here are the diagrams and repair parts for Official Hotpoint WR87X0265 hi-side assembly, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
WR87X0265 Refrigerators
#7

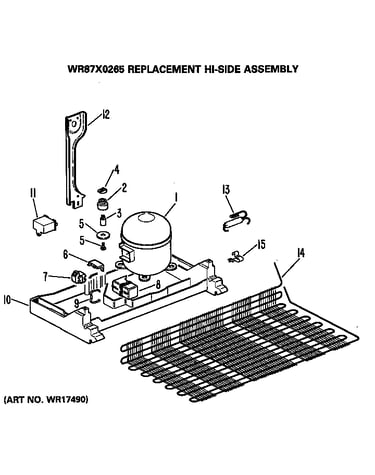

Replacement hi-side assembly diagram
Refrigerator relay
Part #WR7X194
Replaced by #WR07X26748
?
Manufacturer substitution
This part replaces WR7X194. Substitute parts can look different from the original.
This item is not returnable
$13.37 |
13% OFF Phone Price : $15.37
In Stock
#11
Replacement hi-side assembly diagram
Refrigerator run capacitor (replaces swr62x43, swr62x46, wr62x0051, wr62x43, wr62x46, wr62x63)
Part #WR62X51
This item is not returnable
$27.79 |
18% OFF Phone Price : $33.79
In Stock
#3
Replacement hi-side assembly diagram
Refrigerator compressor mounting post
Part #WR1X1779
$7.57 |
12% OFF Phone Price : $8.57
In Stock
#5A
Replacement hi-side assembly diagram
Refrigerator screw
Part #WR1X1786
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#1
Replacement hi-side assembly diagram
Hi side asm
Part #WR87X246
Replaced by #WR87X10079
?
Manufacturer substitution
This part replaces WR87X246. Substitute parts can look different from the original.
$695.76 |
$12.00 OFF Phone Price : $707.76
In Stock
#13
Replacement hi-side assembly diagram
Dryer assembly
Part #WR86X86
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
$79.18 |
7% OFF Phone Price : $85.18
In Stock
#5B
Replacement hi-side assembly diagram
Washer
Part #WR1X1780
The manufacturer no longer makes this part, and there's no substitute part
#2
Replacement hi-side assembly diagram
Grommet
Part #WR2X7238
The manufacturer no longer makes this part, and there's no substitute part
#6
Replacement hi-side assembly diagram
Refrigerator guard
Part #WR8X98
The manufacturer no longer makes this part, and there's no substitute part
#4
Replacement hi-side assembly diagram
Refrigerator clip
Part #WR2X7228
The manufacturer no longer makes this part, and there's no substitute part
