Model # WME085A59AA0 Official Kenmore electric furnace
Here are the diagrams and repair parts for Official Kenmore WME085A59AA0 electric furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
WME085A59AA0 Electric Furnace
#59

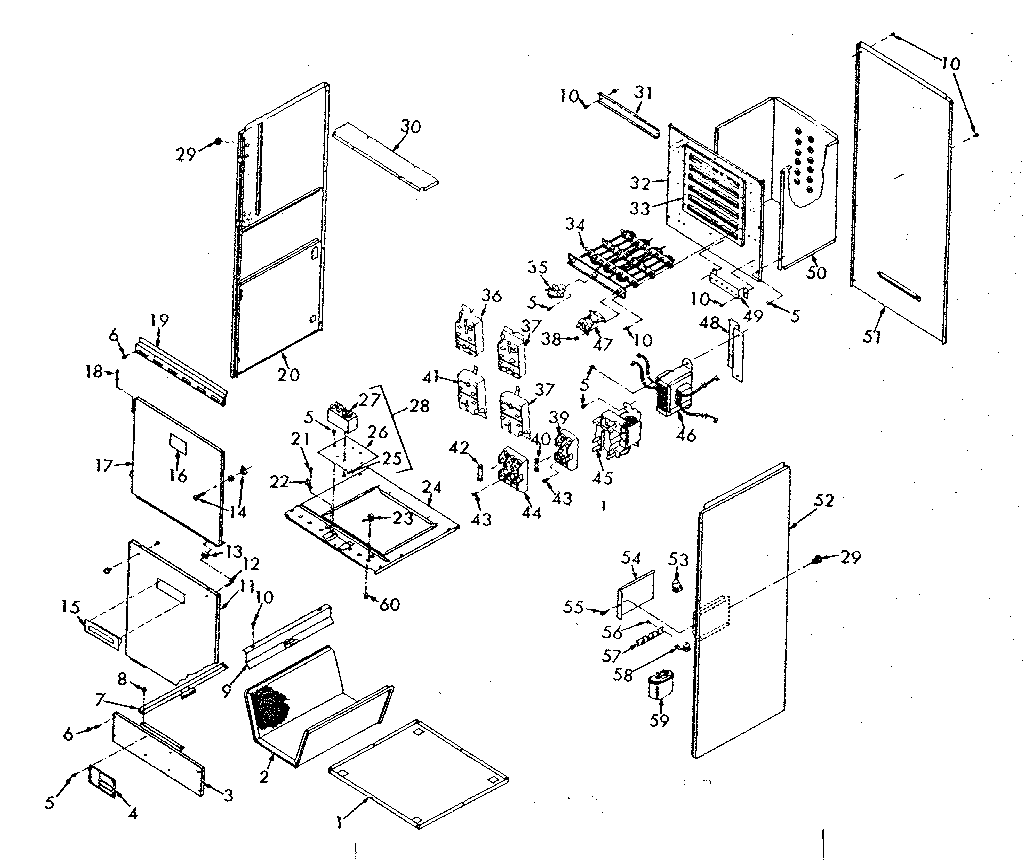

Replacement parts diagram
Capacitor
Part #91593
Replaced by #12908
?
Manufacturer substitution
This part replaces 91593. Substitute parts can look different from the original.
$107.77 |
10% OFF Phone Price : $119.77
In Stock
#35
Replacement parts diagram
Limit switch
Part #91588
Replaced by #3L05-1
?
Manufacturer substitution
This part replaces 91588. Substitute parts can look different from the original.
$35.55 |
14% OFF Phone Price : $41.55
In Stock
#45
Replacement parts diagram
Relay
Part #604199
The manufacturer no longer makes this part, and there's no substitute part
#10
Blower assembly diagram
Motor
Part #604004
Replaced by #45461
?
Manufacturer substitution
This part replaces 604004. Substitute parts can look different from the original.
$297.33
In Stock
#12
Replacement parts diagram
Strike
Part #602089
The manufacturer no longer makes this part, and there's no substitute part
#46
Replacement parts diagram
Transformer
Part #601508
The manufacturer no longer makes this part, and there's no substitute part
#13
Replacement parts diagram
Catch
Part #602090
Replaced by #279570
?
Manufacturer substitution
This part replaces 602090. Substitute parts can look different from the original.
This item is not returnable
$4.13 |
19% OFF Phone Price : $5.13
In Stock
#11
Blower assembly diagram
Wheel
Part #601211
Replaced by #601211
?
Manufacturer substitution
This part replaces 601211. Substitute parts can look different from the original.
$267.89
In Stock
#NI
All parts diagram
Thermostat
Part #42-9235
The manufacturer no longer makes this part, and there's no substitute part
#22
Replacement parts diagram
Lug
Part #91590
Replaced by #1172300
?
Manufacturer substitution
This part replaces 91590. Substitute parts can look different from the original.
This item is not returnable
$6.54
In Stock
